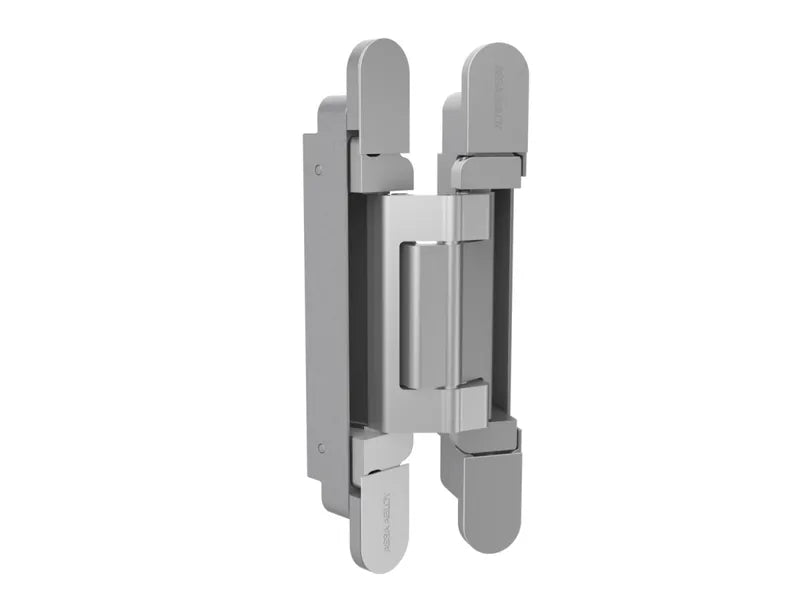

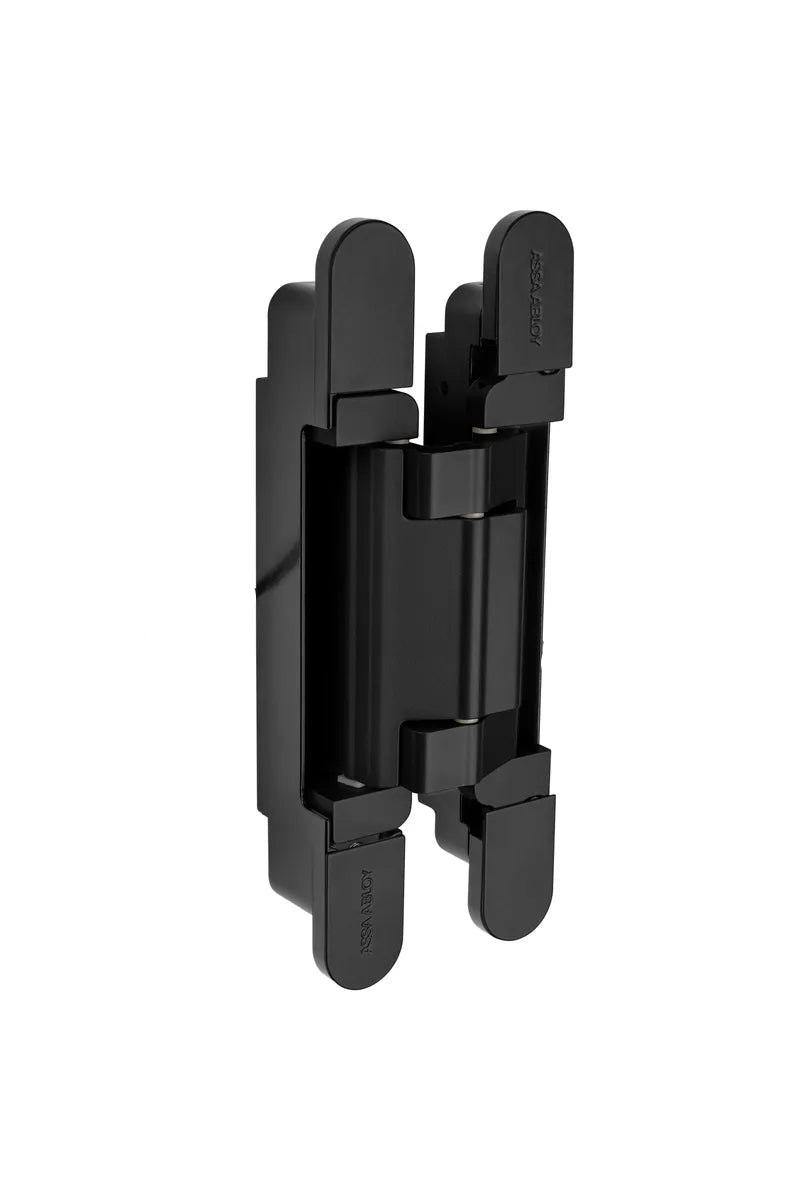

The MK200 and MK200ME are concealed hinges for wood or hollow metal doors with a 1-3/4" minimum thickness, are non-handed and include magnetic covers. MK200ME is corrosion-resistant. MK200ME is electrified, allowing for a constant flow of current from a power source through the hinge to electrified door hardware, including locks, strikes, and exit devices.
Product Overview
Features
- For use on wood or hollow metal doors that are a minimum 1-3/4" thick
- Magnetic covers included
- 260mm (10.24") hinge length, 32mm (1.26") hinge width
- Can hold doors up to 609 lbs.
- 3-dimensional adjustability, 180° opening angle
- Base Materials: Hinge body - zinc alloy, Hinge arms - aluminum, Hinge covers - steel
- Concealed circuit and ElectroLynx® Quick Connect 12-wire options available (MK200ME)
- ANSI/BHMA A156.1 Triple Weight Testing Accomplished
- Cataphoresis coating provides a durable and corrosion-resistant surface
Benefits
- Easy installation and door alteration
- Keeps the door clean and minimal
- No visible exposure on the outside of the opening
- Magnetic covers conceal screws for a clean aesthetic
- Prevents tampering, increases security
- Greater hinge capacity than all other McKinney concealed hinge models
- Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that lead or snap together, be resistant to tampering as there are no external wires, and improve the overall look of the access door (MK200ME)
| Inches | Millimeters | Gauge | No. of Holes | Fastener |
|---|---|---|---|---|
|
10 1/4" x 1 3/8" |
260 x 36 |
10 1/4 |
8 |
Metal: M5 x 20 screws, Wood: 35mm PHWS |
Specifications
- Handing: Non-handed
| Number of Hinges | Door Width | ||||
|---|---|---|---|---|---|
| 32" | 36" | 38" | 42" | 48" | |
| 2 | 487 lbs | 434 lbs | 417 lbs | 373 lbs | 326 lbs |
| 3 | 548 lbs | 489 lbs | 469 lbs | 419 lbs | 367 lbs |
| 4 | 609 lbs | 543 lbs | 521 lbs | 466 lbs | 408 lbs |
