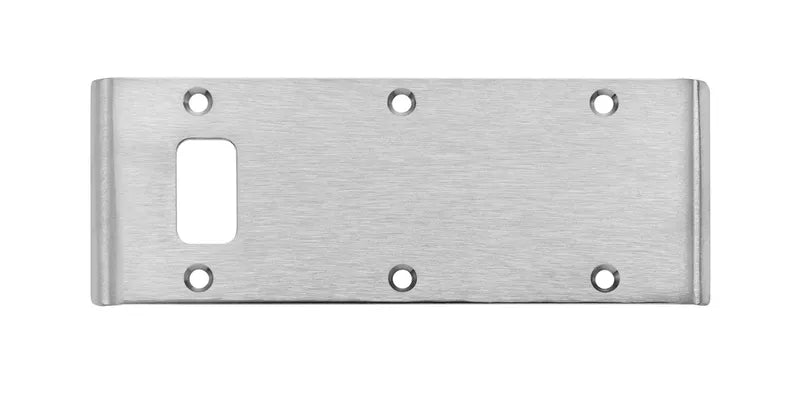

This double-lipped strike allows center hung or 1/8" inset doors to be opened in both directions without damaging the frame, recommended for installations on hospital or nursing home bathroom doors along with our EP-5J and DS-6 Emergency Stop.
Product Overview
Features
- Allows center-hung or 1/8" inset doors to be opened in both directions
- Cannot be used with deadbolts
- For use with cylindrical or bored locks
- Can be manufactured for the following mortise locks:
- SARGENT 7900 and 8200 (no deadbolt function)
Corbin Russwin ML2000 (no deadbolt function)
ASSA ABLOY ACCENTRA® 8800 (no deadbolt function). When ordering, specify the lock and model function
Latch bolt location for frame sizes 5-3/4" and 6-3/4" - Custom units available for frame sizes 3-1/2" to 10". Consult the factory for availability
- For use on 1-3/4" thick doors
Benefits
- Custom units available, consult the factory for availability
- Does not damage the door frame
- Doors can be opened in both directions to allow access to the inside in case of emergencies
| Inches | Millimeters | Gauge | No. of Holes | Fastner |
|---|---|---|---|---|
|
0.095 |
6 |
Machine: 1/2 x 8-32 |
||
|
0.095 |
6 |
Machine: 1/2 x 8-32 |
||
|
0.095 |
6 |
Machine: 1/2 x 8-32 |
||
|
0.095 |
6 |
Machine: 1/2 x 8-32 |
||
|
0.095 |
6 |
Machine: 1/2 x 8-32 |
