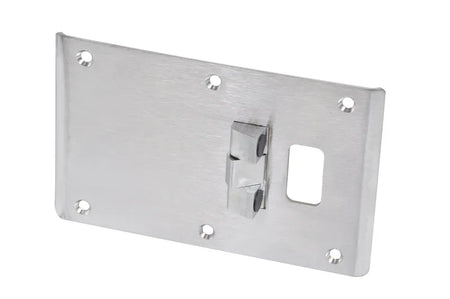

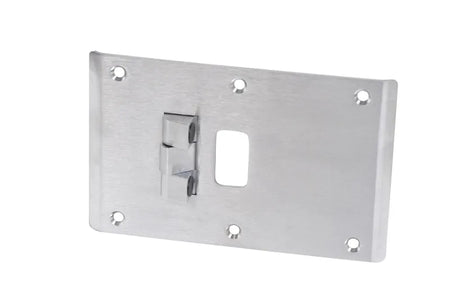

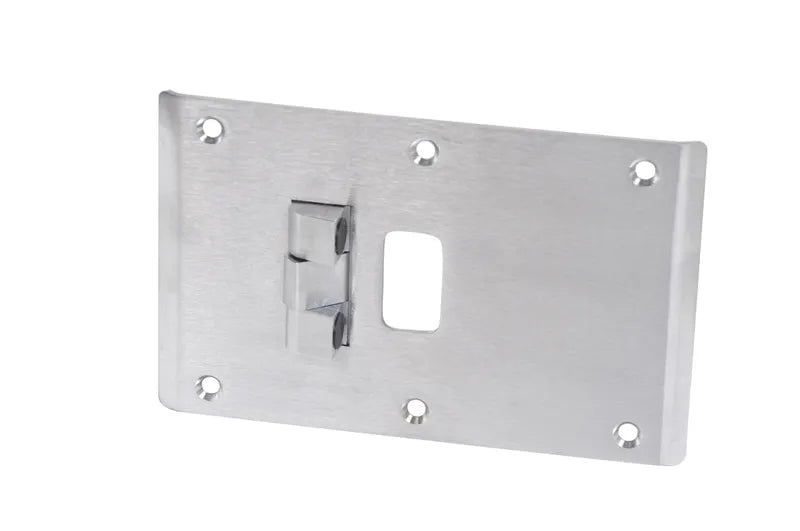

This combination strike and stop allows center hung or 1/8" inset doors to be opened in both directions without damaging the frame, recommended for installations on hospital or nursing home bathroom doors along with our EP-5J.
Product Overview
Features
- For use with cylindrical or bored locks
- Cannot be used with deadbolts
- Can be manufactured for the following mortise locks:
- SARGENT 7900 and 8200 (no deadbolt function)
- Corbin Russwin ML2000 (no deadbolt function)
- ASSA ABLOY ACCENTRA® 8800 (no deadbolt function) When ordering, specify lock and model function
- Available in offset or center hung latch bolts location for frame sizes 5-3/4", 5-7/8", and 6-3/4"
- Custom units available for frame sizes 3-1/2" to 10"; consult factory for availability
- For use on 1-3/4" thick doors
- Please provide the order form for all CSS-9 orders
Benefits
- Does not damage the door frame
- Doors can be opened in both directions to allow access to the inside in case of emergencies
| Inches | Millimeters | Gauge | No. of Holes | Fastner |
|---|---|---|---|---|
|
0.095 |
6 |
Machine: 1/2 x 8-32 |
||
|
0.095 |
6 |
Machine: 1/2 x 8-32 |
||
|
0.095 |
6 |
Machine: 1/2 x 8-32 |
