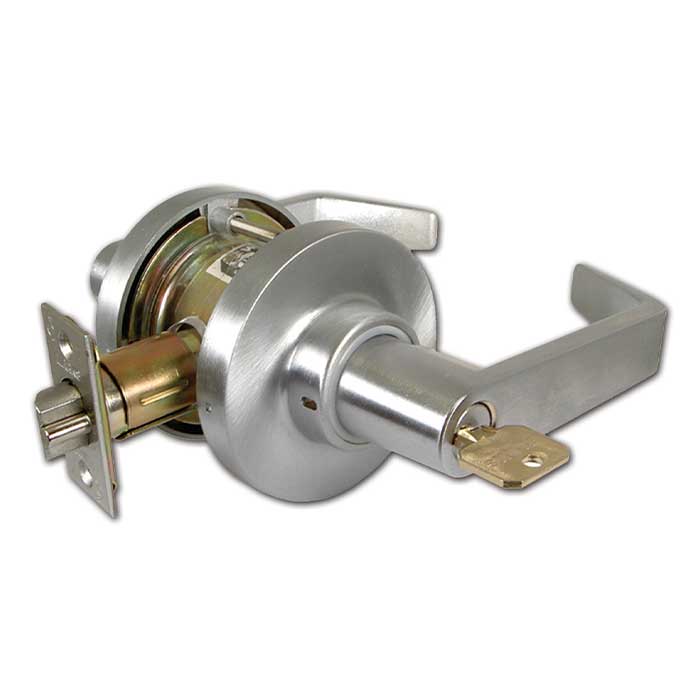

Marks 175AB Entry Lever
by Marks USA
$ 87.00
Grade 2 Survivor Series, American Lever, Entry, 2-3/4" Backset, ASA Strike, C Keyway, US26D Satin Chrome
Related products
Schlage S200 interconnected locks are designed to offer easy egress and dependable security with four single- or double-keyed functions each made for single motion egress. Focusing on safety, security and long-lasting performance, this lock is tested to exceed 400,000 ANSI cycles. The S200 is easy to install, service, and maintain to keep people and property secure.
Ideal for use on multifamily entrances, military-housing entrances, and small hotel/motel buildings.
Security
- UL listed for 3-hour fire door
- Heat-treated steel locking components for extra strength
- Solid zinc bolt with hardened steel anti-saw pin
- Metal wood frame reinforcer uses 3" screws to anchor deep into wood door frame to protect against kick-in attacks
- Free spinning, cylinder collar resists wrenching and prying
- Removeable security shield protects bolt from ice-pick attack through the door
- Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- UL 437 listed option resists drilling and physical attack on the cylinder
Aesthetics
- Four lever options in solid cast zinc for strength and quality
- Two escutcheon designs
- Seven available finish options
Functional features
- Five functions include single and double locking options plus a non-keyed dummy function
- Adjustable backset has a lock-in-place helix design
Built to Last
- Independent heavy-duty lever torsion springs for durability and long life
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
Non-keyed dummy functions
- S290 Single dummy trim (ANSI F75)
Keyed functions
Single cylinder
- S210 Entrance, single locking (ANSI F95)
- S251 Entrance, double locking (ANSI F97)
- S270 Classroom lock
- S280 Storeroom lock (ANSI F98)
Material
- Deadbolt: Zinc with hardened steel anti-saw pin insert
- Deadbolt trim ring: 7/16" and 1/8" solid brass
- Cylinder: Solid brass in a solid zinc housing
- Deadbolt wood frame reinforcer: Metal with 3" screws standard
- Latchbolt dust box: Polypropylene
- Chassis: Zinc and steel components zinc dichromate plated for corrosion resistance
Door Thickness
- Door thickness: 1-3/8" to 2" (35 mm to 51 mm) standard
- Non-handed except Flair design
Trim Options
- Four lever designs made of pressure cast zinc, plated to match product finish specification
- Escutcheons: wrought brass, plated to match product finish specification
Deadbolt
- 1" housing diameter; 0.81" x 0.62" x 1" throw
- Backset: adjustable for 2-3/8" (60 mm) or 2-3/4" (70 mm) standard for standard non-fire-rated and optional fire-rated versions; fire-rated deadbolt with 5" fixed backset optional
- Faceplate: square corner 1-1⁄8" x 2-1/4" (29 mm x 57 mm) standard; round corner options available
- Strike: 1-1/8" x 2-3/4" with square corners standard; ANSI, round cornered, and thimble options available
Latch
- Backset: Adjustable 2-3/8" or 2-3/4" backset (60 mm or 70 mm) standard; 5" optional
- Latchbolt: 1/2" (13 mm) throw brass, chrome plated standard
- Faceplate: square corner 1" x 2-1/4" (25 mm x 57 mm) standard; round corner option available
- Strike: 1-1⁄8" x 2-3/4" (29 mm x 70 mm) T-strike standard; ANSI and radius corner strike options available
- Strike lip length: 1-1⁄8" (29 mm) standard; extended lip strikes - 1-1/4" to 2" optional
Related Product Information
Product Information
Technical resources
- Schlage S200 Series Templates Index
- Schlage S200 Series S210 S251 S270 S280 Installation Instructions
- Schlage S200-Series Interconnected Locks
Expert Tips on Schlage Lever Handle Removal
Training on Demand Library of Virtual Event Trainings
Allegion 101 Sercure the Door: Intro to Schlage Cylinders, Keys and Key Systems
ALX50PD Entrance/Office Lever Lock
Dependable performance for high traffic commercial applications.
At Schlage we know that every product you specify has to stand up to constant use, while meeting your needs for security at every level. Our ALX-Series locks are designed to deliver ADA compliant accessibility and constant, reliable performance. The ALX-Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retailspaces and hotel guest areas. With a Grade 2 ANSI rating, and styles and finishes to suit your building’s design, the AL-Series fits right where you need it.
Entrance/office lock Features
• Push-button locking.
• Push-button locks outside lever until it is unlocked with a key or by rotating the inside lever.
• Inside lever always free for immediate egress.
The lever that looks as good as it performs.
•Cold-rolled steel, machined and threaded hubs, and locking nuts prevent loosening of the lockset by securely bolting chassis to the door
•Large diameter of mounting plate and rose covers new ANSI hollow metal door cutout
•Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick
•Cold-rolled steel, machined and threaded hubs, and locking nuts prevent loosening of the lockset by securely bolting chassis to the door
•Large diameter of mounting plate and rose covers new ANSI hollow metal door cutout
•Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick
Door Handing
All Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.
- LEVER STYLES: FINISHES:
- Saturn 626-605-606
- Neptune 612-613-625
- Jupiter
- Omega
Specifications
Handing: Non-handed.
Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
Lock Chassis: Steel, zinc dichromated for corrosion resistance
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty: Three-year limited.
Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
Lock Chassis: Steel, zinc dichromated for corrosion resistance
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty: Three-year limited.
Certifications:
ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements. Meets A117.1 Accessibility Code.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act. In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities. The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act. In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities. The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
ALX80P Storeroom Lever Lock. Dependable performance for high traffic commercial applications.
At Schlage we know that every product you specify has to stand up to constant use, while meeting your needs for security at every level. Our ALX-Series locks are designed to deliver ADA compliant accessibility and constant, reliable performance. The ALX-Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retailspaces and hotel guest areas. With a Grade 2 ANSI rating, and styles and finishes to suit your building’s design, the AL-Series fits right where you need it.
ALX80P-Storeroom lock
Outside lever is fixed.
Entrance by key only.
Inside lever is always unlocked.
Inside lever always free for immediate egress.
The lever that looks as good as it performs.
Cold-rolled steel, machined and threaded hubs, and locking nuts prevent loosening of the lockset by securely bolting chassis to the door
Large diameter of mounting plate and rose covers new ANSI hollow metal door cutout
Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick
Cold-rolled steel, machined and threaded hubs, and locking nuts prevent loosening of the lockset by securely bolting chassis to the door
Large diameter of mounting plate and rose covers new ANSI hollow metal door cutout
Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick
Door Handing
All Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.
- LEVER STYLES: FINISHES:
- Saturn 626-605-606
- Neptune 612-613-625
- Jupiter
- Omega
Specifications
Handing: Non-handed.
Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
Lock Chassis: Steel, zinc dichromated for corrosion resistance
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty: Three-year limited.
Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
Lock Chassis: Steel, zinc dichromated for corrosion resistance
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty: Three-year limited.
Certifications
ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements. Meets A117.1 Accessibility Code.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act. In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities. The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act. In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities. The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
Schlage ALX10S Passage Lever Lock. Dependable performance for high traffic commercial applications.
At Schlage we know that every product you specify has to stand up to constant use, while meeting your needs for security at every level. Our AL-Series locks are designed to deliver ADA compliant accessibility and constant, reliable performance. The AL-Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retailspaces and hotel guest areas. With a Grade 2 ANSI rating, and styles and finishes to suit your building’s design, the AL-Series fits right where you need it.
ALX10S-Passage latch
Both levers always unlocked.
Inside lever always free for immediate egress.
The lever that looks as good as it performs.
Cold-rolled steel, machined and threaded hubs, and locking nuts prevent loosening of the lockset by securely bolting chassis to the door
Large diameter of mounting plate and rose covers new ANSI hollow metal door cutout
Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick
Cold-rolled steel, machined and threaded hubs, and locking nuts prevent loosening of the lockset by securely bolting chassis to the door
Large diameter of mounting plate and rose covers new ANSI hollow metal door cutout
Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick
Door Handing
All Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.
- LEVER STYLES
- Saturn
- Neptune
- Jupiter
- Omega
Specifications
Handing: Non-handed.
Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
Lock Chassis: Steel, zinc dichromated for corrosion resistance
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty: Three-year limited.
Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
Lock Chassis: Steel, zinc dichromated for corrosion resistance
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty: Three-year limited.
Certifications
ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements. Meets A117.1 Accessibility Code.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act. In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities. The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act. In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities. The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
ALX53P Entrance Lever Lock. Dependable performance for high traffic commercial applications.
At Schlage we know that every product you specify has to stand up to constant use, while meeting your needs for security at every level. Our ALX-Series locks are designed to deliver ADA compliant accessibility and constant, reliable performance. The ALX-Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retailspaces and hotel guest areas. With a Grade 2 ANSI rating, and styles and finishes to suit your building’s design, the AL-Series fits right where you need it.
ALX53P-Entrance lock
Turn/push-button locking: pushing and turning button locks outside lever, requiring use of a key until the button is manually unlocked.
Push-button locking: push-button locks the outside lever until it is unlocked by key or by turning the inside lever.
Inside lever always free for immediate egress.
The lever that looks as good as it performs.
Cold-rolled steel, machined and threaded hubs, and locking nuts prevent loosening of the lockset by securely bolting chassis to the door
Large diameter of mounting plate and rose covers new ANSI hollow metal door cutout
Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick
Cold-rolled steel, machined and threaded hubs, and locking nuts prevent loosening of the lockset by securely bolting chassis to the door
Large diameter of mounting plate and rose covers new ANSI hollow metal door cutout
Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick
Door Handing
All Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.
- LEVER STYLES: FINISHES:
- Saturn 626-605-606
- Neptune 612-613-625
- Jupiter
- Omega
Specifications
Handing: Non-handed.
Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
Lock Chassis: Steel, zinc dichromated for corrosion resistance
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty: Three-year limited.
Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
Lock Chassis: Steel, zinc dichromated for corrosion resistance
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty: Three-year limited.
Certifications
ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements. Meets A117.1 Accessibility Code.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act. In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities. The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act. In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities. The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
