Lowe & Fletcher 2800 Mechanical Combination Lock
Product Description
The Lowe & Fletcher 2800 Mechanical Combination Lock provides affordable, reliable keyless security for lockers, cabinets, and storage compartments. Featuring a four-wheel combination mechanism with up to 10,000 unique codes, this compact mechanical lock offers convenient access control without requiring batteries or electronic components.
Designed for ease of use and versatile installation, the 2800 is available in public and private user modes to accommodate different storage requirements. Its durable zinc die-cast construction, powder-coated finish, and flexible mounting options make it a practical solution for commercial, recreational, and workplace environments.
The lock also features a code-finding mechanism with a 10-disc barrel and shutter cap, along with a code-changing function accessible when the lock is unlocked. With multiple faceplate colors, two operating directions, and customizable logo options, the Lowe & Fletcher 2800 combines practical functionality with flexible design.
Key Features & Benefits
-
10,000 Possible Combinations: Four-wheel combination mechanism offers a broad range of unique codes.
-

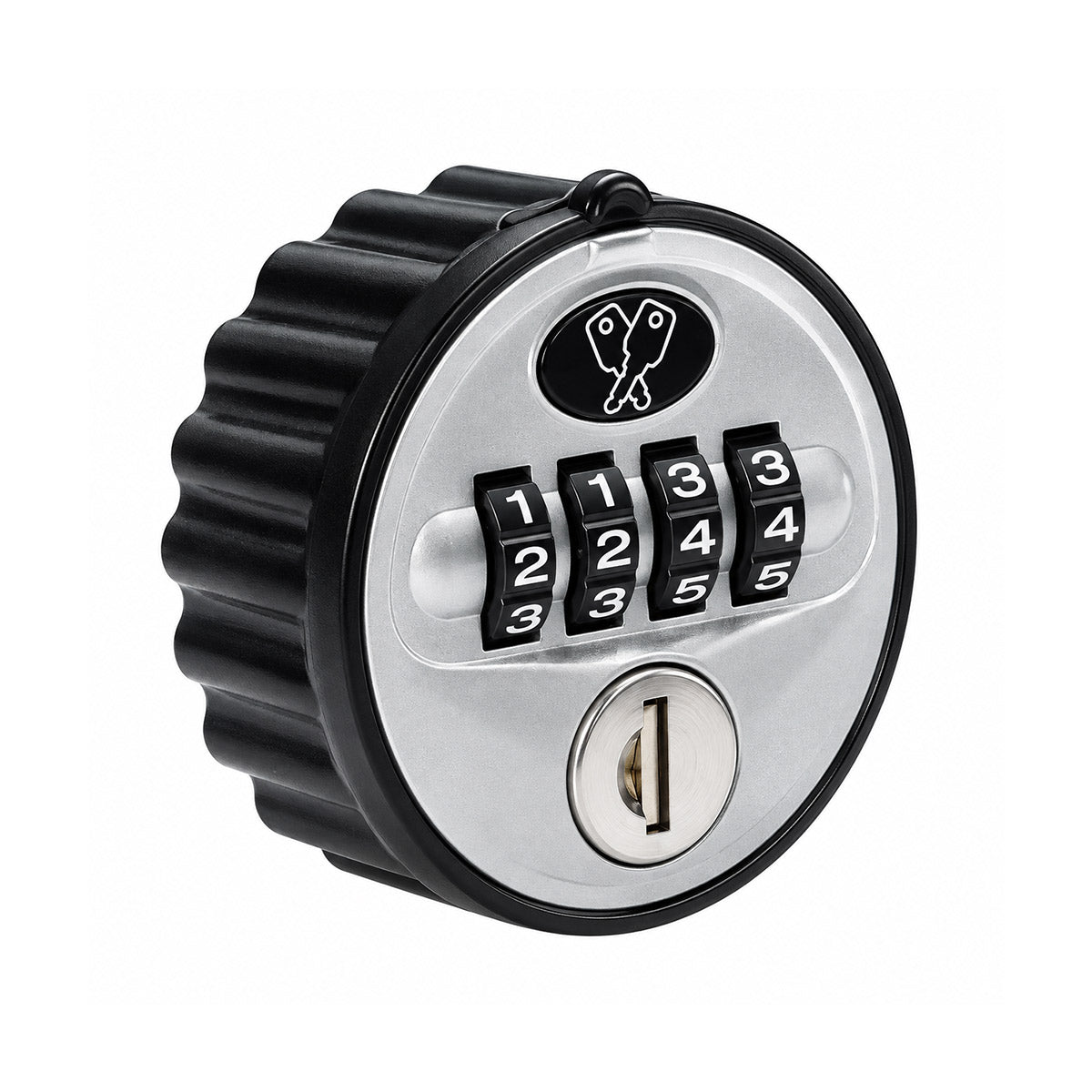

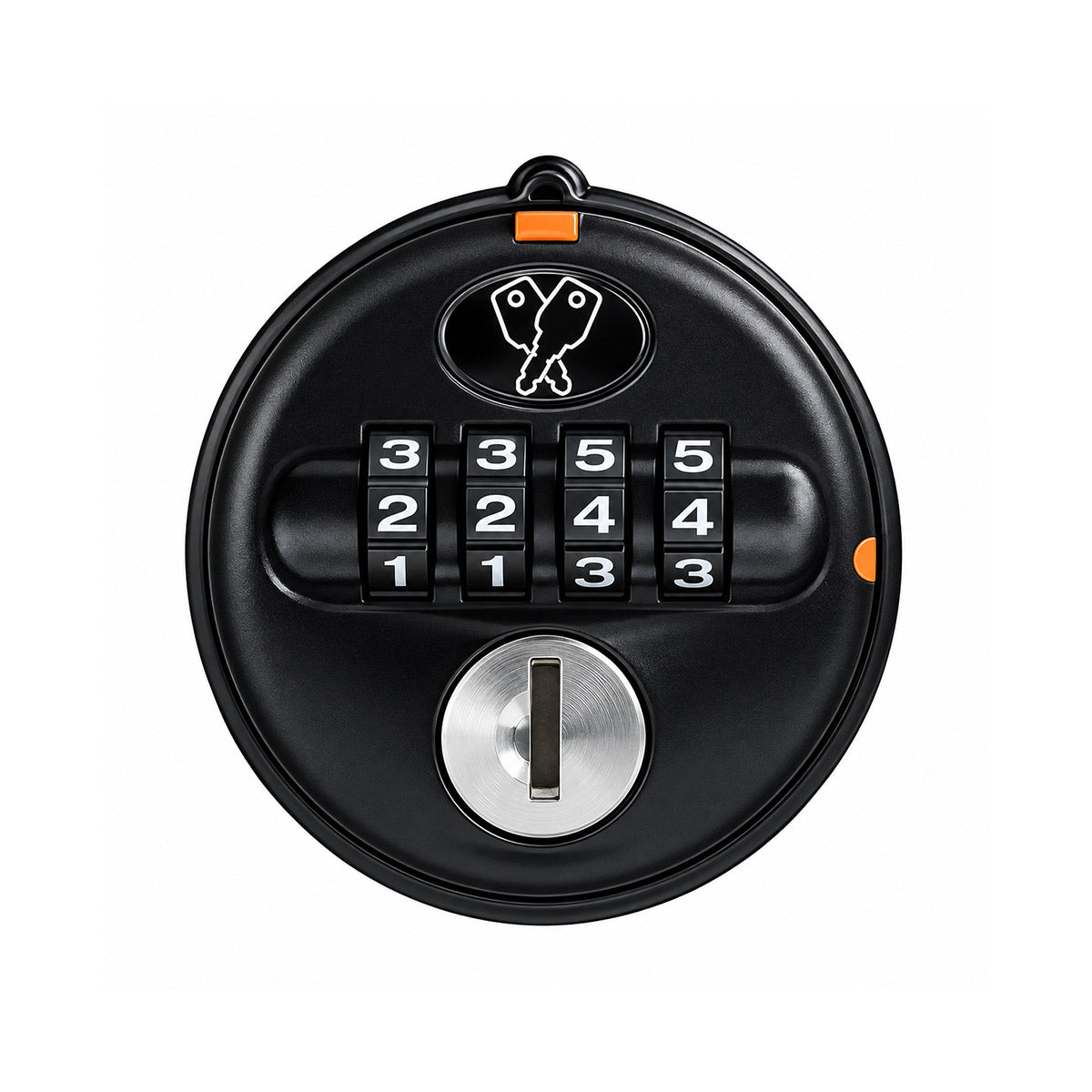

Public or Private Modes: Available in single-use public mode and private mode configurations.
-
Durable Construction: Zinc die-cast body designed for dependable everyday use.
-
Battery-Free Operation: Mechanical locking system requires no power source.
-
Code-Finding Feature: Includes a 10-disc barrel with shutter cap to support authorized code recovery.
-
Convenient Code Changes: Combination can be changed when the lock is in the unlocked position.
-
Flexible Mounting: Standard-fit installation with countersunk screws or twist-resistant installation with pan-head screws.
-

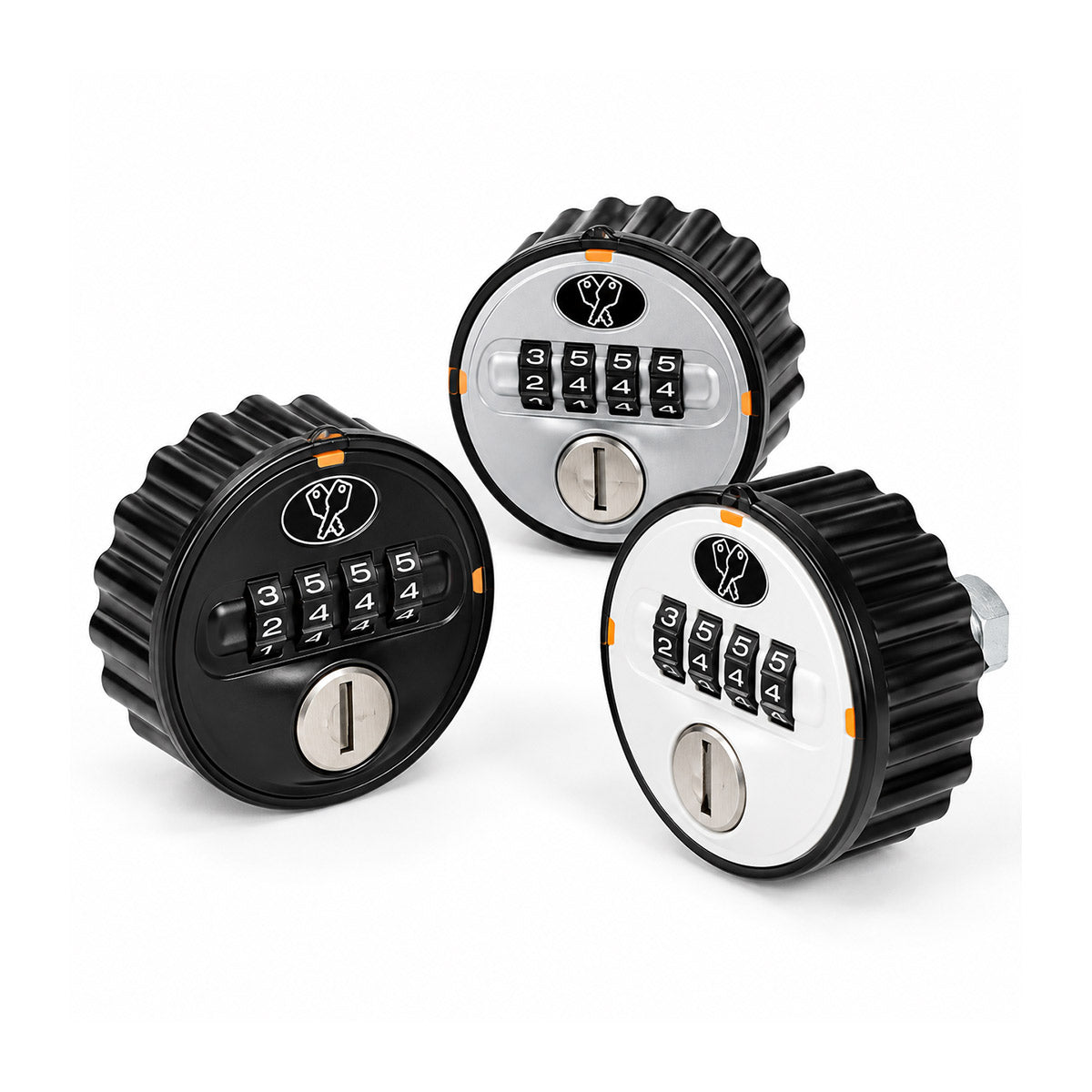

Multiple Finish Options: Black body with white, silver, or black face options.
-
Custom Branding: Customer logo badge available upon request.

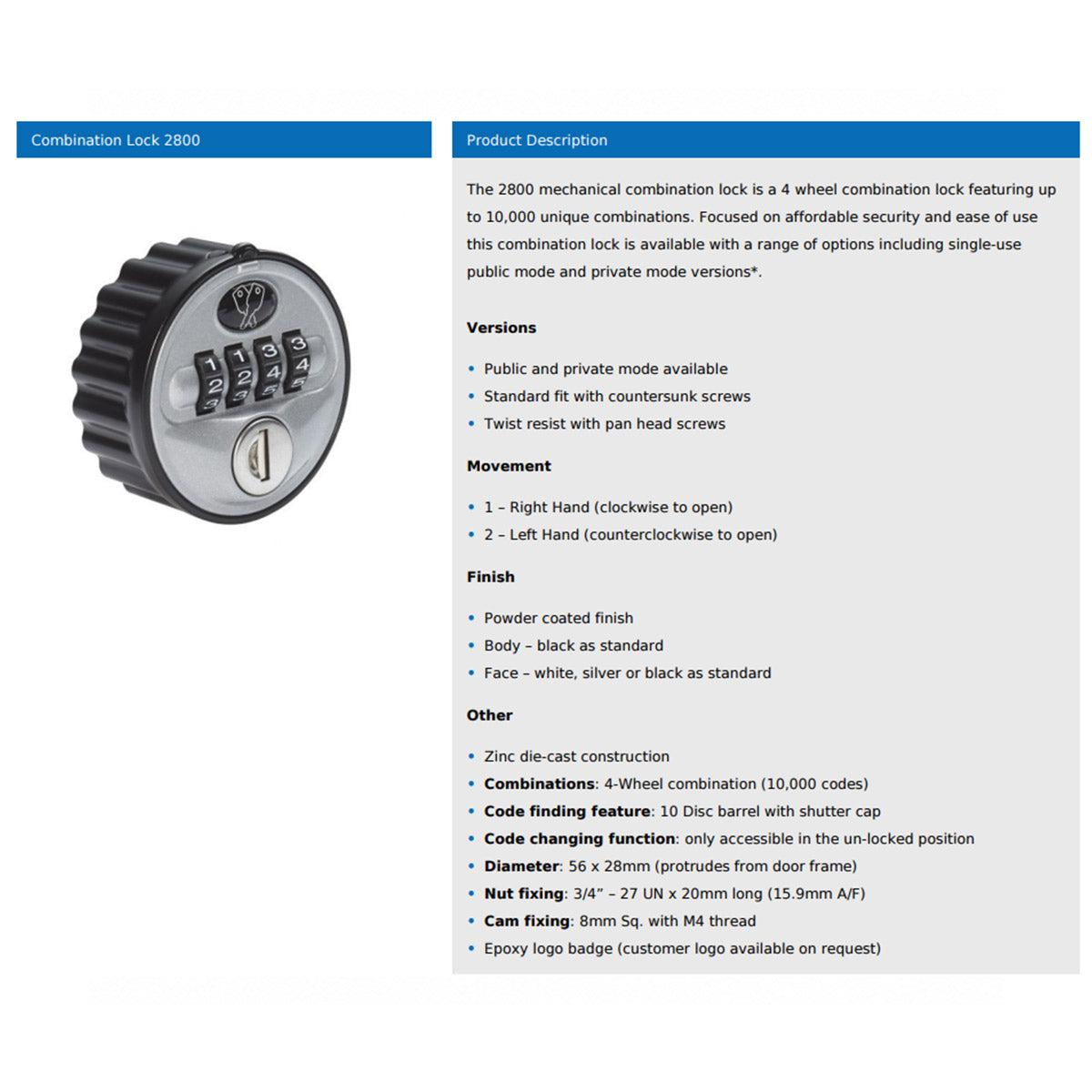

Standard Features & Specifications
-
Brand: Lowe & Fletcher
-
Model: 2800
-
Product Type: Mechanical combination lock
-
Locking Mechanism: 4-wheel combination
-
Combination Capacity: Up to 10,000 codes
-
Operating Modes: Public or private
-
Body Material: Zinc die-cast
-
Finish: Powder-coated
-
Standard Body Color: Black
-
Faceplate Colors: White, silver, or black
-
Mounting Options: Countersunk screws or pan-head screws for twist resistance
-
Code Recovery: 10-disc barrel with shutter cap
-
Code Changing: Accessible in the unlocked position
-
Power Requirements: None
-
Logo: Epoxy logo badge; custom logo available on request
Movement & Operating Direction
Choose the appropriate movement configuration to match the installation:
-
Movement 1 – Right Hand: Clockwise to open.
-
Movement 2 – Left Hand: Counterclockwise to open.
Installation Dimensions & Fixings
-
Body Dimensions: 56 × 28 mm, as specified for the portion protruding from the door frame
-
Nut Fixing: 3/4"-27 UN × 20 mm long
-
Nut Wrench Size: 15.9 mm across flats (A/F)
-
Cam Fixing: 8 mm square with M4 thread
Verify door thickness, fixing compatibility, cam requirements, and available installation space before ordering.
Ideal Applications
The Lowe & Fletcher 2800 Mechanical Combination Lock is suitable for:
-
Commercial and employee lockers
-
School and university storage
-
Gym and fitness center lockers
-
Workplace cabinets and drawers
-
Recreational and leisure facilities
-
General-purpose storage compartments
Why Choose the Lowe & Fletcher 2800?
The Lowe & Fletcher 2800 offers a cost-effective combination of mechanical security, straightforward operation, and flexible installation. With public and private mode options, convenient code management, durable construction, and customizable finishes, it is a practical choice for facilities seeking dependable keyless access without the maintenance requirements of electronic locks.
Note: Confirm the required operating direction, user mode, mounting method, and faceplate finish when selecting your configuration.
