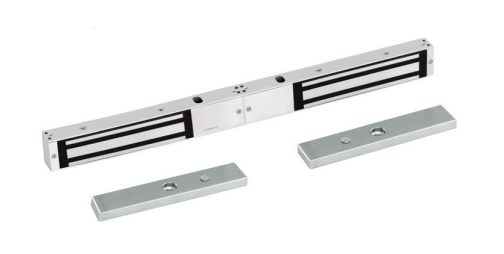

Locknetics MG600 Maglock

Electromagnetic lock specifications Specification MG600/MG600DT MG600-2/MG600DT-2 Holding force 600 lb. 600 lb. Input voltage (field selected) 12/24 VDC 12/24 VDC Current draw (amps standard unit) 12 VDC @ 0.5A 24 VDC @ 0.26A 12 VDC @ 1A 24 VDC @ 0.5A BHMA finish 630 Satin Stainless Steel 630 Satin Stainless Steel Height 1 7 ⁄8"  (47.2mm) 1 7 ⁄8"  (47.2mm) Length 9 7 ⁄8"  (250mm) 19 3⁄4"  (501.7mm)  Depth 1 1 ⁄16" (26.5mm) 1 1 ⁄16" (26.5mm) Armature dimensions (each) 7 5⁄16" x 1 1 ⁄2" x 1 ⁄2"    (185mm x 38mm x 12.5mm) 7 1 ⁄3" x  2 2⁄5" x 3⁄5"   (185mm x 61mm x 16mm)  Weight 2.22 lbs. 4.97 lbs. Certifications UL10C listed, UL294 listed, indoor use only UL10C listed, UL294 listed, indoor use only
