The Venus is a plug-and-play motorized gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor's performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.

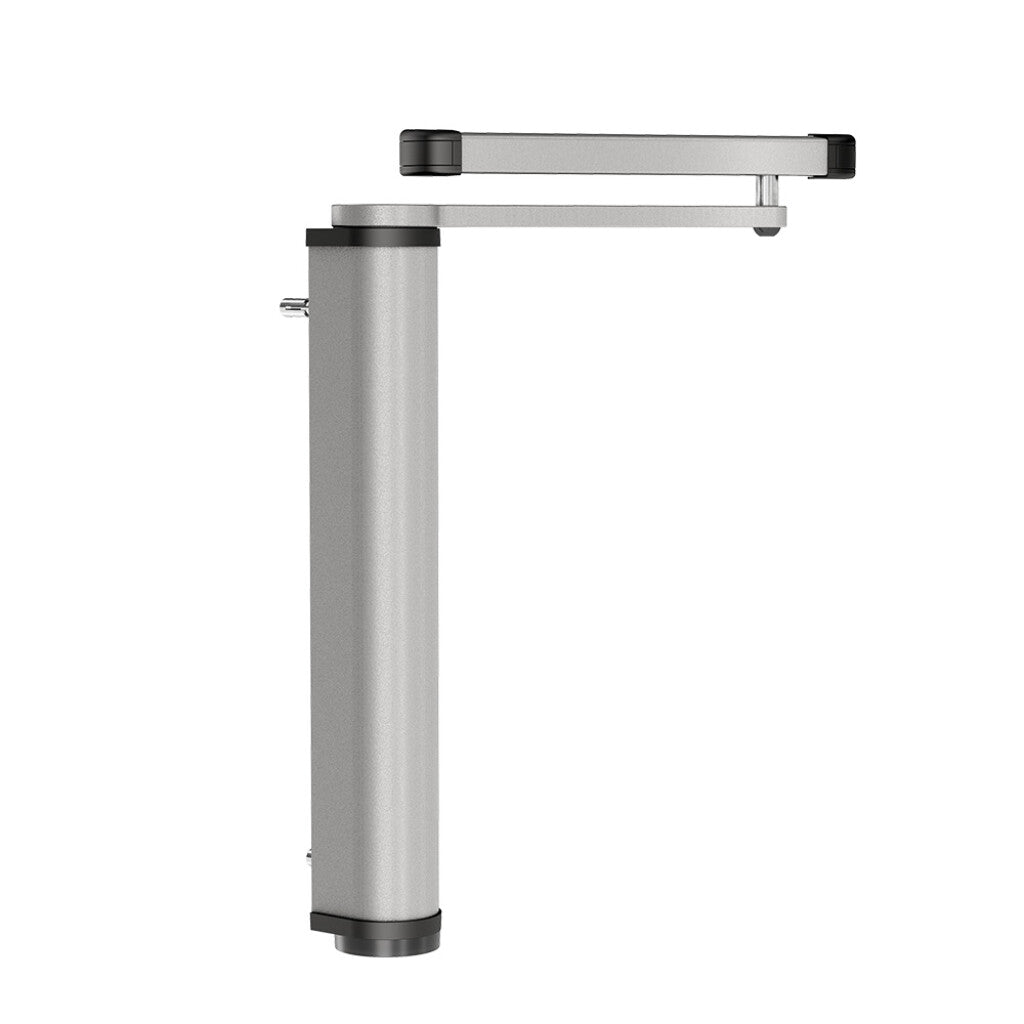

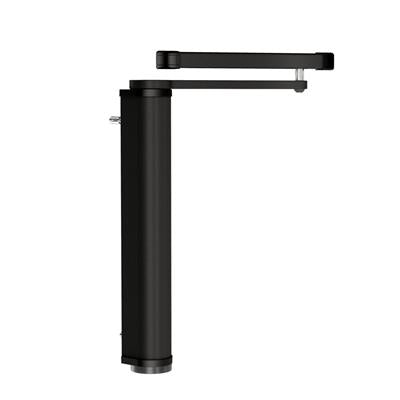

S = Sliding Arm For Swing Gates

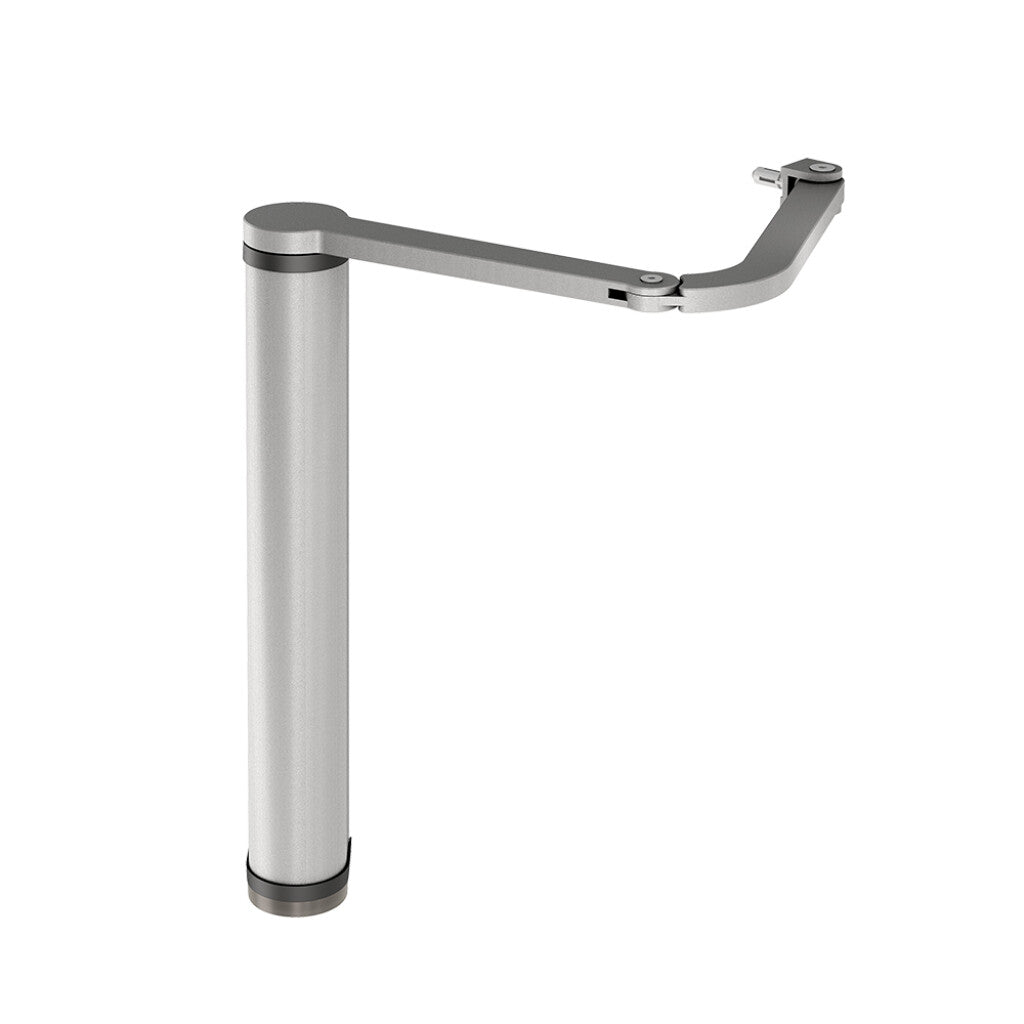

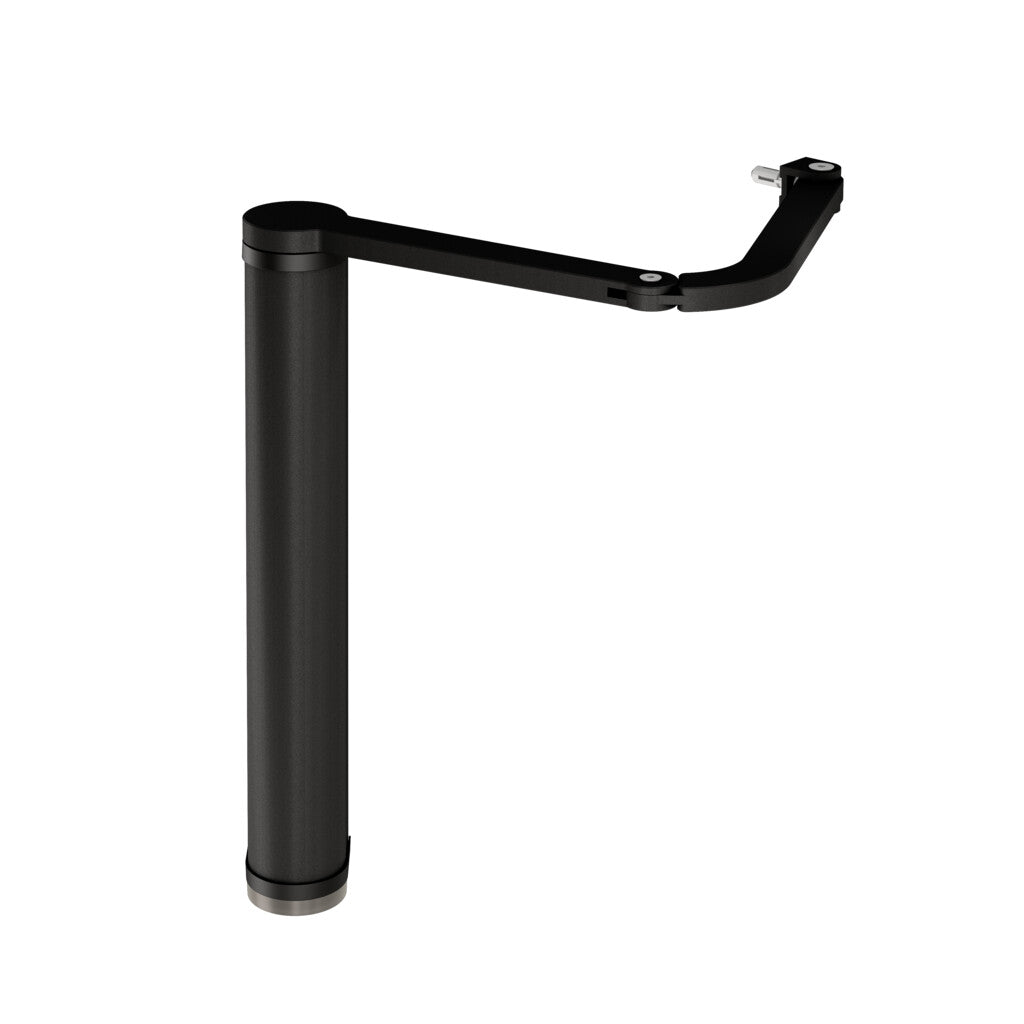

A - Articulated Arm for Swing Gates

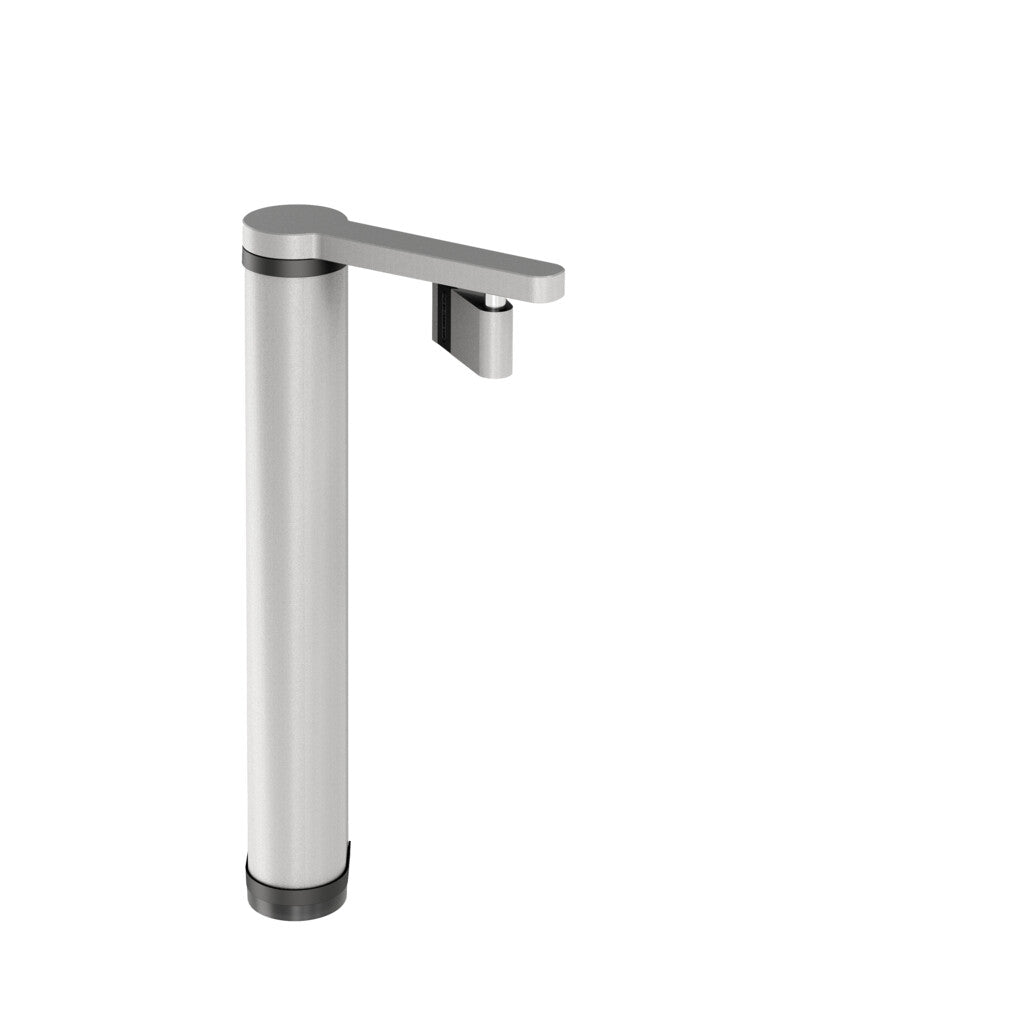

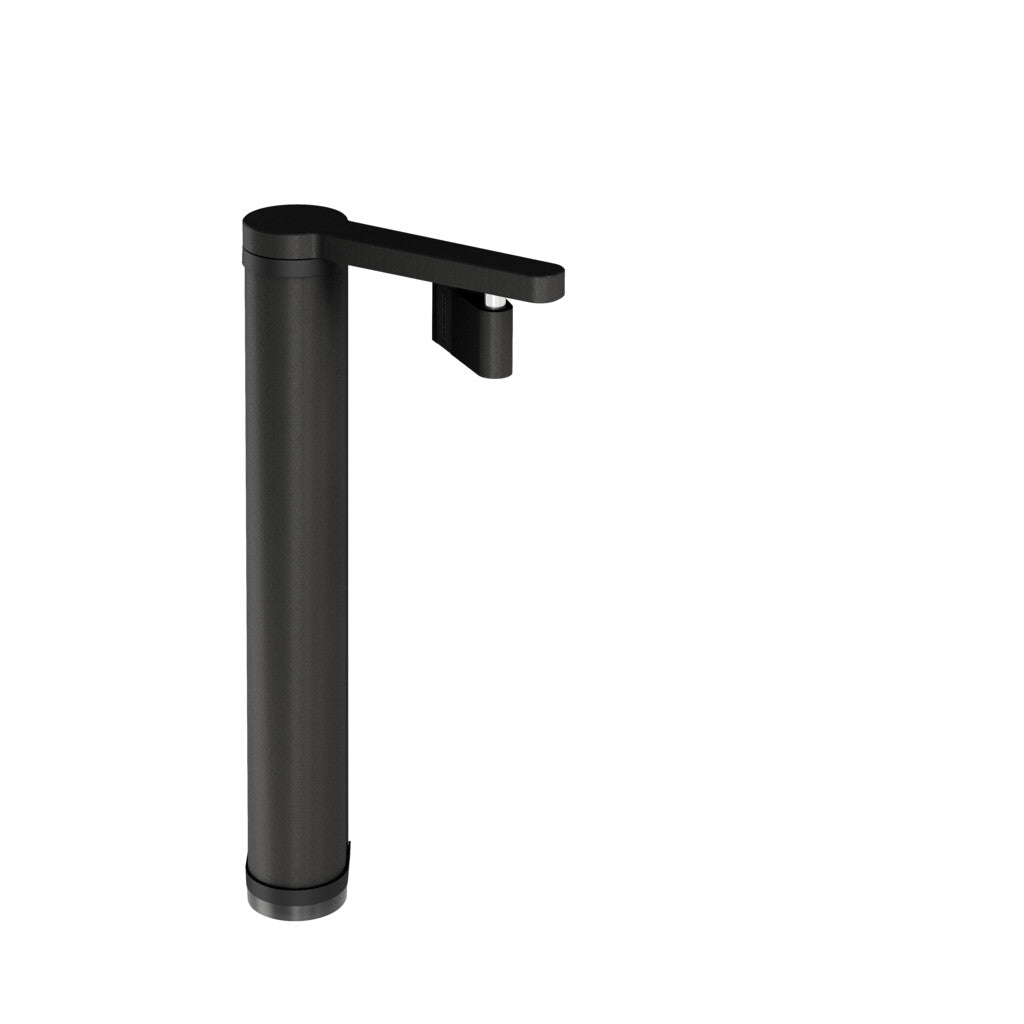

G - Compact Arm for Swing Gates with 180 Hinges
Specifications
- Motorized gate closer with integrated electronics
- 150 Nm torque
- Fits on 3 2/16" profiles
- For pedestrian gates up to 4.6 ft wide and 220 lbs
- Steel gear box
- Anodized aluminium cover
- 3 different arm options for installation
- Fast and easy installation with Quick-Fix
- Conforms to UL/cUL 325 standard for automatic operators, tested by ETL
- Input main Power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz)
- Motor voltage: 24V DC
- Integrated warning light
- Automated obstacle detection with reverse function
- Brushless motor: long lifespan and intensive usage
- Reversible motor with backdrivability for easy manual use - to be combined with a lock
- Compact and vandal-proof design
