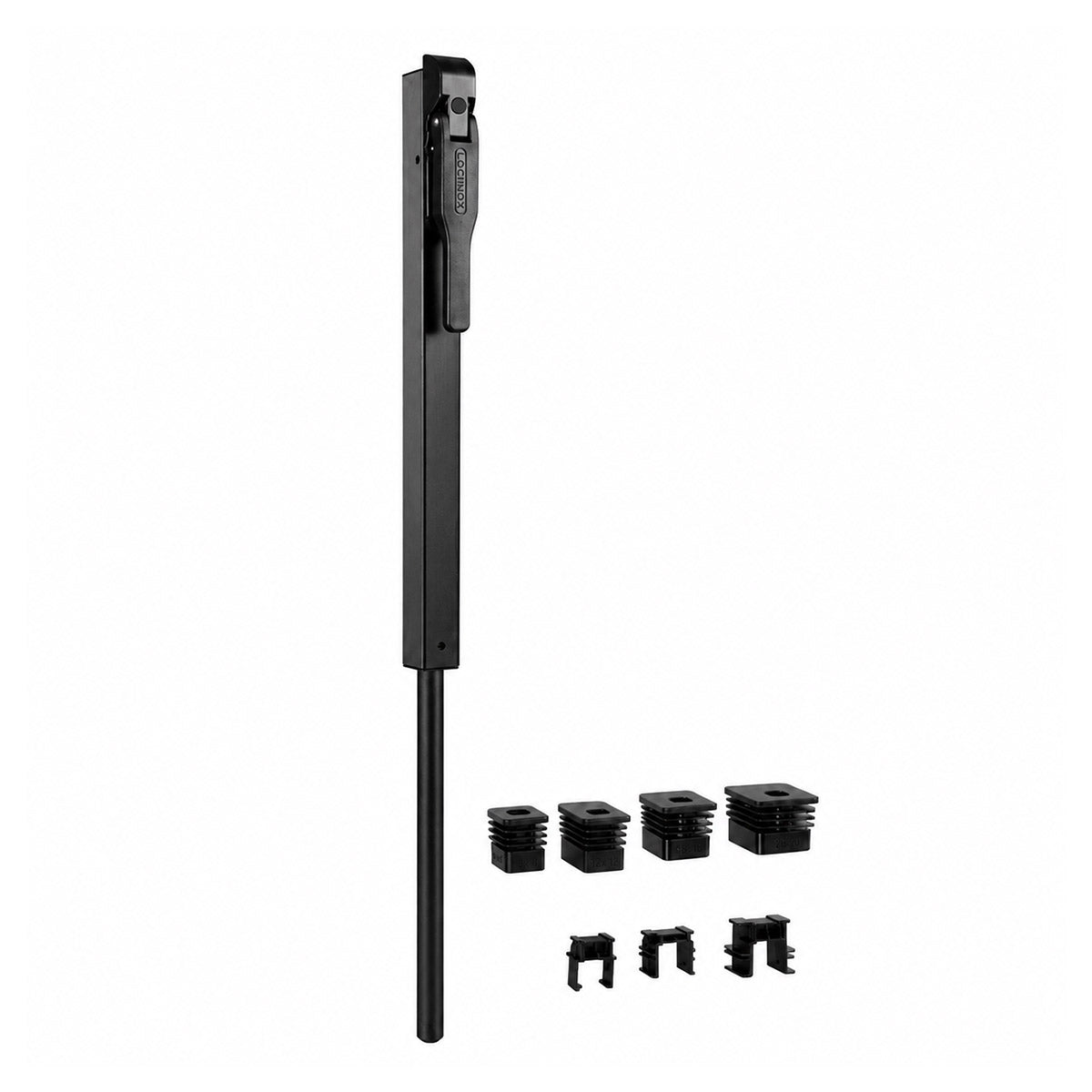

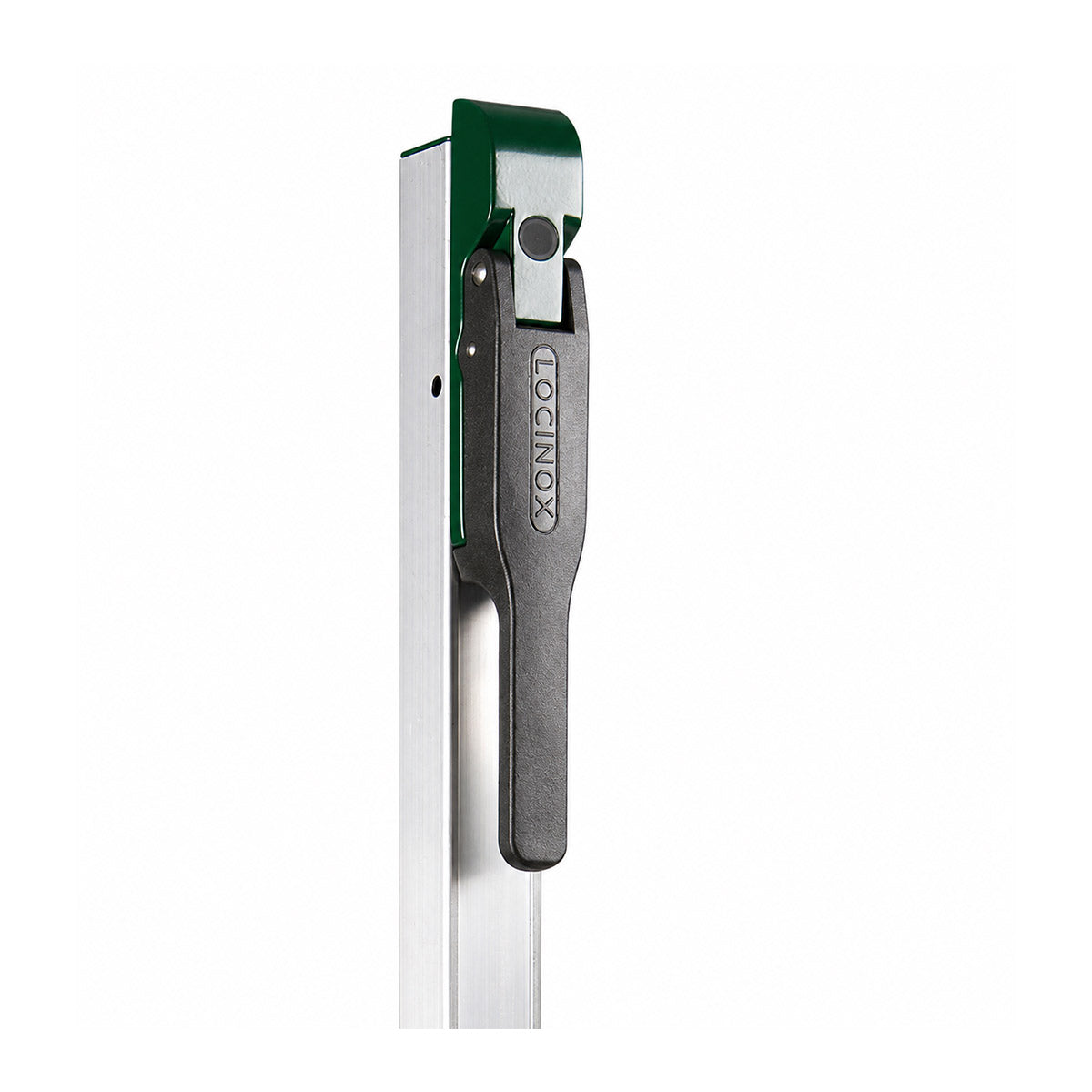

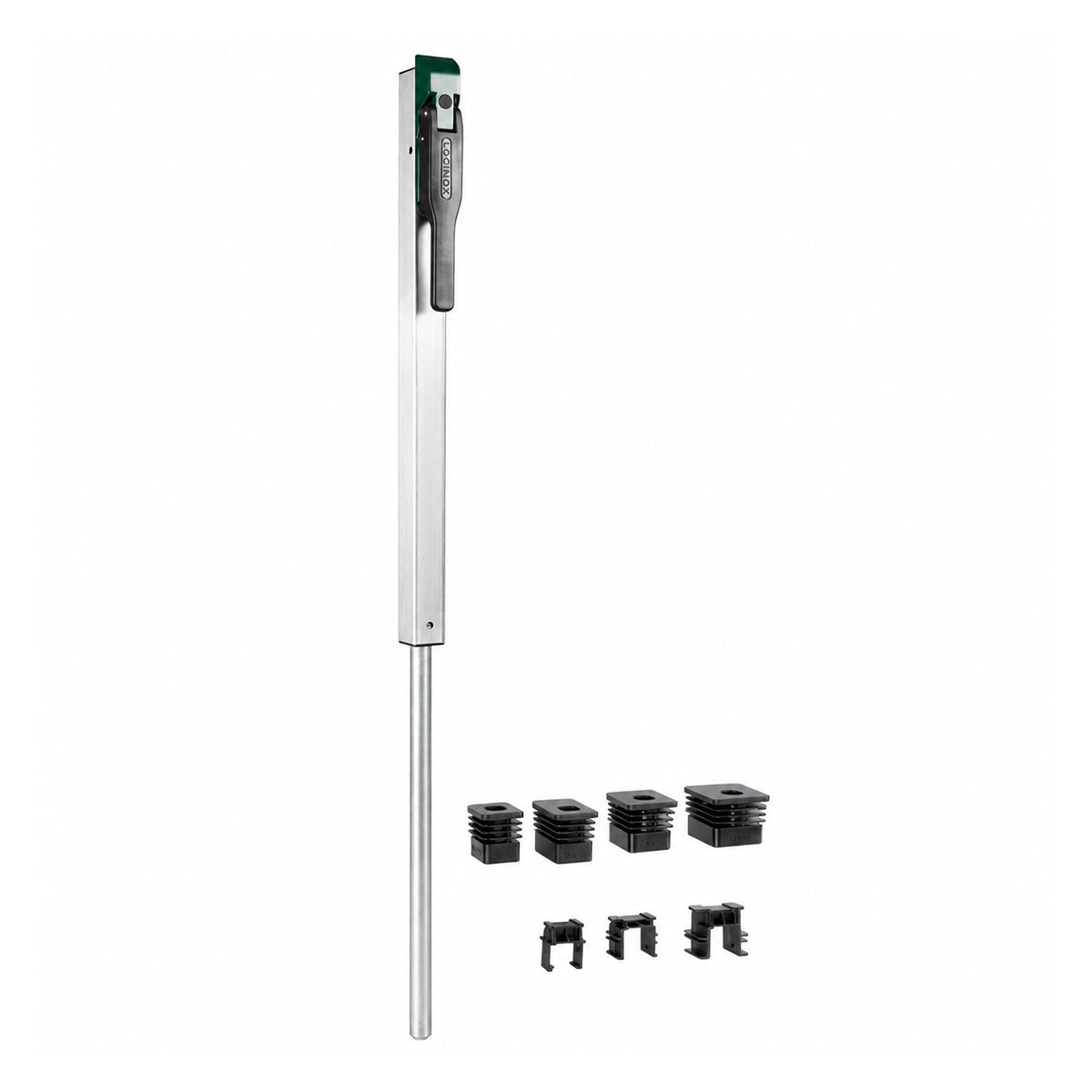

Internal aluminum drop bolt. An aesthetical solution for double leaf gates, the drop bolt disappears from view. The drop bolt is conveniently operated at waist height and if the handle is installed between the gate leaves, it becomes self-locking. It fits inside 1-1/2" to 2-1/2" square tubing.
- Height adjustability of the drop bolt: 4"
- Internal drop bolt in aluminum
- Throw: 4-3/4"
- Steel handle with black plastic coating (polyamide) provides the optimal combination between robustness, ergonomy and protection against corrosion
- Internal push spring guarantees a perfect closure (even if the drop bolt is blocked by dirt inside the ground stop) and prevents overpressure
- Fast & easy mounting: 2 screws
- User-friendly manipulation of the drop bolt at a convenient height
- For square gate profiles: 1-1/2", 2", or 2-1/2" and for rectangular gate profiles: 2-3/8" x 1-1/2"
- For profiles of 1-1/2", 2" and 2-1/2": max. wall thickness of 5/64"
- For profiles of 2-3/8" x 1-1/2": wall thickness up to 1/8"
DESCRIPTION TAG: Internal aluminum drop bolt. An aesthetical solution for double leaf gates, the drop bolt disappears from view.
