Product Description

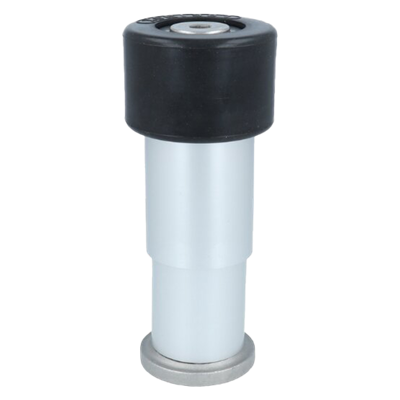

The Locinox GATESTOP is a durable gate stop designed to protect gates and gate hardware from damage when the gate reaches its fully open position. Its resilient rubber bumper cushions impact, while the anodized aluminum body provides corrosion resistance for dependable outdoor use.
The bumper height adjusts from 100 mm to 140 mm, making it adaptable to different gate configurations. GATESTOP can be anchored to concrete or installed as a wall-mounted stop. An M12 concrete anchor bolt is included for fast installation.
Key Features
- Rubber bumper cushions the gate and helps prevent impact damage
- Adjustable height from 100 mm to 140 mm
- Suitable for floor or wall installation
- Anodized aluminum body
- Fast and straightforward mounting
- Includes one M12 anchor bolt for concrete installation
- Tested for 500 hours of salt-spray exposure
- Three-year manufacturer warranty
- Recommended by Locinox for use with the PANTHER gate closer
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Locinox |
| Product | GATESTOP |
| Item number | P00004468 |
| Product type | Adjustable gate stop |
| Body material | Anodized aluminum |
| Bumper material | Rubber |
| Height adjustment | 100–140 mm |
| Installation options | Concrete floor or wall |
| Installation method | Wedge-anchor mounting |
| Included fastener | One M12 concrete anchor bolt |
| Salt-spray testing | 500 hours |
| Manufacturer warranty | 3 years |
| Recommended accessory for | Locinox PANTHER gate closer |
The installation drawing identifies a 12 mm concrete drilling diameter and shows the adjustable 100–140 mm bumper-height range. Installers should confirm positioning and substrate suitability before drilling.
Downloads and Documentation
- Official Locinox GATESTOP product page
- Technical specification sheet (PDF)
- Installation instructions (PDF)
- Official 2D product drawing
Frequently Asked Questions
What does the Locinox GATESTOP do?
It stops the gate at its open position while the rubber bumper cushions impact and helps protect the gate and attached hardware.
Is the bumper height adjustable?
Yes. Its height can be adjusted from 100 mm to 140 mm.
Can GATESTOP be mounted to a wall?
Yes. Locinox specifies that it can also be used as a wall stop.
Does it include mounting hardware?
It includes one M12 anchor bolt intended for concrete fixing.
Is it suitable for outdoor installations?
Yes. The main body is anodized aluminum, and the official specification sheet lists 500 hours of salt-spray testing.
Is it compatible with the Locinox PANTHER gate closer?
Yes. Locinox recommends GATESTOP for PANTHER installations.
