Locinox FORTYLOCK SET- Mortise lock with 3/4" backset for post size of up to 1-1/2"

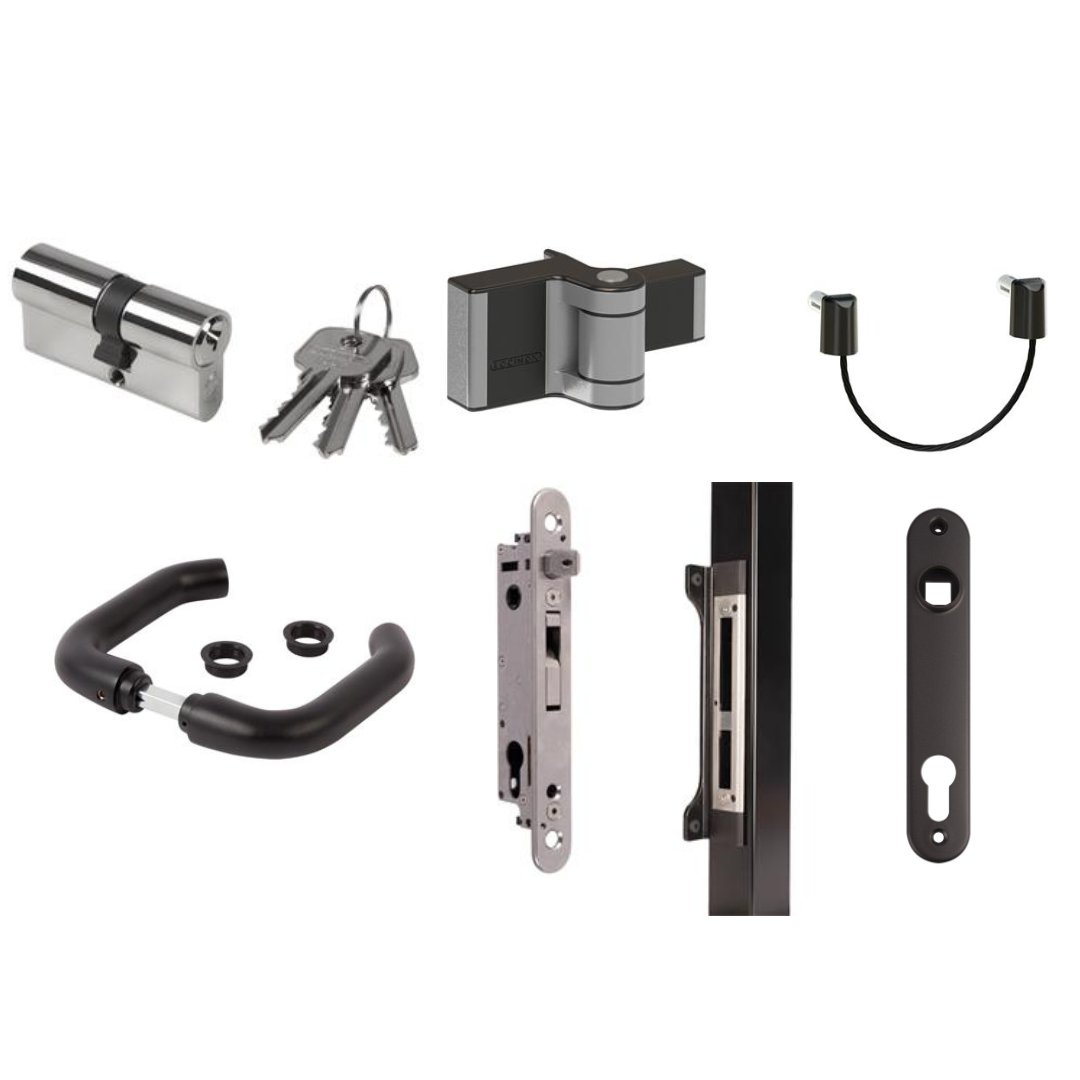

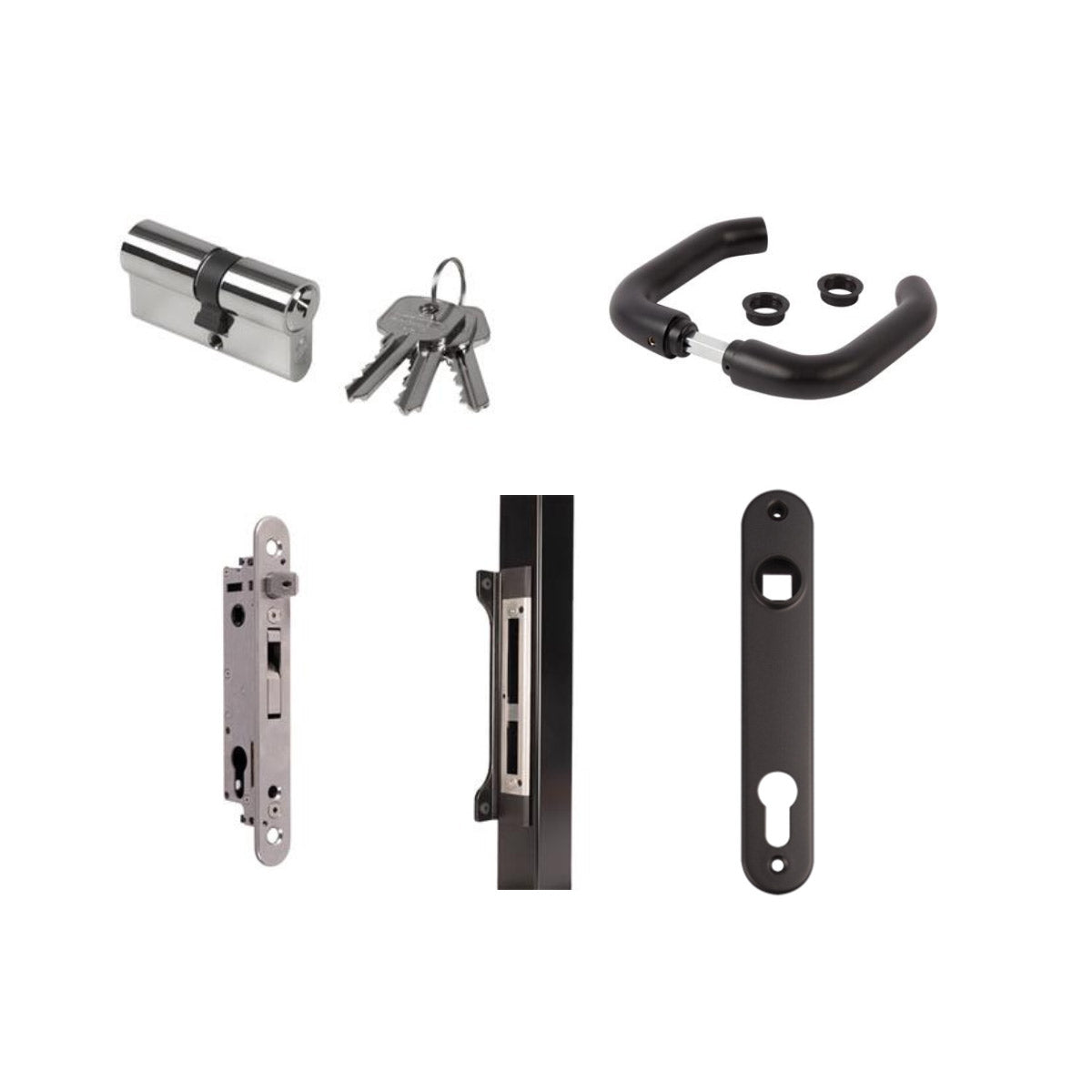

FORTY LOCK SET INCLUDES
Stainless steel safety cable for gates up to 1,100 lbs - B-SAFE
Compact 2-way adjustable 180° surface mounted hinge - PUMA
Insert keep for installation in lock pattern - SFKU-40
60 mm cylinder (2-3/8" L) - 3012-60-STD-GSZ
Black anodized aluminum handle pair for insert locks - 3006B-H
Cover shield for mortise locks - 3020-HYB-ALU
Mortise lock with 3/4" backset for profiles of 1-1/2" or more - FORTYLOCK
Mortise lock with 100% stainless steel mechanism. The stainless steel adjustable self-latching bolt and hook combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminum and PVC gates. Thanks to the patented "Click-It" system, installing the lock can be done in a matter of seconds.
Specifications:
- Lock mechanism with cover plate protects against dirt penetration
- Patented "Click-It" system makes thread tapping unnecessary
- Continuous adjustment of the daybolt up to 3/8" without dismounting the lock box
- Key-operated self-latching bolt
- Stainless steel mechanism, hook, front plate and latch bolt
- Easy left or right changing of the self-latching daybolt
- Throw of the hook: 13/16"
- The center distance between the cylinder and the handle: 3-5/8"
- Optional: cover shield for handle & cylinder holes in aluminum, polyamide or stainless steel
- Handles to be ordered separately
- Compatible with all Europrofile cylinders
