Locinox FIFTYLOCK - Complete Mortise lock with Adjustable Hinge with 1-3/16" backset for post sizes of 2" or more

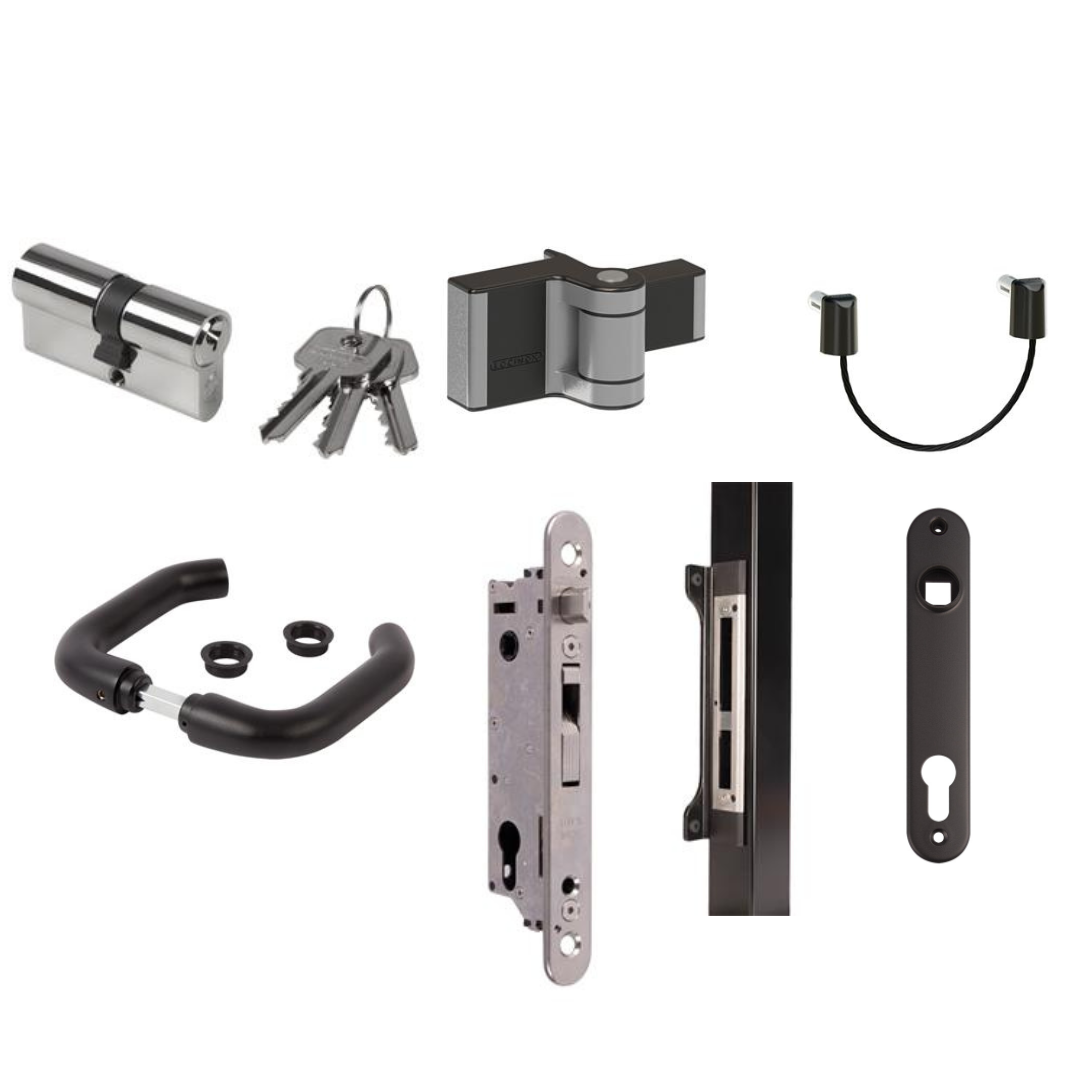

FIFTYLOCK SET INCLUDES
Stainless steel safety cable for gates up to 1,100 lbs - B-SAFE
Compact 2-way adjustable 180° surface mounted hinge - PUMA
Insert keep for installation in lock pattern - SFKU-40
70 mm cylinder (3-1/8" L) - 3012-70-STD-GSZ
Black anodized aluminum handle pair for insert locks - 3006B-H
Cover shield for mortise locks - 3020-HYB-ALU
Mortise lock with 1-3/16" backset for profiles of 2" or more - FIFTYLOCK
Prime insert lock with 100% stainless steel mechanism. The stainless steel, adjustable self-latching bolt and hook combined with the correct keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminum and PVC gates. Thanks to the patented "Click-It" system the lock is mounted in seconds.
Specifications:
- Stainless steel lock mechanism with cover plate against dirt penetration
- Stainless steel mechanism, hook, front plate and latch bolt
- Backset 1-3/16", for mounting in profiles of 2" or more
- Continuous adjustment of the daybolt up to 3/8" without dismounting the lock box
- Key-operated self-latching bolt
- Easy left or right changing of the self-latching daybolt
- Throw of the hook: 13/16"
- The center distance between the cylinder and the handle: 3-5/8"
- Compatible with all Europrofile cylinders
- Handles to be ordered separately
- Optional: cover shield for handle & cylinder holes in aluminum, polyamide or stainless steel
