Home » LCN 9553 Electromechanical Door Operator
LCN

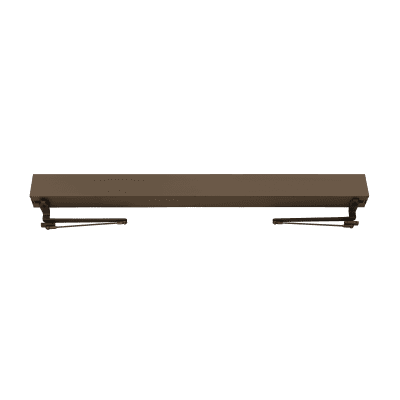

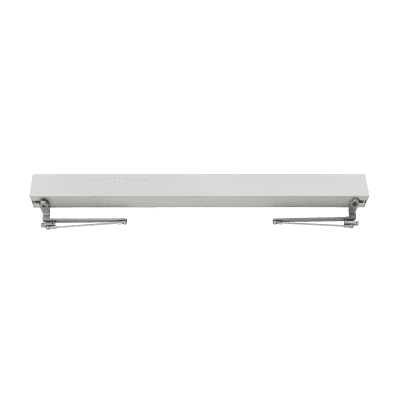

LCN 9553 Electromechanical Door Operator

SKU: 9553-REG2 72 628
$ 6,915.00

The 9550 Senior Swing by LCN is an ADA door operator that is
a two-in-one swing door operator. Senior Swing operator when
activated, opens doors automatically for wheelchair access, yet
allows for manual operation for regular pedestrian traffic.

  • The 9550 Series is a surface mounted, simultaneous double door application.

The low-energy electromechanical senior swing operators are LCN’s toughest operators, designed for heavy-duty use in primarily automatic applications.

Overview

The low-energy electromechanical Senior Swing Series operators are LCN’s heaviest-duty version for high-abuse and high-traffic areas. The Senior Swing Series is backed by a 2-year limited warranty, is UL listed, meets ANSI/BHMA 156.19, the American Disabilities Act (ADA) and ANSI A117.1 requirements for accessibility.

Both the 9500 and 2800 Series ship with a standard header and optional customizable header lengths are offered. The power boost provides additional closing force in severe wind. Push ‘N Go non-switch activation takes over when a pedestrian manually opens the door to 5°, then holds the door fully open for 1-30 seconds, depending on the time delay.

Body Construction

  • Motor gearbox driving mechanism for operator
  • Digital keypad
  • Electromechanical unit with microprocessor control

Quality and Durability

  • Adjustable hold time of 1 to 30 seconds
  • 2-year warranty
  • Power Boost allows for increase closing force near latch

Installation

  • Push ‘N Go permits non-switch activation
  • Wood and machine screws
  • Application-specific handed
  • Meets ADA requirements (power mode)
  • UL listed
  • Mounting styles include surface and concealed
  • Single-door or double-door application
  • Operator mounts as a simultaneous or independent pair for double door applications
  • Standard anodized finish
  • Standard metal cover
  • The 9530 Series is a surface mounted, single door (pull side) application.
  • The 9540 Series is a surface mounted, single door (push side) application.
  • The 9550 Series is a surface mounted, simultaneous double door application.
  • The 9560 Series is a surface mounted, independent double door application.
  • The 2810 Series is a concealed mount, single door application.
  • The 2850 Series is a concealed mount, simultaneous double door application.
  • The 2860 Series is a concealed mount, independent double door application.

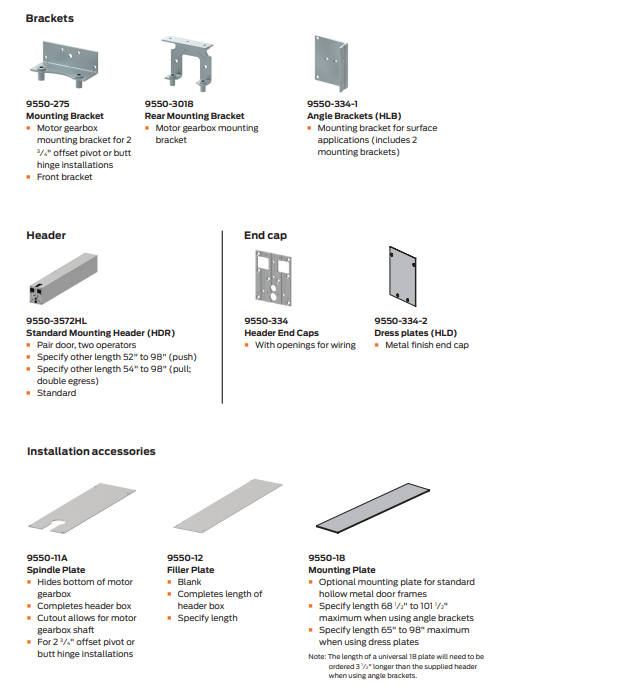

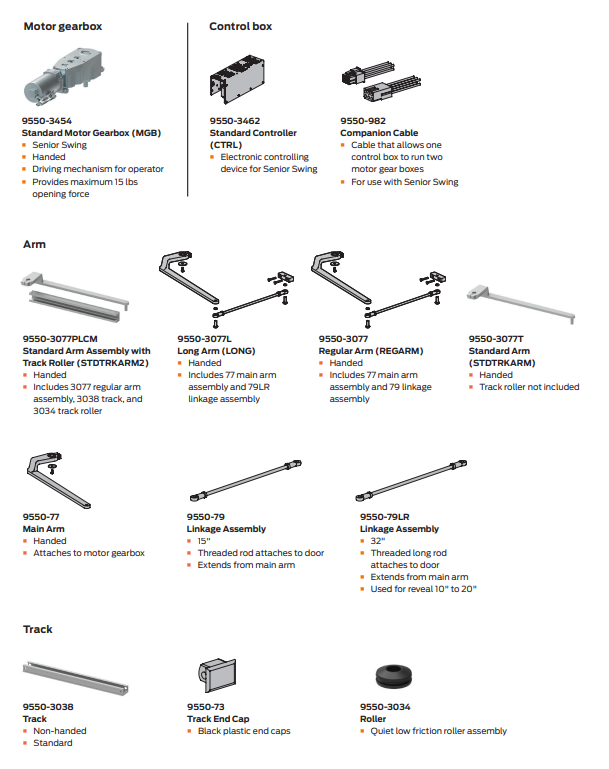

Visit the 9500/2800 Series catalog pages for mounting details, arm options and accessories.
