LCN 4642 Push Side Power Operator
LCN 4642 Push Side Power Operator
LCN 4642 Push Side Power Operator
LCN 4642 Push Side Power Operator
LCN 4642 Push Side Power Operator

LCN 4642 Push Side Power Operator

by LCN
$ 4,599.00

The 4640 auto equalizer is LCN’s smart and reliable electrically powered
low-energy automatic operator. It provides easy access for people
with disabilities, or the elderly. Designed primarily for manual opening
applications that occasionally required automatic opening.



Certifications Grade 1 - ANSI A117.1, A156.19, UL 10C, ADA,
100 Hour Salt Spray, Meets BAA - Buy
American Act
Body
construction
§ Cast iron body
§ Full complement bearing
§ 1 1
⁄2" diameter piston
§ 3⁄4" diameter double heat
treated pinion journal
Fluid All weather fluid
Handing Non-handed
Size Adjustable spring size 2-5
Warranty 2 years
Cover Metal Cover (MC)
Fasteners Wood and Machine Screws (WMS)

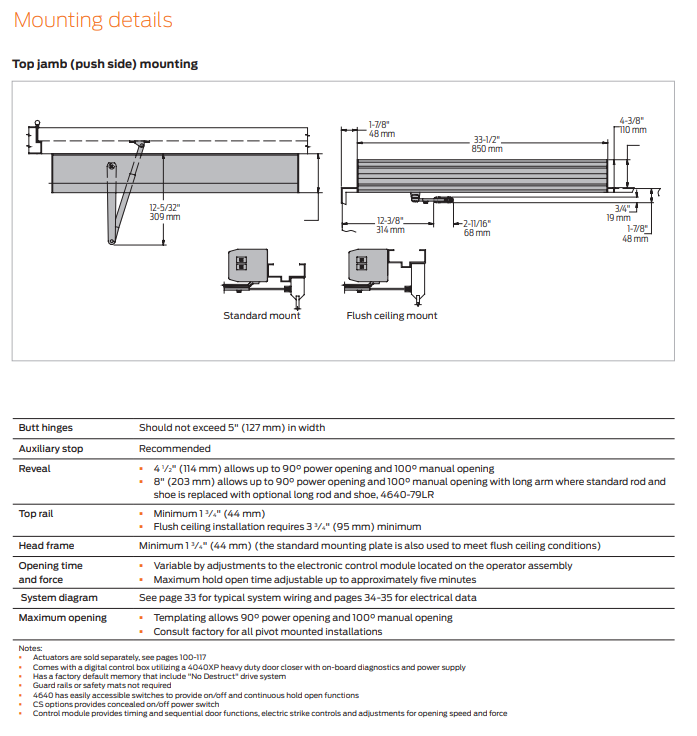

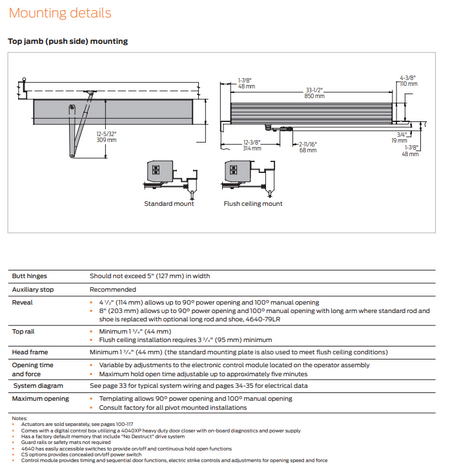

Mounting Top jamb (push side)

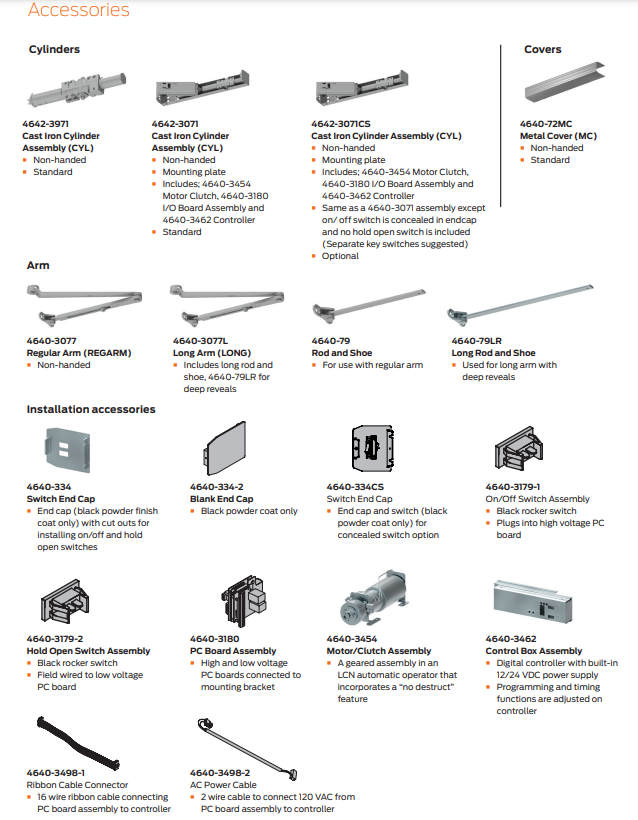

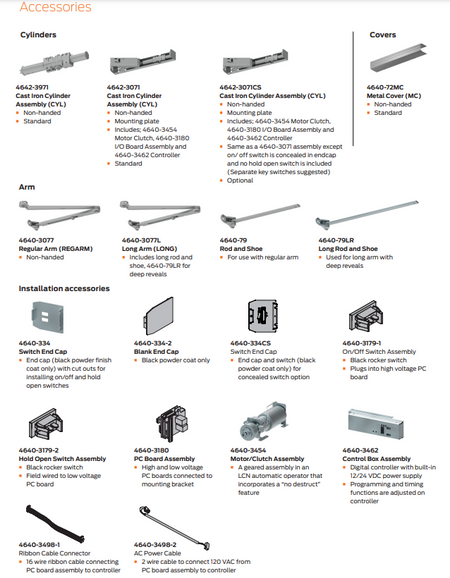

Arms § Regular Arm (REGARM), standard
§ Long Arm (LONG), optional
Finishes/colors/
powder coat
§ 689 Aluminum
§ 690 Statuary Bronze
§ 691 Light Bronze
§ 693 Black
§ 695 Dark Bronze
§ 696 Brass
§ Custom colors optional
§ Optional SRI primer - powder coat only
§ Optional plated
