LCN 4111-3071 AL
LCN 4111-3071 AL
LCN 4111-3071 AL

LCN 4111-3071 AL

by LCN
$ 252.67

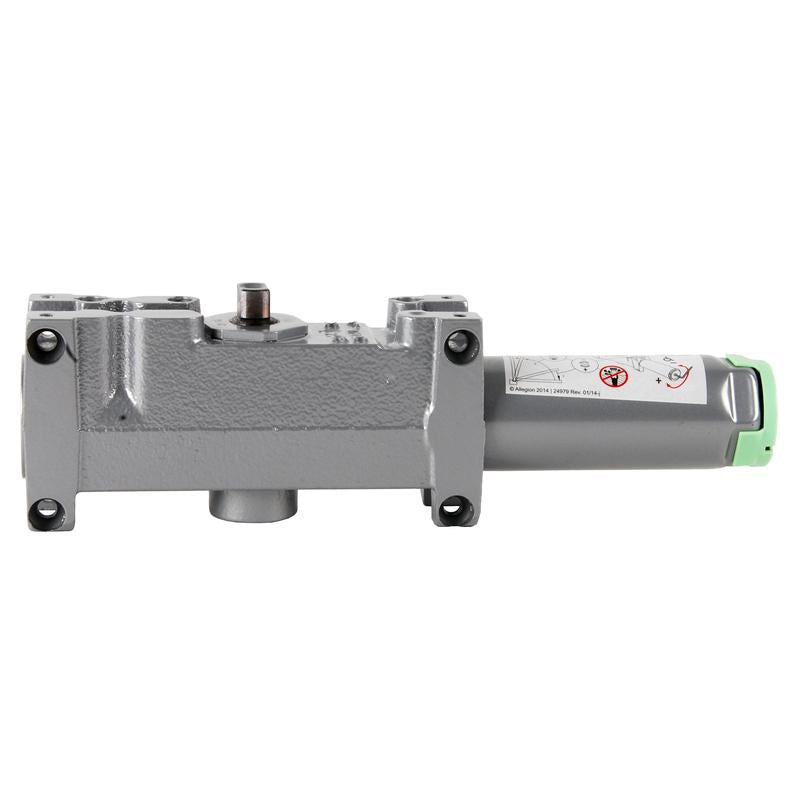

Standard Cylinder Assembly, Left Hand, Aluminum

Finish

689/US28
Finish Description Aluminum Painted
Finish Family Matte Silver





Technical Specs
Type Surface
Technology Hydraulic
Mounting Location Push Side
Mounting Style Parallel Arm
Hand LH, RH
Cold Weather Fluid Yes
Product Type Door Closer Parts
