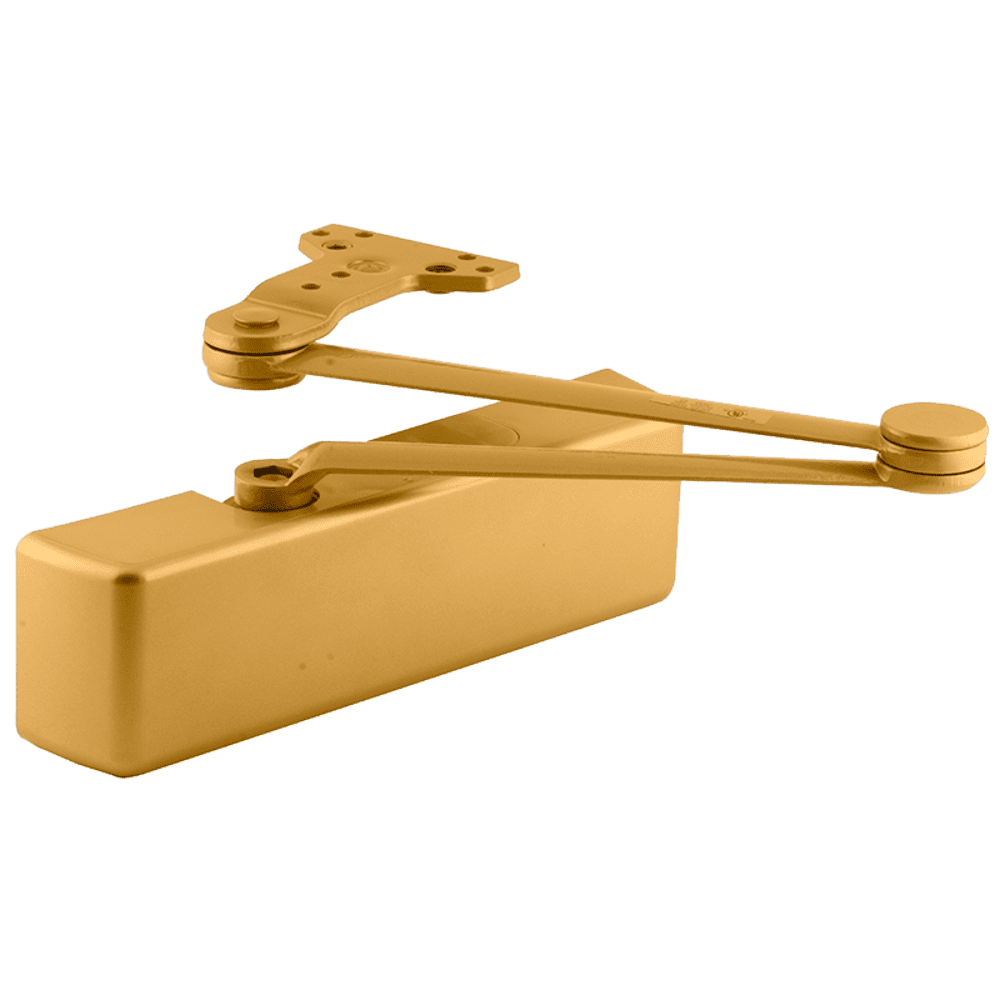

LCN 4040XP RW/PA Regular Arm Door Closer

Name: LCN 4040XP RW/PA Regular Arm Door Closer
Brand: LCN
SKU: 043156871025
Price: 337.90 USD
Availability: InStock

by LCN

$ 337.90

Cover

Quantity

The 4040XP Is The Most Common Closer Used In

Schools

Malls

Office Buildings

Hospitals

Storefronts

"Excellent service, excellent price, excellent timing! Huge help in crazy construction business environment! Five stars! Would suggest US Lock Supply to anybody, no doubt about it!"

Used By The Following Professionals

Glass Companies

Locksmiths

Management / Maintenence Companies

Contractors

Need a different arm?

Hold Open

Extra Duty Arm

All Arm Options

Here are installation instructions for the 4040xp rw/pa closer

LCN Closer Catalog

Some of the features the 4040 Door Closer includes:

Non-handed
Mounts pull side or top jamb with shallow reveal P4041 closer includes PA SHOE, 4040XP-62PA required for parallel arm mounting

44% increased bearing load capacity
Strongest pinion ever- at 3/4” journal diameter
Widest bearing ever- at 5/8”
Stronger pinion teeth
New V-shield™ seal with 20% longer life
XP = eXtra Protection in real world applications
Cast Iron
Forged Steel Arm
Double Heat Treated Steel Pinion
All Weather Fluid
Non-Handed
LCN® Fast™ Power Adjust
Fast & Accurate Installation
UL & cUL Listed
Tested and certified under ANSI Standard A156.4, grade one

Specifications

Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
Closers to meet ADA requirements
Standard or optional custom powder coat finish
Optional plated finish on metal cover, arm and fasteners
Optional SRI primer for installations in corrosive conditions is available with powder coat only
UL and cUL listed for self-closing doors without hold-open
4040XP can be used with all 4040 accessories

Norton 1601 Door Closer - Barzellock.com

"Excellent service, excellent price, excellent timing! Huge help in crazy construction business environment! Five stars! Would suggest us lock supply to anybody, no doubt about it." Regency Glass.

Compare The Norton 1601

Brand/Model #		US Lock Supply Comment
Dorma 7400		Great Closer
Falcon SC60		Highly Recommended
Norton 1601		Best In Class Closer
S. Parker 900		Good Imported Closer
Sargent 1130		Solid Closer
Yale 51		Solid Closer

Best Used In Medium To High Traffic Doors

US Lock Supply Stocks The Norton 1601 Closer In All Options & Finishes Ready To Ship Free On Orders Over $189. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition.

1601 Arm Options:

RW/PA Regular Arm

HW/PA Hold Open With Regular Arm

1601 Finishes:

689-Aluminum

690-Dark Bronze

691-Light Bronze

696-Satin Brass

Features

1600BC: Sized springs 3 or 4
1601: Adjustable spring sizes 3-6
1601BF: Adjustable spring sizes 1-4
Exceeds 12 million cycles (witnessed and verified by UL)
Non-handed
Rack and pinion design
Cast aluminum body
2-7/8" (73mm) projection
1-3/8" (35mm) diameter piston

5/8" (16mm) diameter pinion journals
Standard, separate and independent, latch, sweep and backcheck intensity valves
Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
All standard arm applications allow doors to swing 180°, conditions permitting
Staked valves

Optional Features

Delayed action (in lieu of backcheck). Specify 1601DA or 1601BFDA
Corrosion-resistant model (non-hold open only). Specify 1601SS or 1601BFSS. (Not tri-packed)

Molded plastic cover. Specify suffix P
Heavy-duty arms: Parallel Rigid, CloserPlus®, CloserPlus Spring™, and Unitrol®

Falcon SC61 RW, HD, HW Door Closer SC60 Series

from $ 85.00

Falcon SC61 RW, HD, HW Door Closer SC60 Series

by Falcon

$ 85.00

Arm

Finish

Case

Quantity

US Lock Supply Stocks The Falcon SC61 Closer In All Finishes & Options Ready To Ship For Free On Orders Over $189.

The Falcon SC60 Series is a dependable closer for light to medium-duty application. Designed for interior use with an aluminum storefront, the SC60 Series offers ANSI Grade 1 durability backed by a ten-year warranty. Most common hole pattern in the industry for versatile use and easy retrofit.

Surface mounted light duty closer that is easily installed and adjusted for your light to medium duty doors.

Finishes:

689-Aluminum

695-Dark Bronze

Arms:

RW/PA Regular Arm

HW/PA Hold Open With Regular Arm

HD/PA Heavy Duty With Parallel Arm

Specifications

Meets ANSI A117.1
ANSI/BHMA A156.4, Grade 1
UL Listed
1 3/8" diameter piston
Closer mounts hinge side, top jamb or parallel arm when either the Rw/PA or Hw/PA arm is specified
Adjustable sizes 1-5 (SC61)
Single piece cast aluminum body
Staked valves
Non-handed for left or right swinging doors
Separate adjustable general speed, latch speed and backcheck
Heat-treated steel piston
Heat-treated pinion
UL 10C approved fluid
Universal screw pack
10-year warranty

Certifications
The Falcon SC60 Series is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC61 is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC60 Series is ANSI/BHMA A156.4, Grade 1 certified.

S Parker 950 Door Closer

from $ 46.00

S Parker 950 Door Closer

by S. Parker

$ 46.00

Model

Finish

Quantity

US Lock Supply Stocks S Parker Door Closers Ready To Ship For Free On Orders Over $189. The 950 closer features 2 speed controls for closing and latching. Non-handed and using the same template as many other national brands, including the Parker 500, the Yale 50 and the Norton 1600, the S. Parker 950 is a rack and pinion action door closer with all temperature hydraulics in an aluminum housing. Separate controls adjust, at any time, both closing and latching speeds. A fully adjustable model with back check is available.

953 #3 To Be Used With A Medium/Heavy Duty
36" Wide Interior or
30" Wide Exterior Door

954 #4 To Be Used With A Heavy Duty
48" Wide Interior or
36" Wide Exterior Door

Finishes:

Aluminum

Duranodic

S. Parker guarantees trouble free operation of each closer for 10 years. Each unit is UL tested, and listed for use on hollow metal fire rated doors. The exterior housing is made of high tensile strength aluminum. Available in aluminum and duranodic, the S. Parker 950 series fits even extra heavy doors.

LCN 1261 Standard RW/PA Arm Door Closer 1260 Series

from $ 178.88

LCN 1261 Standard RW/PA Arm Door Closer 1260 Series

LCN 1261 Standard RW/PA Arm Door Closer 1260 Series

by LCN

$ 178.88

Finish

Arm

Quantity

The LCN 1260 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with dual mounting capability. The 1260 is adjustable spring sizes 1-5 and mounts to the most common commercial footprint. The 1260 also features a complete line of regular and extra duty arms and LCN's peel-n-stick installation templates.

UL and cUL listed for self-closing doors without hold-open. Tested and certified under ANSI Standard A156.4, grade one.

Features Common to 1000 Series

1000 series closers mount three ways. Closers with regular or hold-open arm mount hinge side or top jamb. Parallel arm, designated with a "P", closers include - 62PA SHOE required for parallel arm mount. 1460T mounts hinge side, top jamb (pull side) and stop face.
Non-handed for right and left swinging doors
Closers to meet ADA reduced opening for requirements
Adjustable hydraulic backcheck cushions opeing swing prior to 90 degrees
Separate regulation of general closing speed and latching speed
Joints in arm and shoe adapt to uneven trim
Reversible shoe to boost latching power on double lever arms

Specifications

Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
Mounts to most common commercial footprint (3/4” x 9 1/16”)
Closer meets ADA requirements. See 1260 Series catalog page 10
Optional Quick Fix™ bracket kit
Standard or optional custom powder coat finish
Optional SRI primer for installations in corrosive conditions
Optional Slim Line cover

Norton 7500 Door Closer

from $ 248.00

Norton 7500 Door Closer

by Norton

$ 248.00

Arm

Finish

Quantity

Adjustable spring sizes 1 through 6 (ADA Compliant)
Tri-Style® packaging for regular, top jamb or parallel arm mounting
Exceeds 25 million cycles (witnessed and verified by UL)
Non-handed
Rack-and-pinion design
Cast aluminum body
2-3/16" (56mm) projection
1-1/2" (38mm) diameter piston
5/8" (16mm) diameter pinion journals
Staked valves

Standard, separate and independent, latch, sweep and backcheck intensity valves
Backcheck positioning valve
NorGlide® fluid
Molded plastic cover
All standard arm applications allow doors to swing 180°, conditions permitting
Self-drilling screws
Slide Tracks: push or pull side mounting

Optional Features

Heavy-duty arms: Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™ and Unitrol®
Corrosion resistant model (non-hold open only). Specify 7500SS
Metal cover. Specify M suffix

Lead lined metal cover. Specify MLL suffix
Enhanced backcheck. Specify EBC suffix
Delayed action with pressure relief valve
Retrofit plates

Typical Applications

Recommended for interior or exterior doors including:

Classrooms
Offices
Main entrance doors
Hospitals
High use, high abuse doors

Certifications

ANSI/BHMA A156.4, Grade 1 certified
ANSI/BHMA standard A117.1 certified
UL listed

UL10c compliant for positive pressure
Listed by the New York City Materials and Equipment Acceptance Division
25-year limited warrant
