With a full line of wall bumpers, wall holders, kick down holders and hinge pin stops
for commercial and residential applications, Ives products are designed to ensure that
doors will not slam into the wall. These accessories provide an economical alternative
for doors without a closer and overhead stop or holder.
Door stops, holders and silencers
Floor stops and holders

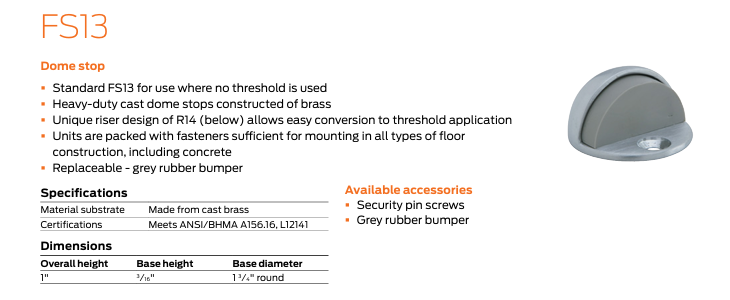

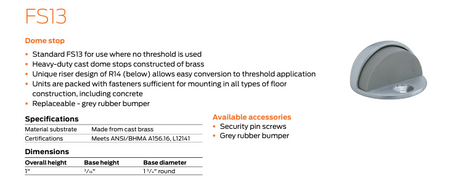

FS13
Dome stop
- Standard FS13 for use where no threshold is used
- Heavy-duty cast dome stops constructed of brass
- Unique riser design of R14 (below) allows easy conversion to threshold application
- Units are packed with fasteners sufficient for mounting in all types of floor construction, including concrete
- Replaceable - grey rubber bumper
Specifications
- Material substrate
- Made from cast brass
Certifications
- Meets ANSI/BHMA A156.16, L12141
Dimensions
- Overall height Base height Base diameter
1" 3⁄16" 1 3⁄4" round
Available accessories
- Security pin screws
- Grey rubber bumper
