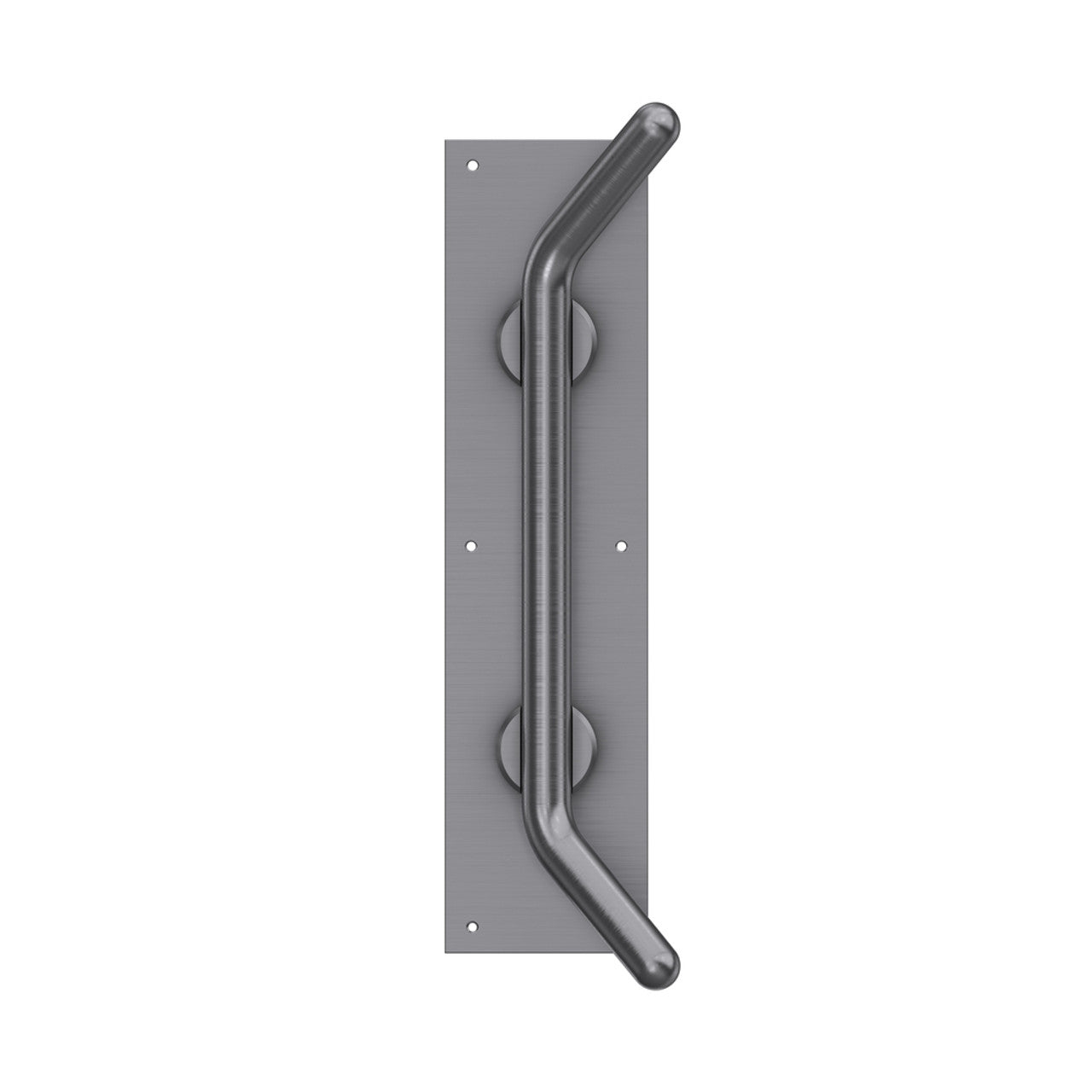

8322HD HANDS-FREE REVERSIBLE ARM PULL
Ives' hands-free door pulls allow for hands-free operation to promote a healthy environment. Ives offers pulls in a variety of styles and designs that enable pedestrians to operate the door with an arm, elbow, or wrist to avoid contacting surfaces with their hands.
- Durable construction with rust-free brass for longevity.
- A cost-effective option is budget-friendly;
- Easily retrofittable for existing openings;
- Aesthetically pleasing designs to suit with building style;
- 1" Round pull with 2" round mounting posts;
- Patented, rounded design enables safe and comfortable hands-free use.
- Flexibility to open with the forearm or wrist at the top of bottom of the pull;
- Reversible design allows for flexible install toward the hinge or latch side.
- Available in 8" or 10" center to center.

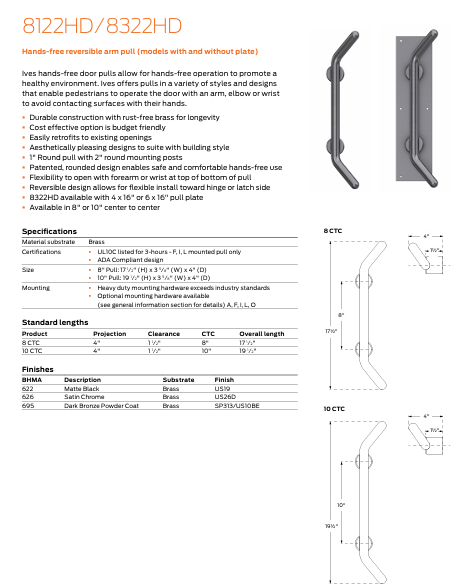

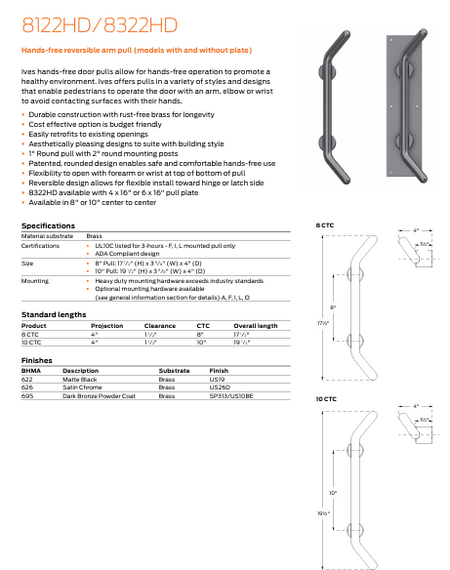

SPECIFICATIONS
Material substrate: Brass;
Certifications:
- UL10C listed for 3 hours - F, I, L mounted pull only;
- ADA Compliant design.
Size:
- 8" Pull: 17-1/2" (H) x 3-5/8" (W) x 4" (D);
- 10" Pull: 19-1/2" (H) x 3-5/8" (W) x 4" (D).
Mounting: Heavy-duty mounting hardware exceeds industry standards.
FEATURES AND BENEFITS Aesthetics
- Wide design offerings to communicate style and professionalism
- Door pulls are offered in straight and offset models
- Door pulls are available in multiple overall lengths and center-to-center mounting
- Custom special lengths are available for many models
DESIGNS & FINISHES
Refer to the Ives full line catalog for specific finishes for individual models.
- Available in Brass substrates
- Custom finishes: 622 - Matte Black (US19)
626 - Satin Chrome (US26D)
695 - Dark Bronze Powder Coat (SP313/US10BE)
AVAILABLE OPTIONS
With each decorative pull, a variety of mounting schemes are available that exceed industry standards. Pulls come standard with thru-bolt screws and decorative washers. For optional mounting hardware available, refer to the general information section of the arch pull section in the Ives full line catalog.
