Ilco 459 / 457 Push/Pull Paddle for Storefront Door

Push / Pull Paddle – 459 and 457 Series
Paddles provide an alternate to knob or lever handles. Push or pull in the
direction of the door swing to unlatch.

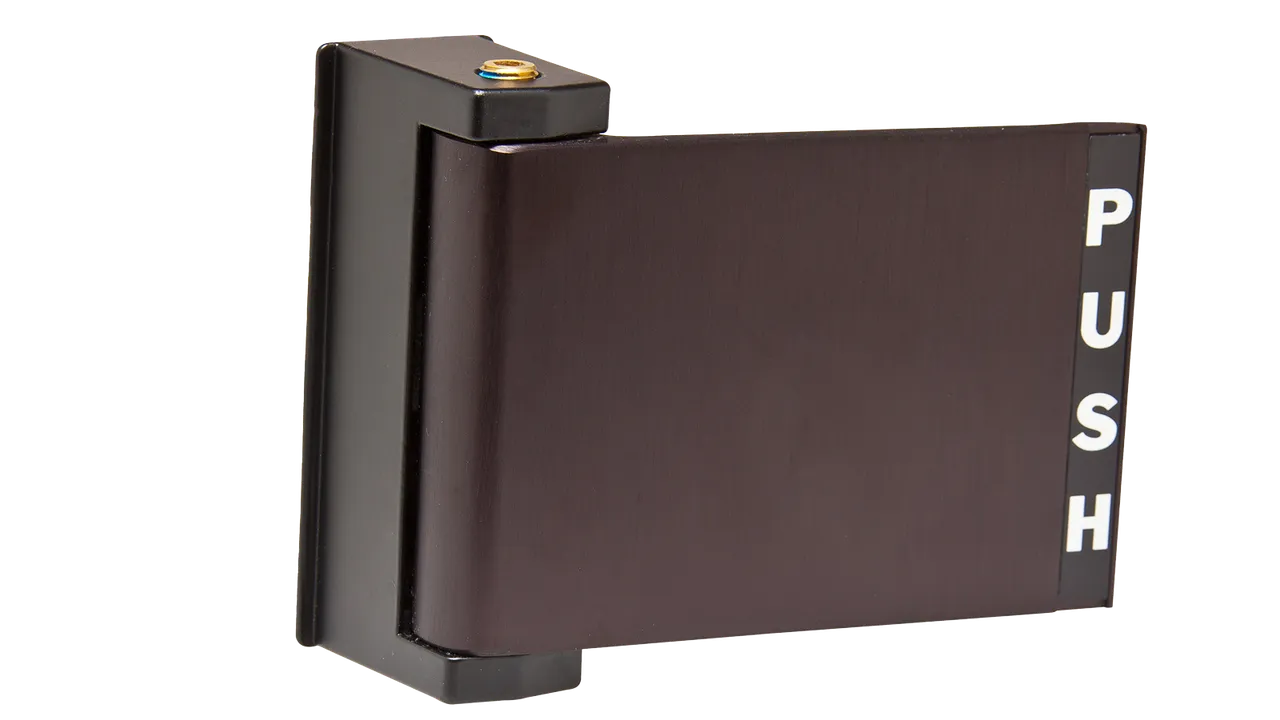

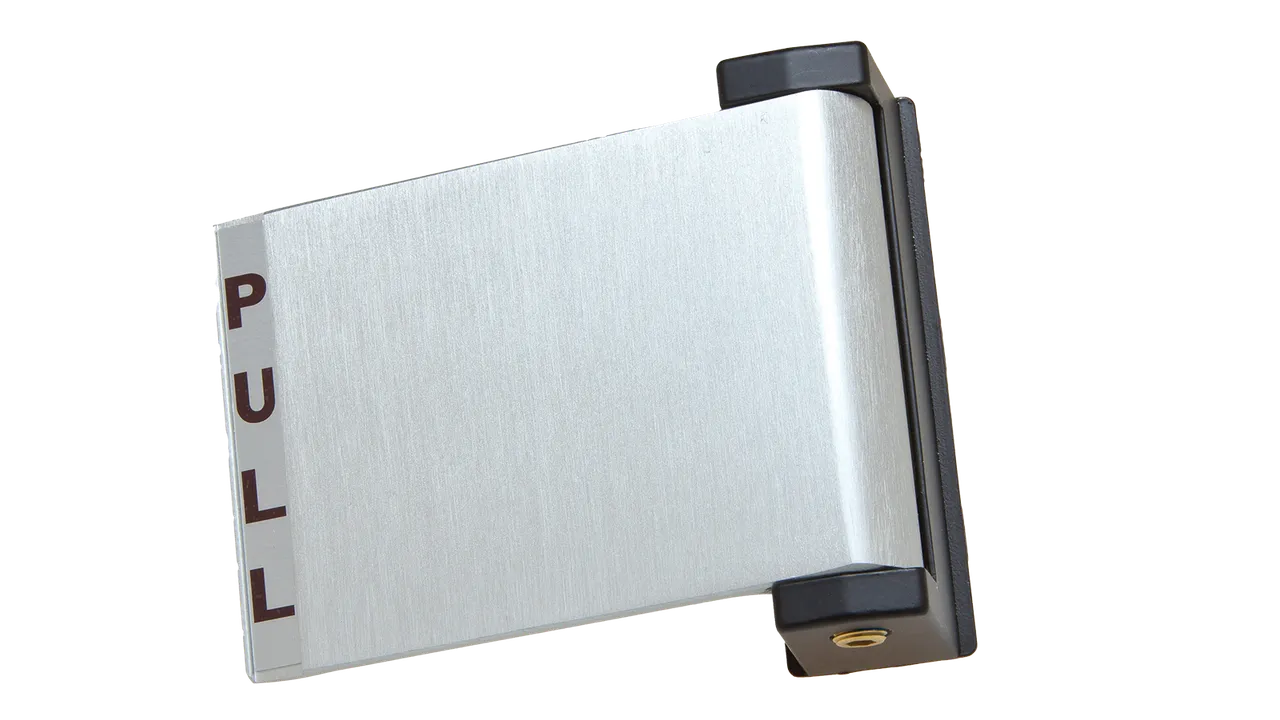

The 459 Series provides the standard paddle function.

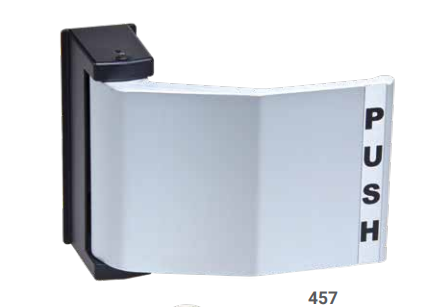

457 Series is ergonomic and ADA friendly; providing additional clearance
between the handle and door escutcheon. The dogging screw is located on the top of the paddle.
The dogging feature is activated by turning the hex key (included) in the escutcheon;
holding the paddle down and leaving the door free-swinging.
 • Corrosion resistant extruded aluminum construction
 • Escutcheon is zinc alloy with black hard coat finish
 • Double spring escutcheon construction for durability
 • Self-adhesive Push or Pull decals included
 • Binder post insures secure attachment of the Push/Pull handle to the door

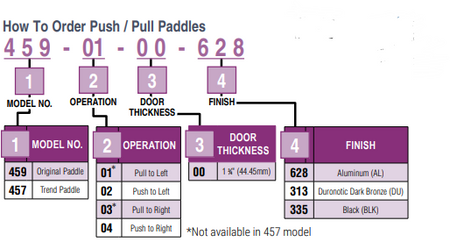

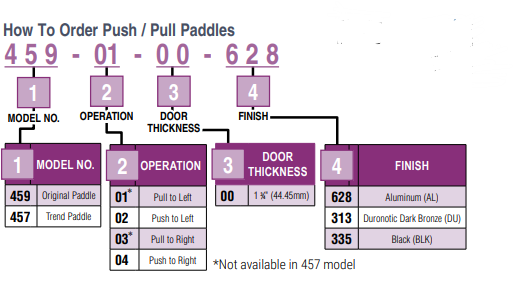

 • Available in four operation modes (Pull Left, Pull Right, Push Left, Push Right)
 • Field reversible handing using Push/Pull feature and cam plug (CP456) included
 • Cycle testing exceeds ANSI Grade 1 standards

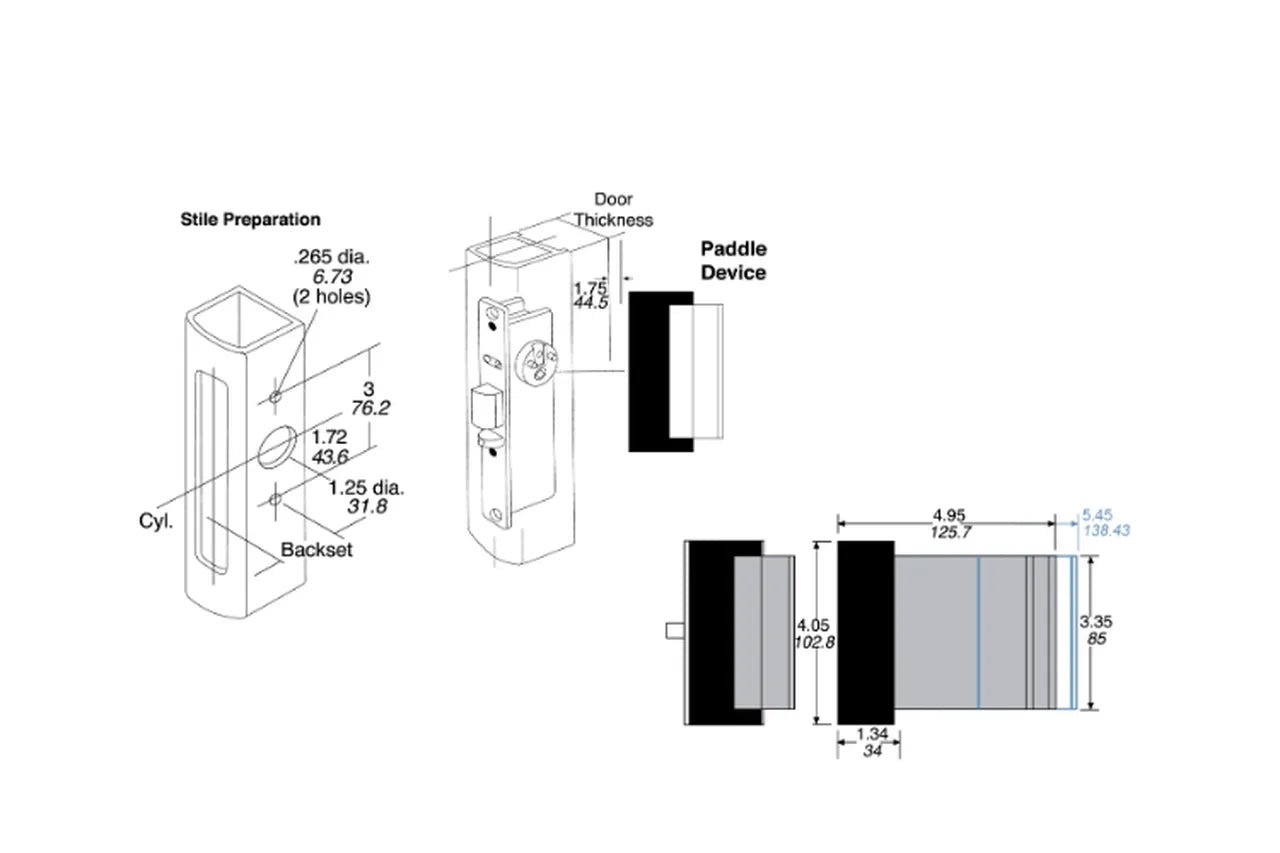

Door Thickness: 1 3/4" (44.45 mm)
Escutcheon: 1 3/8" x 4" (34 mm x 101.6 mm)
