The 310-6-2 vertical mounted series is designed for heavy duty applications on single or double doors.

The all stainless steel construction of the 310-6-X makes it ideal for high abuse applications. This line of electric strikes will accommodate rim exit devices with a swinging Pullman style latchbolt.

Product Features

Tamper resistant, heavy-duty construction
Constructed entirely of stainless steel for strength and corrosion resistance
Static strength 1,500 lbs
Dynamic strength 70 ft-lbs
Endurance 1,000,000 cycles
Adjustable keeper to allow for door and frame misalignment
Non-handed
Fail secure (standard)
Plug-in connector

Application

Adjustability : Horizontal
Latchbolt Accommodation : Pullman Latchbolts

Electrical

Voltage : 12|24
Monitoring Installation : Factory Configured
Monitoring Options : Latchbolt and locking cam monitor with auxiliary switch

Strength & Durability

Endurance (cycles) : 1,000,000
Dynamic Strength (ft-lbs) : 70
Tamper Resistant : Yes
Fail Safe | Fail Secure : Fail Secure

General Specifications

Warranty : SecuriCare five-year, no fault, no questions asked warranty
Lock Type : Exit Device

Weights & Dimensions

Strike Body Depth (in) : 1-3/4"
Strike Body Height (in) : 15-13/100"
Strike Body Width (in) : 1-3/4"

Certifications

ANSI/BHMA A156.31, Grade 1
RoHS Compliant
UL 1034 burglary-resistant listed
UL294 Listed

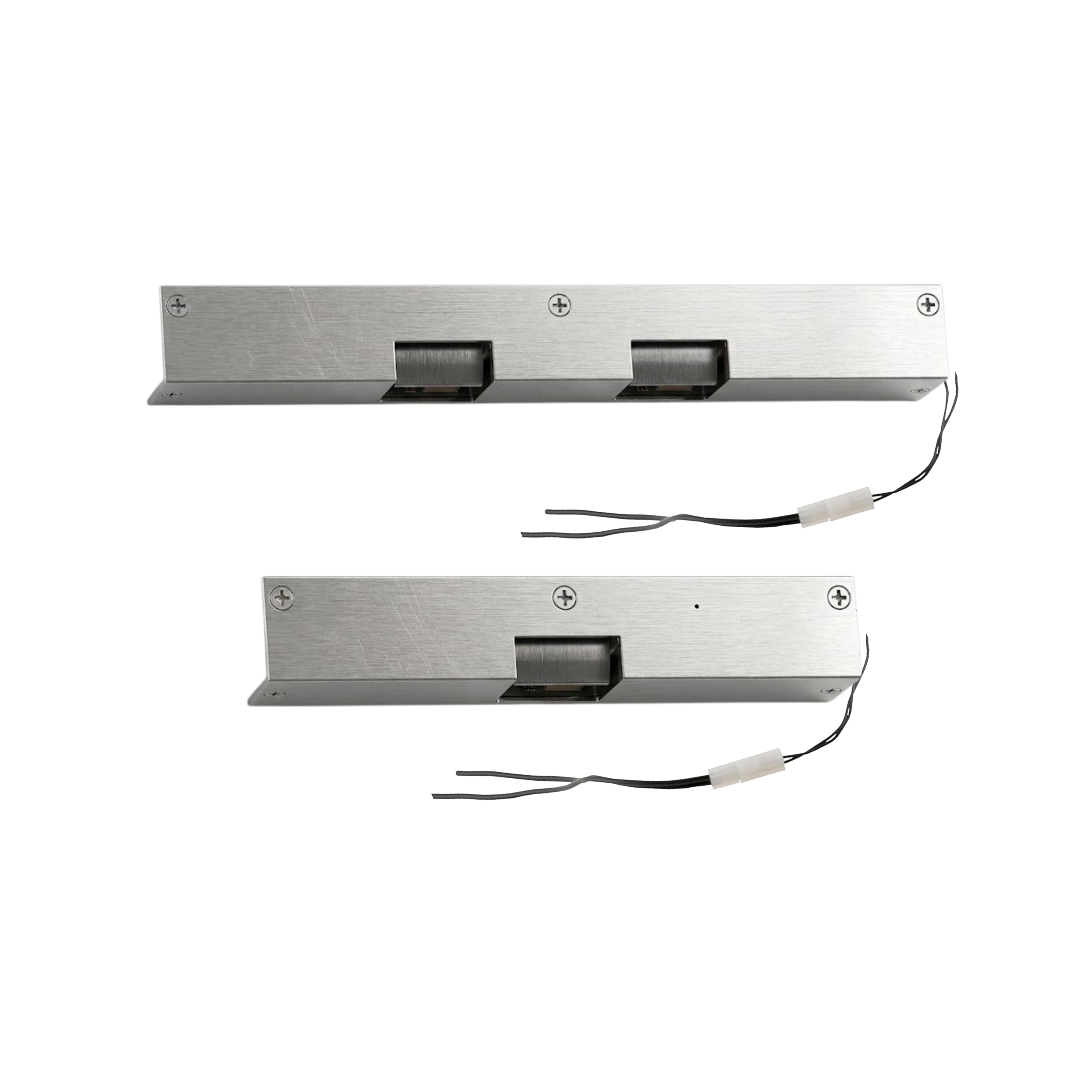

Folger Adam 310-6-2 Electric Strike for Concealed Vertical Rods
