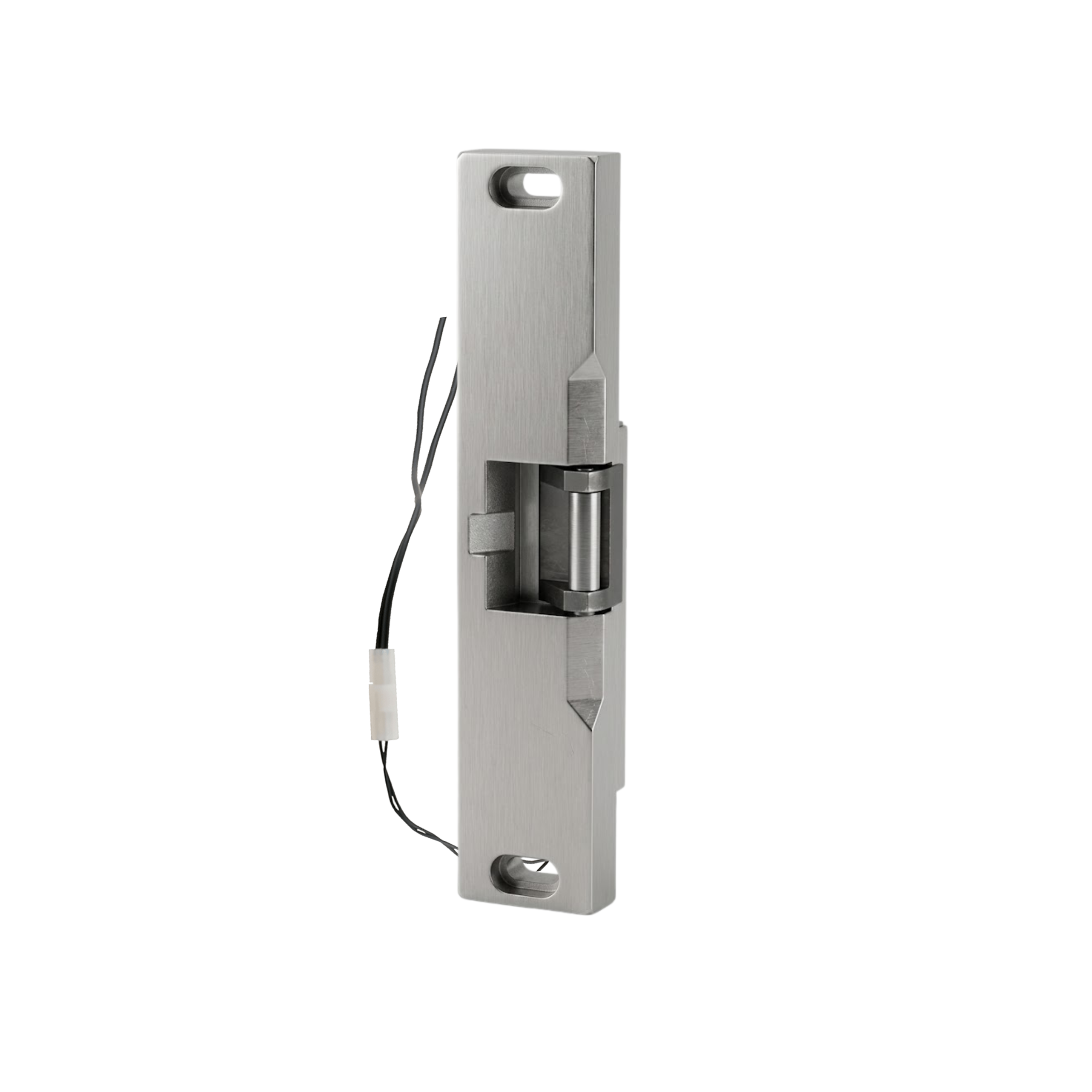

The 310-4 is a 3-hour fire rated, industrial grade electric strike designed for extreme heavy duty applications.

The all stainless steel construction of the 310-4 Series makes it ideal for high abuse applications that would disable other electric strikes. The Folger Adam 310-4 Series has a unique 3/4" face plate with an integrated 1/4" base shim that can be removed in the field to accommodate rim exit devices with a 1/2" or 3/4" throw latchbolt.

Product Features

Integrated shim for quick customization of faceplate thickness (1/2" to 3/4")
Tamper resistant, heavy duty construction
Constructed entirely of stainless steel for strength and corrosion resistance
Static strength 1,500 lbs
Dynamic strength 70 ft-lbs
Endurance rating 1,000,000 cycles
Integrated ramps for better deadlatch handling
Set screws for horizontal lockdown
In-frame horizontal adjustability
Wider faceplate (1-3/4") for greater versatility
Non-handed
Fail secure (Standard)
Plug-in connector

Application

Adjustability : Horizontal
Latchbolt Accommodation : 3/4"

Electrical

Voltage : 12|24
Monitoring Installation : Factory Configured
Monitoring Options : Latchbolt and locking cam monitor with auxiliary switch

Strength & Durability

Endurance (cycles) : 1,000,000
Dynamic Strength (ft-lbs) : 70
Tamper Resistant : Yes
Fail Safe | Fail Secure : Fail Secure

General Specifications

Warranty : SecuriCare five-year, no fault, no questions asked warranty
Lock Type : Exit Device

Weights & Dimensions

Strike Body Depth (in) : 1-71/100"
Strike Body Height (in) : 9"
Strike Body Width (in) : 1-3/4"

Certifications

ANSI/BHMA A156.31, Grade 1
RoHS Compliant
UL 1034 burglary-resistant listed
UL 10C Fire-Rated, 3 Hour Single Door [Fail Secure Only]
UL294 Listed

Folger Adam 310-4(S) Electric Strike for Pullman Rim Exit Devices
