The dormakaba Simplex 962X is a fully mechanical pushbutton cabinet lock designed for wood cabinet doors, desk drawers and similar applications. It provides keyless access using one programmable combination and operates without batteries, wiring or software.
The combination is entered using five vandal-resistant metal pushbuttons. The code can be changed through the keypad without removing the lock from the cabinet door.
The Simplex 962X is designed for wood doors measuring 5/8" to 7/8" thick. Depending on the exact configuration selected, it can be ordered with a cross-throw or end-throw bolt arrangement, a standard deadbolt or spring-loaded latch, an optional trim plate and optional key override.
The lock is non-handed and may be installed horizontally or vertically. Its all-metal cast faceplate and protected exterior operating knob are designed for cabinet and drawer applications requiring controlled mechanical access.
KEY FEATURES
- Fully mechanical pushbutton cabinet lock
- No batteries, wiring or software required
- One programmable access combination
- Five vandal-resistant solid-metal pushbuttons
- Combination can be changed without removing the lock
- Designed specifically for wood cabinet doors and drawers
- Fits wood doors from 5/8" to 7/8" thick
- Non-handed
- Horizontal or vertical installation
- All-metal cast faceplate
- Protected exterior operating knob
- Manual-relocking deadbolt and automatic-relocking spring-latch configurations available
- Optional key override on select configurations
- Optional trim plate
- One-year limited manufacturer’s warranty

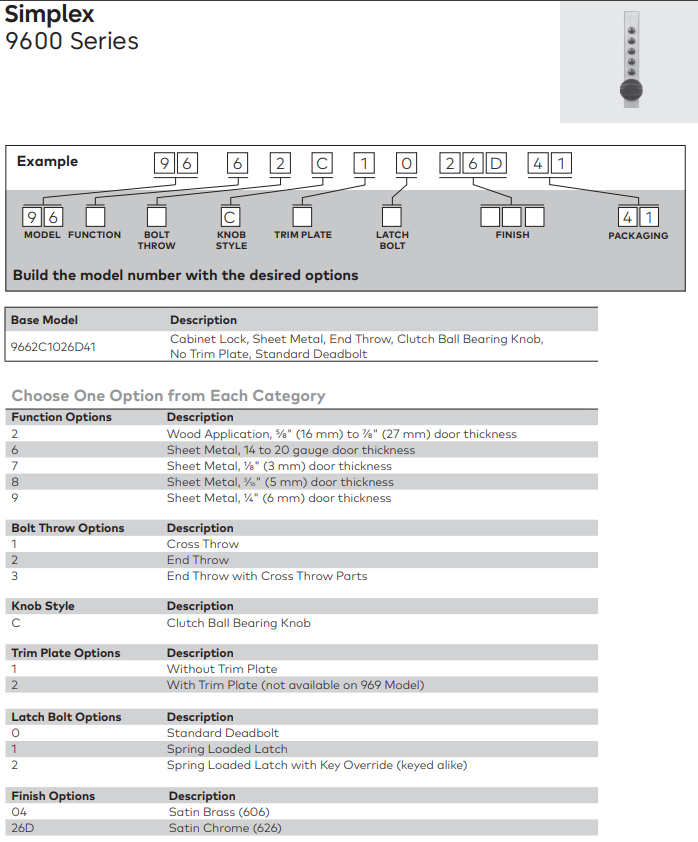

962X MODEL SELECTION
- 9621 - Cross-throw configuration
- 9622 - End-throw configuration
- 9623 - End-throw configuration supplied with cross-throw parts
The complete model number also identifies the knob style, trim plate, locking bolt and finish. Verify the complete part number before ordering.
LOCKING OPTIONS
Depending on the complete model number, the 962X may be configured with:
- Standard deadbolt - requires manual relocking
- Spring-loaded latch - automatically relocks
- Spring-loaded latch with key override - available on select configurations
Spring-latch and key-override availability depends on the selected bolt configuration and complete model number.
TRIM-PLATE OPTIONS
- Without trim plate
- With trim plate
A trim plate may be useful for certain wood-door preparations. Confirm the selected model and installation requirements before ordering.
AVAILABLE FINISHES
- 04 (606) - Satin Brass
- 26D (626) - Satin Chrome
- Black trim plate available as an option
TYPICAL APPLICATIONS
- Medicine cabinets
- Liquor cabinets
- Tool cabinets and chests
- Private files
- Audio-visual cabinets
- Cleaning-supply cabinets
- Courier pickup boxes
- Petty-cash drawers
- Desk drawers
- Other compatible wood cabinet-door applications
SPECIFICATIONS
- Brand: dormakaba Simplex
- Series: 9600
- Model Family: 962X
- Product Type: Mechanical pushbutton cabinet lock
- Application: Wood cabinet doors and drawers
- Access Method: Pushbutton combination
- Number of Codes: One access combination
- Power Requirement: None
- Door Thickness: 5/8" to 7/8"
- Handing: Non-handed
- Installation Orientation: Horizontal or vertical
- Construction: All-metal cast faceplate
- Key Override: Optional on select configurations
- Warranty: One-year limited manufacturer’s warranty
INSTALLATION INFORMATION
For wood applications, dormakaba specifies a two-step mortise installation using a router or a 5-1/2" x 1" slot when using the trim plate. Installation requirements vary according to the exact bolt orientation, trim-plate selection and cabinet construction. Review the applicable manufacturer template and installation instructions before preparing the cabinet.
IMPORTANT ORDERING INFORMATION
The designation “962X” represents a family of configurations, not one complete orderable part number. Bolt orientation, knob style, trim plate, latch type, key override, finish and packaging are identified by the remaining characters in the complete model number.
Confirm the full model number and required cabinet preparation before ordering. Do not select a replacement using “962X” alone.
FREQUENTLY ASKED QUESTIONS
WHAT IS THE SIMPLEX 962X?
The Simplex 962X is the wood-door model family within the Simplex 9600 Series of mechanical pushbutton cabinet locks. It is designed for cabinet doors, desk drawers and similar wood applications.
WHAT DOES THE “X” IN 962X REPRESENT?
The “X” represents the bolt-throw configuration:
- 9621 - Cross throw
- 9622 - End throw
- 9623 - End throw supplied with cross-throw parts
Additional characters are required to identify the complete orderable configuration.
WHAT DOOR THICKNESS DOES THE SIMPLEX 962X FIT?
It is designed for wood doors from 5/8" to 7/8" thick.
DOES THE SIMPLEX 962X REQUIRE BATTERIES?
No. It is a fully mechanical lock and does not require batteries, electrical wiring or software.
HOW MANY ACCESS CODES DOES IT SUPPORT?
The lock supports one access combination for all authorized users.
CAN THE COMBINATION BE CHANGED?
Yes. The combination can be changed through the keypad without removing the lock from the cabinet door.
IS THE SIMPLEX 962X HANDED?
No. The lock is non-handed and can be installed horizontally or vertically.
DOES IT RELOCK AUTOMATICALLY?
That depends on the locking configuration. Standard deadbolt models require manual relocking. Spring-loaded latch models relock automatically.
DOES THE SIMPLEX 962X HAVE A KEY OVERRIDE?
Key override is available on select configurations only. Verify that the full model number specifically includes the key-override option before ordering.
IS A TRIM PLATE INCLUDED?
Some models are supplied with a trim plate and others are supplied without one. The trim-plate selection is identified within the complete model number.
CAN THE SIMPLEX 962X BE USED ON SHEET-METAL CABINETS?
The 962X family is intended for wood applications. Other Simplex 9600 Series model families are designated for sheet-metal applications.
WHAT FINISHES ARE AVAILABLE?
The current manufacturer information lists Satin Brass 04 (606) and Satin Chrome 26D (626). A black trim plate is available as an option.
WHAT IS THE WARRANTY?
The Simplex 9600 Series carries a one-year limited manufacturer’s warranty.
