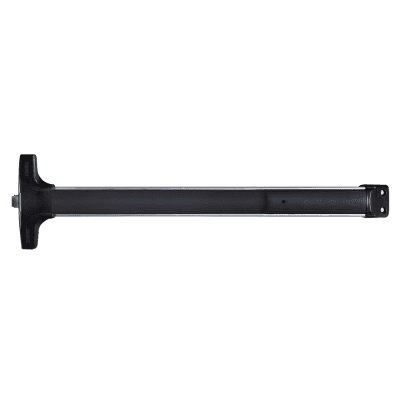

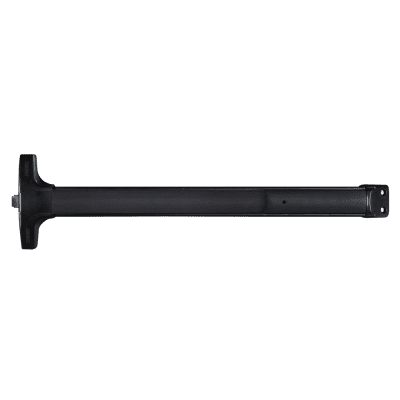

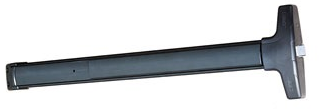

Detex V40 Hex Dogging & V40 HD W Rim Panic Exit Device. The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. US Lock Supply Stocks The V40 In All Options.
Benefits:
Priced to be the best value for durable and attractive loss prevention panic hardware
Fast and easy installation
Minimal door prep saves time and money
Fits almost any door in any décor
Outside trims are easily changed or rekeyed without removing device from door
Features:
Patented mounting plate and strike locator
Covers a 161 door prep
Stainless steel, 3/4" deadlocking Pullman-type latch bolt
Non-handed
Field sizeable
1/8 turn hex key dogging
Heavy-duty angled end cap
Heavy-duty ribbed aluminum rail extrusion
High impact ABS and anodized surfaces
Withstands over 1400 pounds of static pull force for greater security
Modular design accepts a variety of outside trims and functions
Standard and narrow stile pull trims available

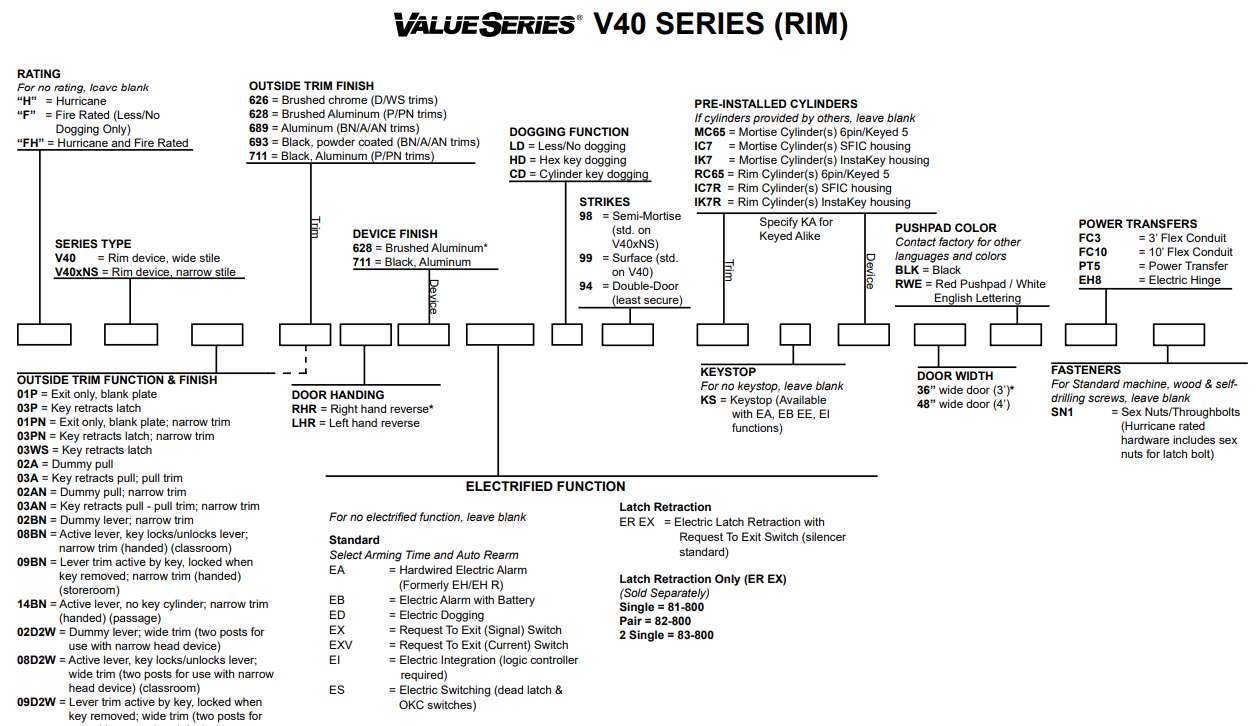

Mechanical Options:
HD - Hex Dogging (Std.)
36 - Fits 36" Door Width (Std.)
48 - Fits 48" Door Width
99 - Surface Strike (Std.)
98 - Semi Mortise Strike
