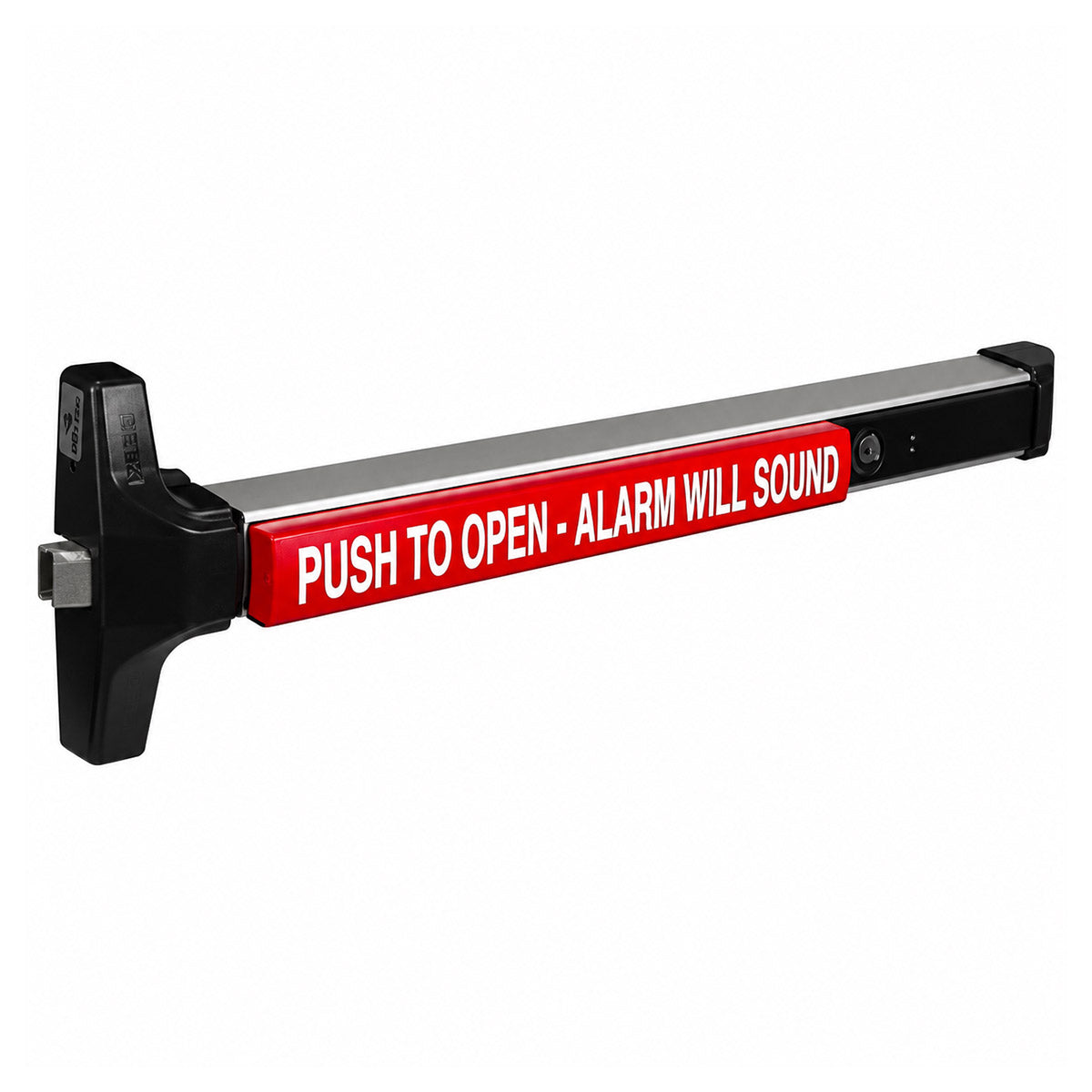

Detex V40 EB Weatherized Cylinder Dogging Alarmed Rim Exit Device

by Detex
$ 628.00

The V40xEBxW device option is designed for doors and gates requiring a stand alone, battery powered, alarmed, weatherized panic device. The alarm, with approximately 100dB, will sound when someone attempts to exit, alerting management that an unauthorized exit has occurred. The internal alarm with both remote bypass and remote signaling capabilities is ideal for applications where both security and life safety are a concern. In addition to listing as UL panic and fire exit hardware device, this device conforms to MIL-STD 810F Method 506.4 (driving rain test), MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard 7-2 (positive pressure).

US Lock Supply Stocks The Detex V40 EB W CD In All Options

Video Instructions For Detex V40 EB W CD


• Weather resistant loss prevention hardware designed for use in outdoor or wet environments

• Patented back plate and plastic strike locator designed for perfect alignment with door and frame without paper template

• Fast, easy, trouble-free installation prevents costly mistakes and enhances security

• Provides reliable loss prevention protection 24 hours a day

• Controls foot traffic to deter unauthorized exits and reduces employee and customer theft • Rugged, durable, corrosionresistant design reduces maintenance

• Aesthetically pleasing design for almost any door or gate in any décor


• Powered by standard 9-volt battery

• Stainless steel, self-latching bolt

• Angled end cap deflects damage

• Tamper-resistant, immersion- proof security switches

• Covers a 161 door prep

• Plated steel, anodized aluminum and ABS components endure heavy use and exposure to the elements

 • Built-in inhibitors prevent ABS fading and weakening, typically caused by exposure to extreme temperatures and UV rays

• 100dB alarm

• Indefinite alarm requiring manual rearm or variable 2 min. alarm duration with auto re-arm

• Cylinder dogging standard (can also be ordered less dogging)

 • Visual and audible arming indicators

• Tamper-resistant housing protects electronics, battery and internal hardware, preventing manipulation

• Tapered design sheds rainwater

• Visual and audible low battery alert

• Armed and disarmed field selectable status indicator

Mechanical Options:

• CD - Cylinder Dogging (Std.)

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike
