PED5000 Series Exit Devices

Next-Generation Performance. Unmatched Strength. Refined Design.

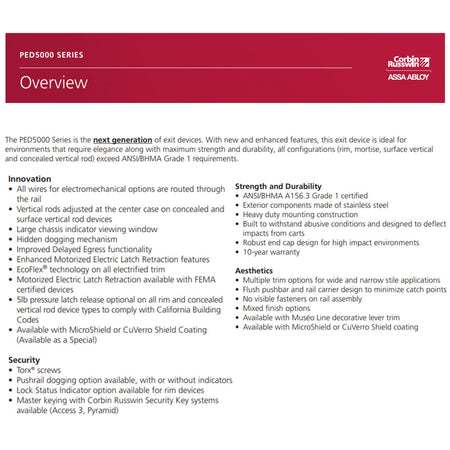

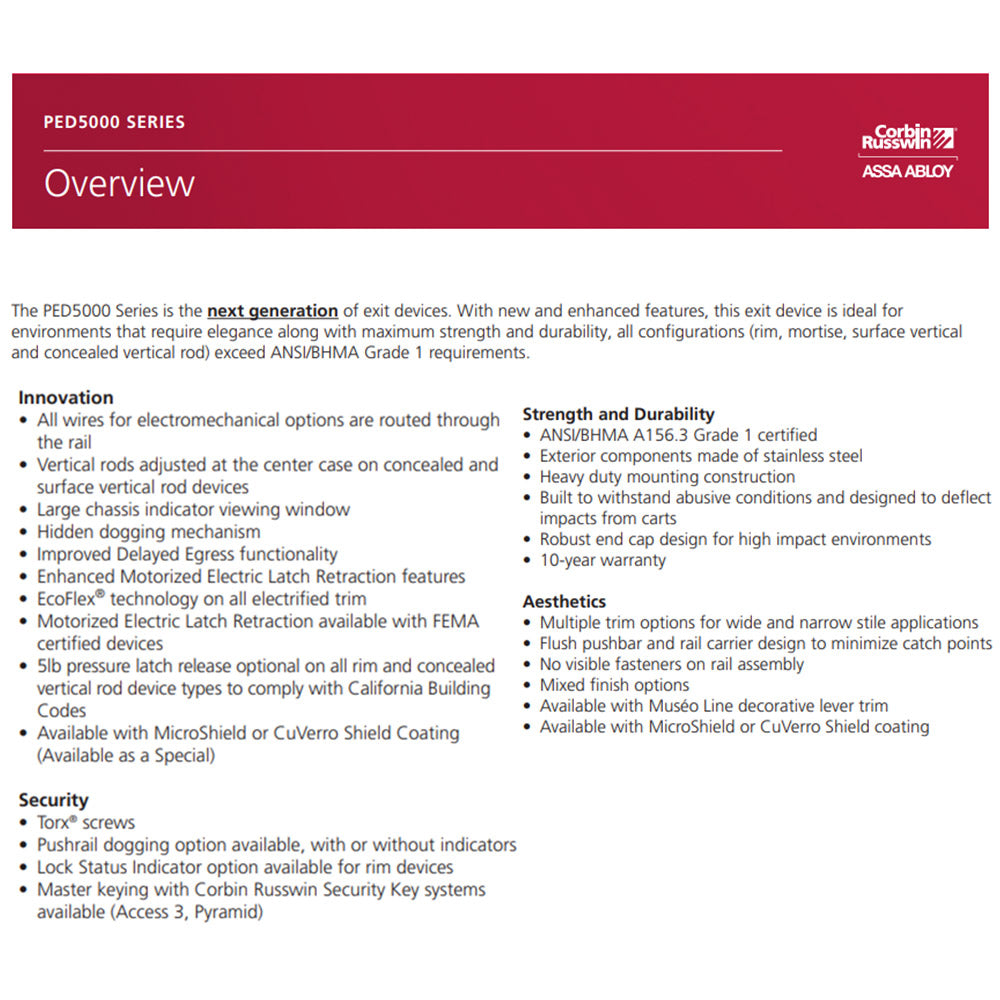

The PED5000 Series sets a new standard in exit device innovation—combining advanced electromechanical technology, Grade 1 strength, and sleek architectural styling. Designed for demanding commercial, institutional, healthcare, education, and high-traffic environments, the PED5000 Series delivers dependable security while maintaining a clean, modern aesthetic.

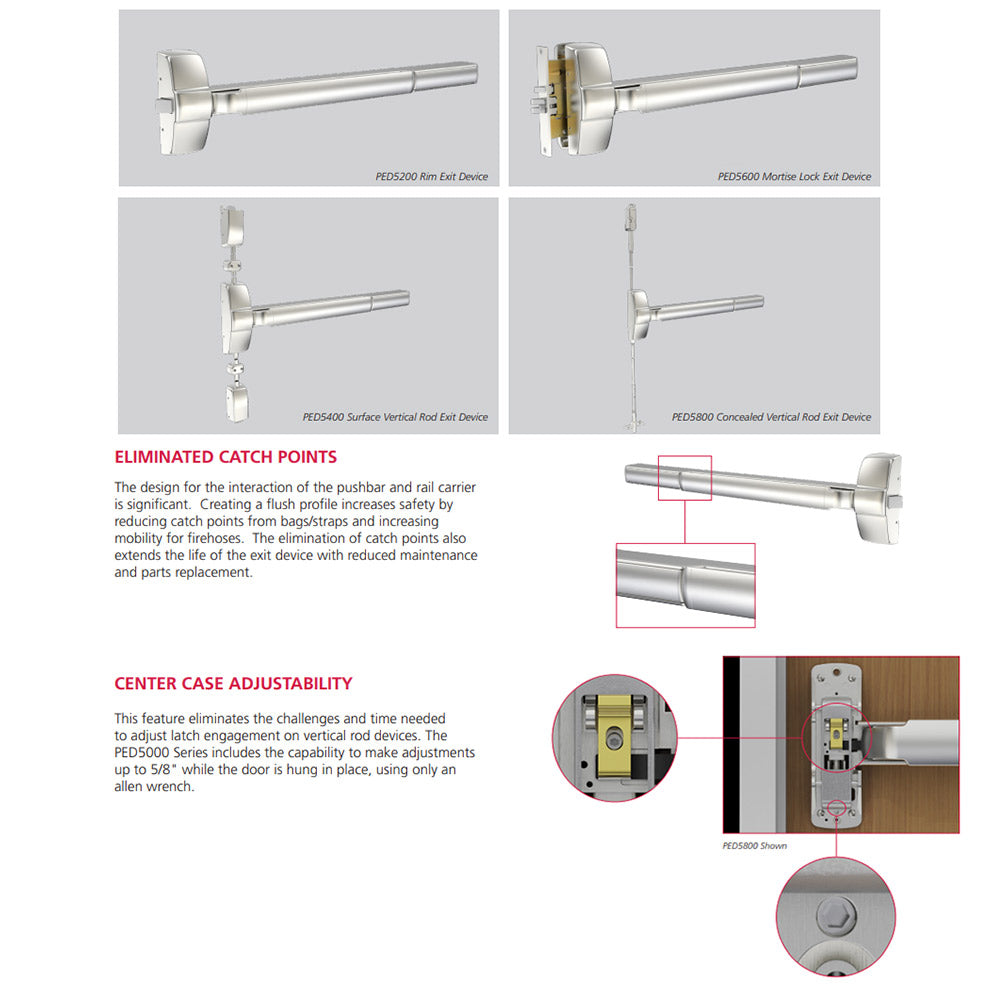

Available in rim, mortise, surface vertical rod, and concealed vertical rod configurations, all models exceed ANSI/BHMA A156.3 Grade 1 requirements for superior durability and performance.

🚀 Innovation Built In

The PED5000 Series integrates cutting-edge features that improve installation, functionality, and long-term reliability:

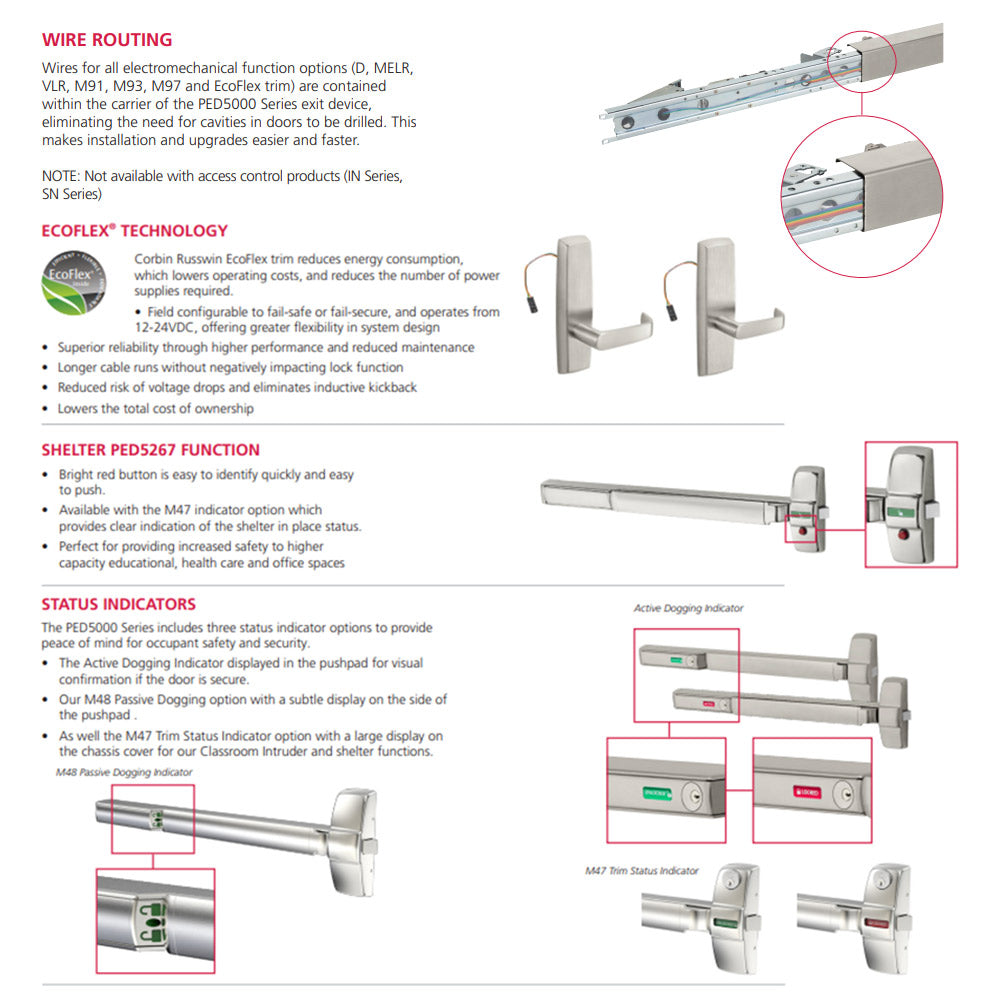

• All electromechanical wiring routed internally through the rail

• Center-case rod adjustment (surface & concealed vertical rod models)

• Large chassis indicator viewing window

• Hidden dogging mechanism

• Enhanced Delayed Egress functionality

• Advanced Motorized Electric Latch Retraction (ELR)

• EcoFlex® technology on all electrified trim

• FEMA-certified motorized ELR options available

• Optional 5 lb. pressure latch release (rim & concealed vertical rod) to comply with California Building Codes

• Optional MicroShield® or CuVerro® Shield antimicrobial coatings (Special Order)

🔐 Advanced Security Features

Designed to protect high-value facilities:

• Tamper-resistant Torx® screws

• Pushrail dogging option (with or without indicators)

• Lock Status Indicator option (rim devices)

• Master keying compatibility with Corbin Russwin Security Key Systems (Access 3, Pyramid)

💪 Built for Strength & Durability

• ANSI/BHMA A156.3 Grade 1 Certified

• Stainless steel exterior components

• Heavy-duty mounting construction

• Impact-resistant design deflects cart and equipment strikes

• Robust end caps for high-abuse environments

• Backed by a 10-Year Warranty

🎨 Architectural Aesthetics

Designed to complement modern commercial interiors:

• Multiple trim options (wide & narrow stile applications)

• Flush pushbar and rail carrier design to reduce catch points

• No visible fasteners on rail assembly

• Mixed finish options available

• Muséo Line decorative lever trim option

• Optional antimicrobial protective coatings

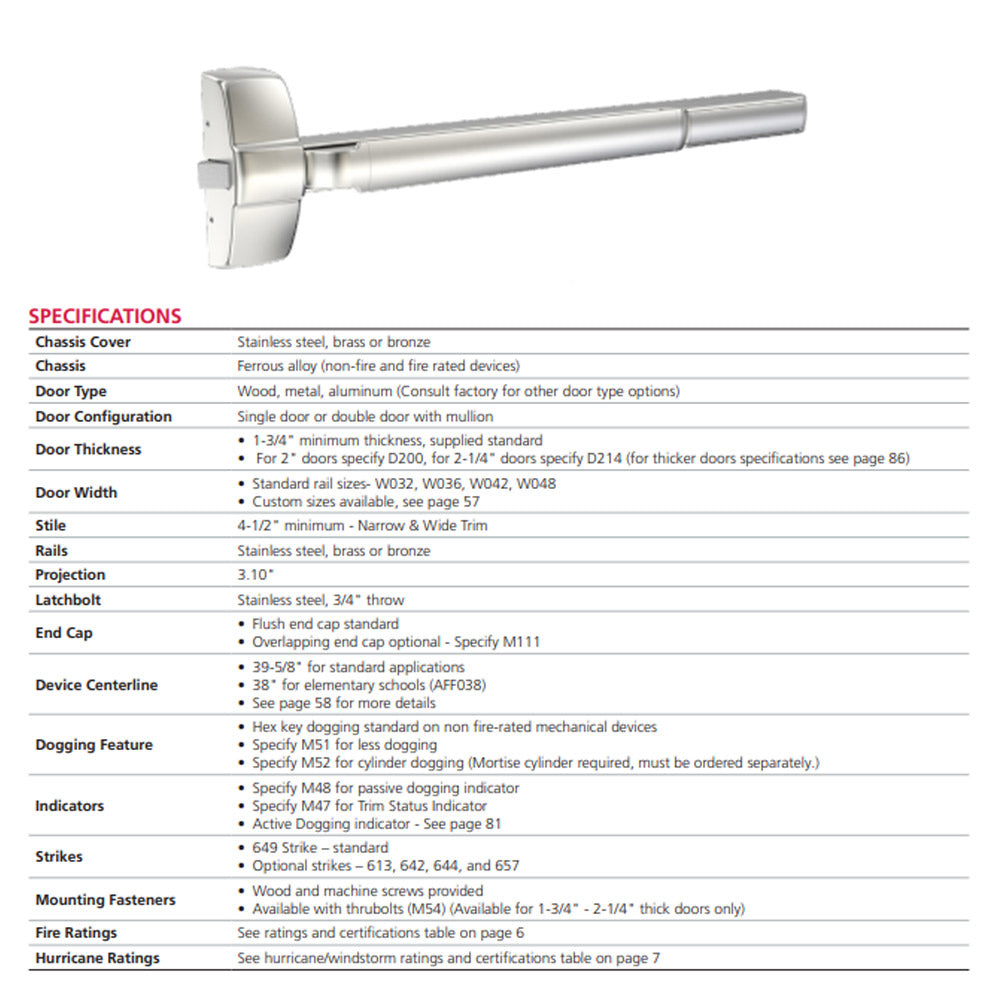

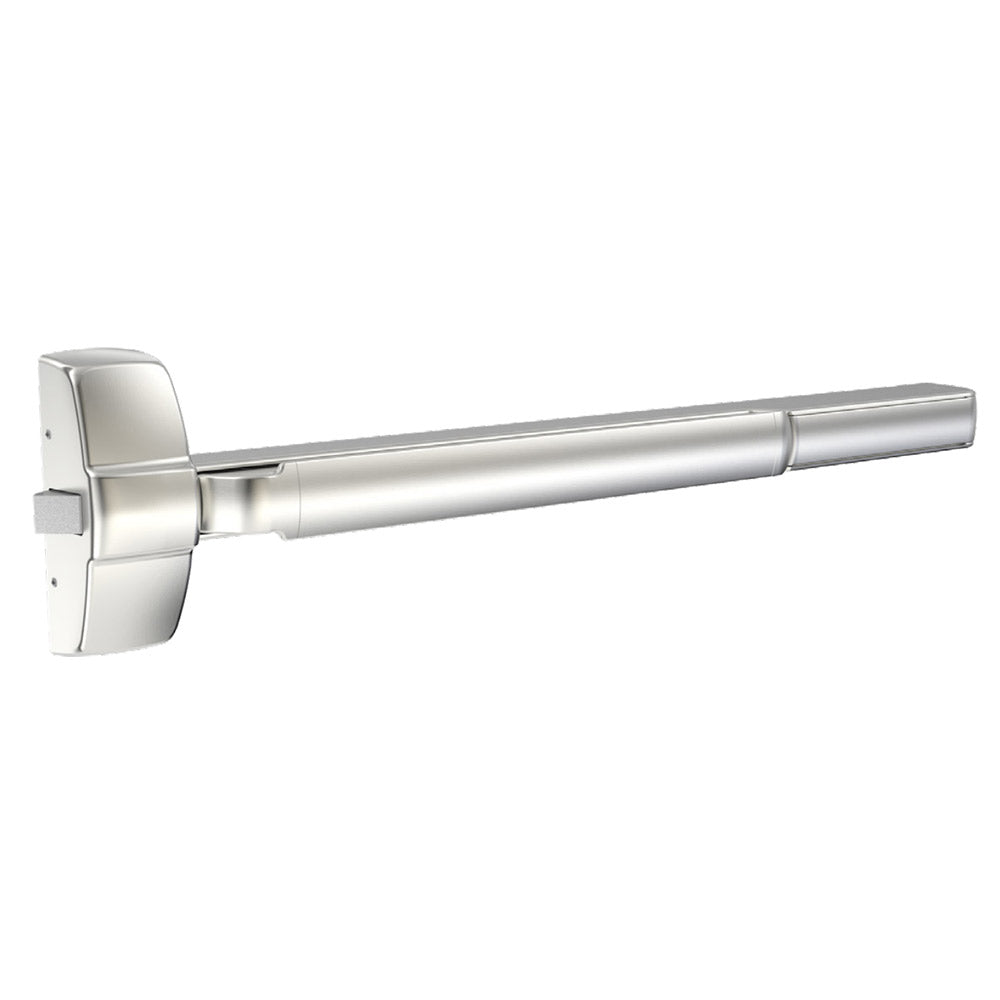

PED5200 Rim Exit Device (Part of the PED5000 Series)

The PED5200 Rim Exit Device delivers powerful rim exit performance with advanced customization options.

🔧 Dogging Options

• Hex key dogging standard (non fire-rated mechanical devices)

• M51 – Less dogging

• M52 – Cylinder dogging (Mortise cylinder required, ordered separately)

🔎 Indicator Options

• M48 – Passive Dogging Indicator

• M47 – Trim Status Indicator

• Active Dogging Indicator

🎨 Available Finishes

Coordinate seamlessly with existing hardware and décor:

• 613E – Dark Oxidized Satin Bronze

• 630 – Satin Stainless Steel

• BSP – Black Suede Powder

• WSP – White Suede Powder

• 605 – Bright Brass

• 606 – Satin Brass

• 611 – Bright Bronze

• 612 – Satin Bronze

• 629 – Bright Stainless Steel

Ideal Applications

• Commercial buildings

• Healthcare facilities

• Educational institutions

• Government buildings

• High-traffic retail environments

• Industrial facilities

The PED5000 Series delivers the perfect balance of innovation, durability, security, and design—making it the next generation solution for demanding exit hardware applications.
