Corbin Russwin PED4859 Concealed Vertical Rod Exit Device - 9CV57PT Storeroom Freewheeling Trim - Wide Trim

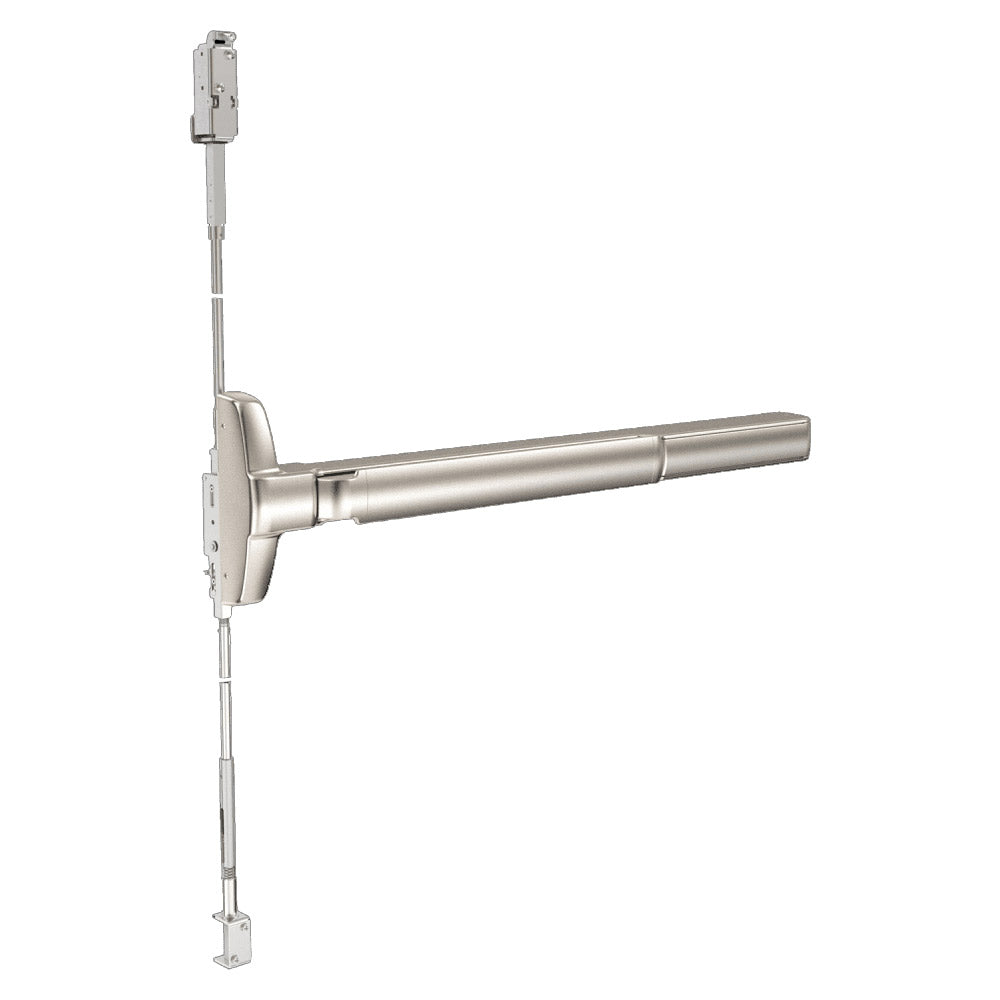

PED4800 Concealed Vertical Rod Exit Device

The PED4800 Concealed Vertical Rod Exit Device delivers reliable life-safety performance with a clean, streamlined appearance—ideal for commercial applications where aesthetics and code compliance matter. Designed for aluminum and metal doors, this concealed vertical rod system provides smooth, secure egress while keeping hardware out of sight.

Perfect for single or double door configurations, the PED4800 supports tall openings up to 120 inches, making it a versatile solution for a wide range of commercial and institutional environments.

Key Features & Benefits

• Concealed Vertical Rod Design
  Internal rods maintain a sleek, architectural look while ensuring dependable exit performance.

• Door Type Compatibility
  Designed for aluminum or metal doors.

• Flexible Door Configurations
  Suitable for single or double doors.

• Maximum Door Height
  Supports door openings up to 120" (door height must be specified).

Dogging Options

• Hex Key Dogging (Standard)
  Included on non fire-rated devices for easy hold-open operation.

• M52 – Cylinder Dogging (Optional)
  Requires mortise cylinder (ordered separately).

• M51 – Less Dogging (Optional)
  Ideal where dogging is not required.

Available Lever Styles

Choose from a selection of architectural lever trims to match your project’s design:

• Armstrong

• Citation

• Lustra

• Newport

• Princeton

• Regis

Available Finishes

Coordinate seamlessly with existing hardware and décor:

• 613E – Dark Oxidized Satin Bronze

• 630 – Satin Stainless Steel

• BSP – Black Suede Powder

• WSP – White Suede Powder

• 605 – Bright Brass

• 606 – Satin Brass

• 611 – Bright Bronze

• 612 – Satin Bronze

• 629 – Bright Stainless Steel

Ideal Applications

• Commercial buildings

• Retail storefronts

• Offices and corporate facilities

• Institutional and educational buildings

The PED4800 Concealed Vertical Rod Exit Device combines dependable security, smooth operation, and architectural appeal—making it a smart choice for modern commercial door systems.
