Corbin Russwin ED5470 - Vertical Rod Exit Device

Enhance life safety and door security with the ED5470 Series Surface Vertical Rod Exit Devices, designed for reliable performance, durability, and code compliance in high-traffic commercial environments.

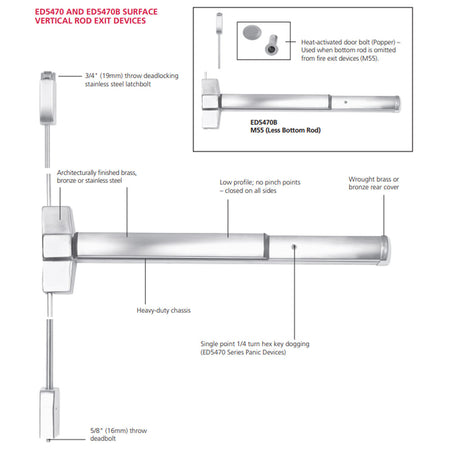

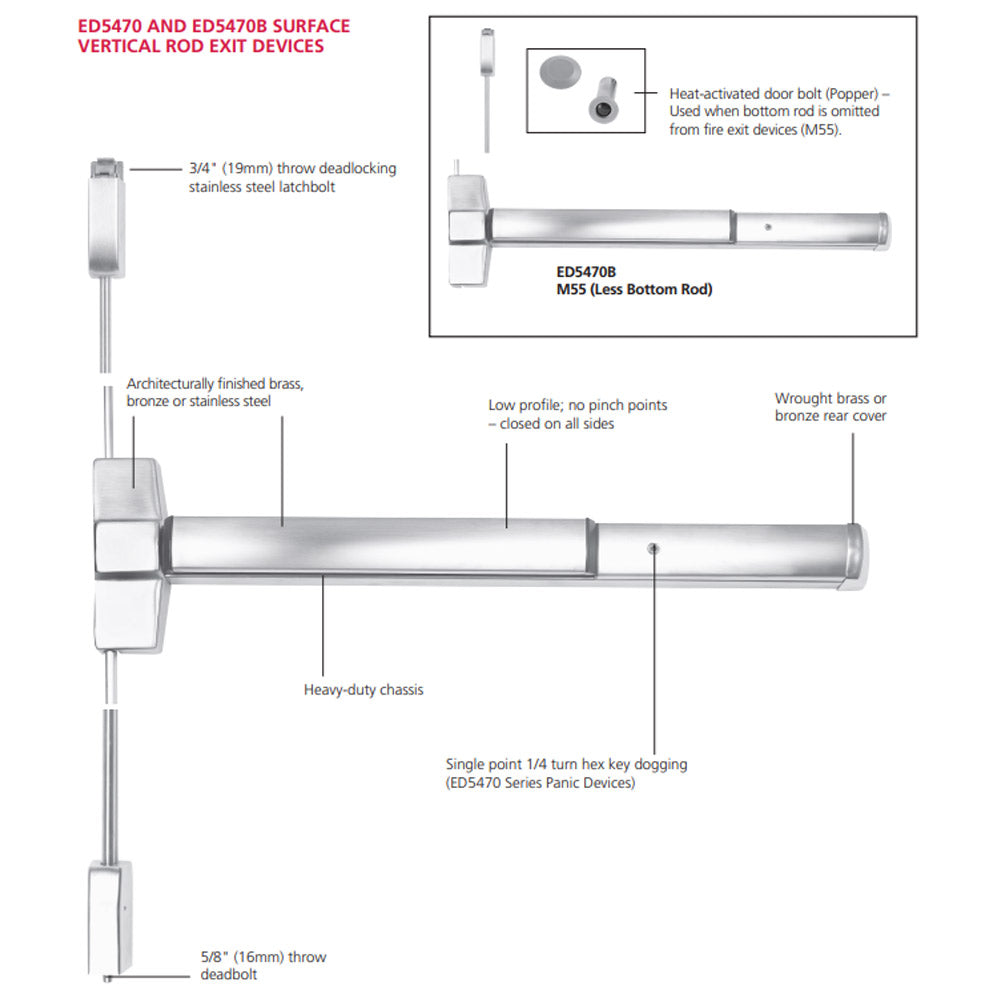

ED5470 Panic-Listed Surface Vertical Rod Exit Device

ED5470B Fire-Rated Surface Vertical Rod Exit Device

Built with premium materials and precision engineering, the ED5470 Series ensures smooth, consistent egress while offering the strength required for demanding applications. Ideal for both panic and fire-rated openings, these devices combine safety with architectural style.

Key Features & Benefits

🔁 Field-Reversible Handing

• Device is handed but easily reversible in the field for installation flexibility
• Lever trim is handed for proper operation

📏 Adjustable Bar Length

• Field-cuttable to fit various door sizes
• Standard 36" bar fits 30"–36" doors
• Optional 24" bar (W024) for 24" doors
• Optional 48" bar available for wider openings

🔒 Reliable Dogging (Panic Devices)

• Standard single-point 1/4 turn hex key dogging
• Ensures convenient hold-open function for high-traffic situations

🔥 Fire & Life Safety Compliance

• UL/cUL listed and compliant with UL 305 standards for panic hardware
• ED5470B fire-rated up to 1-1/2 hours
• Approved for fire exit hardware on labeled openings (up to 8' x 10' double doors)
• UL label visible on active case cover

🛠 Heavy-Duty Construction

• Cold-forged steel chassis with heavy-gauge steel internal mechanisms
• Electroplated components for corrosion resistance
• Stainless steel springs and nylon bearings for smooth, long-lasting operation
• 3/4" (19mm) throw deadlocking stainless steel latchbolt for added security
• Wrought brass or bronze rear cover for durability and aesthetics

🔩 Flexible Fastener Options

• Standard machine screws and wood door fasteners for panic devices
• Fire-rated devices include sex nuts and bolts
• Optional M54 sex nuts and bolts for wood, composite, or unreinforced metal doors
• Optional wood screws for approved fire-rated wood doors

🎨 Available Finishes

Designed to complement any architectural style:

• BHMA 605 – Bright Brass
• BHMA 606 – Satin Brass
• BHMA 611 – Bright Bronze
• BHMA 612 – Satin Bronze
• BHMA 613 – Oil Rubbed Oxidized Bronze
• BHMA 618 – Bright Nickel Plated
• BHMA 619 – Satin Nickel Plated
• BHMA 625 – Bright Chromium Plated
• BHMA 629 – Bright Stainless Steel
• BHMA 630 – Satin Stainless Steel
• 722 – Oil Rubbed Black Oxidized Bronze
• BSP – Black Suede Powder Coat
• WSP – White Suede Powder Coat

Ideal Applications

Perfect for:

• Schools and universities
• Office buildings
• Hospitals and healthcare facilities
• Retail and commercial establishments
• Government buildings

Why Choose ED5470 Series?

The ED5470 Series delivers a powerful combination of durability, safety, and design flexibility. With rugged internal construction, fire-rated options, and a wide range of finishes, it’s an excellent choice for facilities that require dependable exit hardware without compromising on aesthetics.
