Corbin Russwin ED5400A - Vertical Rod Exit Device - Fire Rated

Upgrade your door hardware with the ED5400 Series Surface Vertical Rod Exit Devices, engineered for dependable life safety, durability, and smooth operation in high-traffic environments.

ED5400 Panic-Listed Surface Vertical Rod Exit Device

ED5400A 3-Hour Fire-Listed Surface Vertical Rod Exit Device

Designed to meet the demands of commercial and institutional applications, the ED5400 Series delivers secure and efficient egress while maintaining a sleek architectural finish. Whether for standard panic applications or fire-rated openings, these exit devices provide long-lasting performance you can trust.

Key Features & Benefits

🔁 Flexible Handing

• Device is handed but easily reversible in the field for fast installation
• Lever trim is handed for precise configuration

📏 Adjustable Bar Length

• Field-cuttable for a perfect fit
• Standard 36" bar fits 30"–36" doors
• Optional 24" bar (W024) for 24" doors
• Optional 48" bar available for wider openings

🔒 Secure Dogging Options (Panic Devices)

• Standard single-point 1/4 turn hex key dogging
• Optional less dogging
• Optional cylinder dogging for enhanced control

🔥 Fire & Safety Compliance

• UL/cUL listed and compliant with UL 305 panic hardware standards
• ED5400A is fire-rated up to 3 hours
• Suitable for labeled fire doors (up to 8' x 8' double doors)
• UL label clearly visible on active case cover

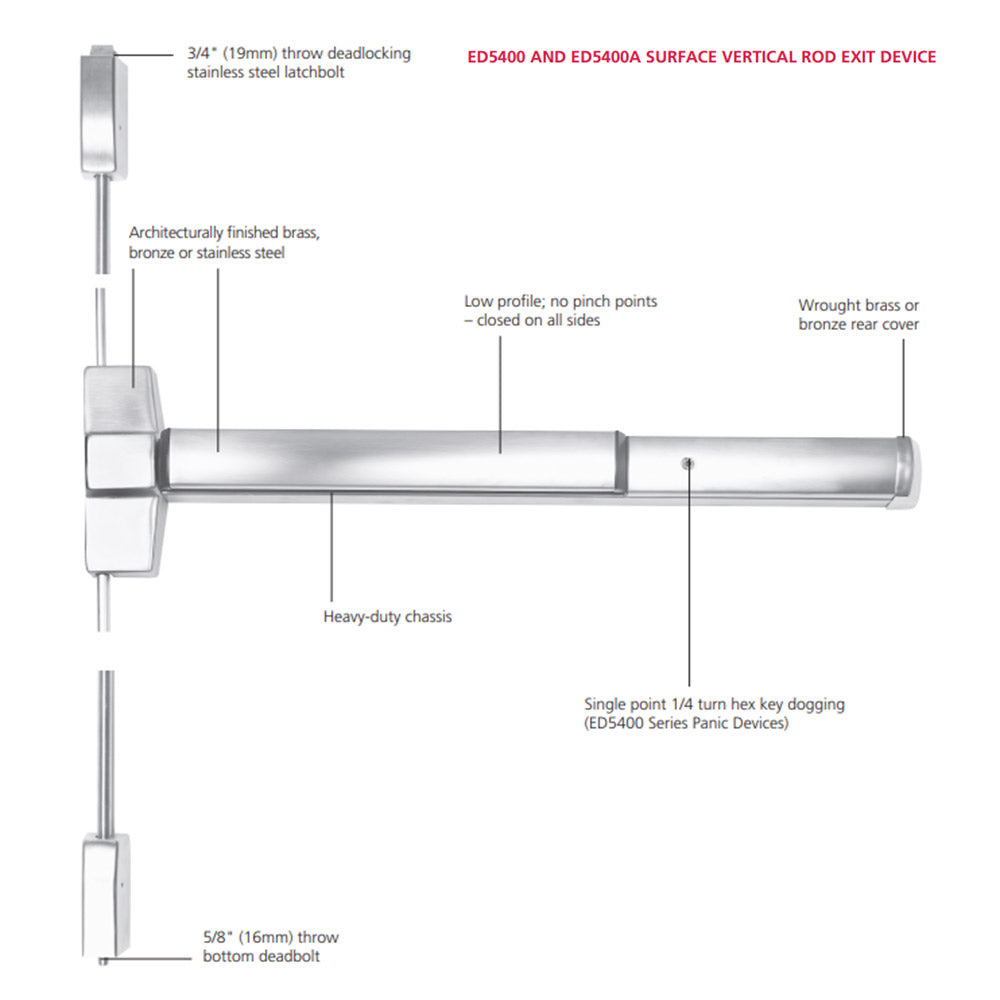

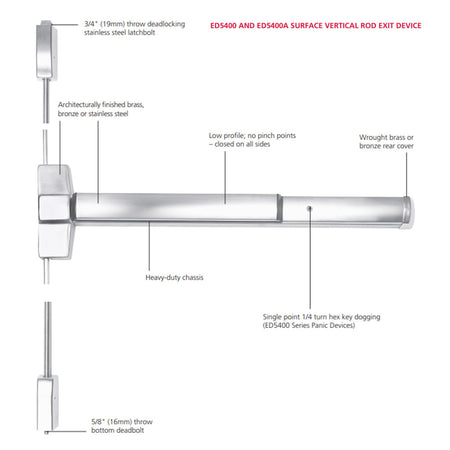

🛠 Durable Construction

• Heavy-duty chassis built for high-use environments
• 3/4" (19mm) throw deadlocking stainless steel latchbolt for added security
• Surface vertical rod design ensures consistent top and bottom latching

✨ Premium Finishes

• Available in architecturally finished brass, bronze, or stainless steel
• Designed to complement modern commercial interiors

Ideal Applications

Perfect for:

• Schools and universities
• Office buildings
• Healthcare facilities
• Retail establishments
• Government and commercial buildings

Why Choose ED5400 Series?

The ED5400 Series combines rugged performance with code-compliant safety, making it a reliable choice for facilities that demand both security and ease of egress. With flexible configurations, fire-rated options, and durable materials, it’s built to perform when it matters most.

🎨 Available Finishes

Designed to complement any architectural style:

• BHMA 605 – Bright Brass
• BHMA 606 – Satin Brass
• BHMA 611 – Bright Bronze
• BHMA 612 – Satin Bronze
• BHMA 613 – Oil Rubbed Oxidized Bronze
• BHMA 618 – Bright Nickel Plated

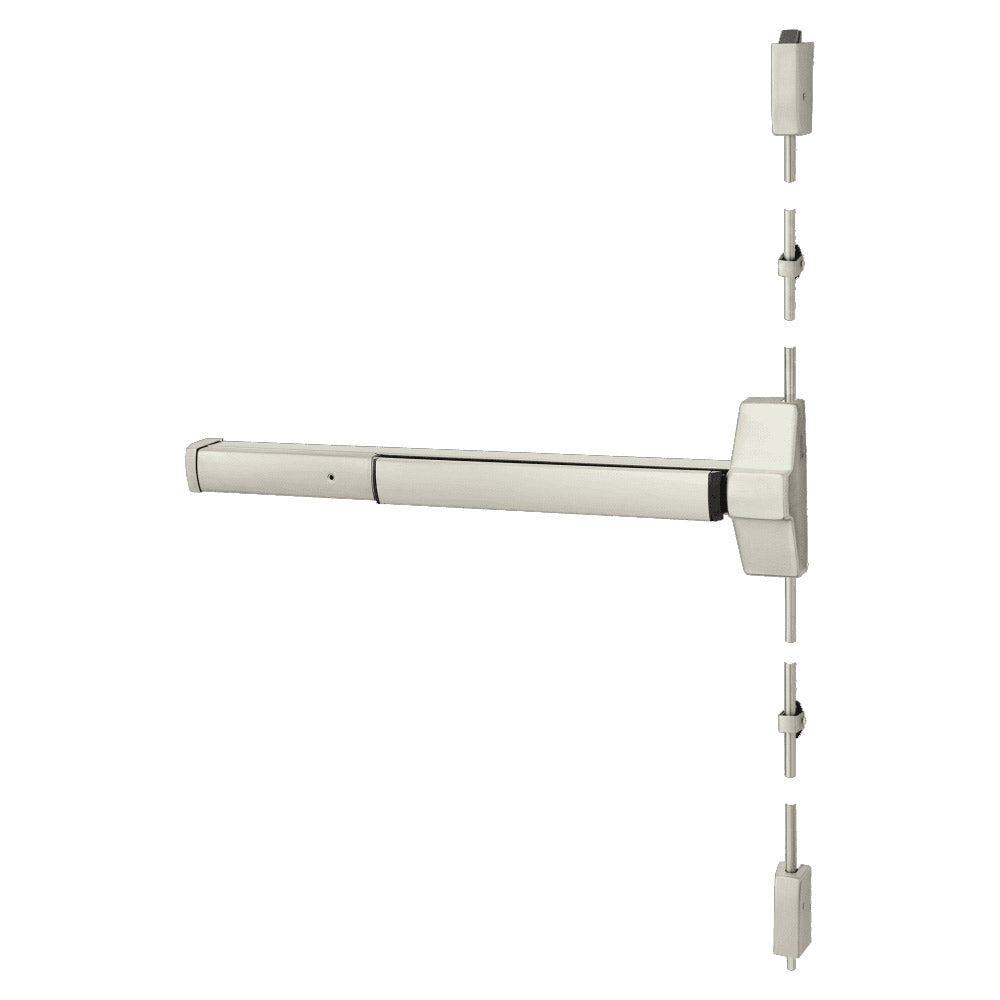

• BHMA 619 – Satin Nickel Plated

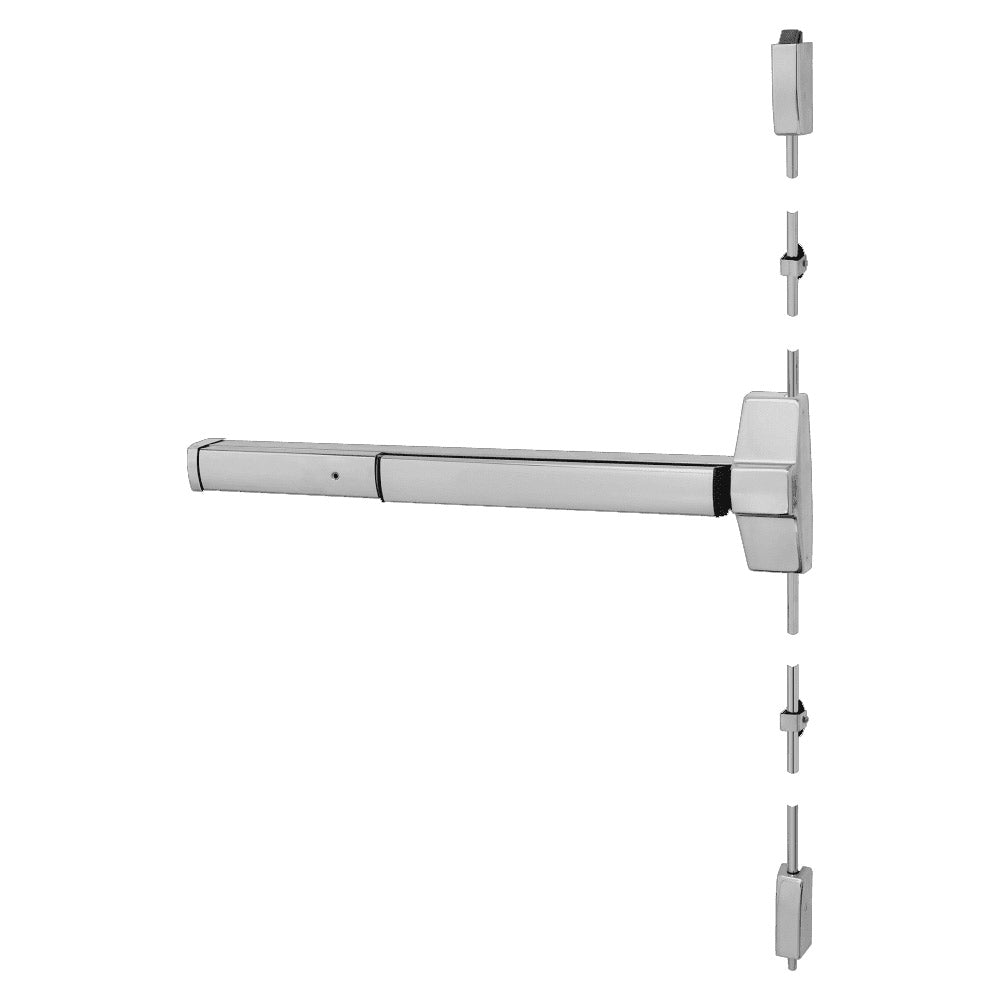

• BHMA 625 – Bright Chromium Plated

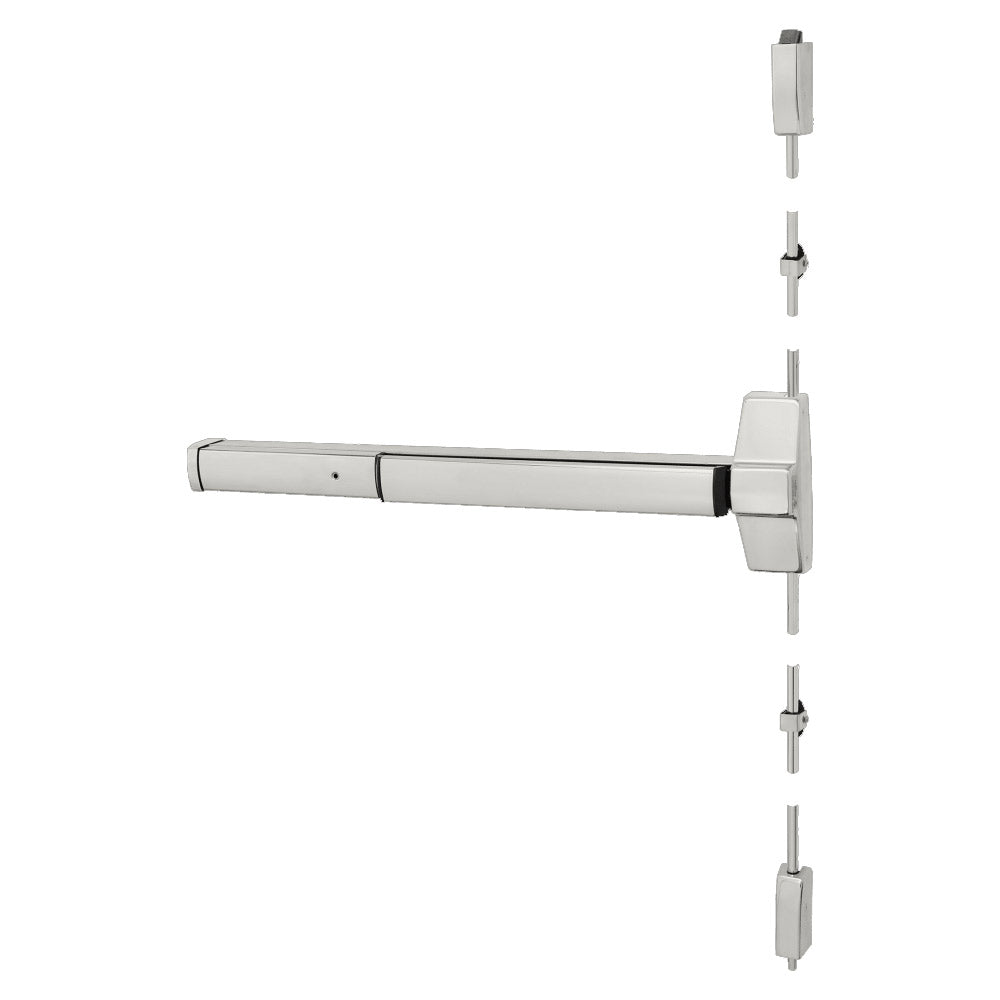

• BHMA 629 – Bright Stainless Steel
• BHMA 630 – Satin Stainless Steel
• 722 – Oil Rubbed Black Oxidized Bronze

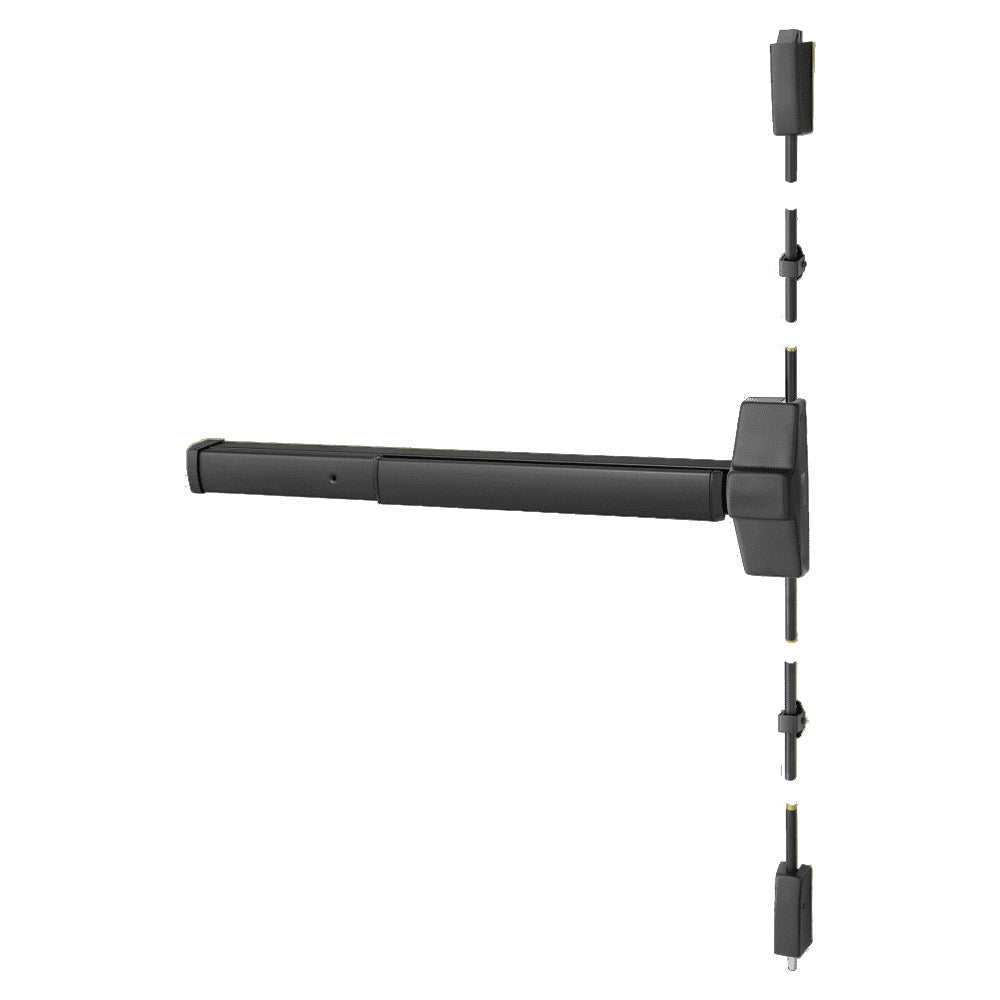

• BSP – Black Suede Powder Coat
• WSP – White Suede Powder Coat
