Corbin Russwin ED5200SA - Securebolt Panic-Listed Exit Device - Fire Rated

ED5200S & ED5200SA SecureBolt® Exit Devices

High-Security Panic Hardware with Superior Door Reinforcement

Engineered for maximum security and reliable life safety, the Corbin Russwin D5200S & ED5200SA SecureBolt® Exit Devices deliver exceptional performance in high-traffic environments. Built on the trusted ED5000 Series platform, these exit devices are designed to provide safe, smooth egress while reinforcing door security under extreme force.

Ideal for demanding applications such as schools, hospitals, hotels, retail spaces, offices, theaters, and government facilities, SecureBolt® technology ensures your openings stay protected without compromising emergency exit functionality.

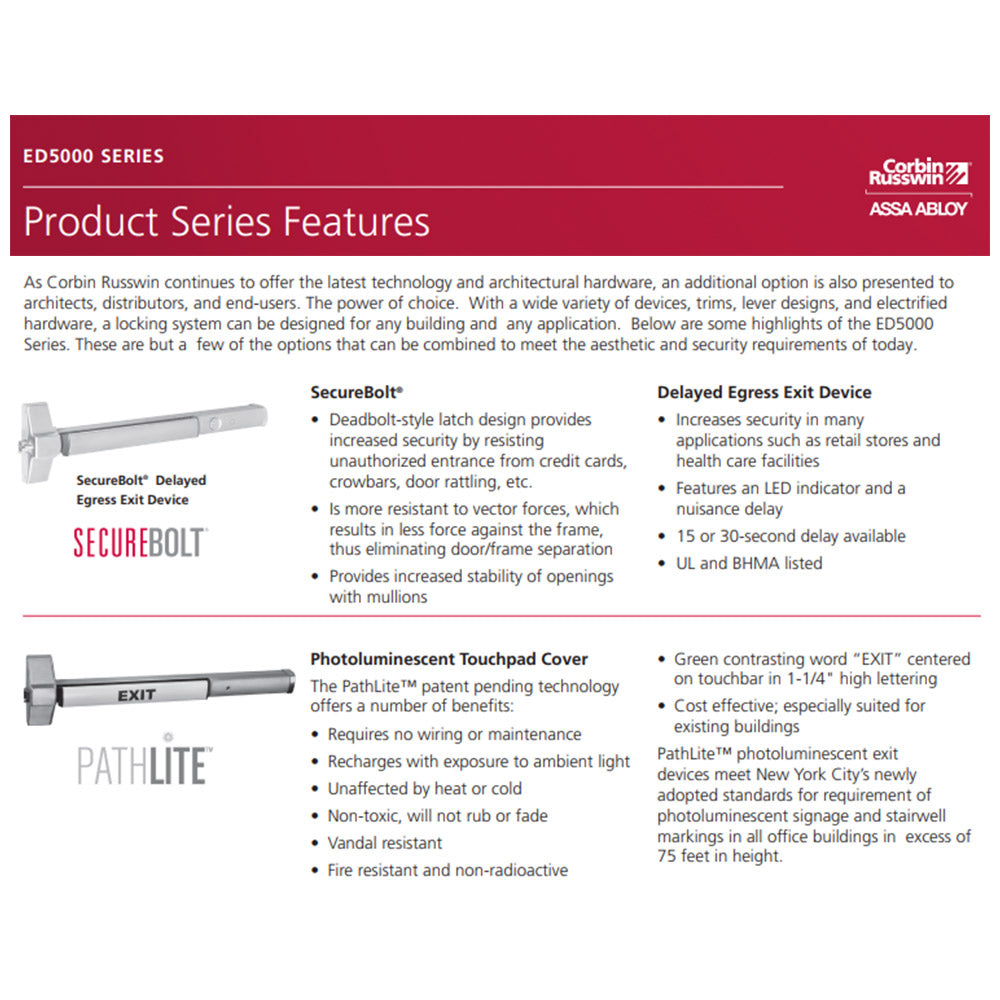

🔐 Advanced SecureBolt® Technology

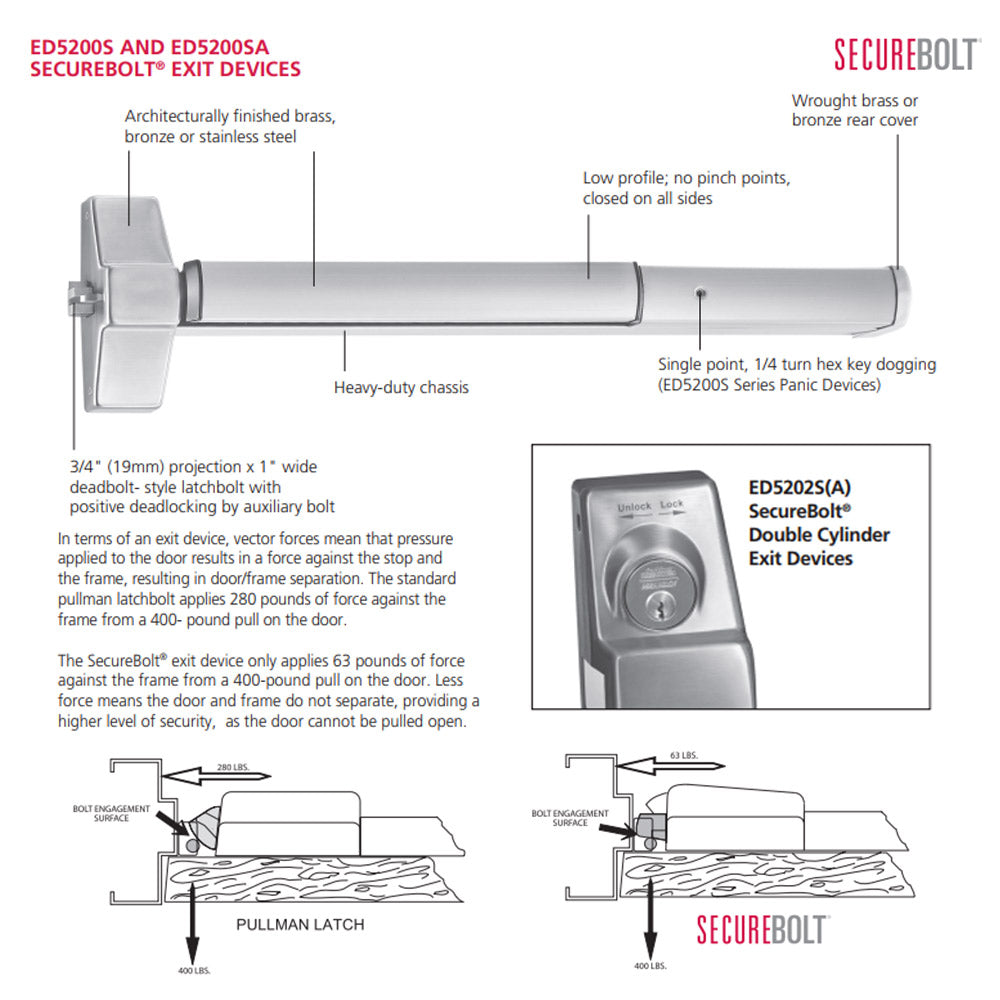

The SecureBolt® mechanism enhances door security by minimizing door separation under pressure. Even under a 400 lb pull force, only 63 lbs of force is applied to the frame—helping prevent forced entry and maintaining door integrity.

⚙️ Key Features & Benefits

• Double Cylinder Security (ED5200SA / D5200S)
Designed for enhanced access control, requiring a key on both sides for operation.

• Smooth & Reliable Egress
Ensures safe and easy exit in emergency situations, fully compliant with life safety standards.

• Heavy-Duty Construction

• Cold-forged steel chassis
• Heavy-gauge steel internal mechanisms
• Corrosion-resistant electroplated components
• Stainless steel springs and nylon bearings for long-lasting performance

• Flexible Sizing

• Field-cuttable bar for precise installation
• Standard 36" bar (fits 30"–36" doors)
• Optional 24" (W024) and 48" (W048) bar sizes available

• Dogging Function

• 1/4 turn hex key dogging standard (non-fire rated models)
• Allows push bar to remain unlocked for high-traffic periods

• Handing Options

• Standard device is non-handed
• Double cylinder and lever trims are handed

🧪 Proven Durability

Every Corbin Russwin exit device undergoes extensive lab and field testing. The ED5000 Series exceeds industry standards, with cycle testing reaching over 3.25 million operations, ensuring long-term reliability even in high-use environments.

🔥 Safety & Compliance

• UL / cUL Listed for panic hardware (UL 305)
• Fire-rated options available (up to 3-hour rating)
• Suitable for labeled single and double door applications

🎨 Available Finishes

Designed to match any architectural setting:

• BHMA 605 – Bright Brass
• BHMA 606 – Satin Brass

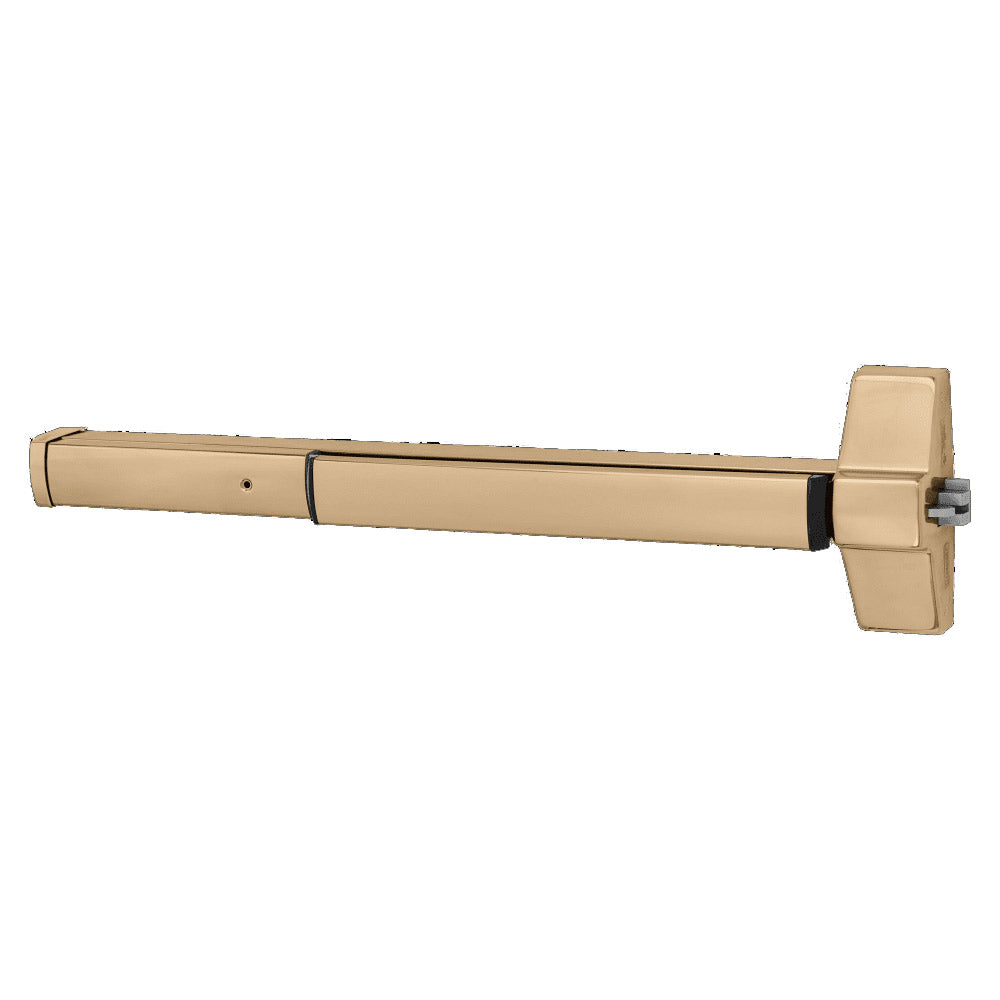

• BHMA 611 – Bright Bronze

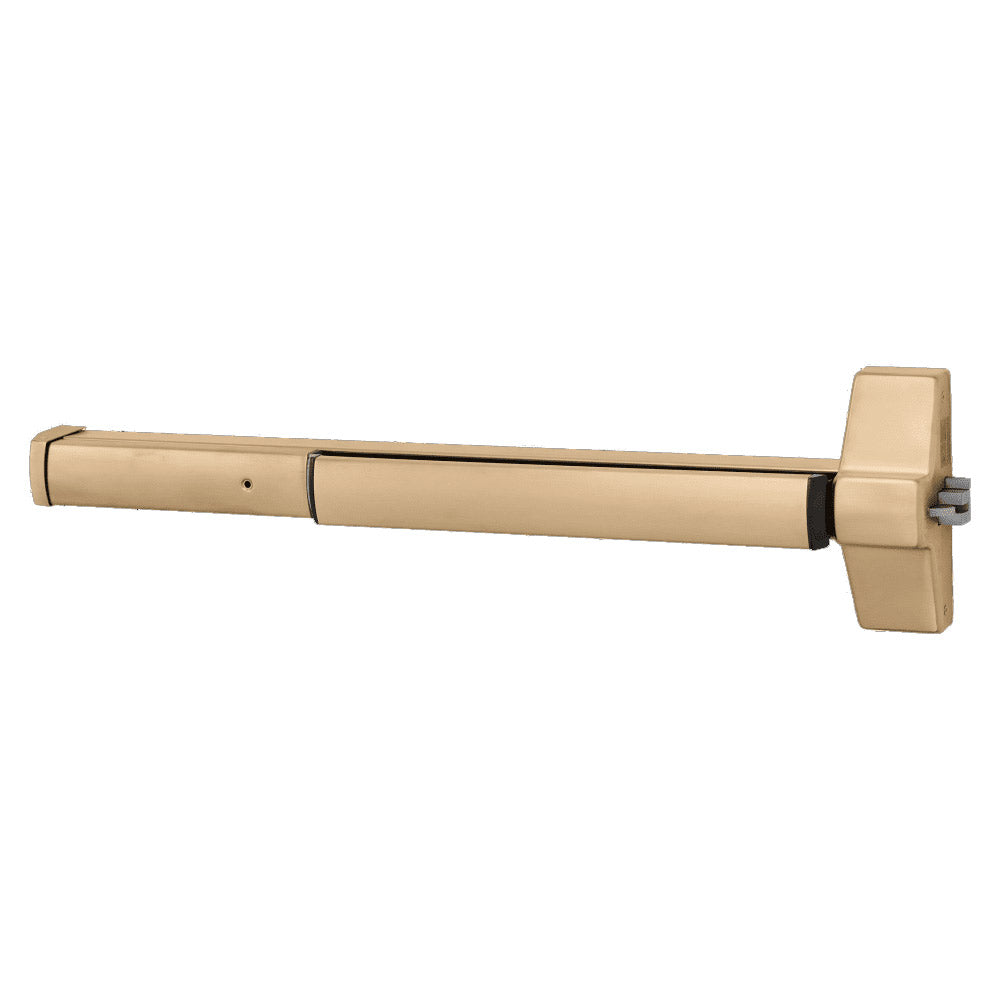

• BHMA 612 – Satin Bronze
• BHMA 613 – Oil Rubbed Oxidized Bronze
• BHMA 618 – Bright Nickel Plated

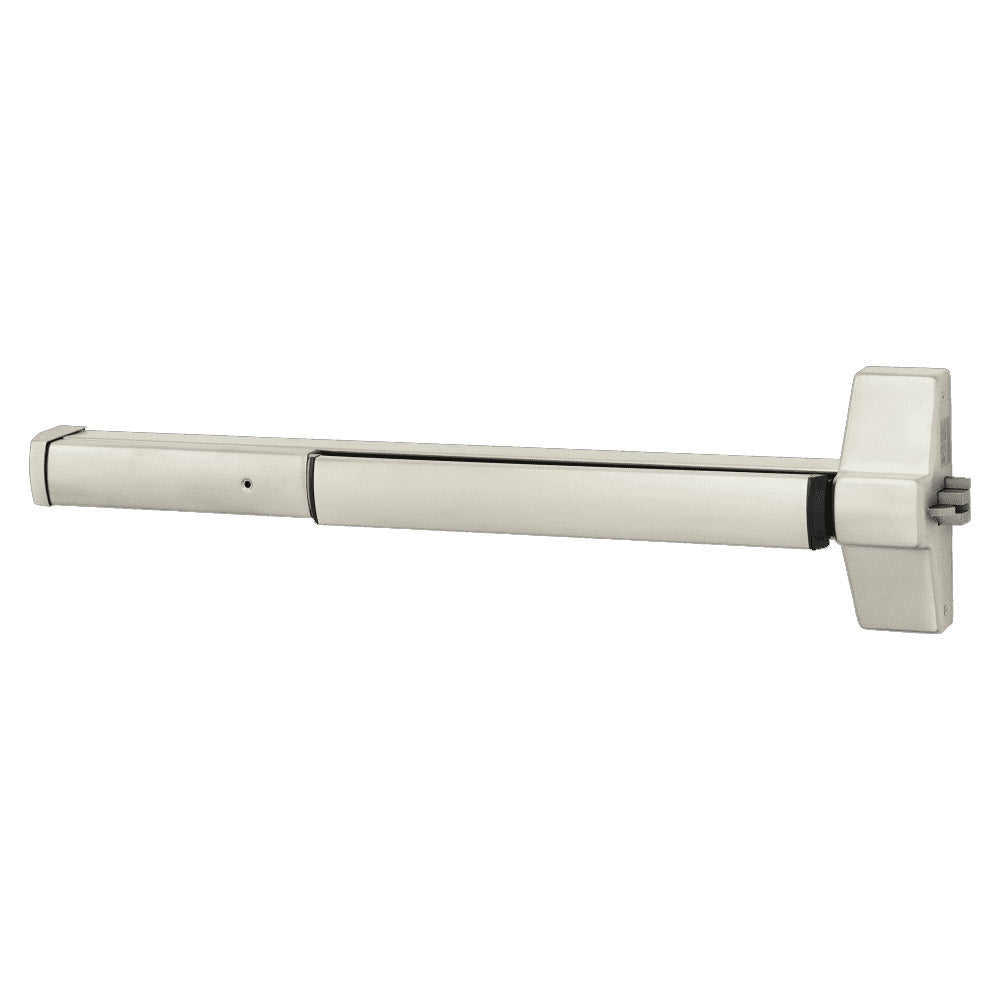

• BHMA 619 – Satin Nickel Plated

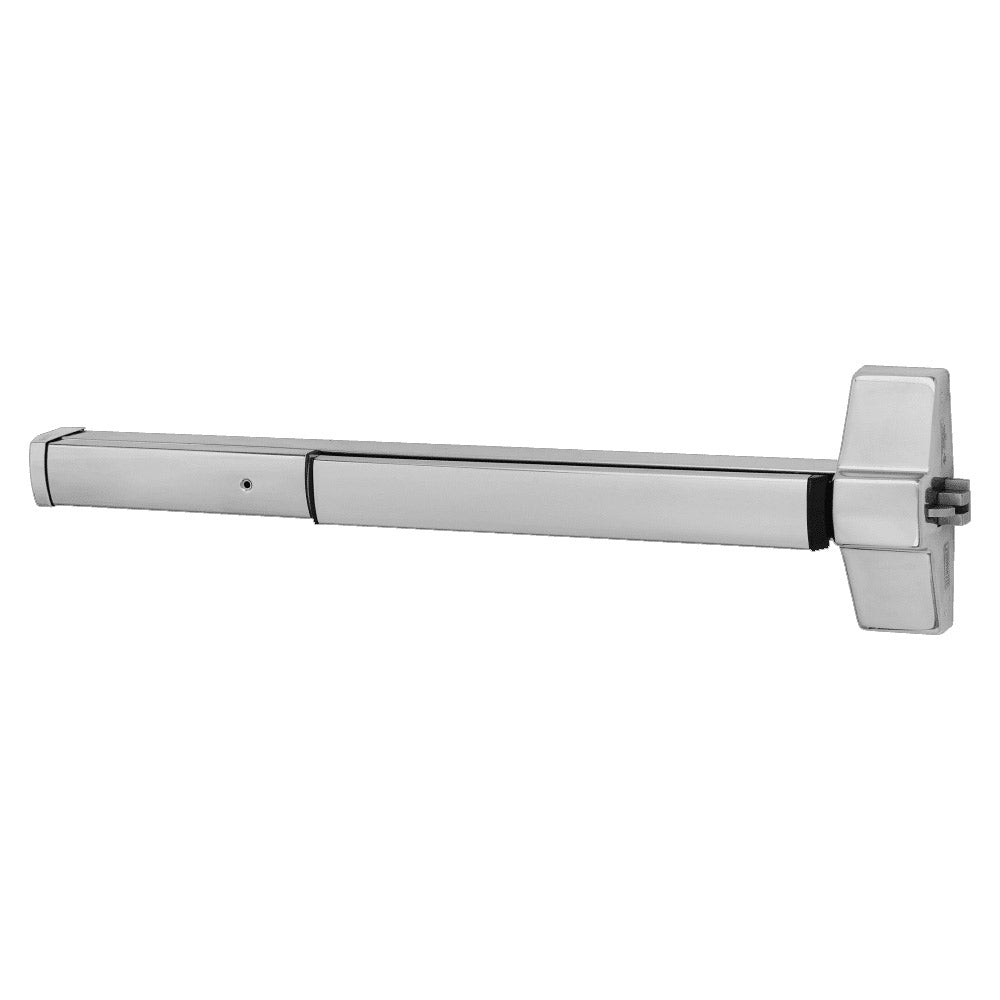

• BHMA 625 – Bright Chromium Plated

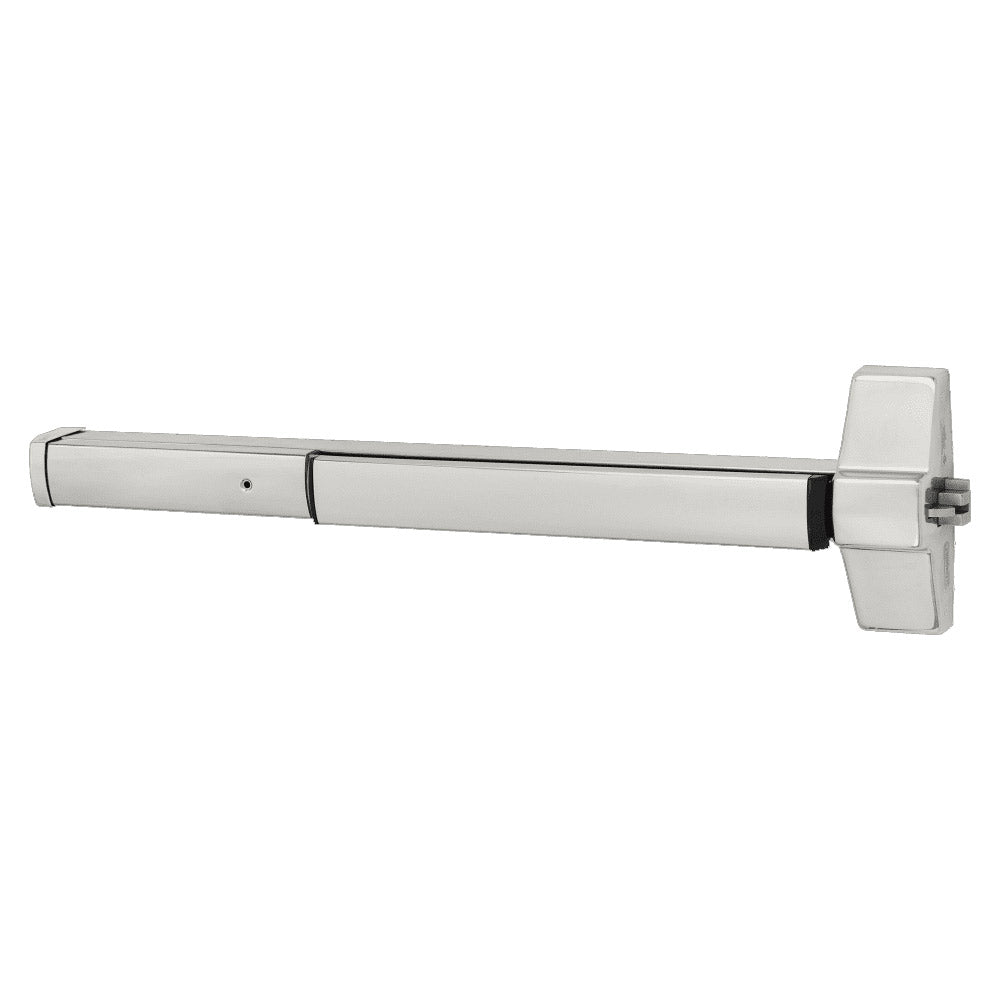

• BHMA 629 – Bright Stainless Steel
• BHMA 630 – Satin Stainless Steel

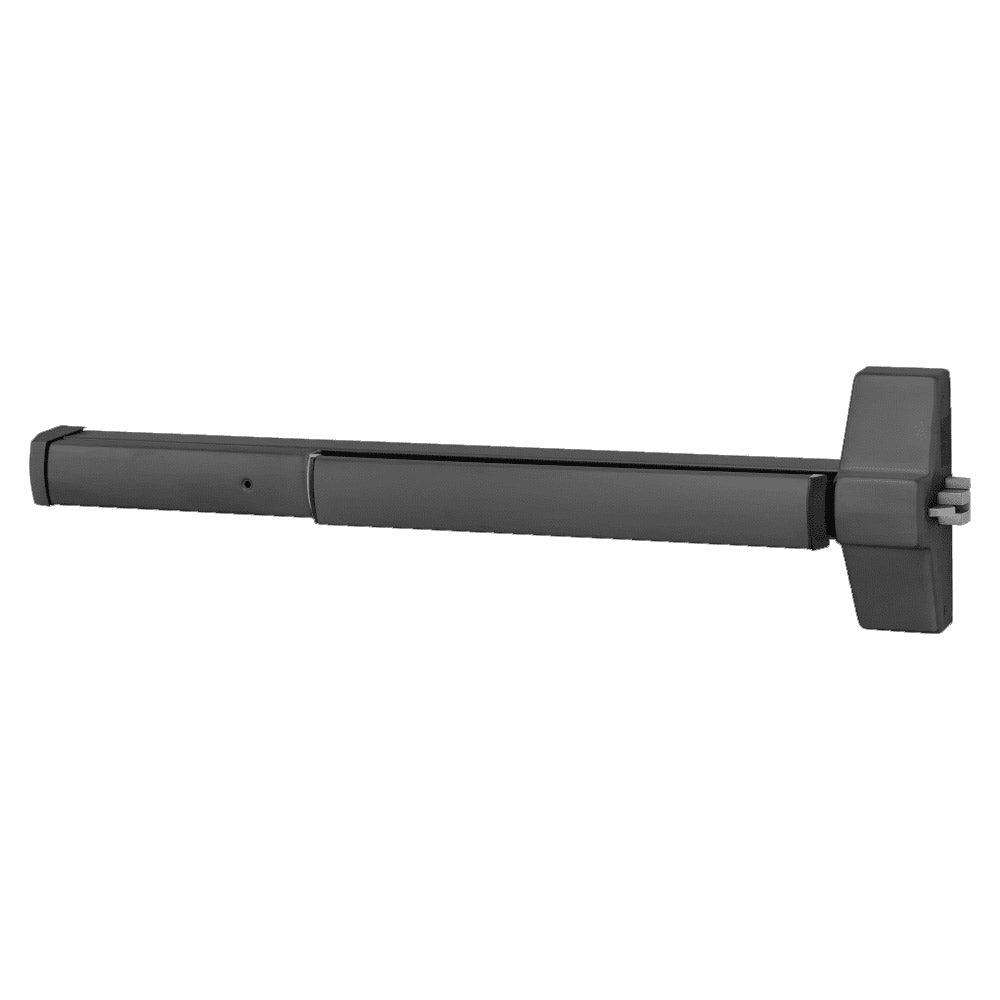

• 722 – Oil Rubbed Black Oxidized Bronze

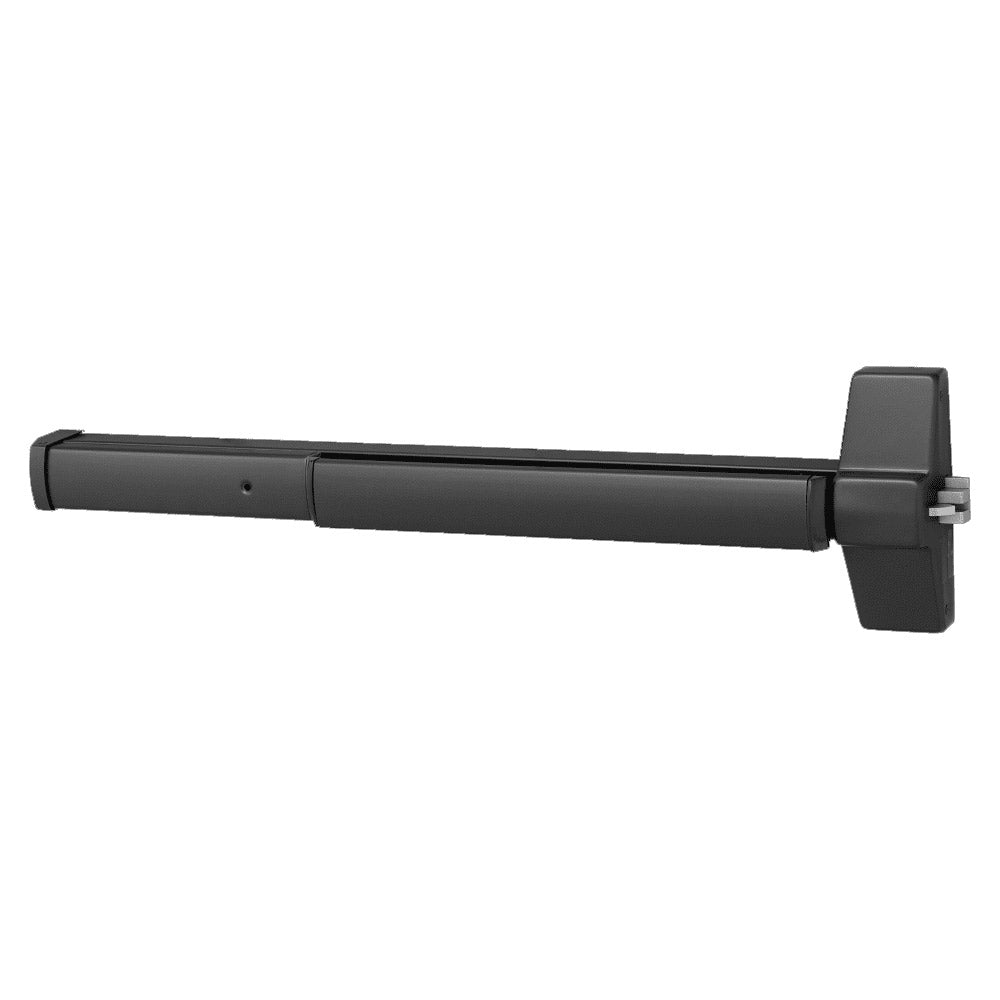

• BSP – Black Suede Powder Coat
• WSP – White Suede Powder Coat

🏗️ Built for Demanding Environments

Backed by a 5-year warranty, the D5200S & ED5200SA SecureBolt® Exit Devices are the perfect solution when you need strength, security, and dependable egress performance—all in one premium-grade exit device.
