Corbin Russwin ED4800 - Concealed Vertical Rod Exit Device
SKU: ED4800-605
$ 2,439.00
ED4800 Narrow Stile Concealed Vertical Rod Exit Device Clean Aesthetics. Concealed Strength. Built for Metal Doors.
The ED4800 Narrow Stile Concealed Vertical Rod Exit Device from the Corbin Russwin ED4000 Series is expertly engineered for metal doors only, delivering superior security, durability, and a streamlined appearance. Designed for high-traffic commercial environments, this device features concealed vertical rods for a clean, tamper-resistant look while maintaining powerful, code-compliant egress performance.
Meeting ANSI/BHMA Grade 1 standards, the ED4800 is ideal for demanding applications where reliability, safety, and architectural design must work together seamlessly.
🔧 Key Features

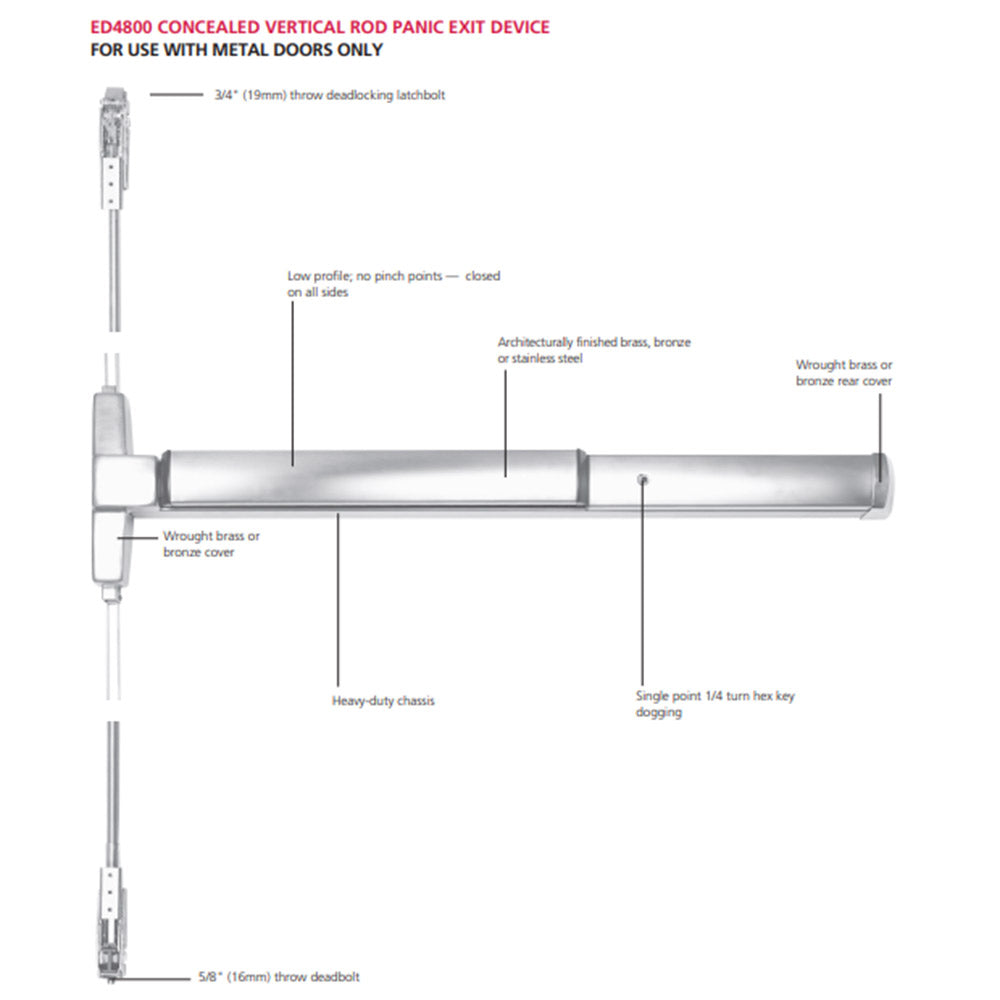

Concealed Vertical Rod Design
Hidden rod system for enhanced security and sleek door aesthetics
Ideal for modern architectural applications requiring minimal hardware visibility
Flexible Handing
Handed device, easily reversible in the field
Lever trim is handed for proper operation
Adjustable Bar Length
Field cuttable for precise installation
Standard 36" bar fits 30"–36" doors
Optional 24" bar (W024) for 24" doors
Optional 48" bar (W048) for 36"–48" doors
Door Thickness Compatibility
Standard: 1-3/4" (44mm)
Optional: 2" (51mm) – specify D200
Optional: 2-1/4" (57mm) – specify D214
Heavy-Duty Construction
Cold-forged steel chassis for maximum strength
Heavy-gauge steel internal components with corrosion-resistant electroplating
Finished parts available in brass, bronze, or stainless steel
Stainless steel springs and nylon bearings for smooth, quiet operation
Precision Strike System
Top: Adjustable roller strike with positive locking plate and shims
Bottom: Flush-mounted strike for a clean finish
Optional strike configurations available
Versatile Trim & Function Options
Compatible with lever, knob, pull, thumbturn, and thumbpiece trims
Wide range of functions to meet access control requirements
Reliable Dogging Options
Standard 1/4 turn hex key dogging
Optional less dogging (M51)
Optional cylinder dogging (M52) for added security control
🏢 Ideal Applications
Perfect for high-traffic commercial and institutional settings:
Schools and universities
Hospitals and healthcare facilities
Government and municipal buildings
Warehouses and factories
Office and retail complexes
Transportation terminals
Hotels and conference centers
Religious facilities
Theaters and auditoriums
🎨 Available Finishes
Architectural finishes designed to match surrounding hardware:
BHMA 605 – Bright Brass
BHMA 606 – Satin Brass

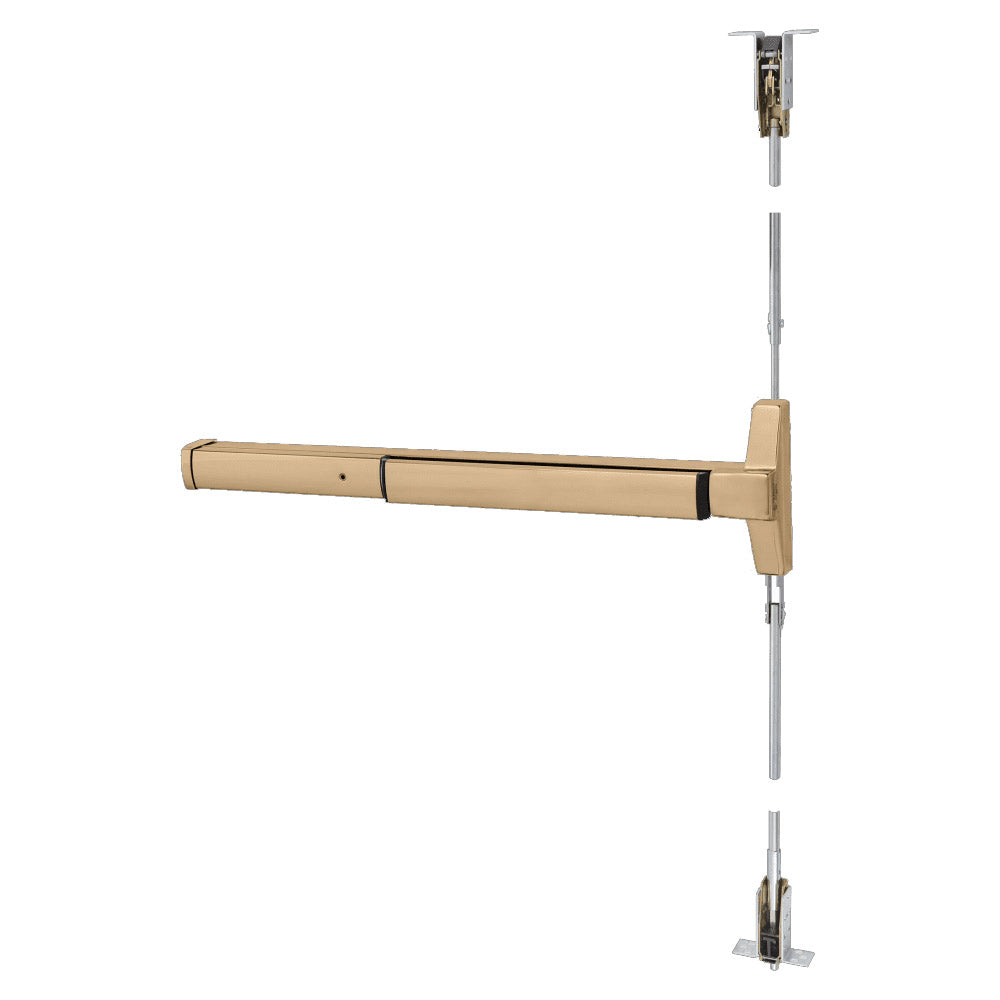

BHMA 611 – Bright Bronze

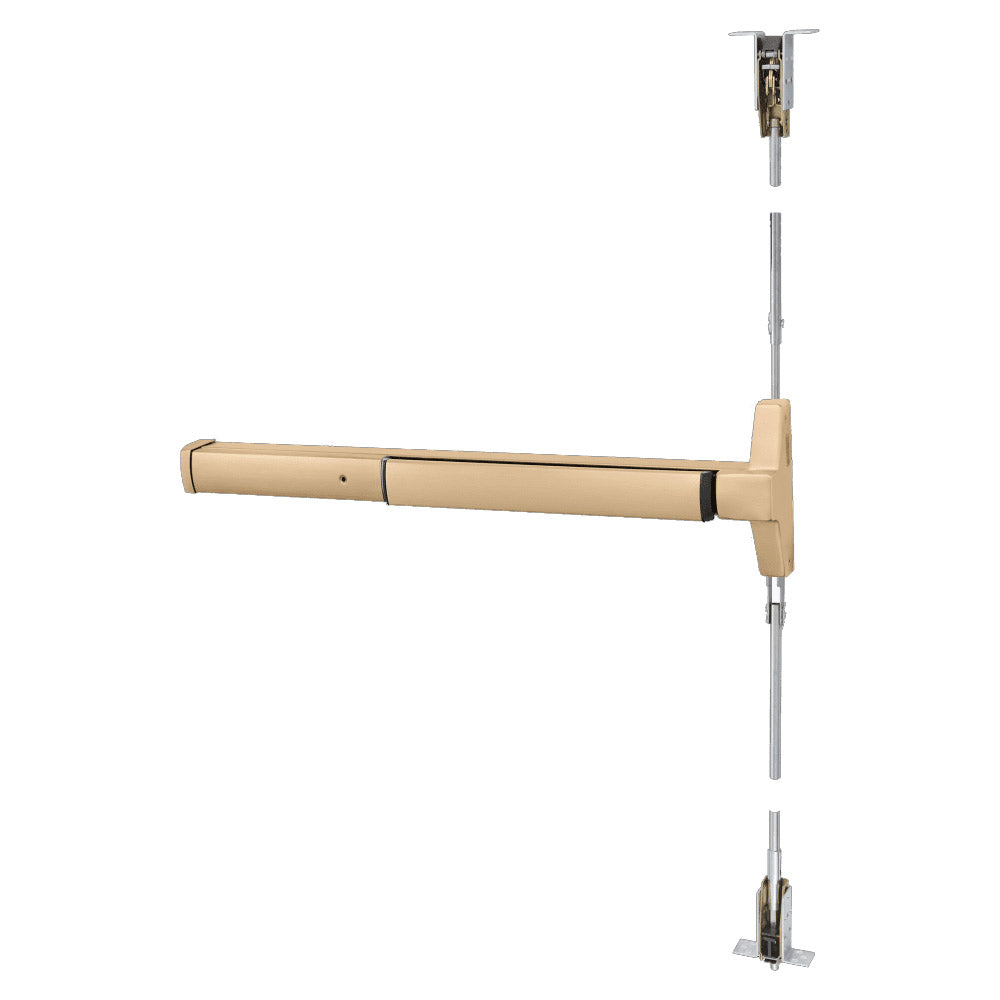

BHMA 612 – Satin Bronze
BHMA 613 – Oil Rubbed Oxidized Bronze
BHMA 618 – Bright Nickel Plated

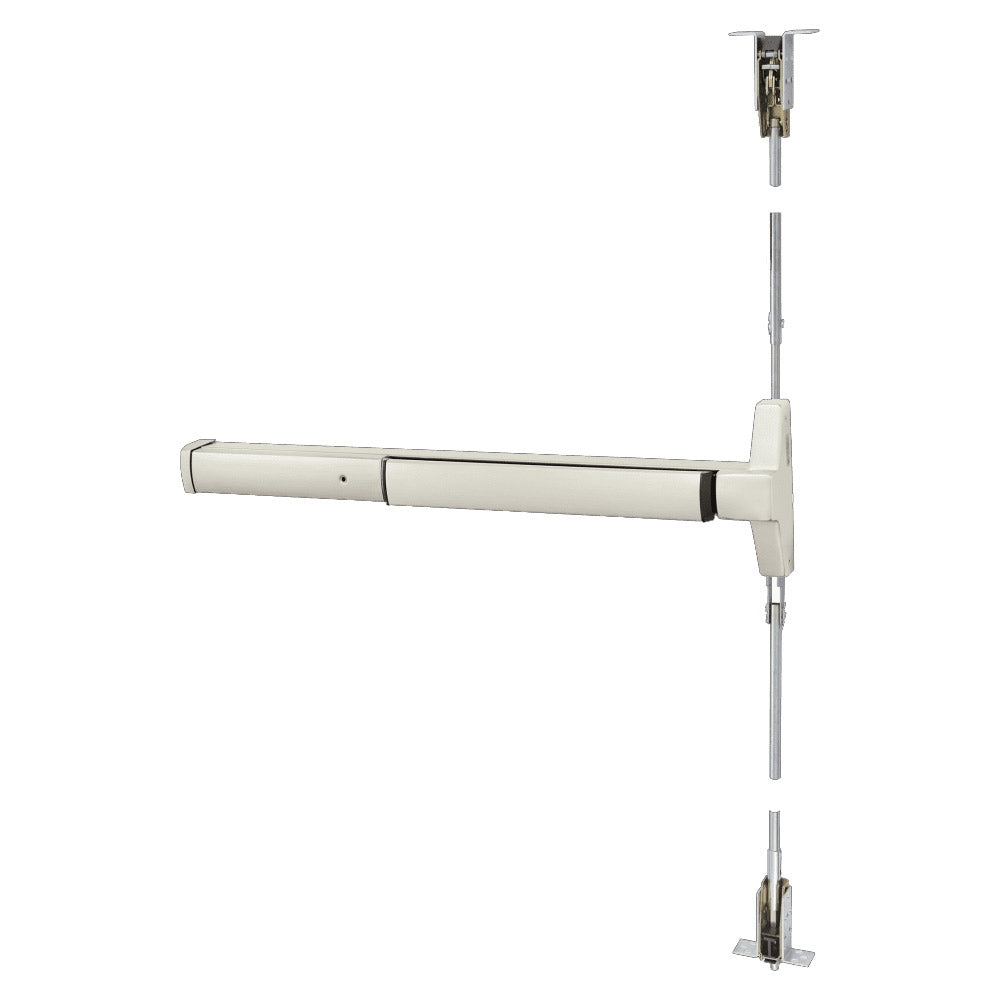

BHMA 619 – Satin Nickel Plated

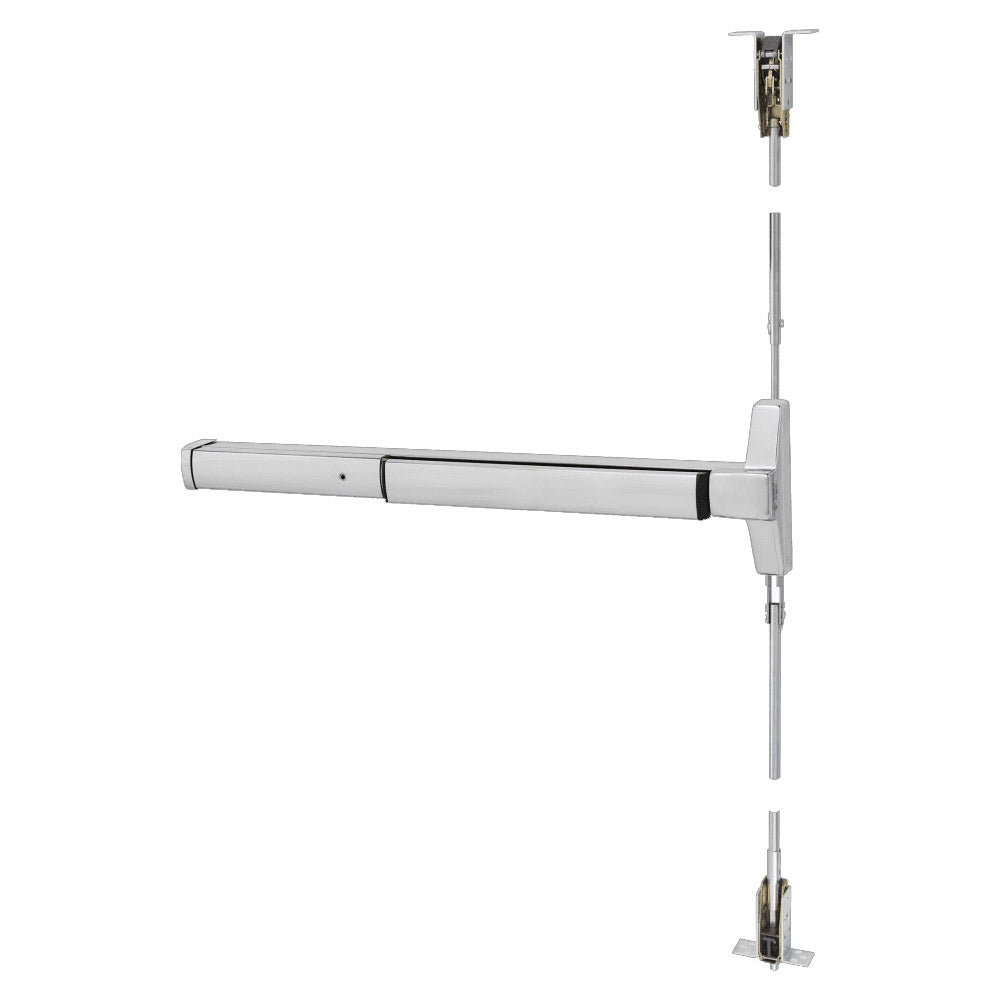

BHMA 625 – Bright Chromium Plated
BHMA 629 – Bright Stainless Steel
BHMA 630 – Satin Stainless Steel

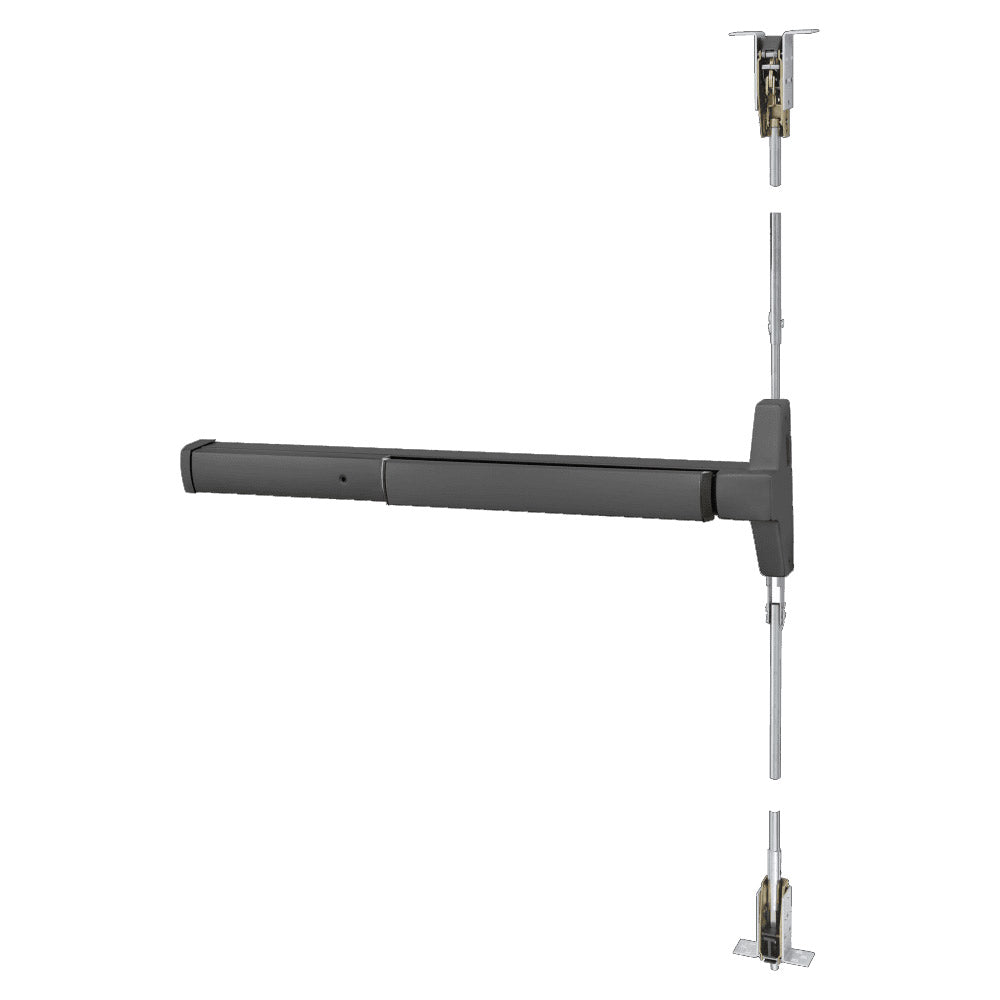

722 – Oil Rubbed Black Oxidized Bronze
BSP – Black Suede Powder Coat
WSP – White Suede Powder Coat
✅ Why Choose the ED4800?
The ED4800 Concealed Vertical Rod Exit Device offers a perfect combination of hidden security, heavy-duty construction, and architectural elegance. Designed specifically for metal doors, it ensures reliable egress, enhanced durability, and a clean, professional finish—making it an excellent choice for both new construction and retrofit projects.
Strong where it matters. Hidden where it counts.
