ED4400 Narrow Stile Surface Vertical Rod Exit Device Heavy-Duty Performance for High-Traffic Openings
Engineered for demanding commercial environments, the ED4400 Narrow Stile Surface Vertical Rod Exit Device delivers exceptional durability, smooth operation, and reliable security. As part of the trusted Corbin Russwin ED4000 Series, this exit device is specifically designed for narrow stile aluminum, full glass, and metal doors where strength and sleek design are equally important.
Built to handle high-use and high-abuse applications, the ED4400 combines precision engineering with premium materials to ensure long-lasting performance and code-compliant egress in any facility.
🔧 Key Features
Flexible Handing
Handed device, easily field reversible for simplified installation
Trim is handed for precise fit and function
Adjustable Bar Length
Field cuttable to fit various door widths
Standard 36" bar fits 30"–36" doors
Optional 24" bar (W024) for 24" doors
Optional 48" bar for 36"–48" doors

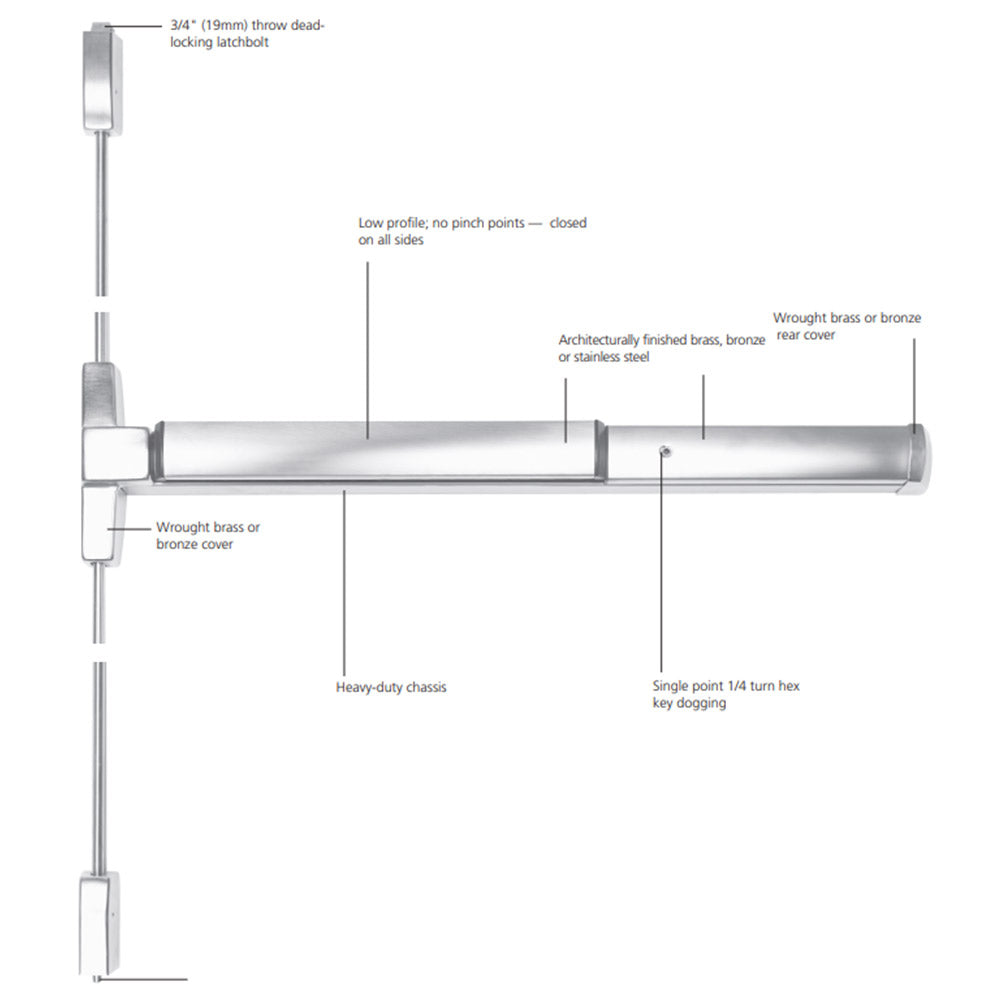

Heavy-Duty Construction
Cold-forged steel chassis for superior strength
Heavy-gauge steel internal mechanisms with corrosion-resistant electroplating
Finished components available in brass, bronze, or stainless steel
Stainless steel springs and nylon bearings for smooth, quiet operation
Reliable Dogging Options
Standard 1/4 turn hex key dogging
Optional less dogging (M51)
Optional cylinder dogging (M52) for enhanced security control
Secure Fastening Options
Standard machine screws
Optional sex nuts and bolts (M54) for added reinforcement
Precision Strike System
Top: Adjustable roller strike with positive locking plate and shims
Bottom: Flush-mounted strike for clean installation
Optional strikes available for specialized applications
Versatile Trim Compatibility
Supports a wide range of trims including lever, knob, pull, thumbturn, and thumbpiece
Multiple functions available to meet specific access control needs
🏢 Ideal Applications
Designed for high-traffic commercial and institutional environments:
Schools and universities
Hospitals and healthcare facilities
Government and municipal buildings
Warehouses and industrial facilities
Office buildings and retail spaces
Transportation hubs
Hotels and conference centers
Theaters and auditoriums
Religious institutions
🎨 Available Finishes
Choose from a wide range of architectural finishes to match your project design:

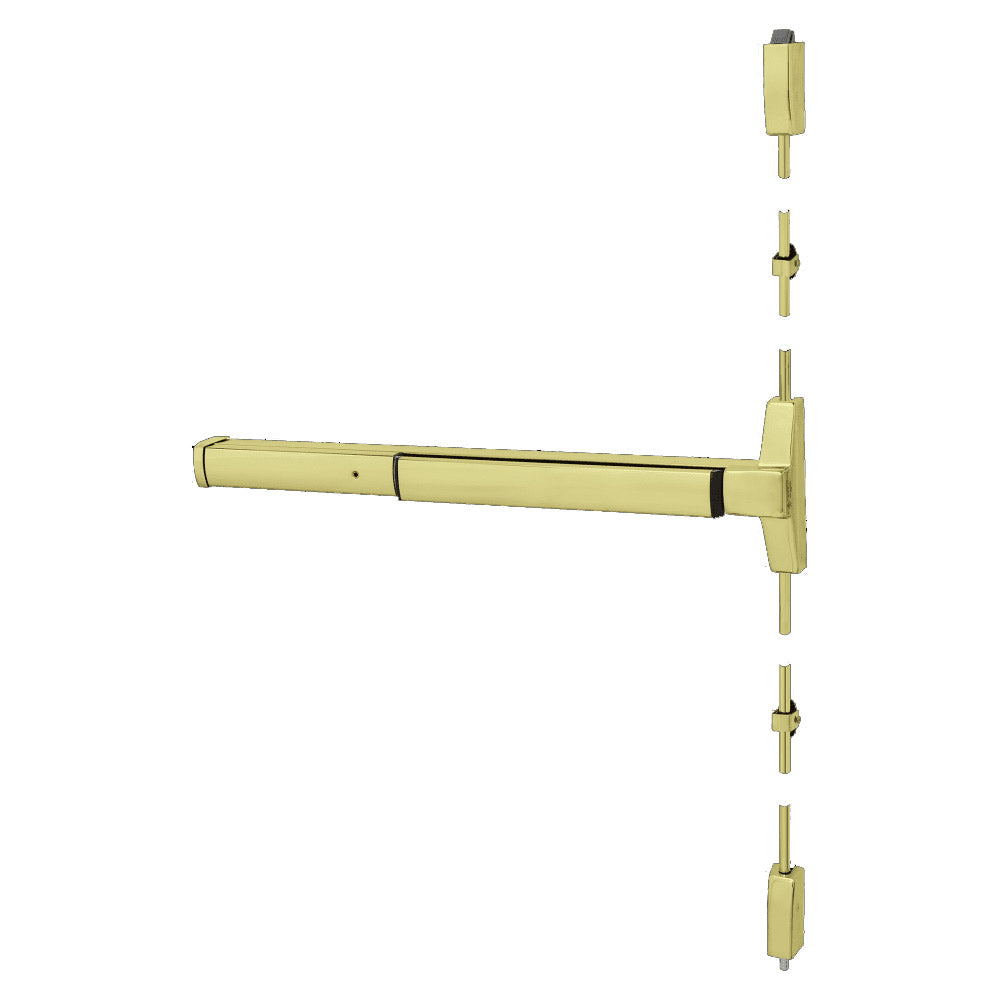

BHMA 605 – Bright Brass

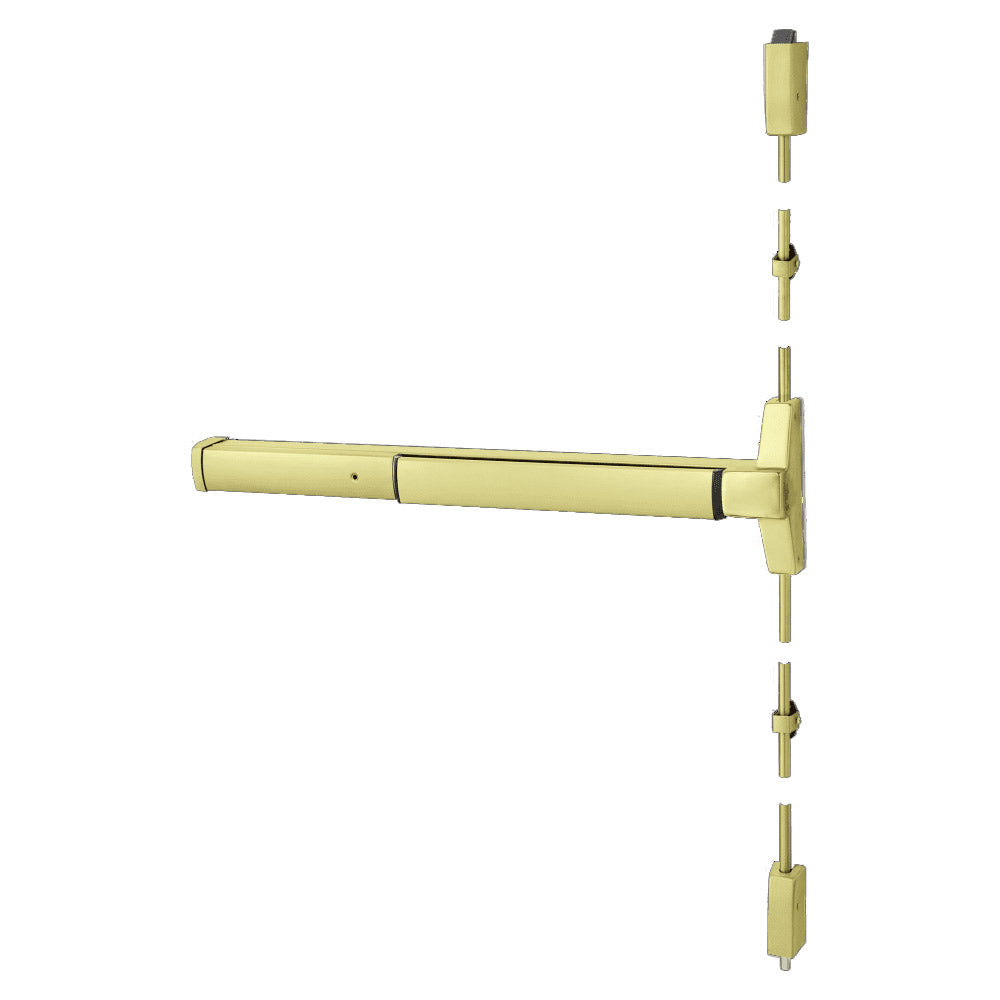

BHMA 606 – Satin Brass
BHMA 611 – Bright Bronze

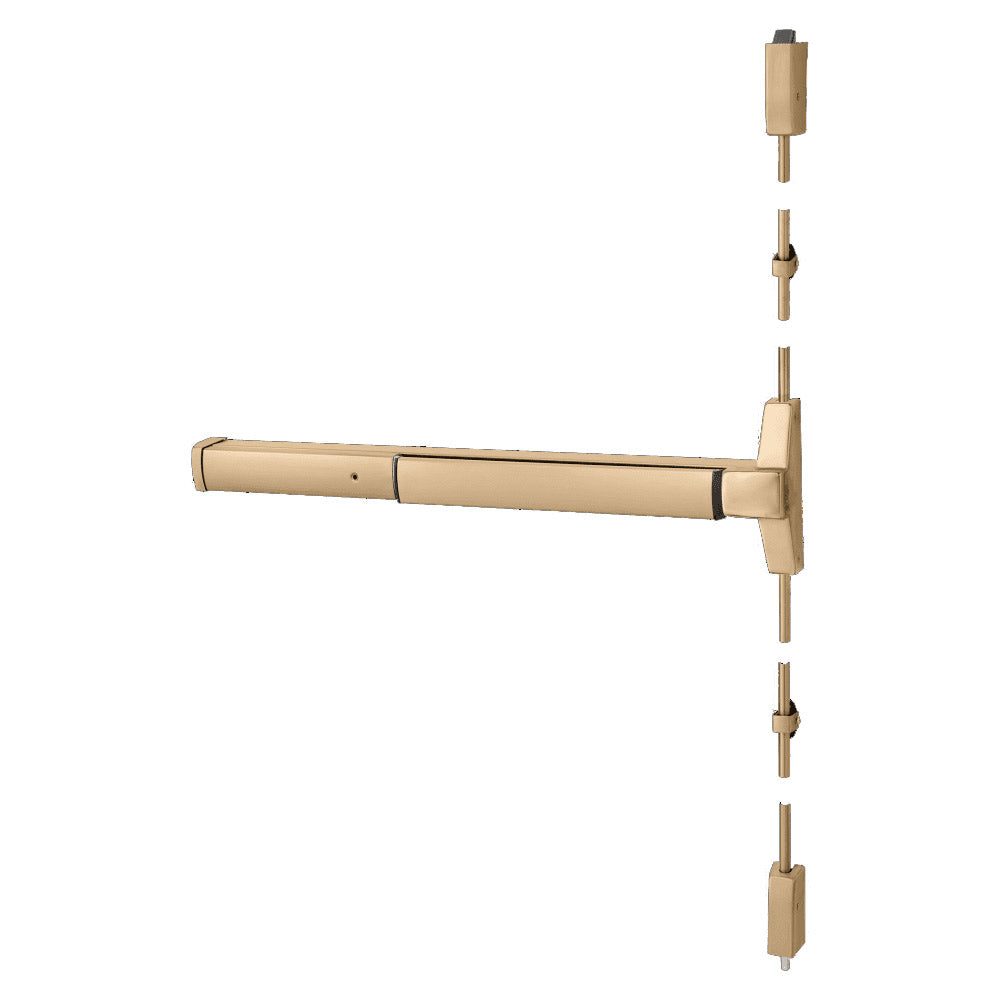

BHMA 612 – Satin Bronze

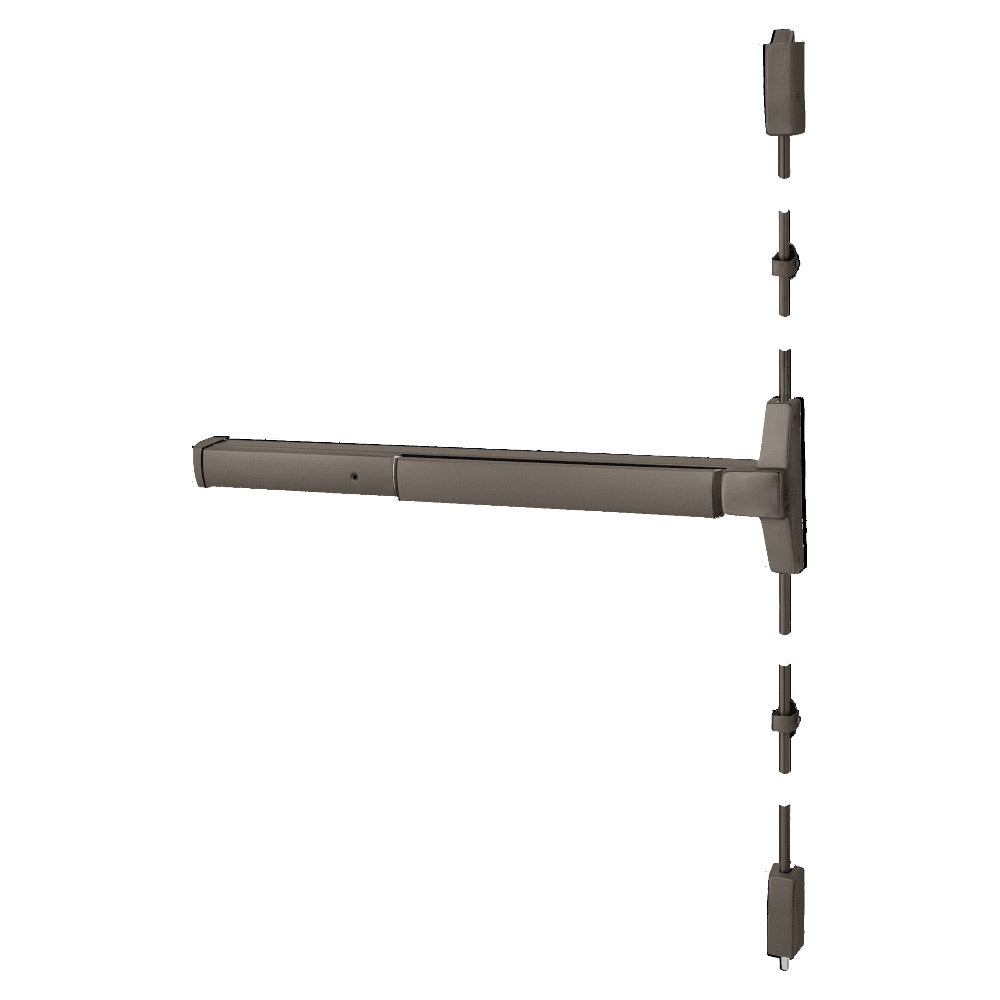

BHMA 613 – Oil Rubbed Oxidized Bronze
BHMA 618 – Bright Nickel Plated

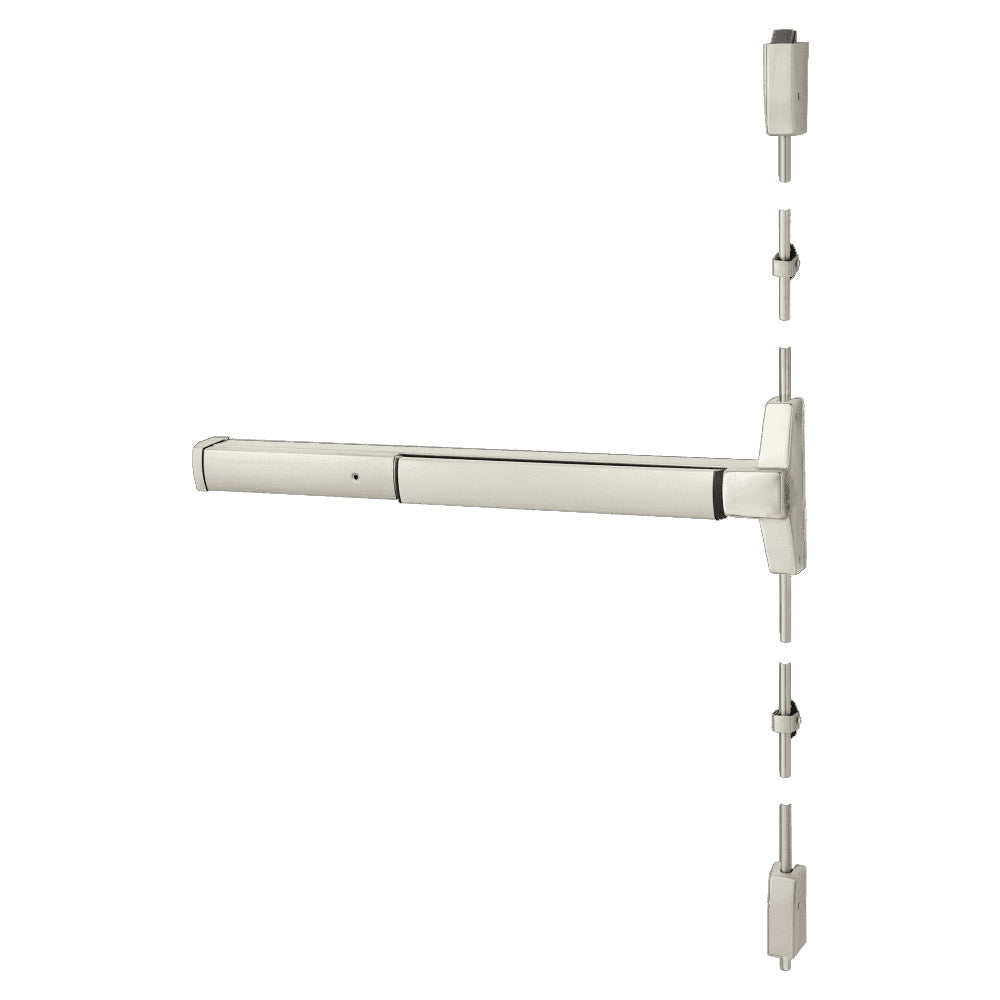

BHMA 619 – Satin Nickel Plated
BHMA 625 – Bright Chromium Plated
BHMA 629 – Bright Stainless Steel

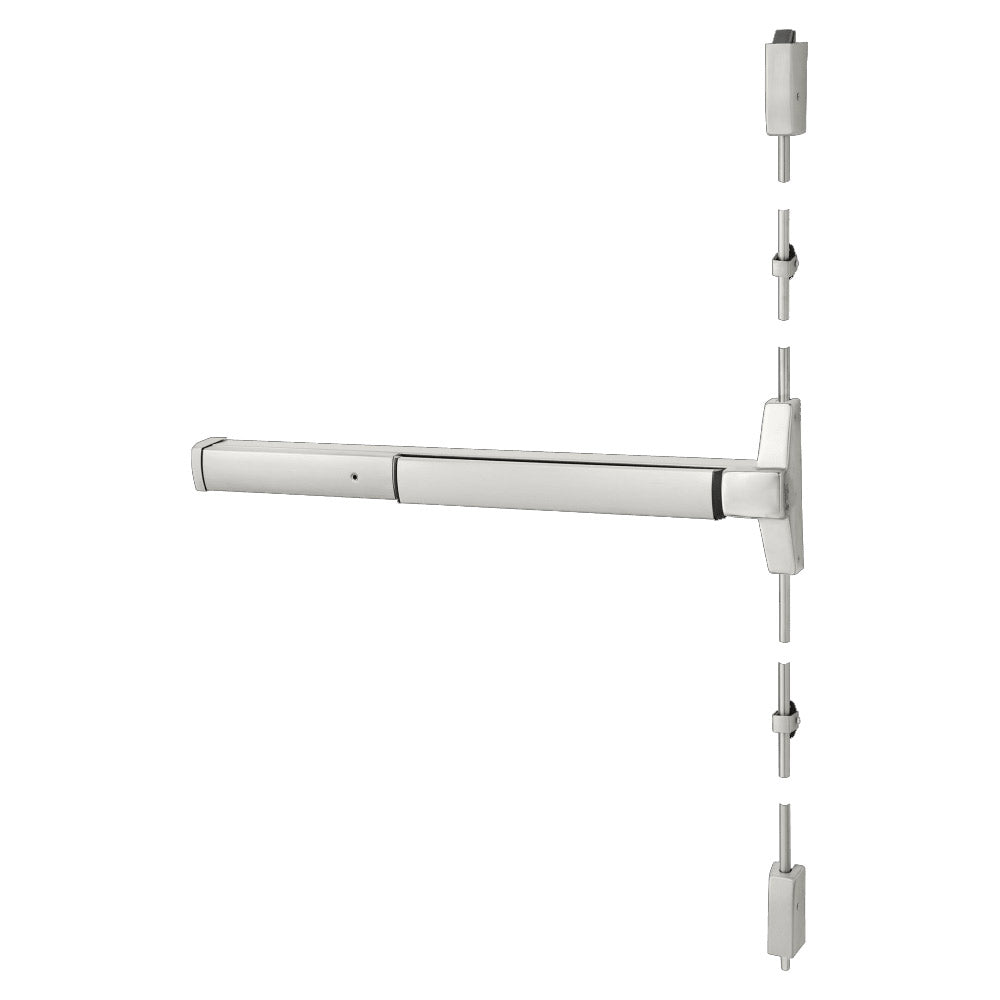

BHMA 630 – Satin Stainless Steel

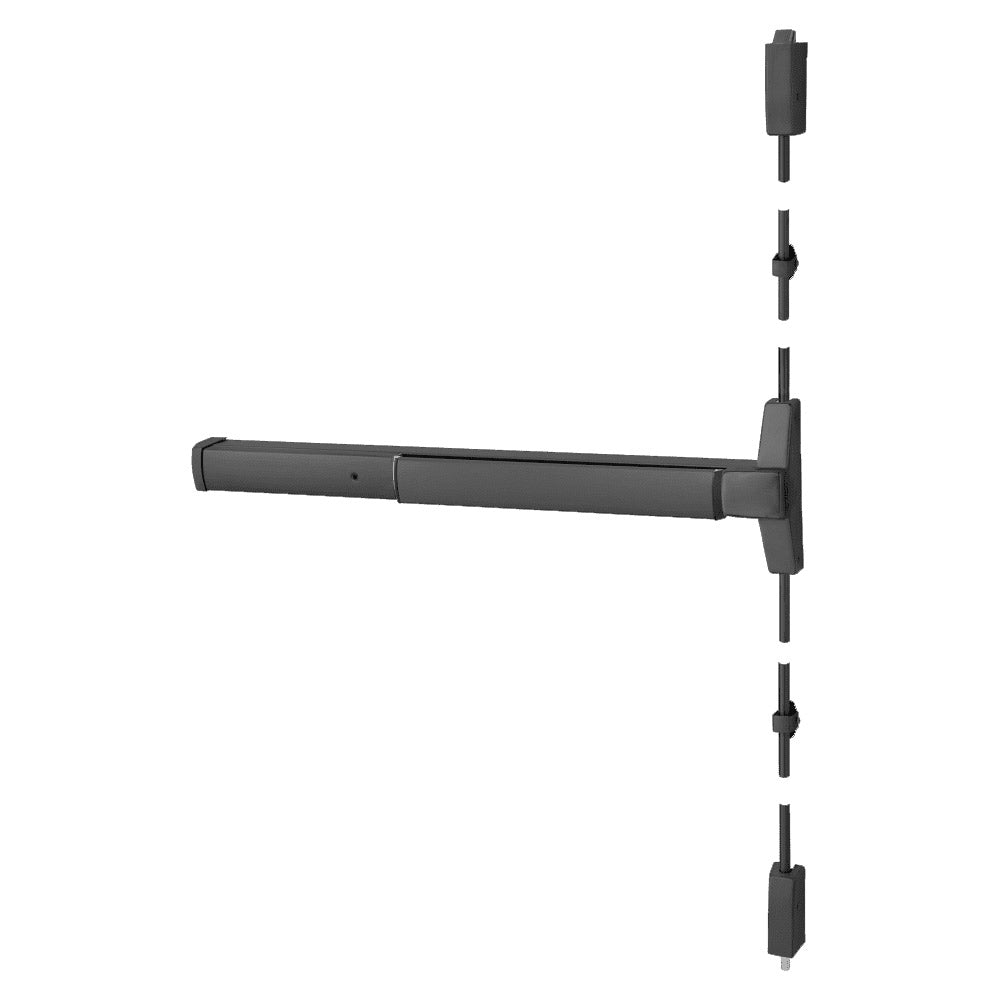

722 – Oil Rubbed Black Oxidized Bronze
BSP – Black Suede Powder Coat
WSP – White Suede Powder Coat
✅ Why Choose the ED4400?
The ED4400 Surface Vertical Rod Exit Device offers the perfect balance of strength, flexibility, and refined design. Whether you're upgrading existing hardware or specifying for new construction, it provides dependable egress performance, enhanced security options, and seamless integration with architectural door systems.
Built for reliability. Designed for performance. Ready for any high-traffic environment.
DESCRIPTION TAG: Upgrade to the ED4400 Narrow Stile Surface Vertical Rod Exit Device by Corbin Russwin—durable, ANSI Grade 1 security for high-traffic commercial doors.
