Corbin Russwin ED4200M - Rim Exit Device

Corbin Russwin ED4000 Series Exit Device

Heavy-Duty Narrow Stile Exit Device for High-Traffic Commercial Applications

The ED4000 Series Exit Device from Corbin Russwin is engineered for narrow stile aluminum, full glass, and metal doors in demanding environments where durability, security, and smooth egress performance are essential. Designed to meet ANSI Grade 1 standards, this exit device delivers dependable operation in high-use and high-abuse installations while maintaining a sleek, low-profile design for barrier-free accessibility.

Ideal for both new construction and retrofit projects, the ED4000 Series supports a wide range of trims, finishes, and configurations to match architectural requirements and existing hardware systems.

Ideal Applications

Perfect for high-traffic commercial and institutional settings:

• Schools and universities
• Hospitals and healthcare facilities
• Government and municipal buildings
• Warehouses and factories
• Office and retail complexes
• Transportation terminals
• Hotels and conference centers
• Religious facilities
• Theaters and auditoriums

Key Features & Benefits

• Meets ANSI/BHMA Grade 1 performance requirements
• ADA-compliant pushpad for safe, easy egress
• Low-projection design supports barrier-free accessibility codes
• Heavy-duty construction for long service life
• Quiet, smooth operation
• Fully enclosed mechanism—no projecting parts to obstruct exit paths
• Compatible with a wide range of Corbin Russwin trims
• Through-bolted trim mounting for enhanced strength and security
• Available in multiple architectural finishes
• Single-point dogging standard (non-fire-rated models)
• Meets UL / cUL safety requirements

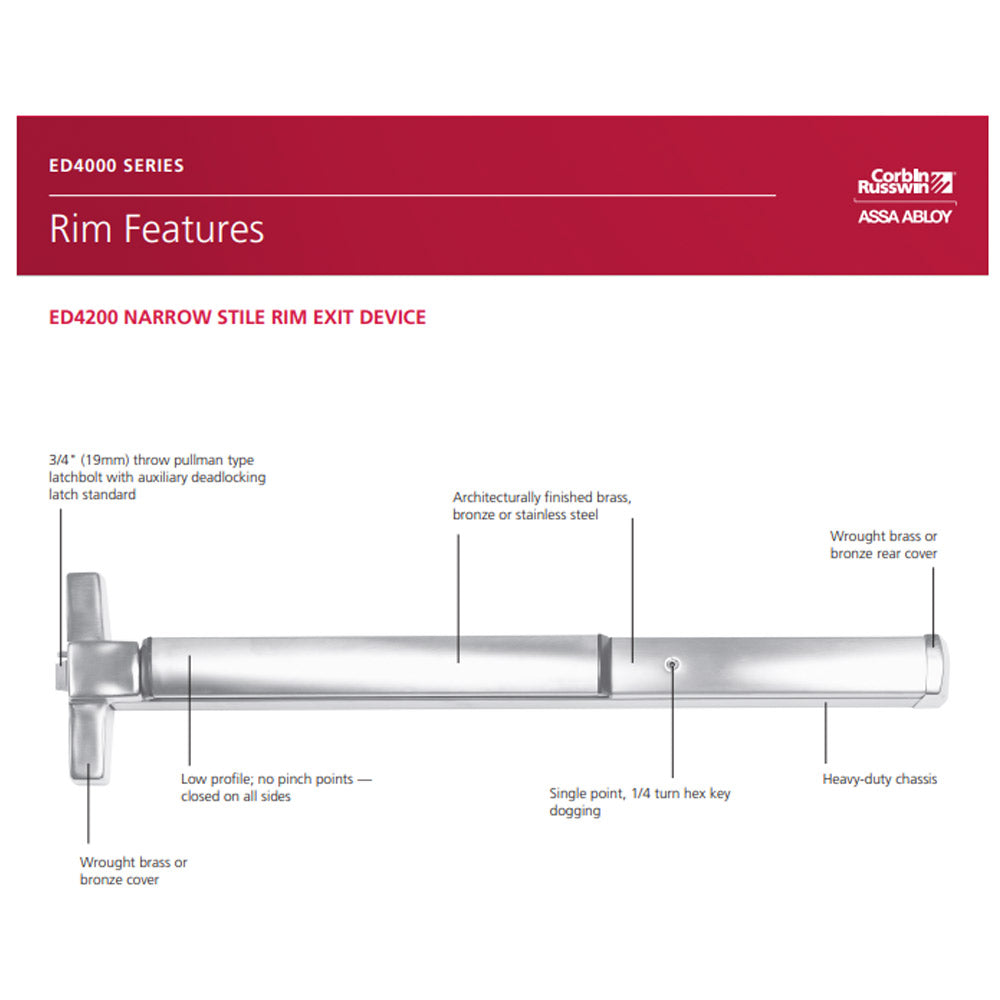

ED4200 Narrow Stile Exit Device – Specifications

Handing

• Exit device: Non-handed
• Trim: Handed

Bar Length Options

• Standard: 36" bar (fits 30"–36" doors)
• Optional: 24" bar (specify W024)
• Optional: 48" bar (specify W048)
• Field-cuttable for installation flexibility

Dogging Options

• Standard: 1/4-turn hex key dogging
• Optional: Less dogging (M51)
• Optional: Cylinder dogging (M52)

Construction & Materials

Built for reliability in demanding environments:

• High-grade heat-treated nickel steel alloy chassis
• Stainless steel springs
• Corrosion-resistant internal components
• Nylon bearings for smoother operation
• Brass, bronze, or stainless steel finished parts

Latchbolt Features:

• Stainless steel slide-action deadbolt
• Auxiliary bolt provides positive deadlocking
• Two-piece mechanism with roll-back lever reduces friction during relocking

Available Finishes

Architectural finishes designed to coordinate with surrounding door hardware:

• BHMA 605 – Bright Brass

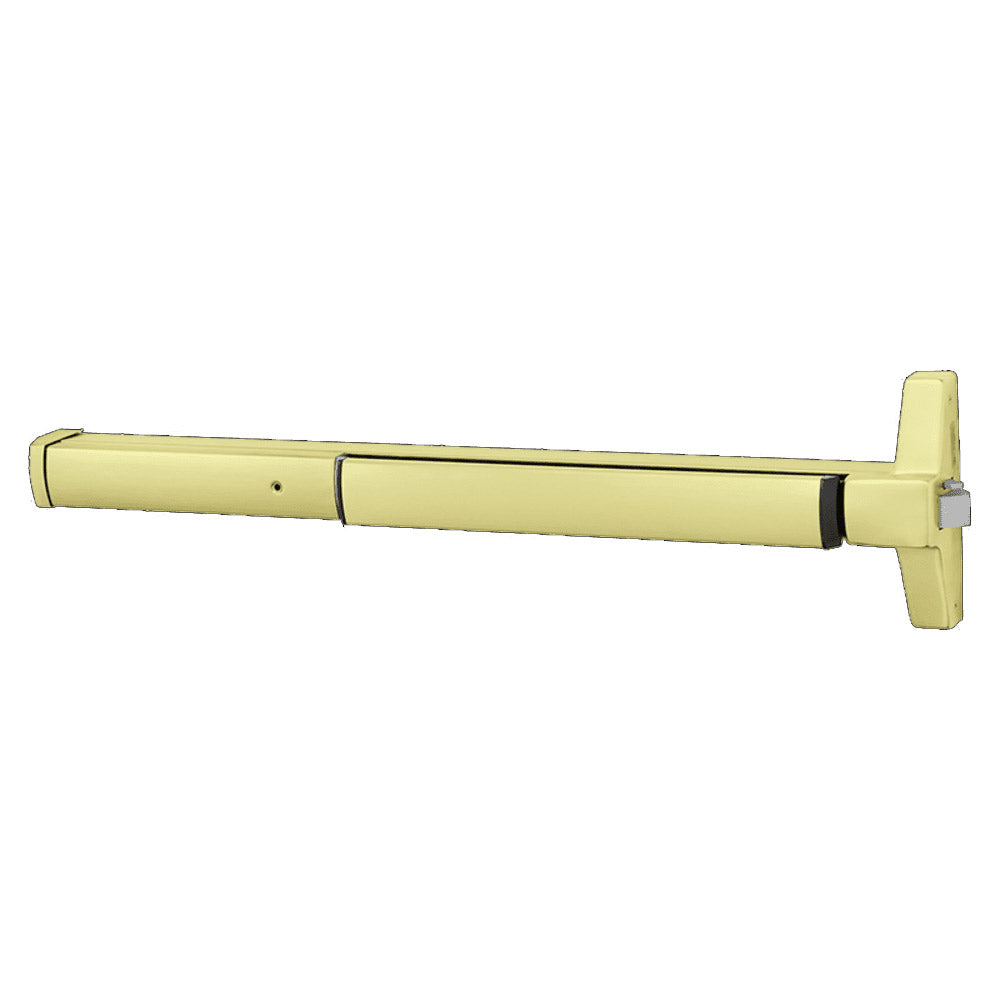

• BHMA 606 – Satin Brass

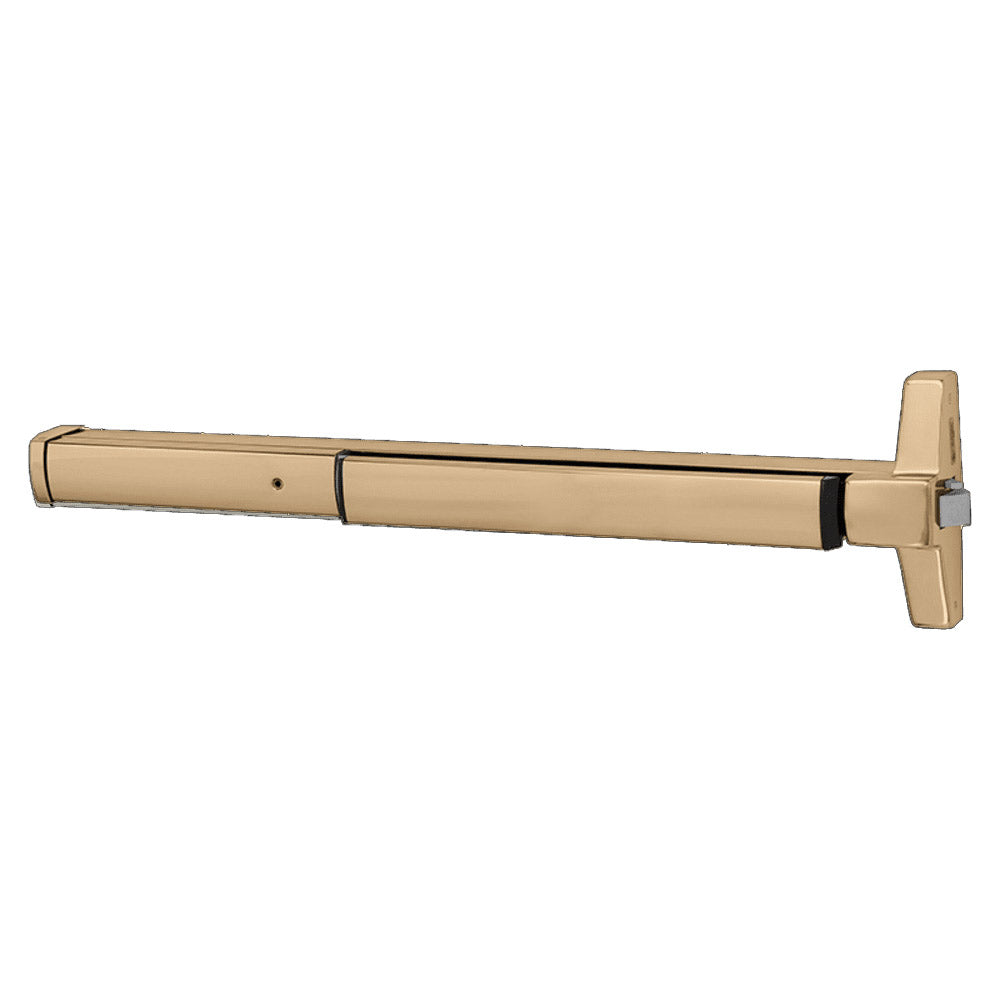

• BHMA 611 – Bright Bronze

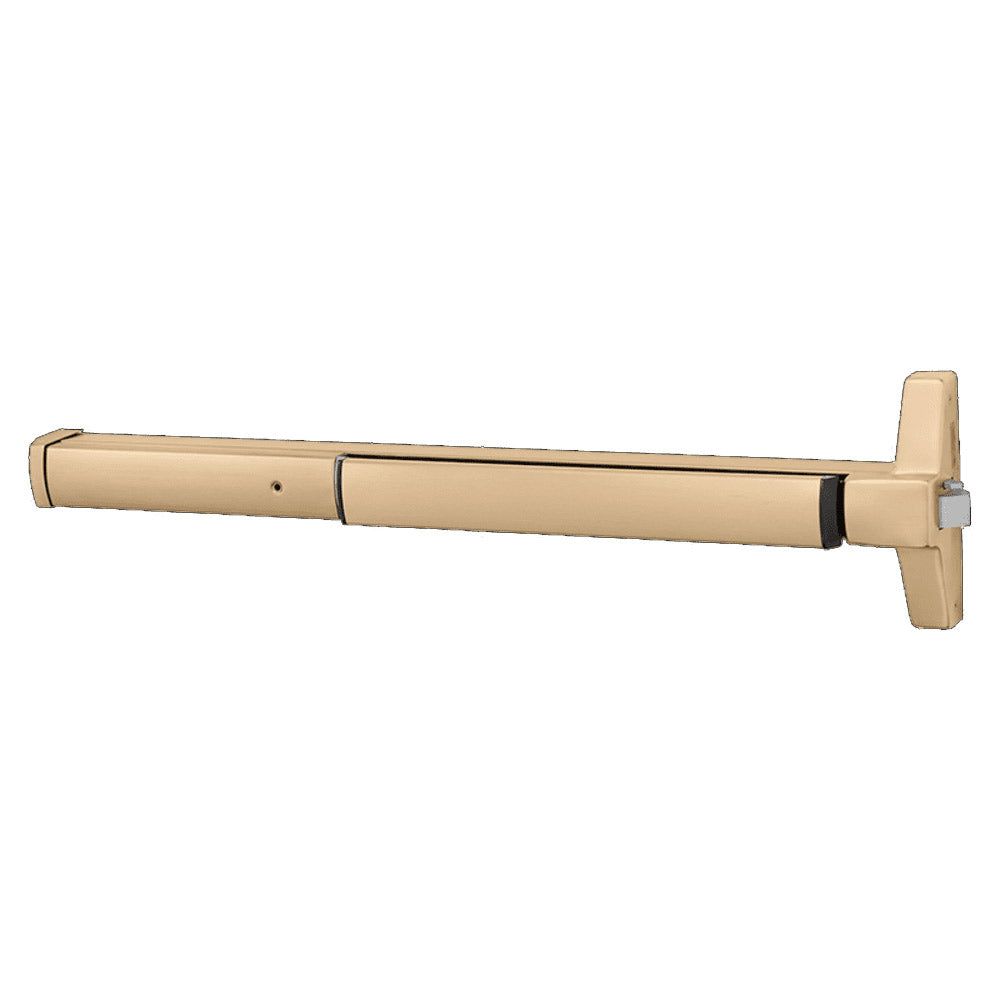

• BHMA 612 – Satin Bronze

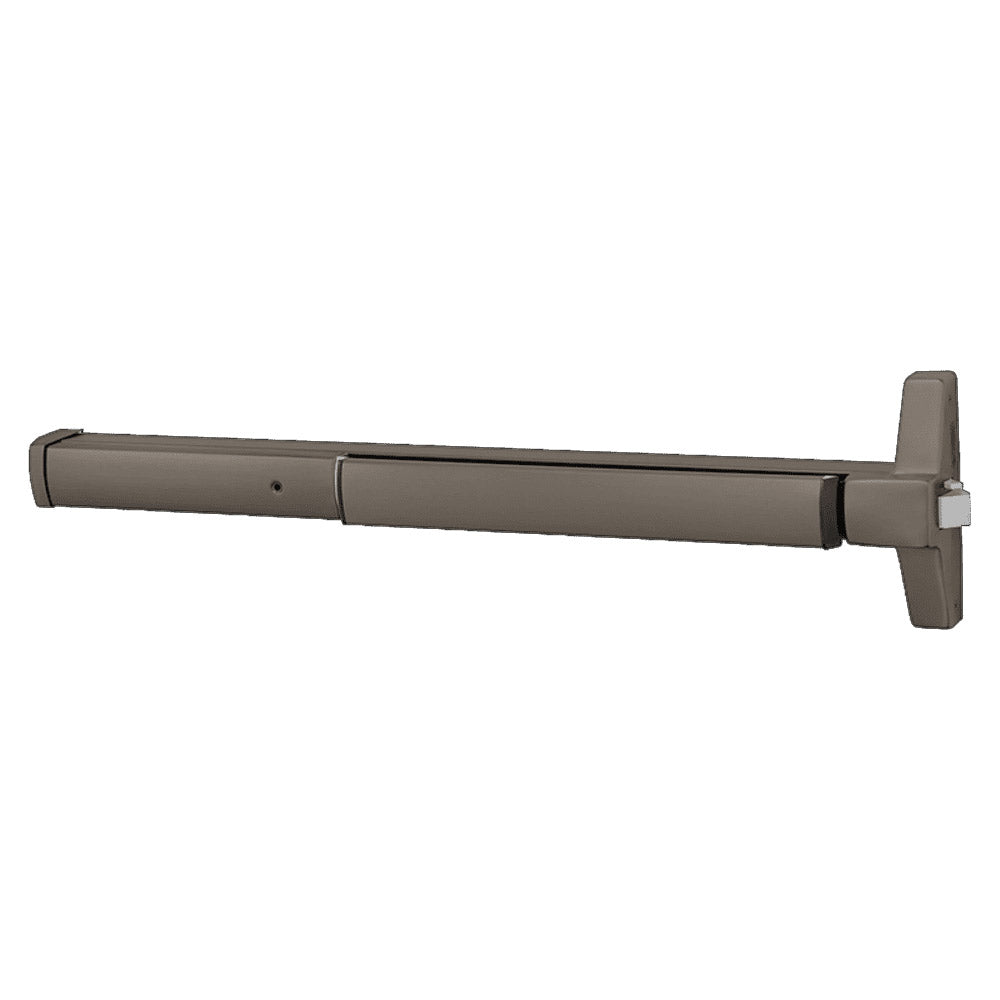

• BHMA 613 – Oil Rubbed Oxidized Bronze
• BHMA 618 – Bright Nickel Plated
• BHMA 619 – Satin Nickel Plated

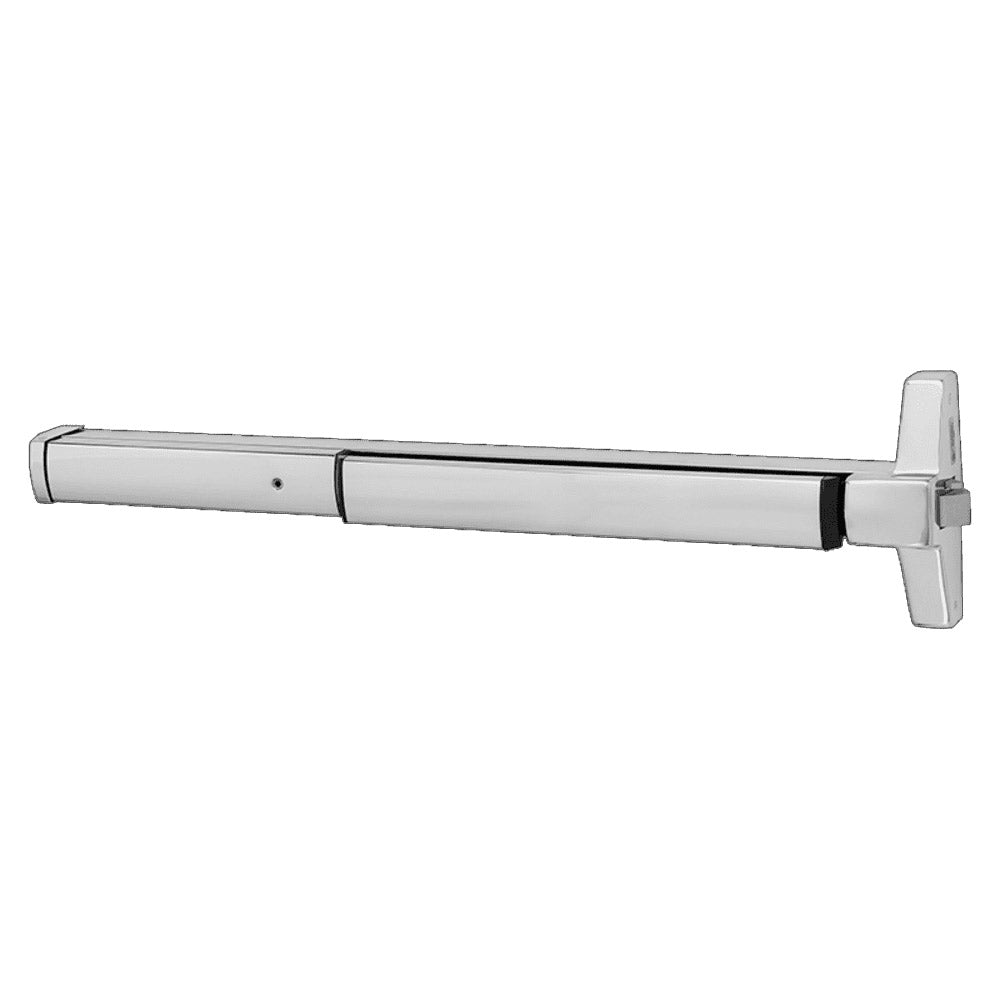

• BHMA 625 – Bright Chromium Plated
• BHMA 629 – Bright Stainless Steel

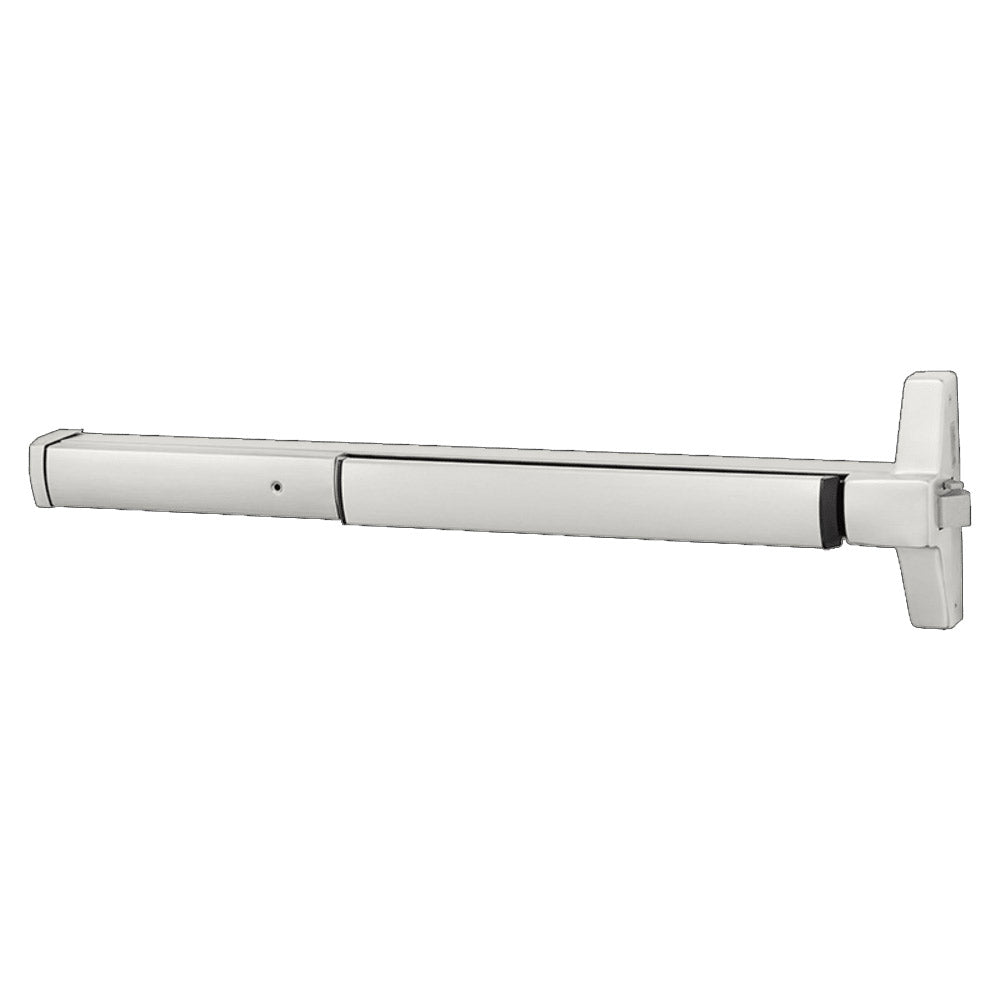

• BHMA 630 – Satin Stainless Steel
• 722 – Oil Rubbed Black Oxidized Bronze
• BSP – Black Suede Powder Coat
• WSP – White Suede Powder Coat

Why Choose the ED4000 Series?

The Corbin Russwin ED4000 Series combines Grade 1 strength, ADA compliance, narrow stile compatibility, and flexible trim options—making it an excellent solution for architects, contractors, and facility managers seeking reliable life-safety hardware with long-term performance in demanding commercial environments.
