An ANSI/BHMA Grade 2 lever lock which provides a combination of value and performance, the CL3800 Series is designed to be used in light commercial applications, while complementing the look of other Corbin Russwin cylindrical locks.

CORBIN RUSSWIN CL3193 SERVICE STATION KEYED LOCK OVERVIEW

ANSI function F92 (Service Station)
Keyed cylindrical lever lock.
Throw-off latchbolt by lever.
Outside lever locked by slotted push button. (Lever handle is freewheeling in locked position.)
When slotted push button is pushed in and turned, outside lever becomes freewheeling and deadlocking latch is activated. Outside lever is unlocked by using key or by rotating inside lever, when slotted push button returned to original position.
Inside lever always free.
Outside lever rigid when locked.

Standard features

Door thickness:1-3/4" to 2" doors
Backset: 2-3/4"
Strike: ANSI curved lip 4-7/8" x 1-1/4" x 1-1/4" lip to center
Cylinder: Conventional Cylinder 6-pin
Keys: Two nickel silver keys

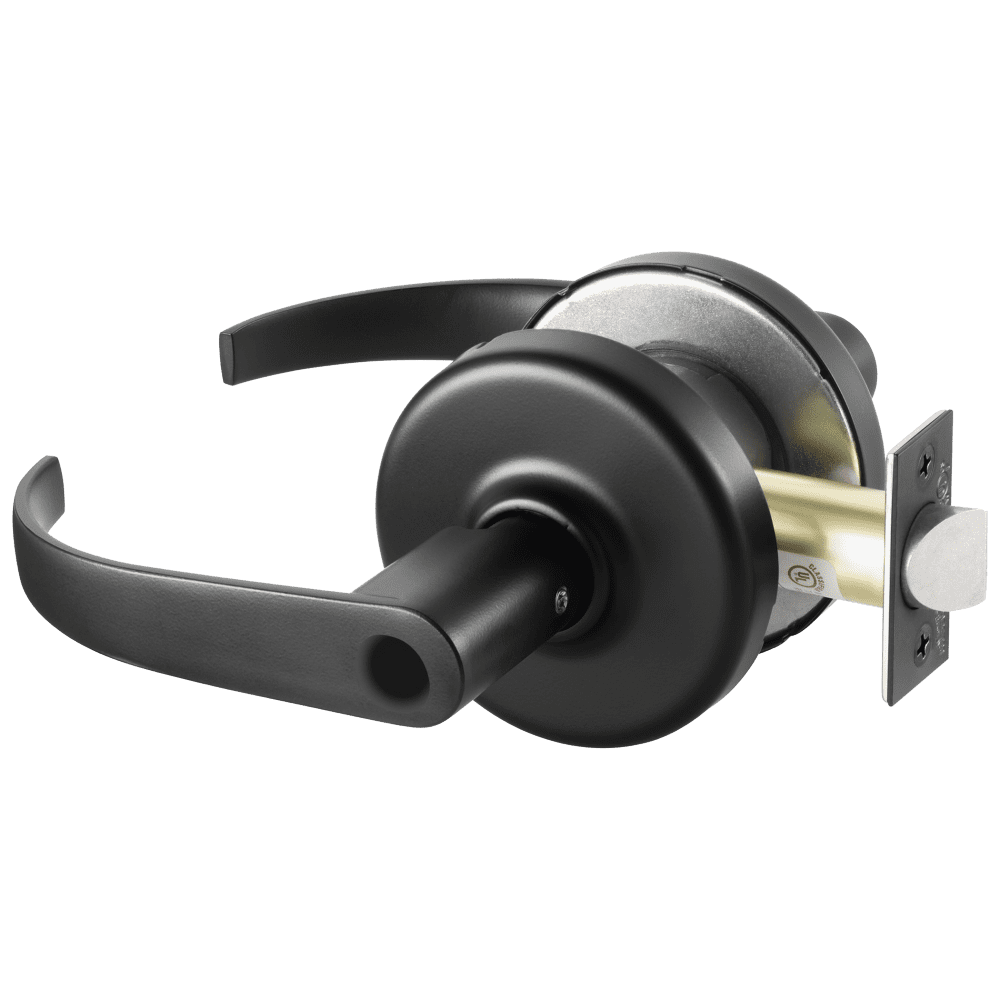

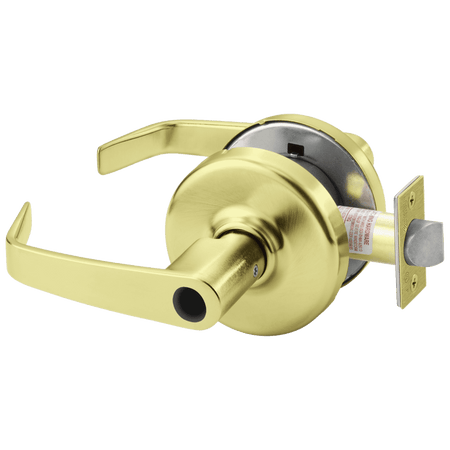

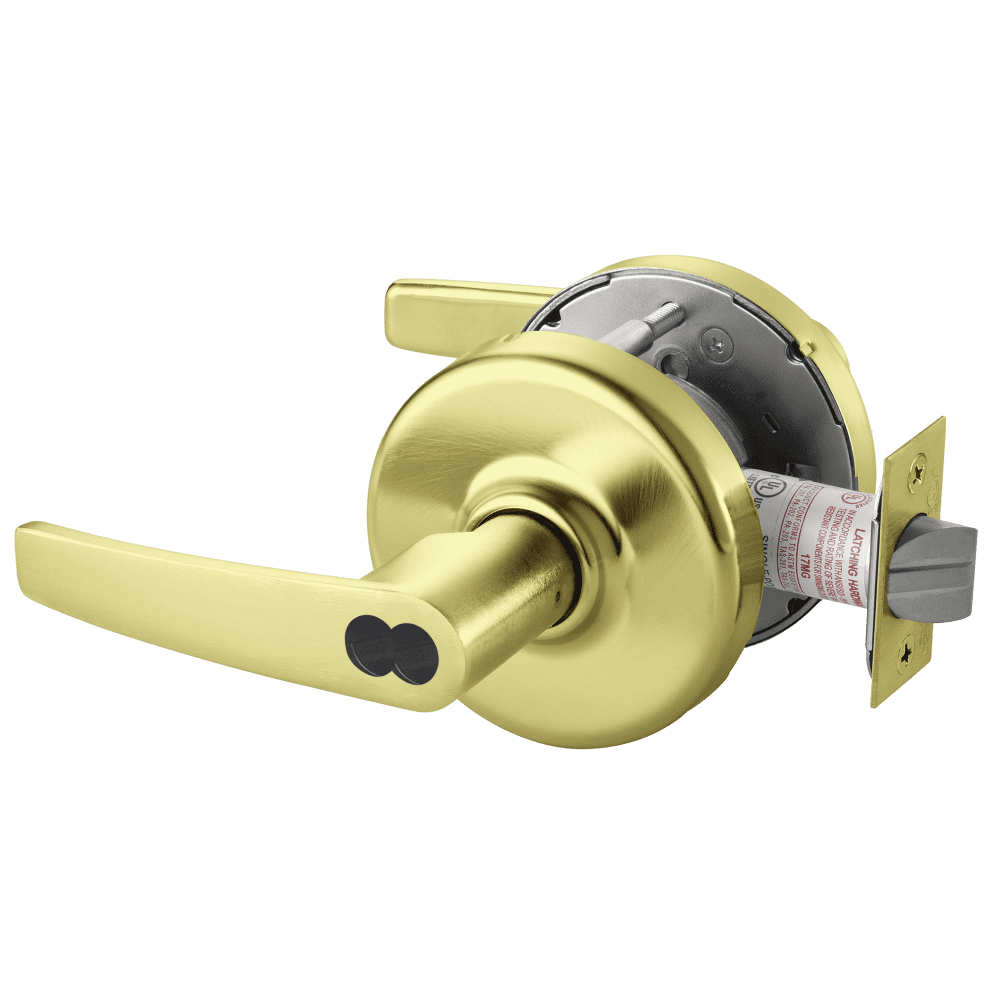

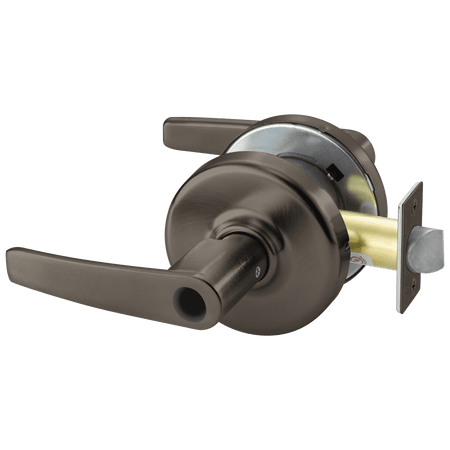

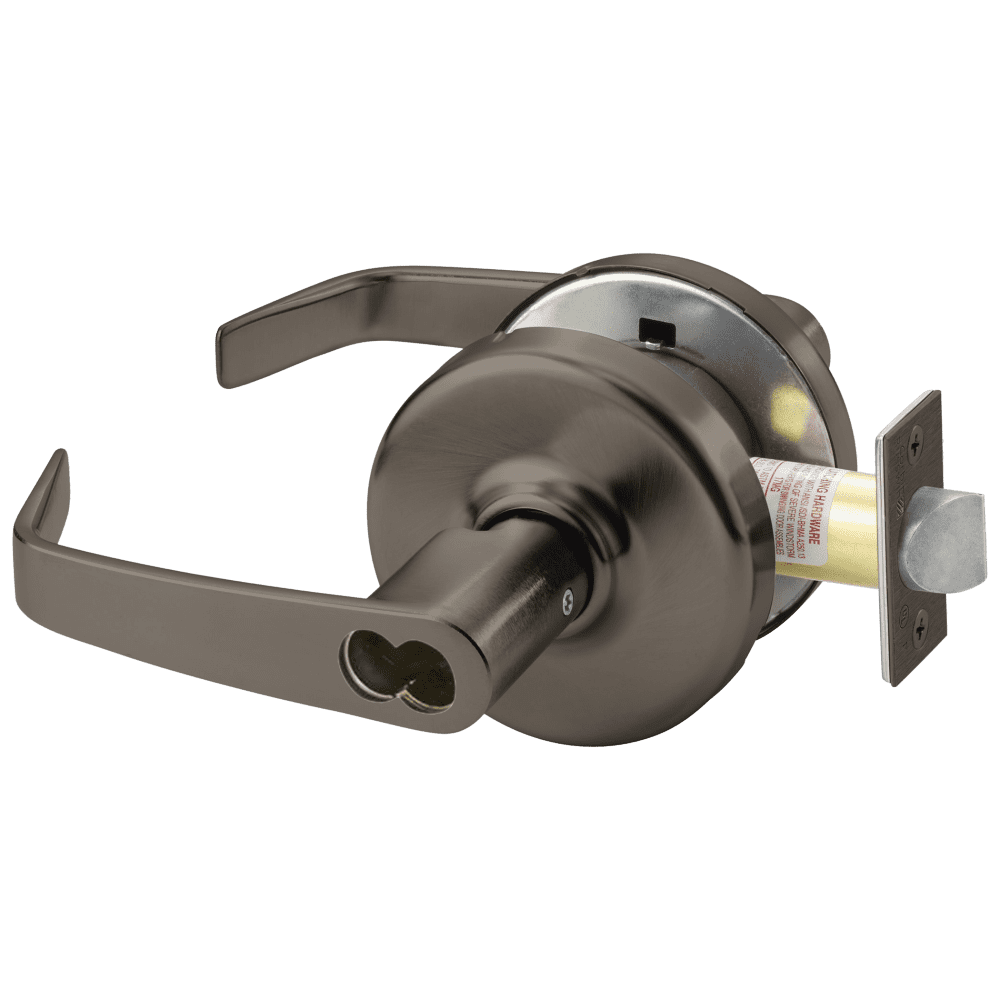

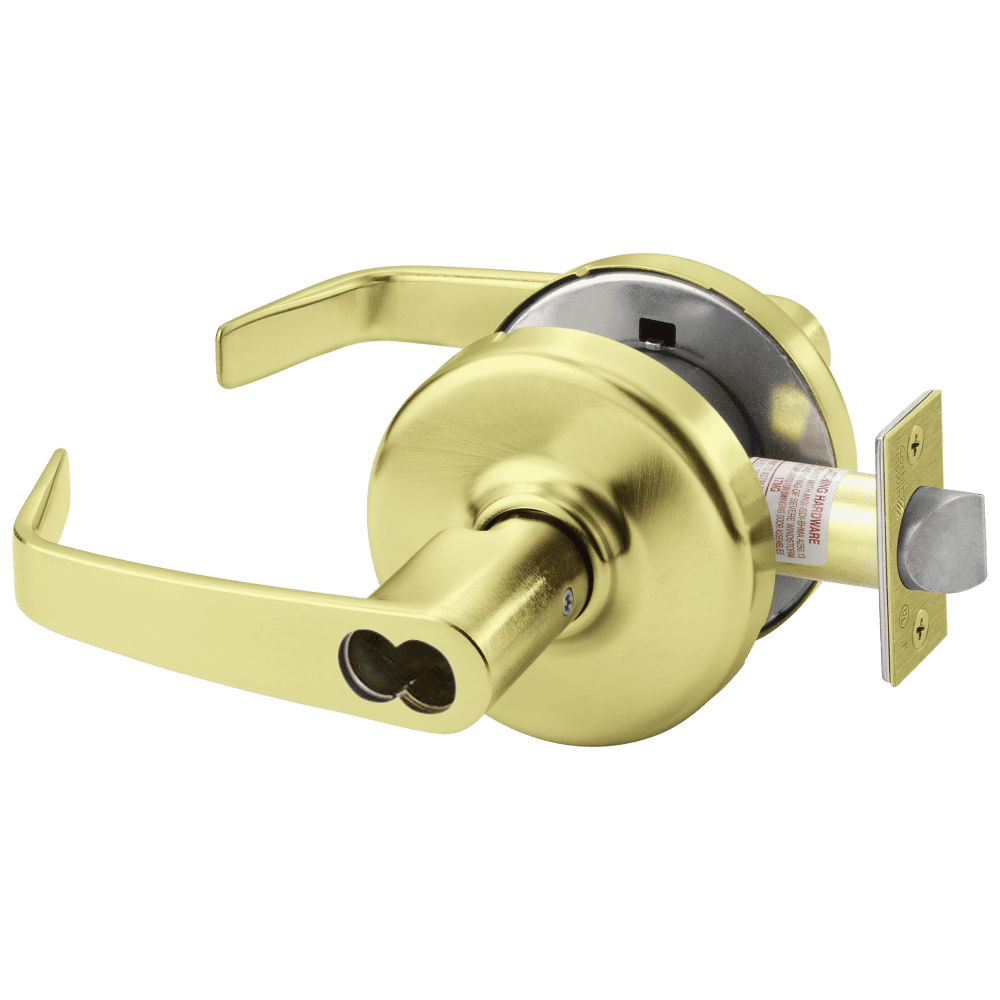

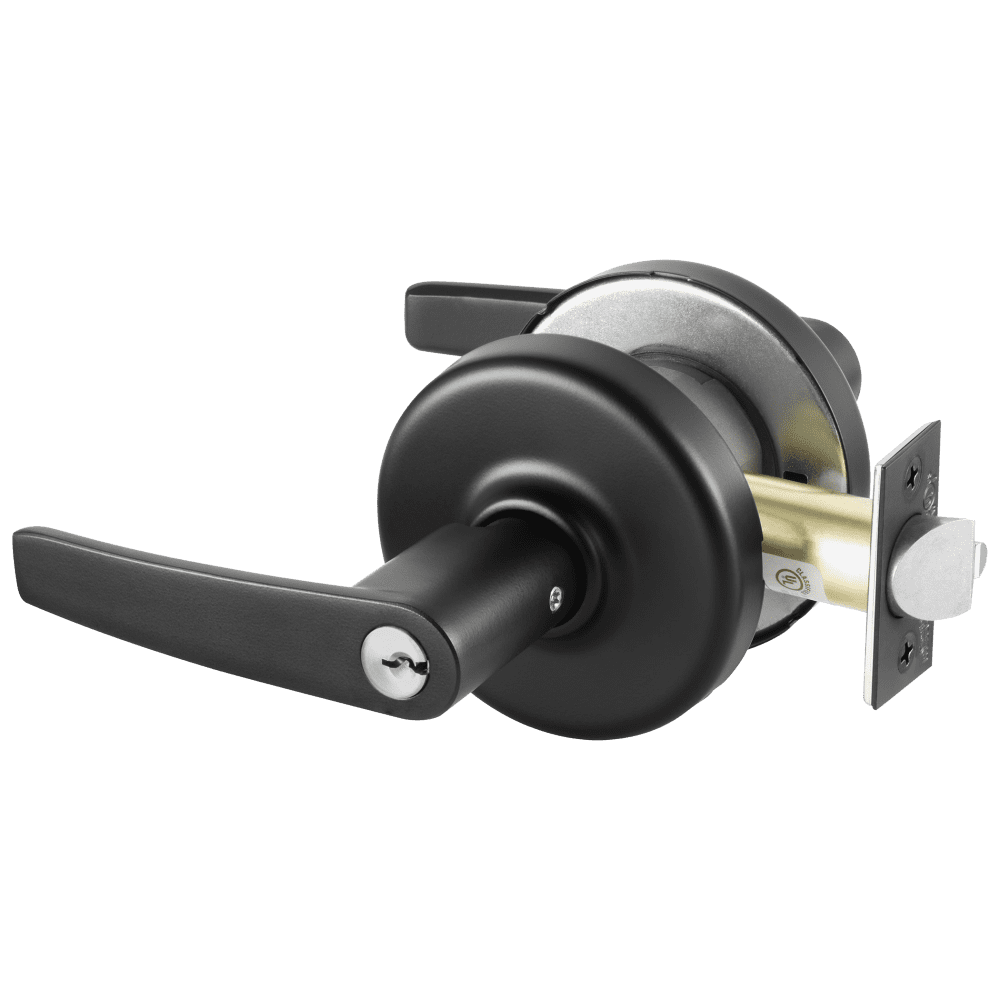

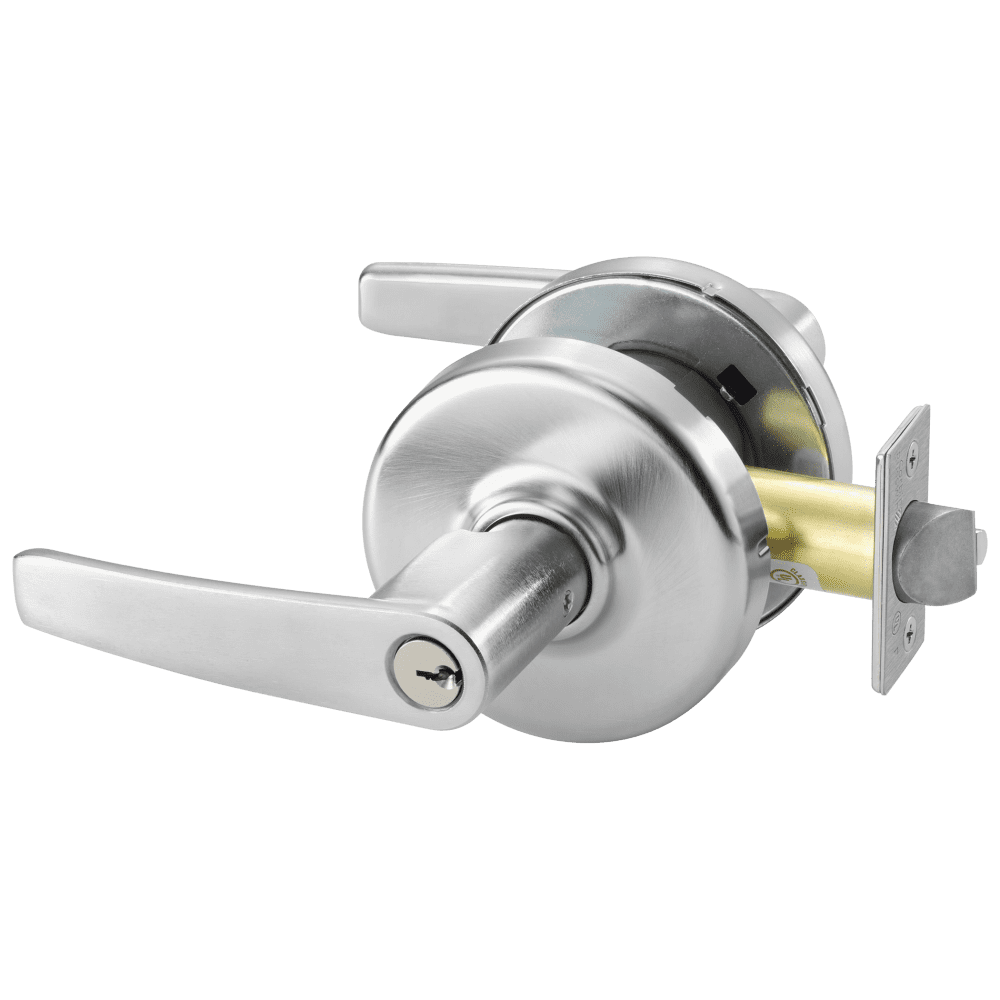

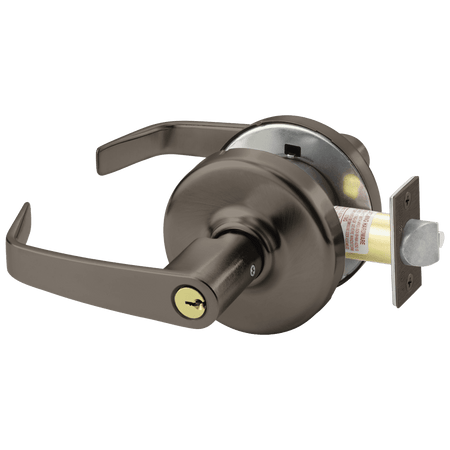

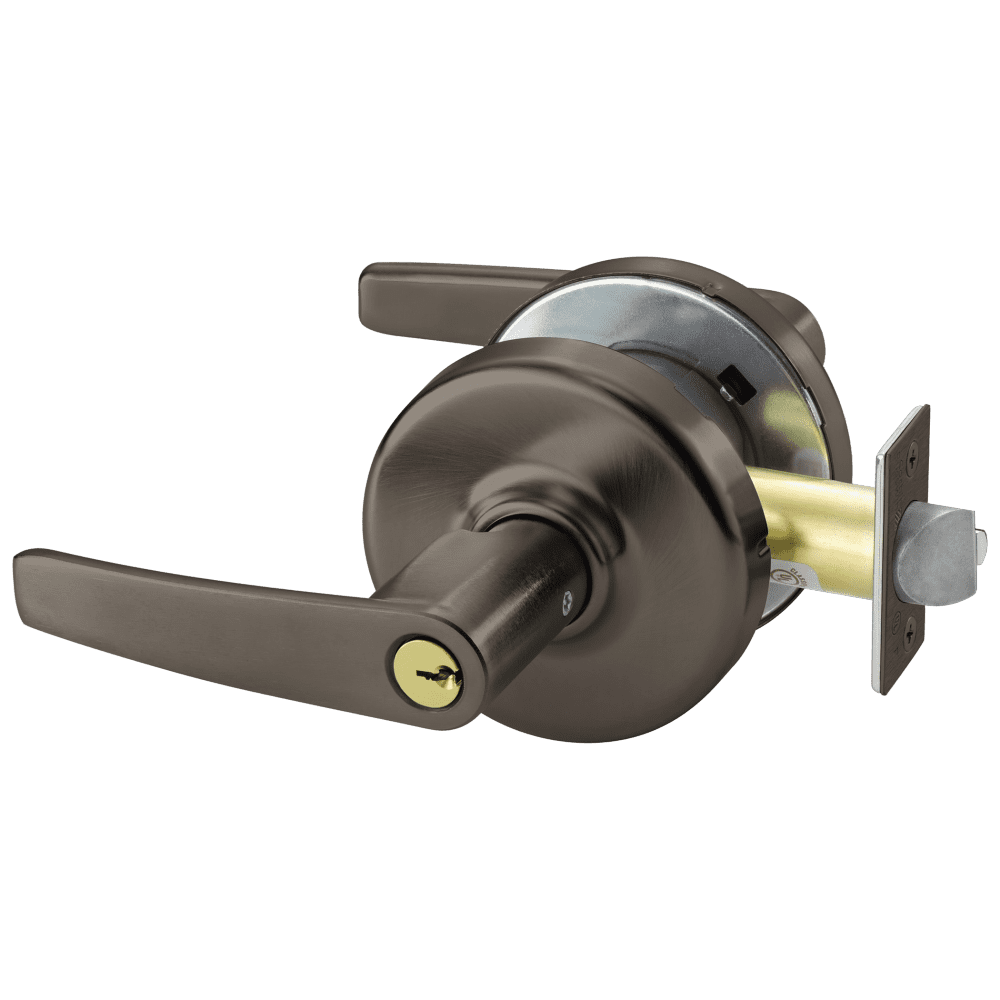

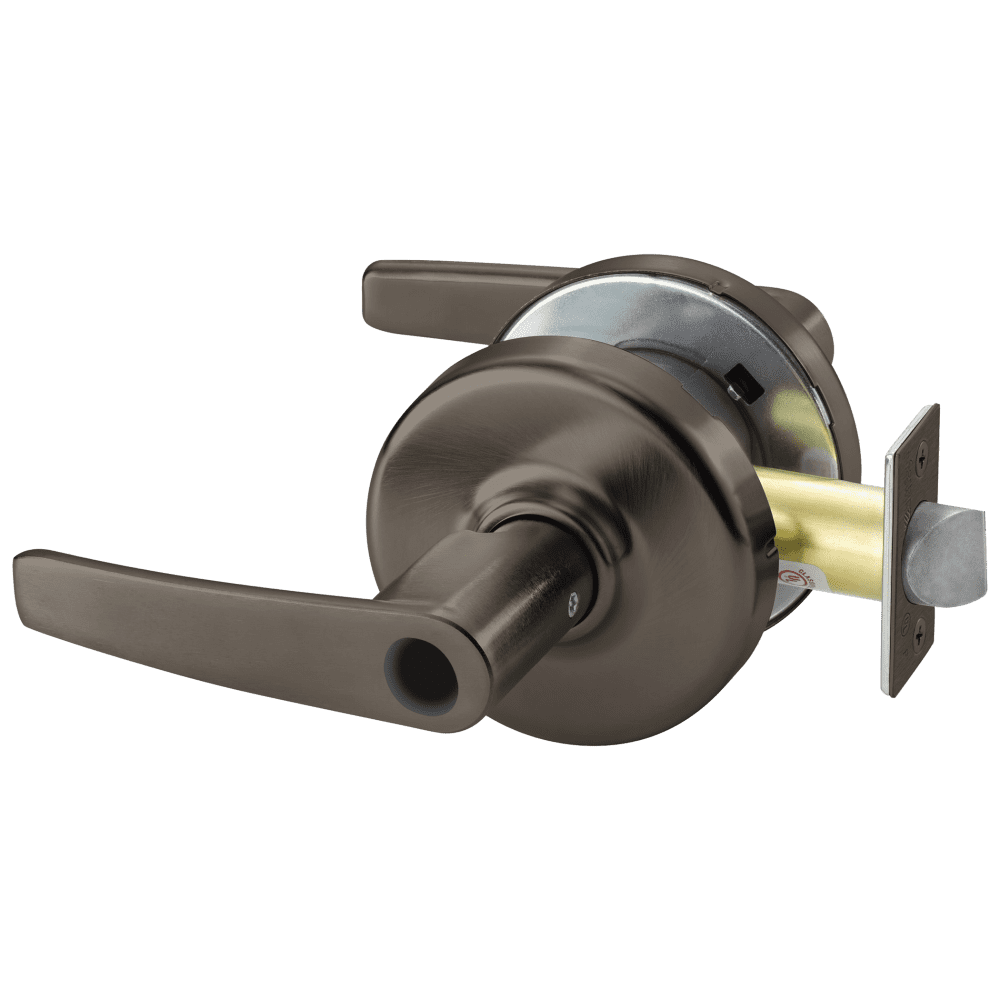

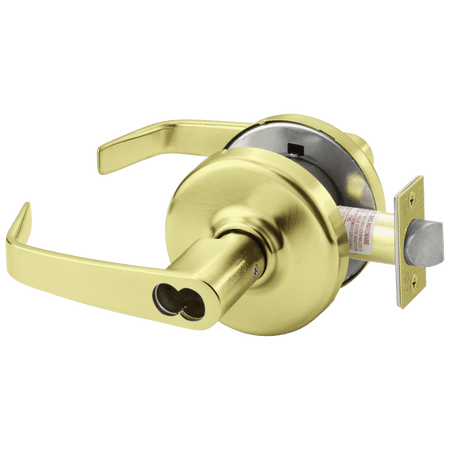

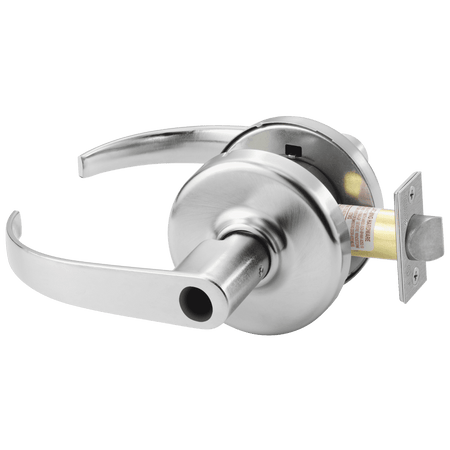

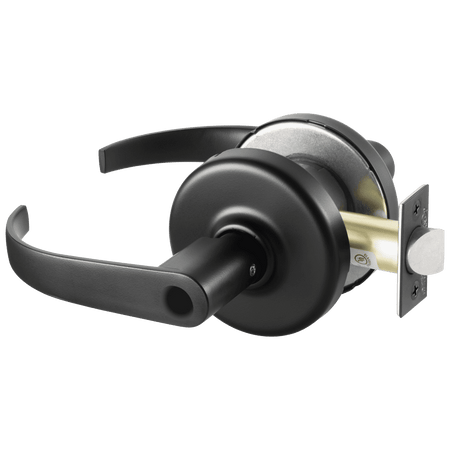

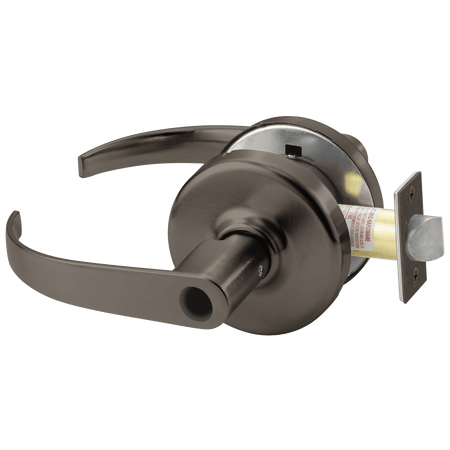

Corbin Russwin CL3193 Service Station Grade 1 Vandal Resistance Cylindrical Lever Lock
