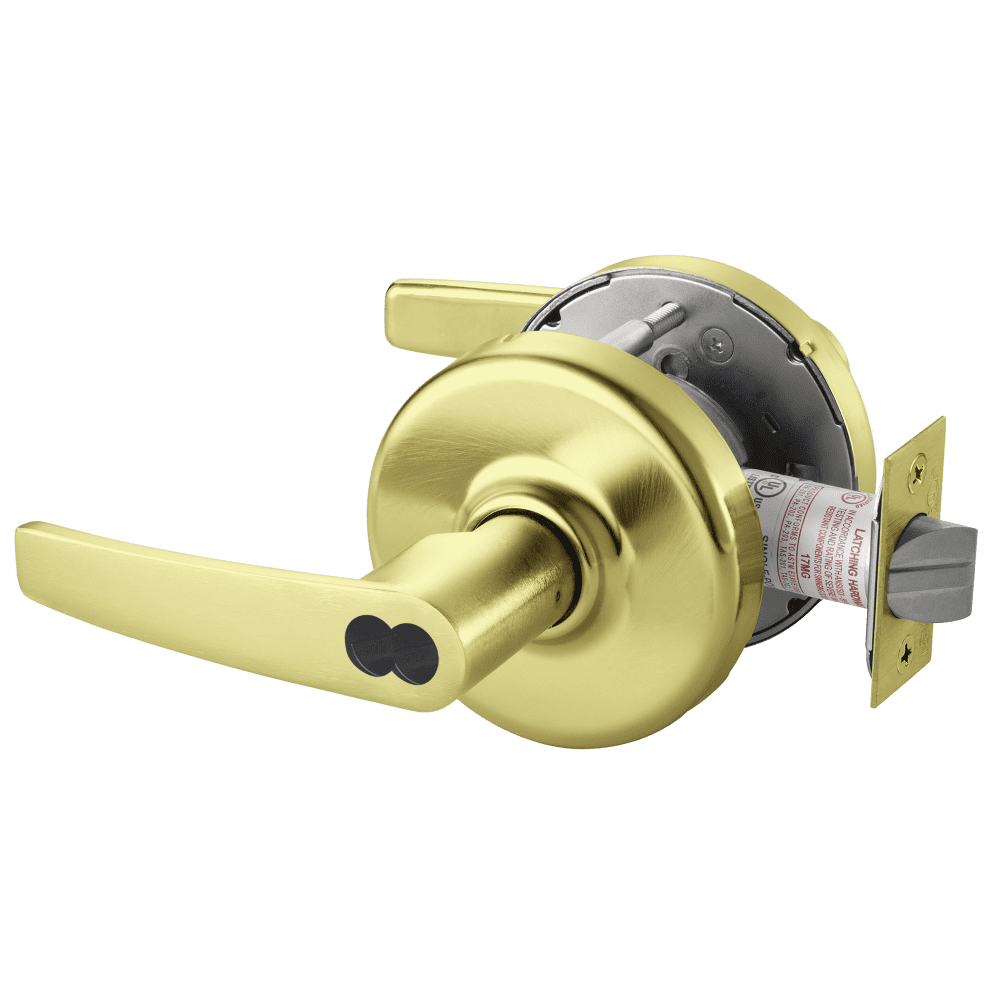

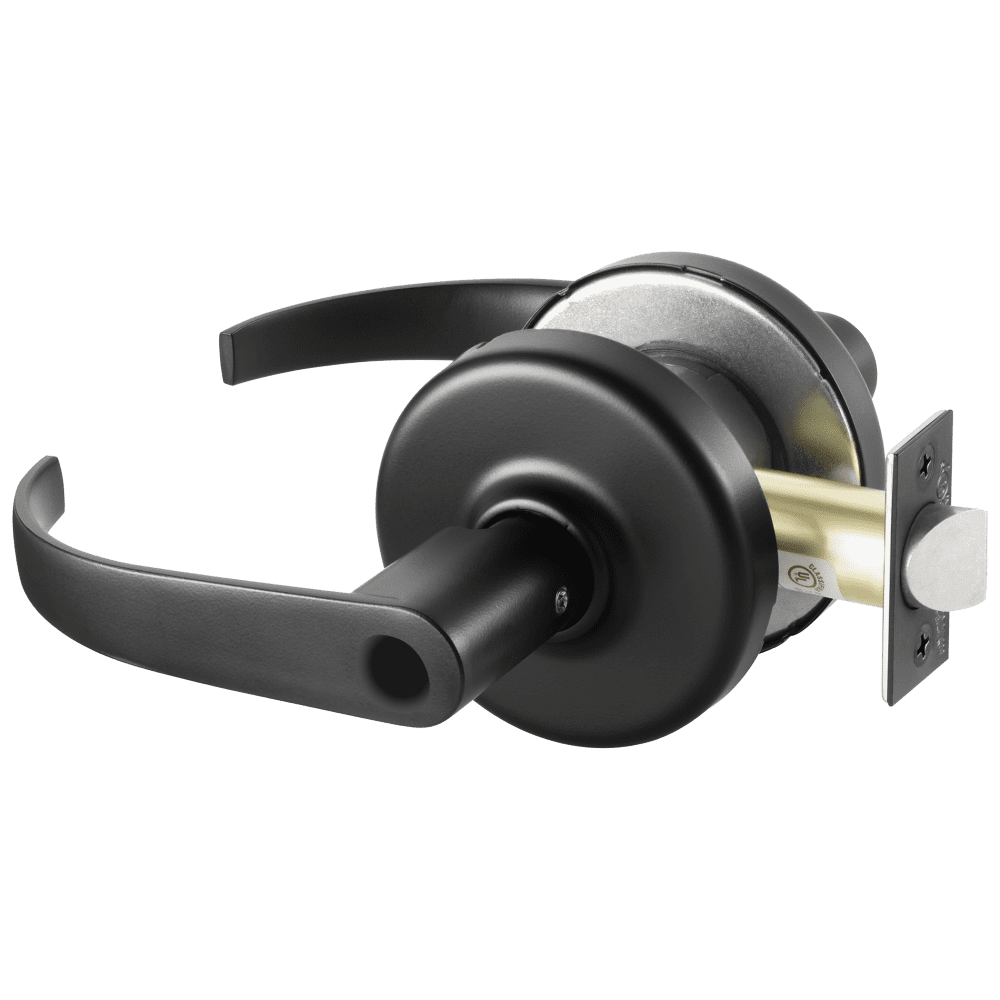

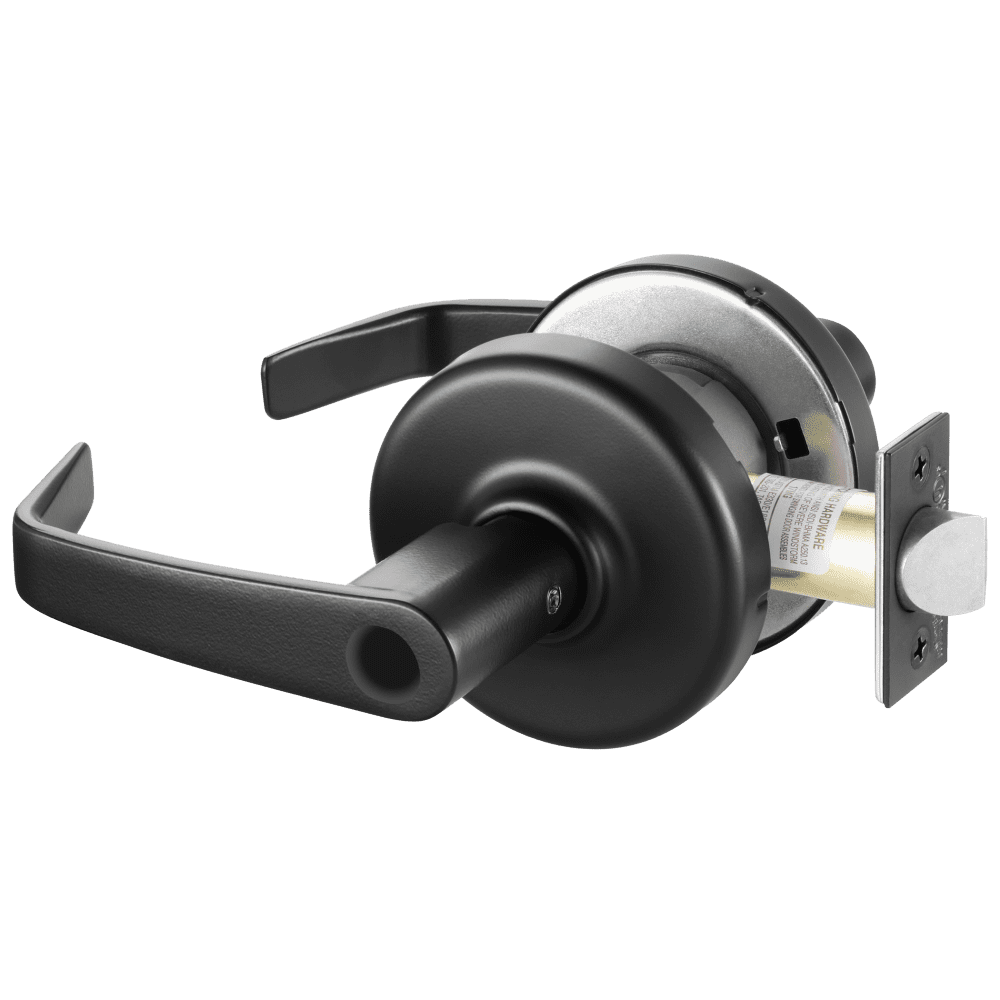

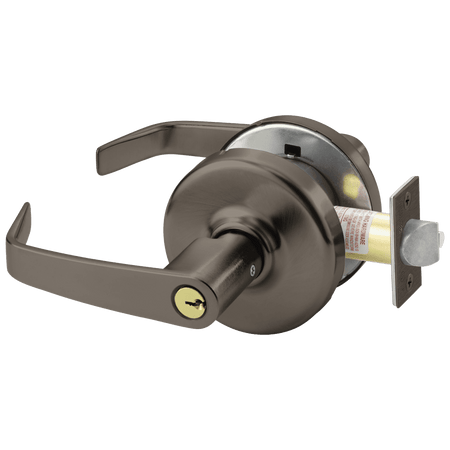

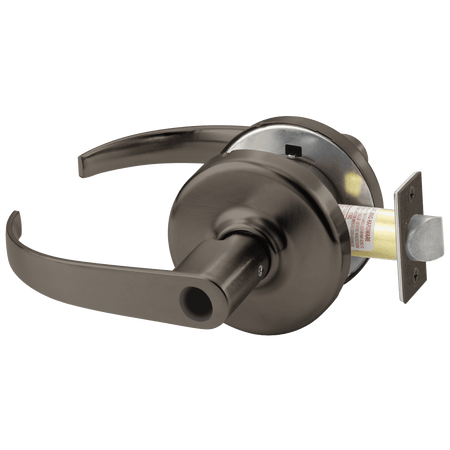

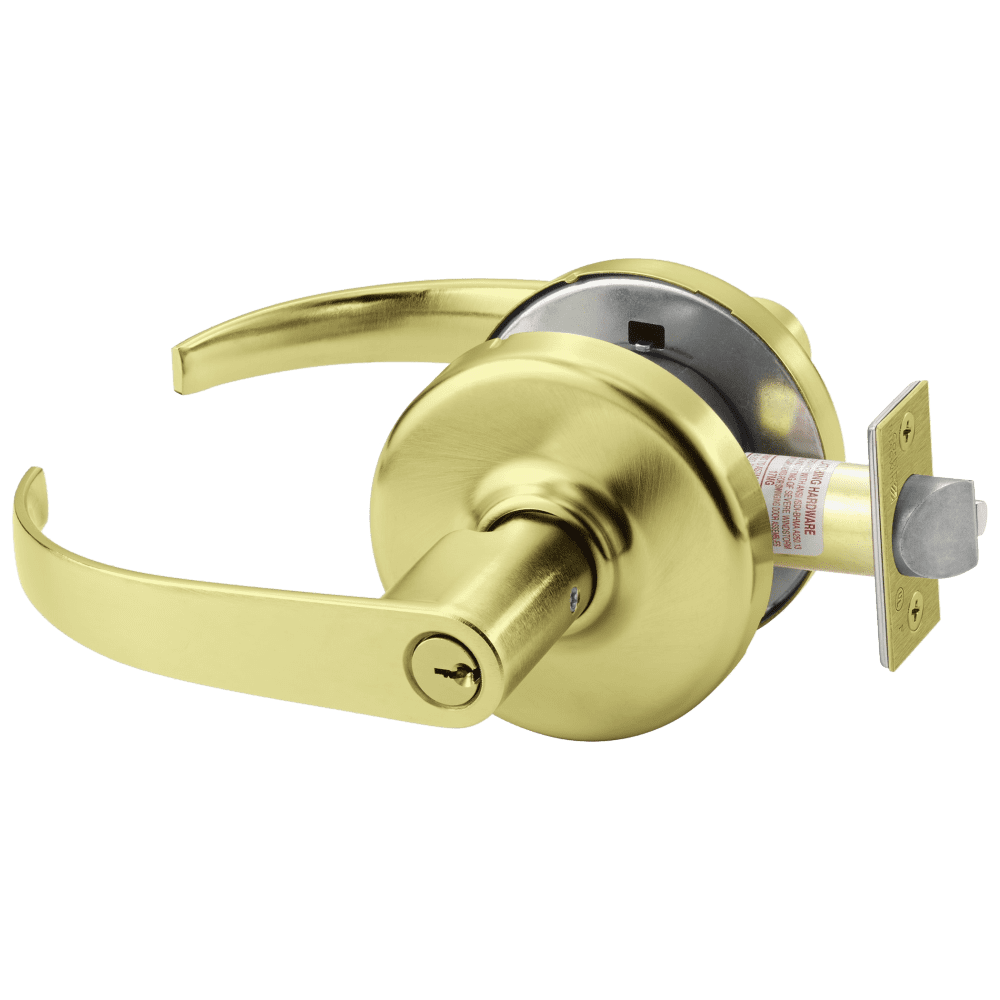

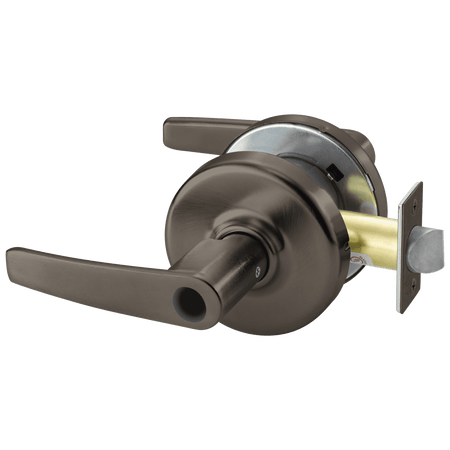

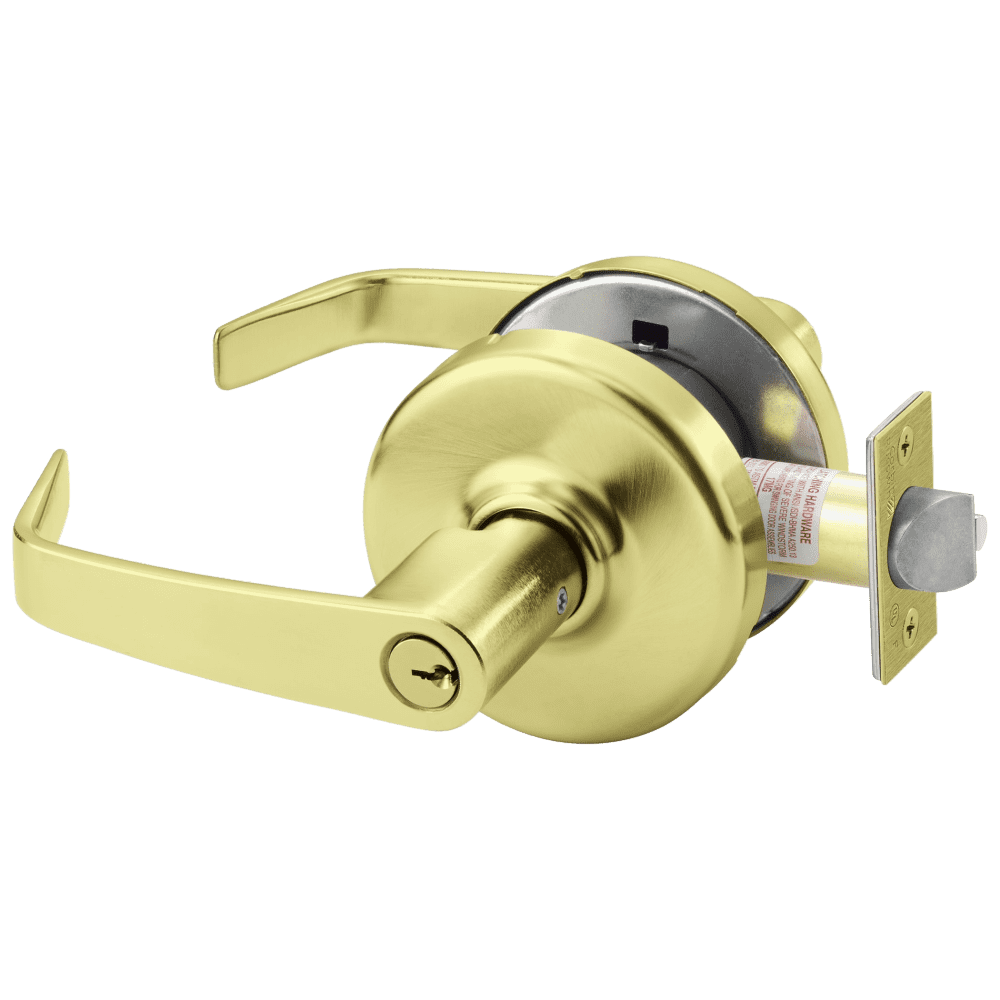

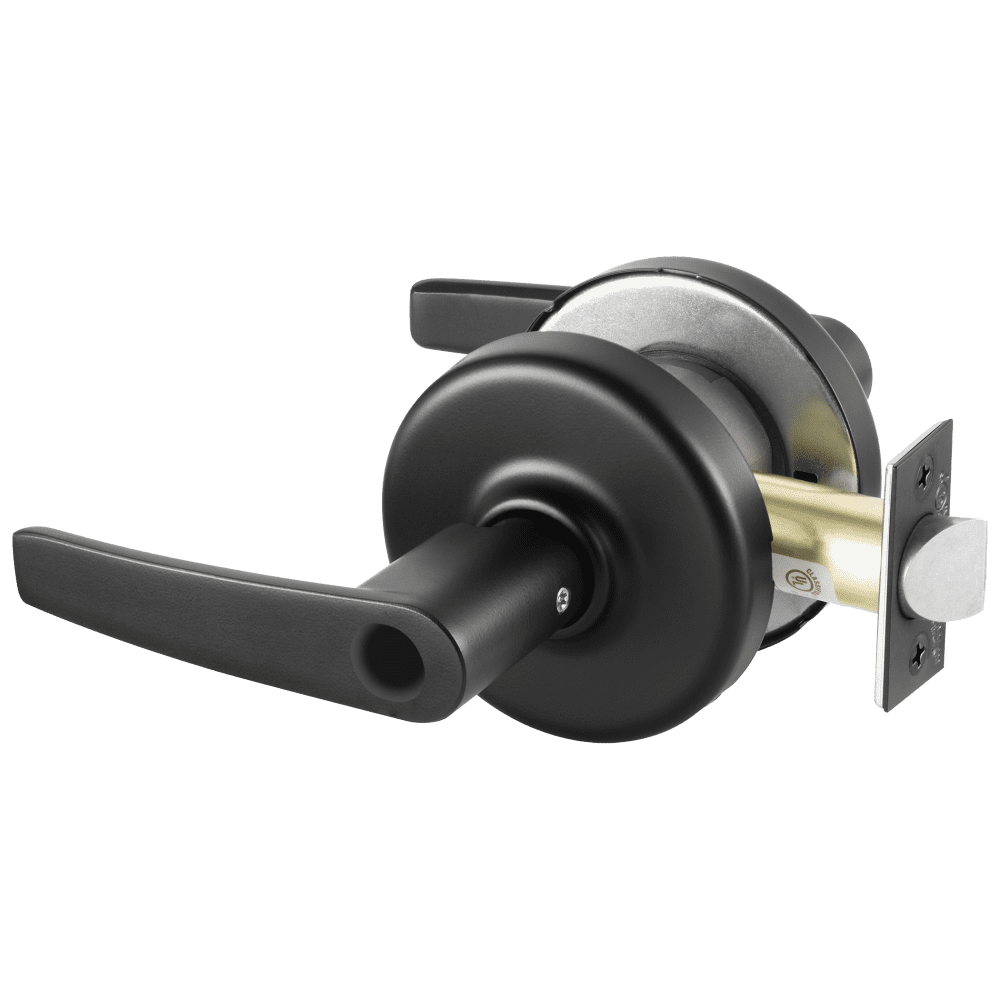

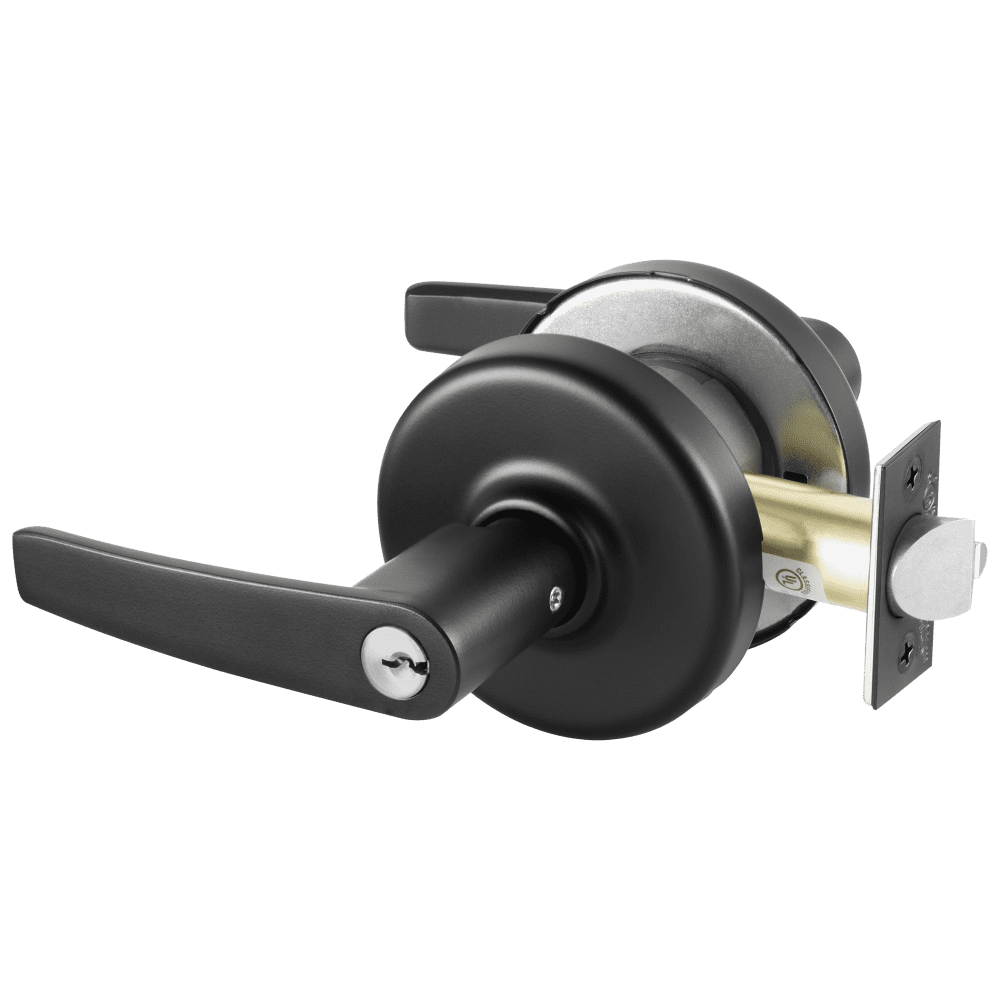

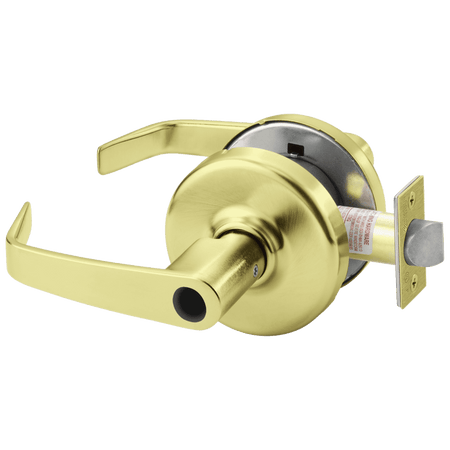

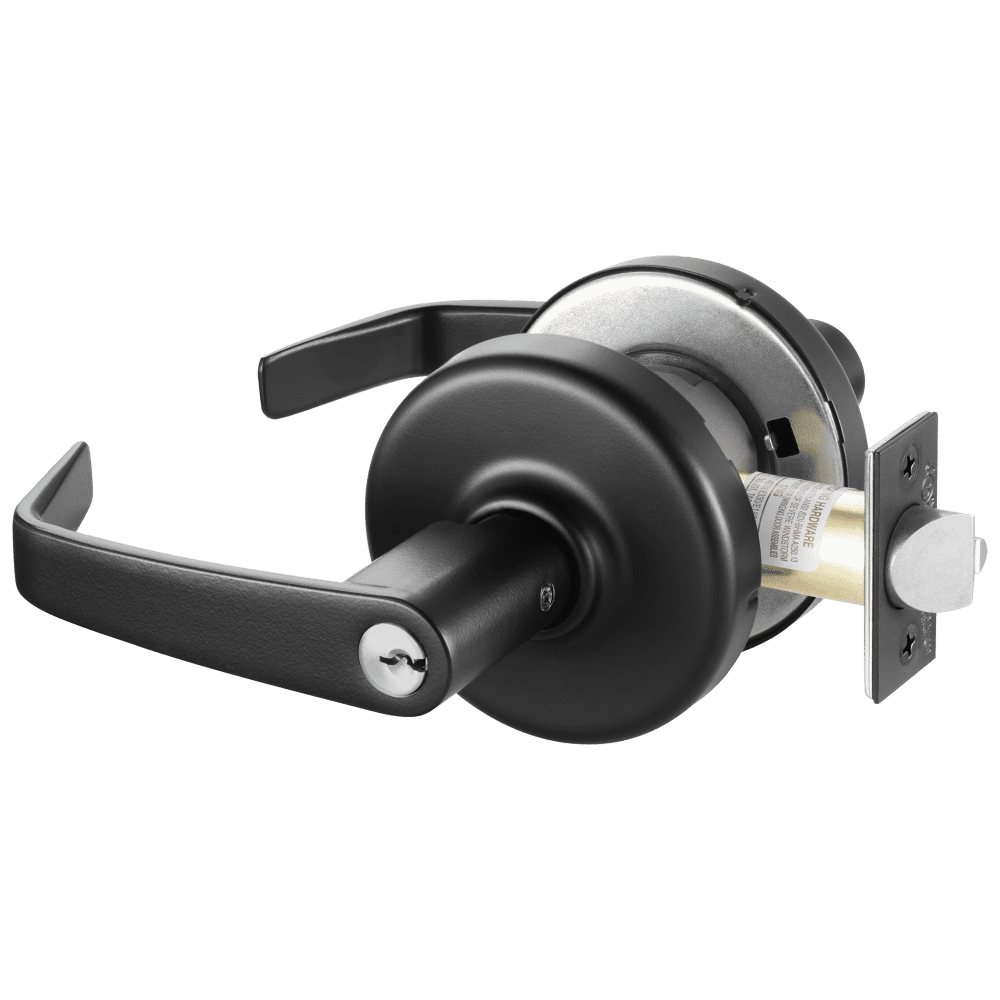

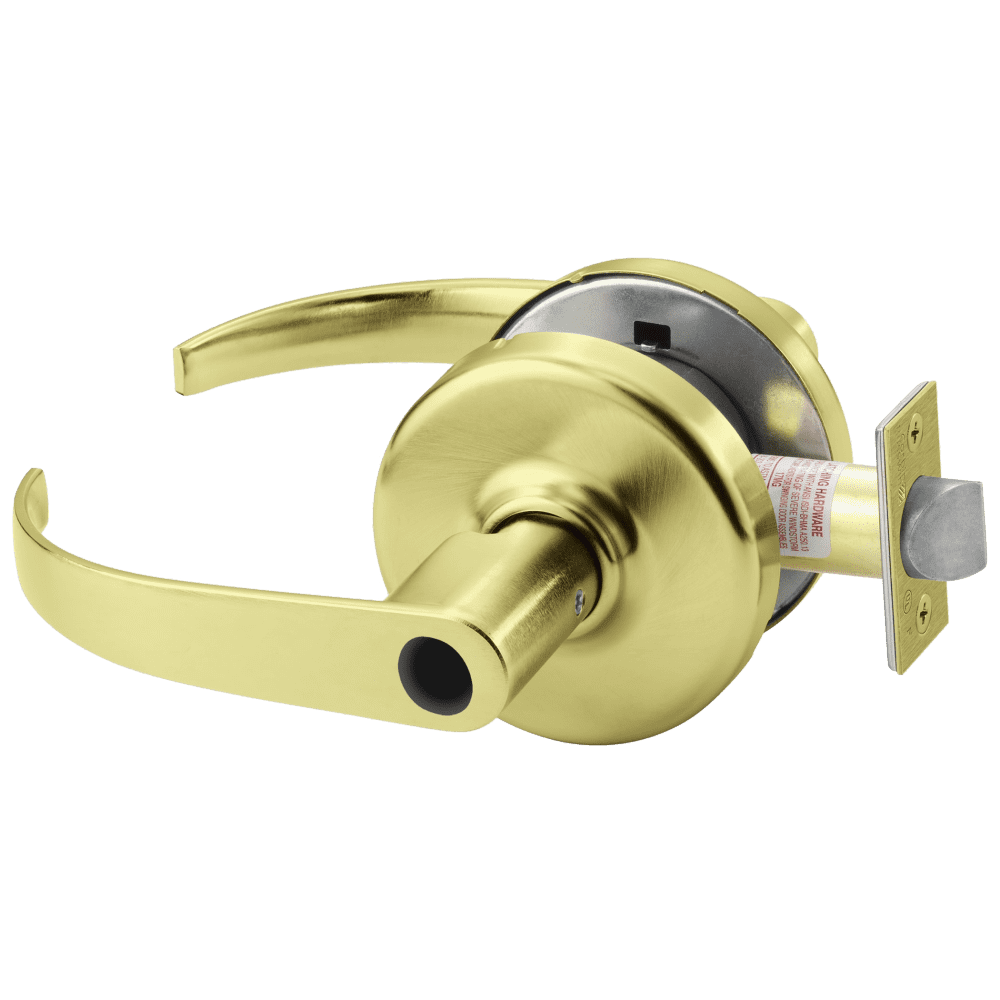

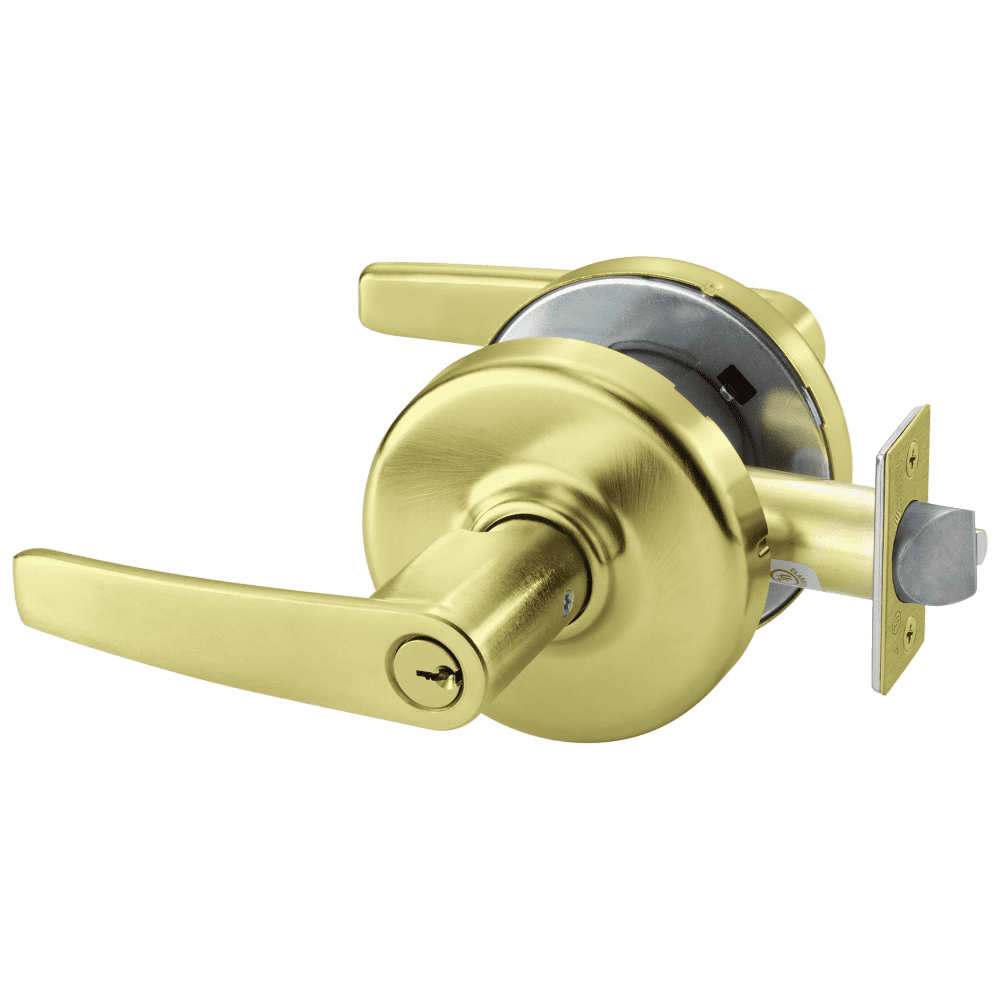

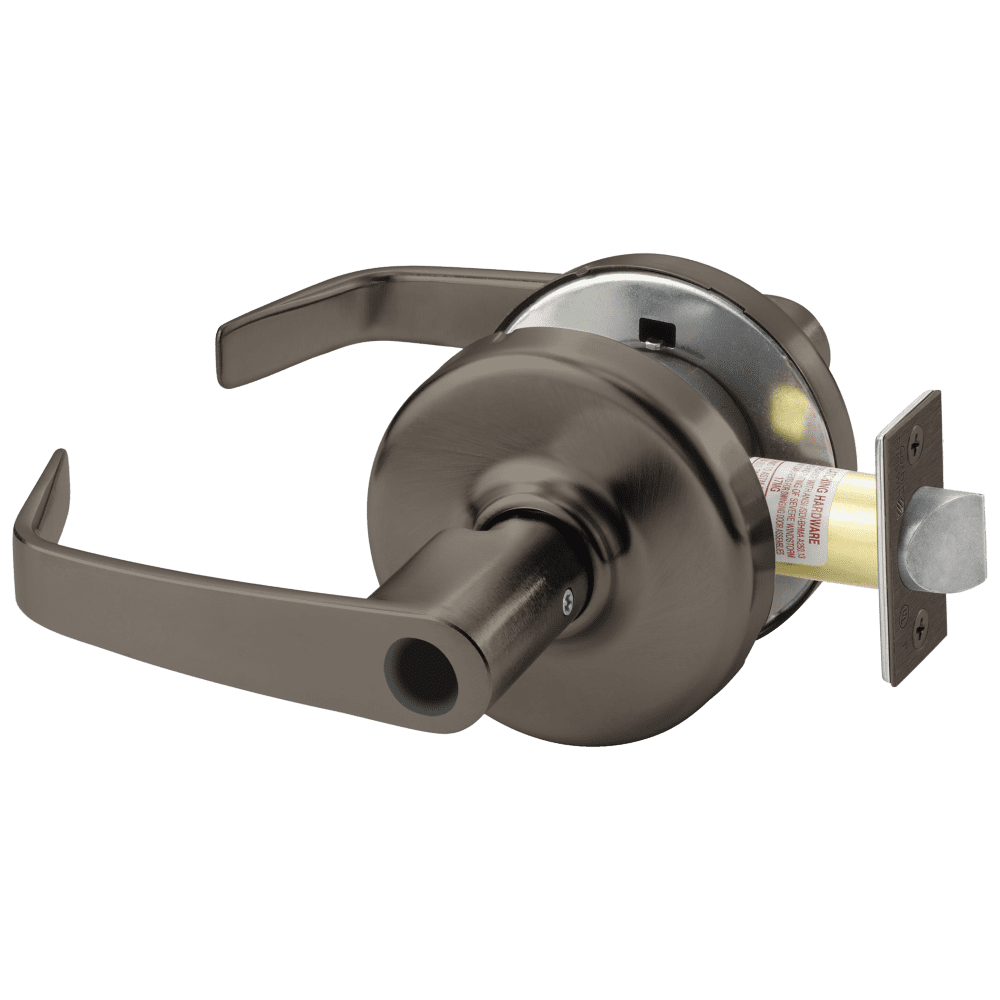

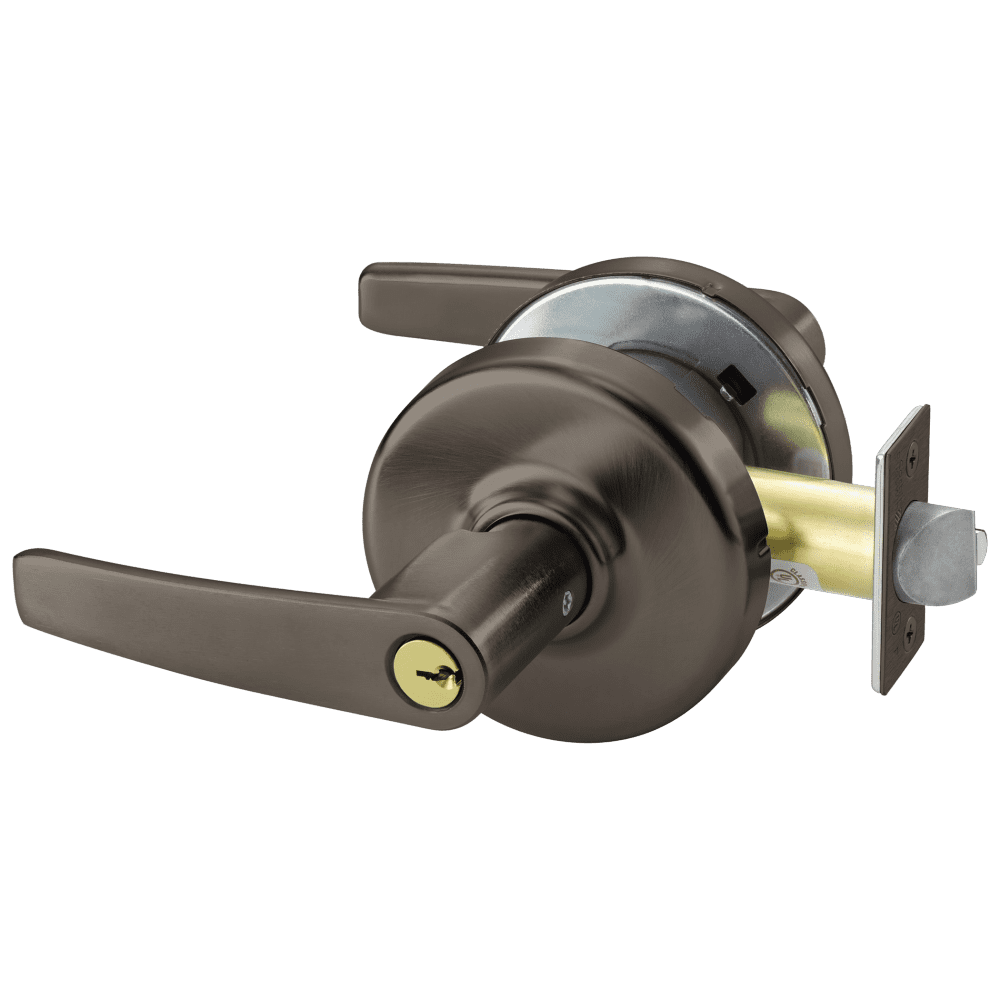

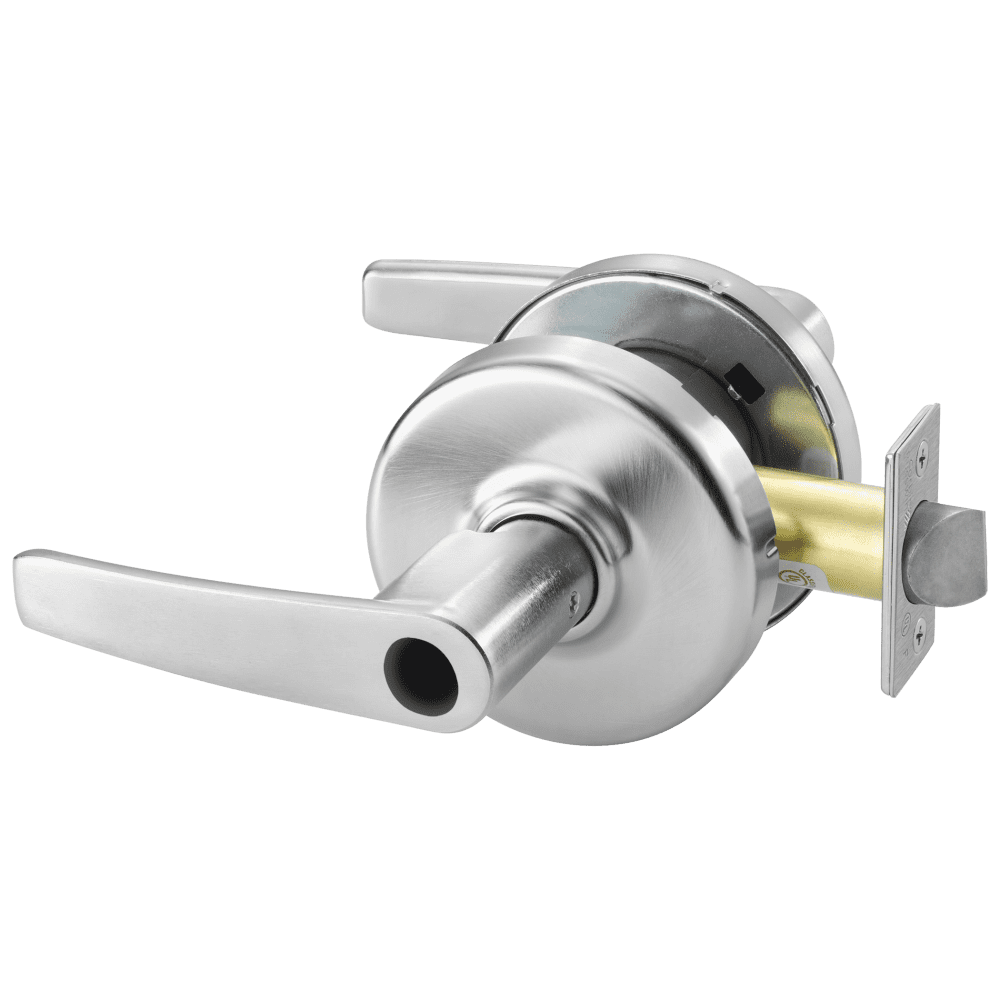

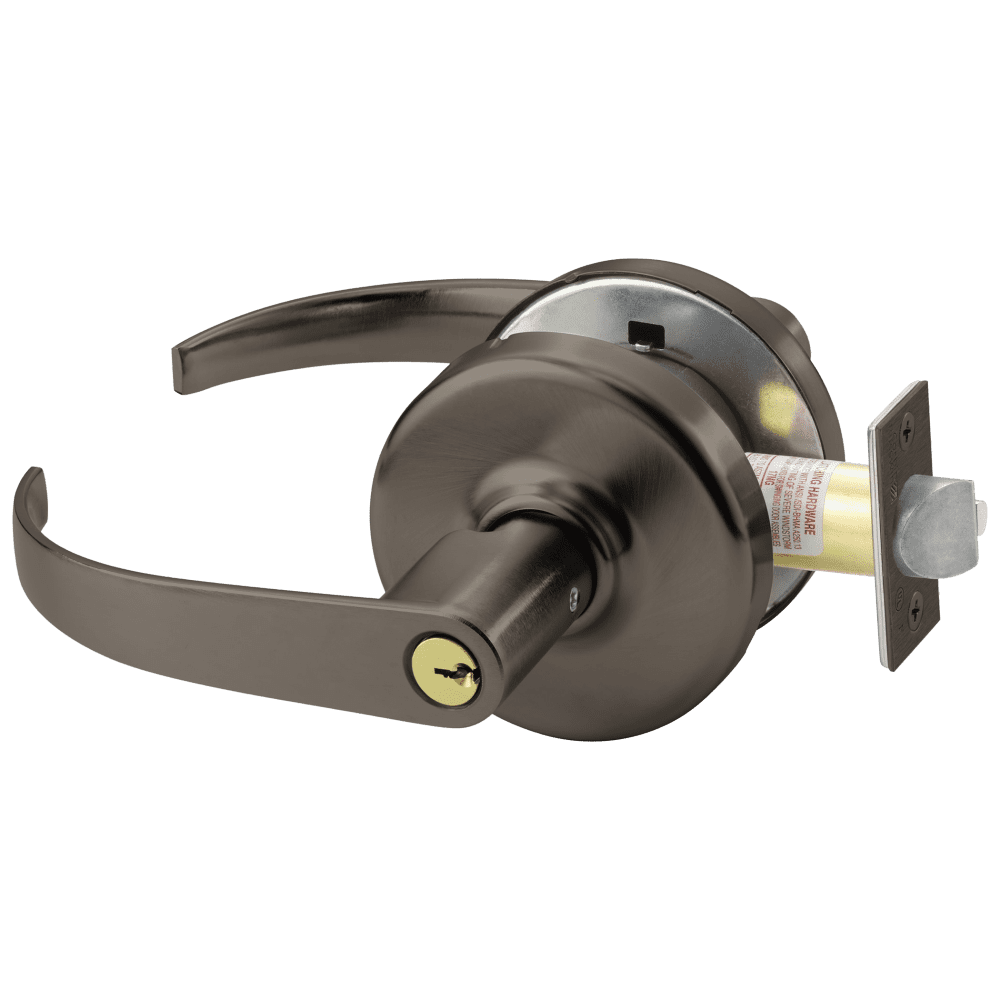

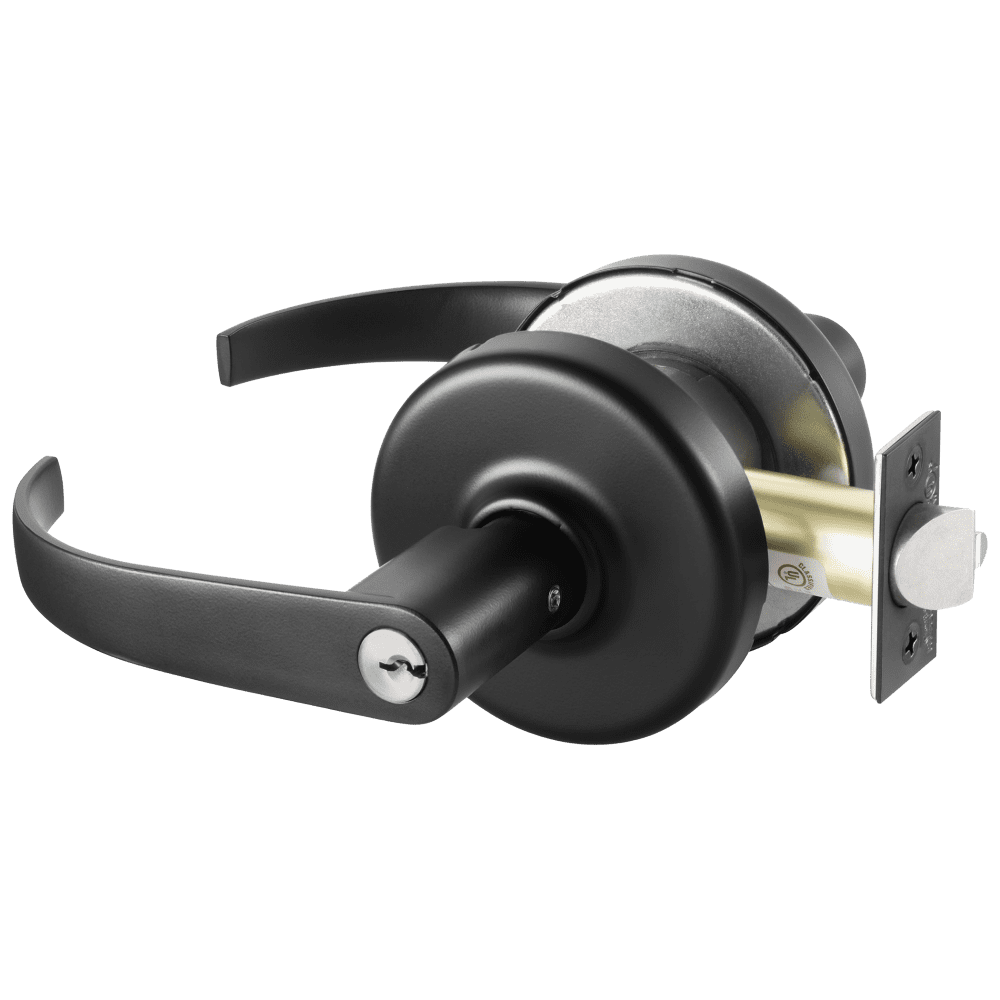

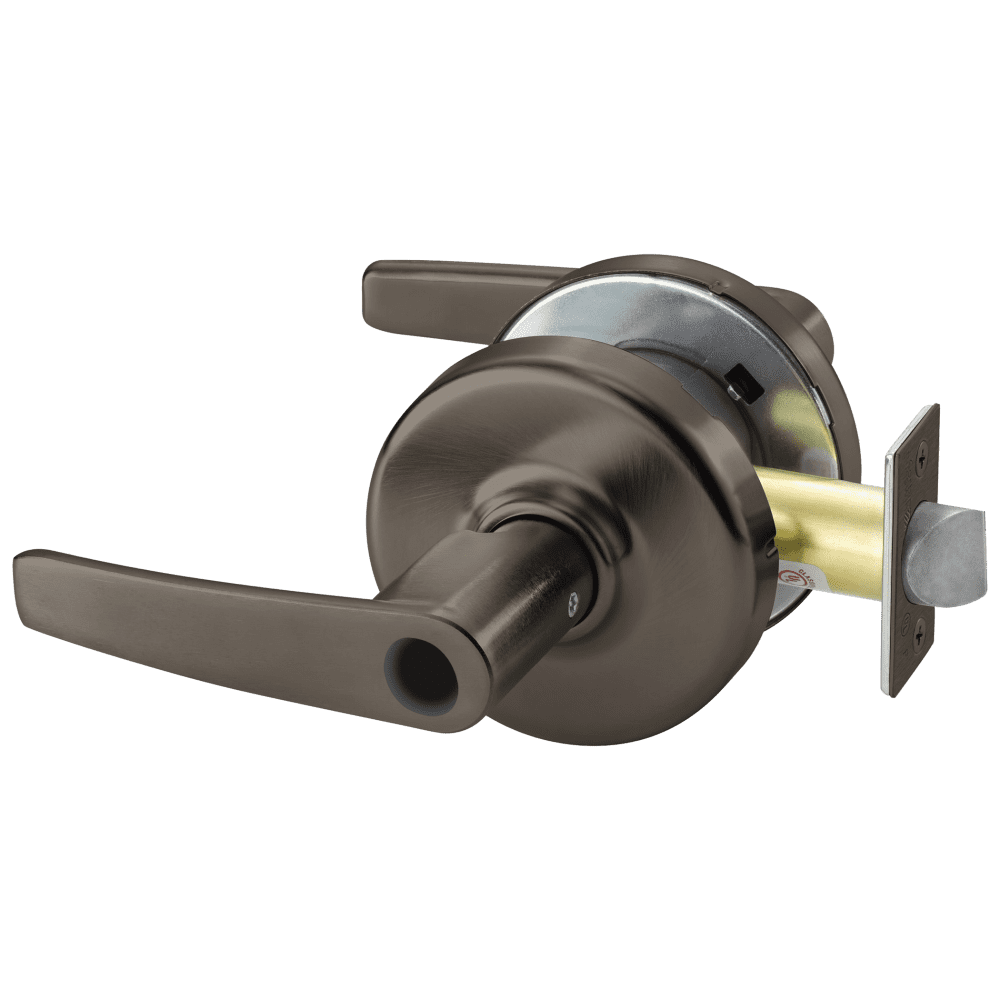

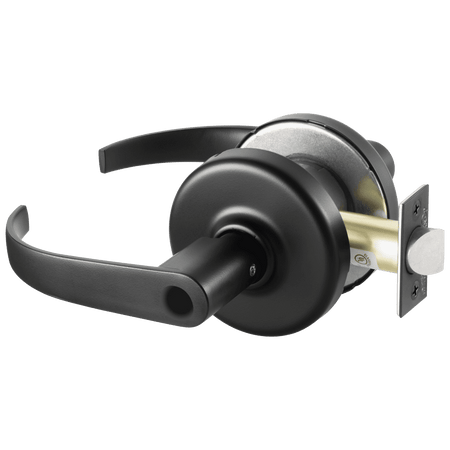

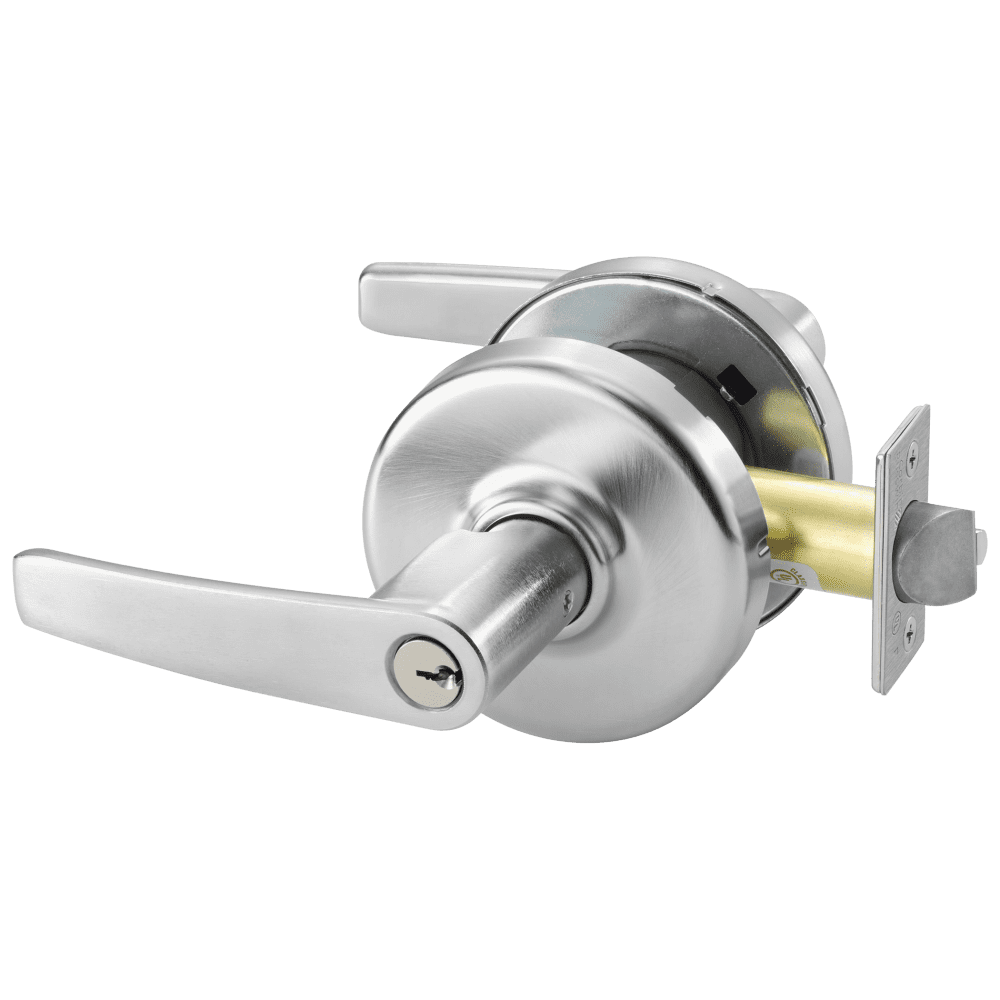

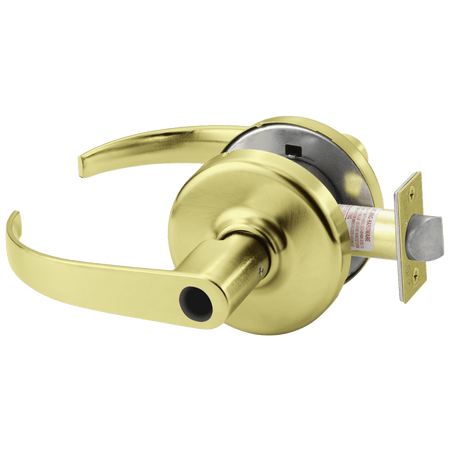

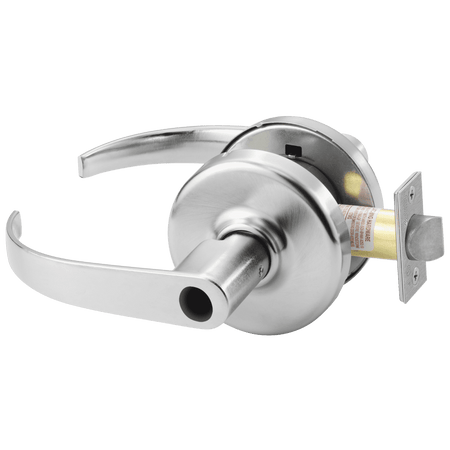

Corbin Russwin CL3172 Apartment Exit/Public Toilet Grade 1 Vandal Resistance Cylindrical Lever Lock

An ANSI/BHMA Grade 2 lever lock which provides a combination of value and performance, the CL3800 Series is designed to be used in light commercial applications, while complementing the look of other Corbin Russwin cylindrical locks.

CORBIN RUSSWIN CL3172 APARTAMENT EXIT/PUBLIC TOILET KEYED LOCK OVERVIEW

• ANSI function F88 (Apartment Exit/Public Toilet)
• Keyed cylindrical lever lock.
• Deadlocking latchbolt by lever either side, except when key inside locks outside lever (Lever handle is freewheeling in locked position.)
• Key outside retracts latchbolt.
• Key inside unlocks outside lever.
• Inside lever always free.
• Keyed alike unless otherwise specified.

Standard features

• Door thickness:1-3/4" to 2" doors
• Backset: 2-3/4"
• Strike: ANSI curved lip 4-7/8" x 1-1/4" x 1-1/4" lip to center
• Cylinder: Conventional Cylinder 6-pin
• Keys: Two nickel silver keys
