Control iD iDFace Max Facial Identification Access Controller

SKU: IDFACE MAX
$ 915.00

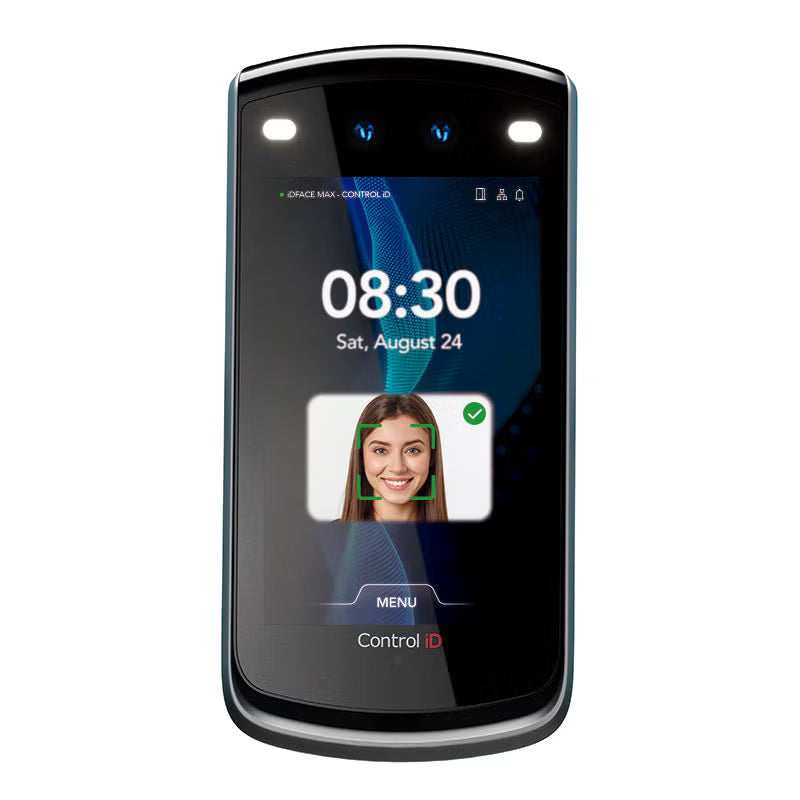

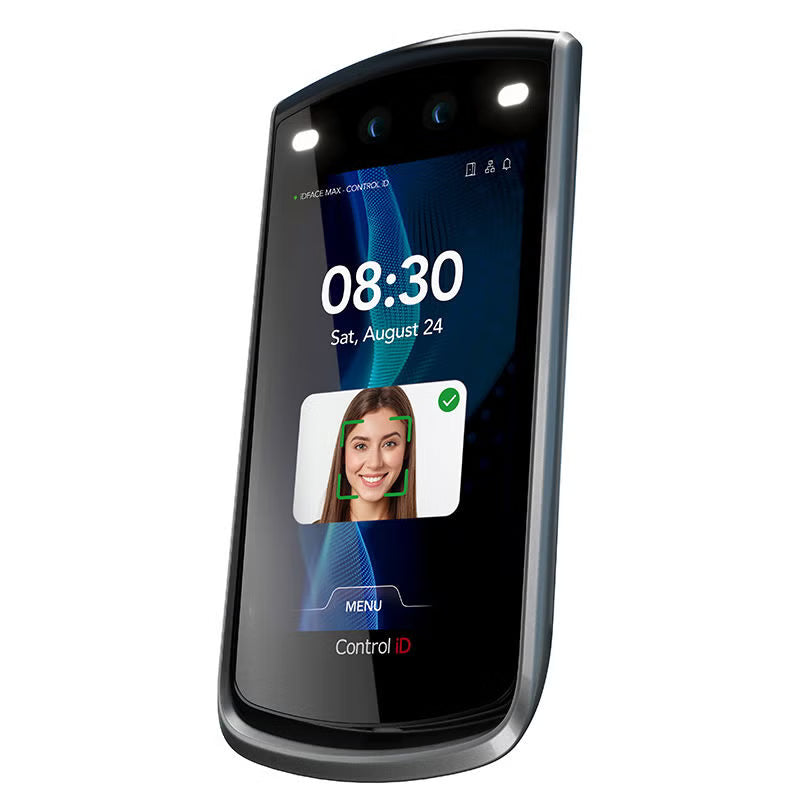

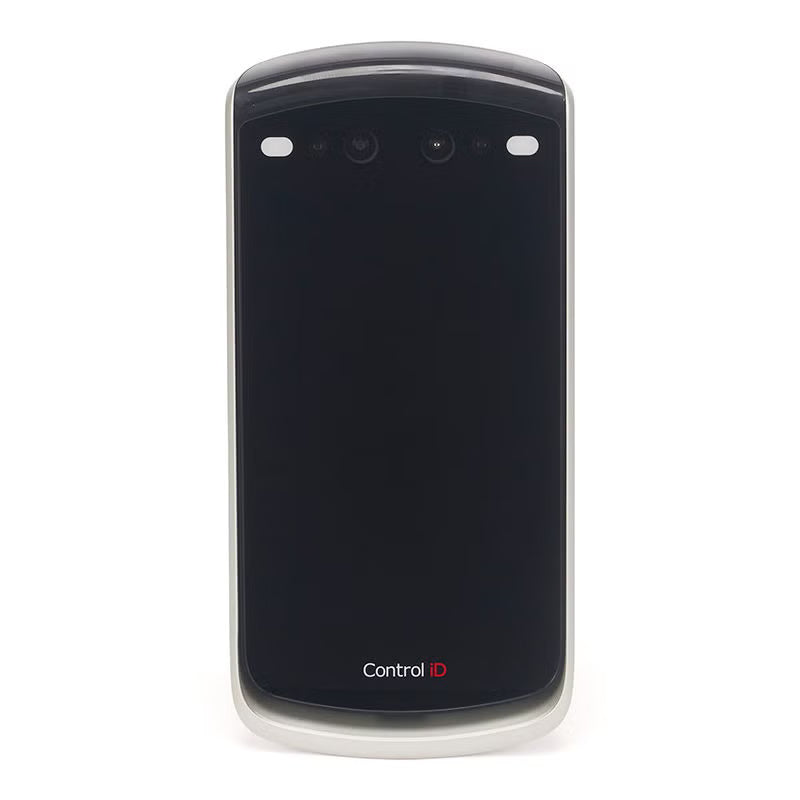

iDFace Max Facial Identification Access Controller

Fast, contactless facial identification that replaces keys and cards with smarter security.

Product Overview

iDFace Max combines advanced facial identification, onboard processing, and integrated components into a single device, dramatically reducing installation time and simplifying system design. With fast, contactless authentication, users move through secure spaces seamlessly (without fumbling for cards or worrying about lost credentials) while administrators benefit from accurate, real-time access data that strengthens security planning and compliance. iDFace Max is the ideal device to monitor and control people entering and exiting a building with the use of facial identification technology. Its high quality, AI algorithm enables live face detection of up to 100,000 faces. iDFace Max has an integrated SIP intercom, TCP/IP, USB connectivity.

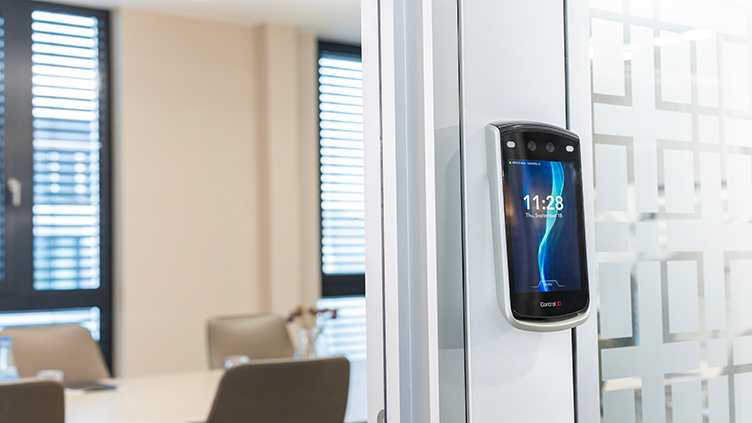

Product Image
Control iD iDFace Pro Feature Image
Control iD iDFace Pro Feature Image 2

Product Features

  • 7” touchscreen display
  • Customized access rules according to groups and schedules
  • Identification of up to 100,000 faces with live face detection*
  • TCP/IP, and USB connectivity
  • 1 Year Warranty
  • Integrated SIP intercom
  • IP65 ingress protection rating
Access Control
  • Number of Faces : 100,000
  • Outputs : 1 internal relay and 1 on the external module up to 30 VAC / 5 amp
  • Audit and Access Scheduling : Yes
  • Number of Users : More than 200,000 registered users
  • Door Control : Via external access module and/or internal relay
  • Input Port : 1 Wiegand port on the external access module
  • Output Port : 1 Weigand port on the external access module
  • Request to Exit : 1 REX button input on external access module
Communication
  • Peripheral Device : OSDP support as a peripheral device via RS485 interface
  • Ethernet Communication : 1 native 10/100Mbps Ethernet port
  • USB Communication : 1 USB 2.0 Host port
  • Intercom : Built-in G711 compatible SIP intercom
Identification Methods
  • Card Technology : HID OKRC
  • Facial Identification : Two 1080p Full HD cameras (visible light and infrared light)
  • Password Identification : User identification through PIN and Password
  • QR Code Identification : User identification through QR code
User Interface
  • Touchscreen : 7" TFT Color LCD Display (800x1280) with capacitive touchscreen
  • Audio : Built-in speaker and microphone
  • Software : Complete access control management from your browser
General Specifications
  • Dimensions : 4-3/4 in x 1-3/8 in x 9-3/4 in
  • Input Power : External 12V 2amp source or PoE (IEEE802.3af)
  • Weight (lbs) : 2

Documents
Control iD iDFace Max Installation Instructions
Control iD iDFace MAX Data Sheet
