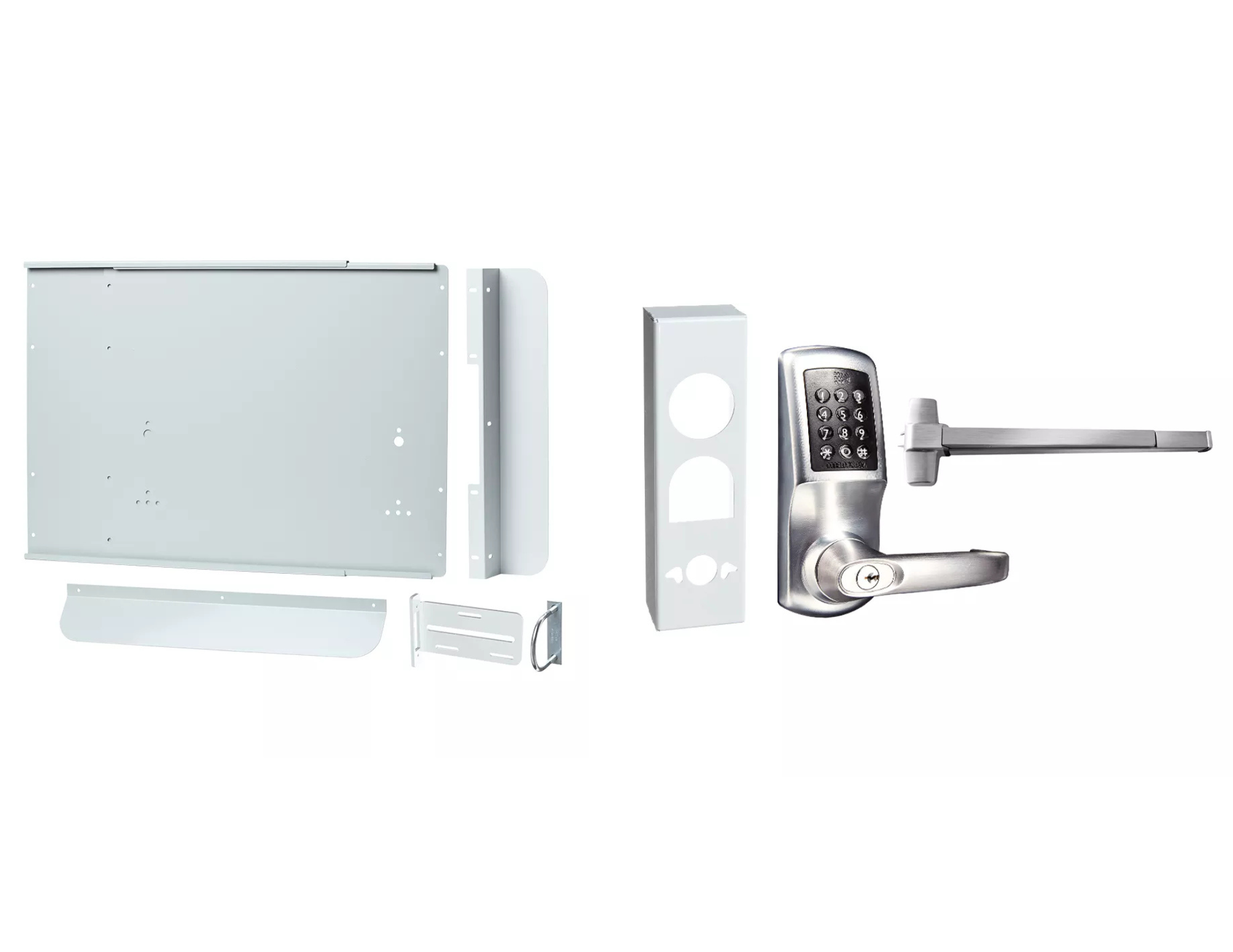

CL5500PK Smart Lock Gate Panic Hardware Kit, Brushed Steel
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters/outdoor spaces. Gate Box Panic Hardware Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Key Features
- Easy, effective gate and fence installation
- Complete kits with all required components
- Powder coated and pre-drilled
- Alarm Kits available
- Stainless steel exterior rated Codelocks exit device
- Keyed alike available
- Key cylinder box for keyed gates available
- Brushed steel finish
- Gate Box Kits available separately
- Available with Clean by Codelocks

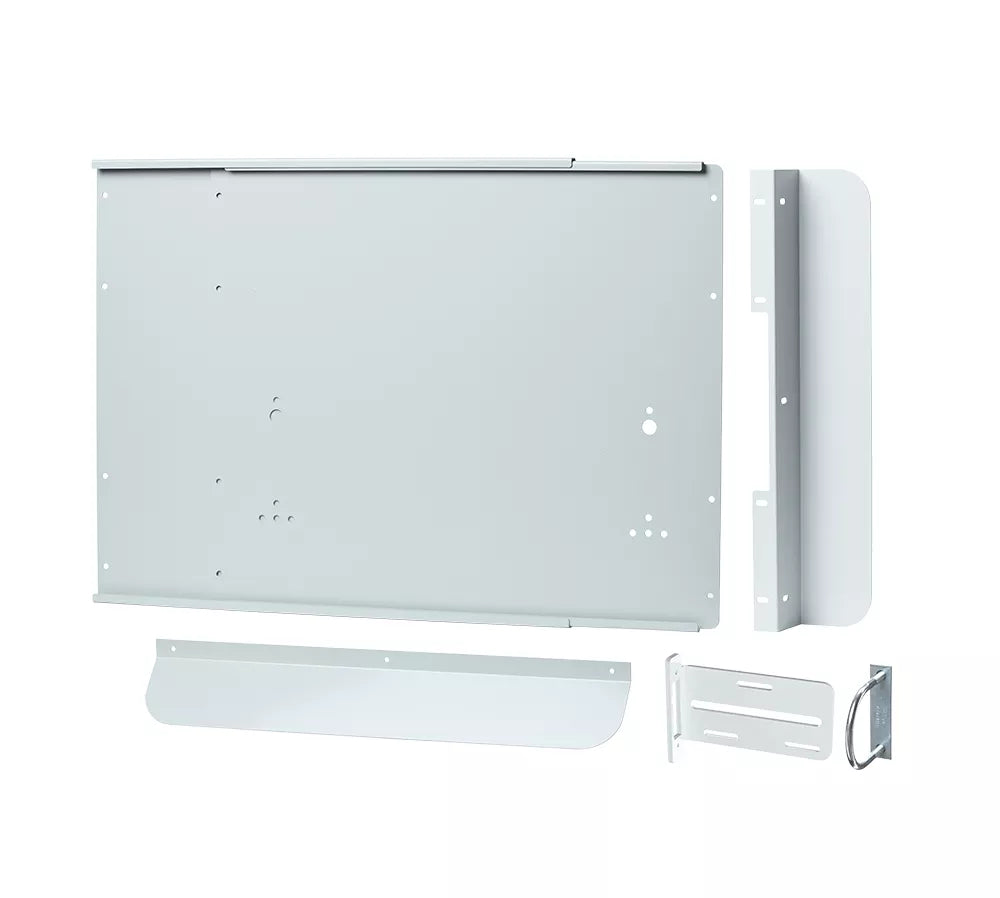

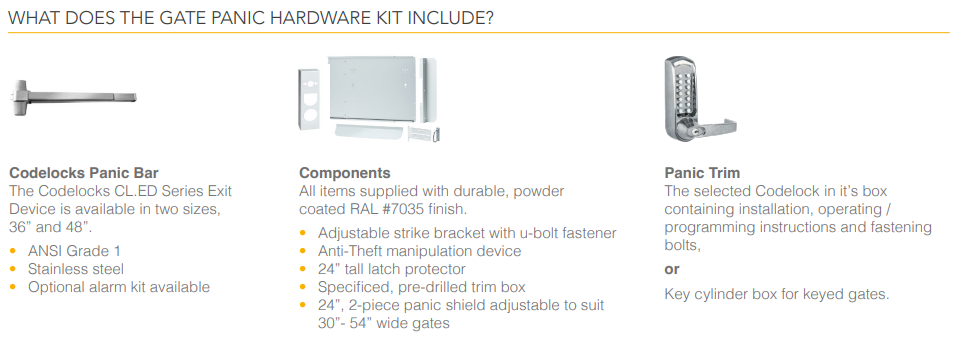

Gate Panic Hardware Kit Components
- CL5510 Smart Panic Access Kit
- Codelocks installation, operating/programming instructions and fastening bolts
- ANSI Grade 1 CL.ED Series Exit Device, available in two sizes, 36” and 48”
- Adjustable Strike bracket with u-bolt fastener
- Anti-Theft manipulation device
- 24” tall latch protector
- Specificed, pre-drilled trim box
- 24”, 2-piece panic shield adjustable to suit 30” - 54” wide gates
About the CL5510 Smart Panic Access Electronic Codelock
Front plate only. Install with new or existing panic equipment. The follower on the panic equipment must return to square to align with follower on the lock.
Managing and operating locks has never been easier. The CL5510 Smart Lock offers advanced programming and access methods, as well as simple retrofit opportunities for easy upgrades from the CL5000 range.
Key Features
- Manage and operate locks via smartphone
- Keyless entry - no lost keys
- ANSI Grade 2
- 12 button back-lit keypad
- Lever handle lock for doors hung on the left or right
- NetCode® generation technology
- Set up to 10 Code Free access periods
- Suspend and restore any or all clients
- Keypad indicates locked / unlocked status
- Tamper time out and low battery warning
- Personal wireless connectivity for management
- Simple upgrade from electronic range using same fixings
- Auxiliary connections enabling four modes of operation
Brand
Codelocks
Buttons
3 x 4
Clients – Smart Cards
Up to 150 Client Smart Cards
Clients – User Codes
Up to 150 Client Smart Cards
Code Change Method
Keypad (On Door)
Codes
4 Digit User Codes
Finish
Brushed Steel
Function
NetCode®
Gate Box Dimensions
10.25” (H) x 5.5” (W) x 1.75” (D)
Gate Box Material
14-gauge steel
Gate Kits By Codelocks
Gate Solutions by Codelocks
Handed
Non Handed - Lock will fit doors hung on the left or right
Keyed Alike
Available
Keypad
12 button back-lit keypad
Lock Material
Zinc Alloy
Low Battery Warning
Red LED will flash on opening to indicate low battery
Memory
Stores 350 different Clients
NetCode®
Available via the App or online Portal
Operations
10,000 operations from 4 x AA batteries
Orientation
Vertical
Panic Hardware By Codelocks
Panic Hardware
Power
4x AA
Spindle
Two part 5⁄16" (8mm) spring loaded spindle
Suitable For
Internal, External
User Levels
Master, Sub Master, Standard User
User Types
Code, Card, Smartphone, NetCode®
