Includes Codelock, weldable Gate Box and stop bracket.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Key Features
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable stop bracket
- Brushed steel finish
- Gate Panic Hardware Kits available separately
- Back to back installation option
- Available with Clean by Codelocks
Gate Box Kit Components
- CL5210 Heavy Duty Electronic Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- Adjustable stop bracket
About the CL5210 Heavy Duty Tubular Latchbolt Electronic Lock
Heavy duty lock with tubular latch and full size lever handles, suitable for high traffic use. Code free passage function and back to back options available.
- Mortise Latch
- Allows up to 80 User Codes
- Allows up to 10 one-time User Codes to be entered
- PVD low maintenance finish
- Over 200,000 operations from 4 x AA cells (provided)
- Tamper time out and low battery warning
- Connections for remote release by reception desk button
- Alarm release included
- Code Free entry
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

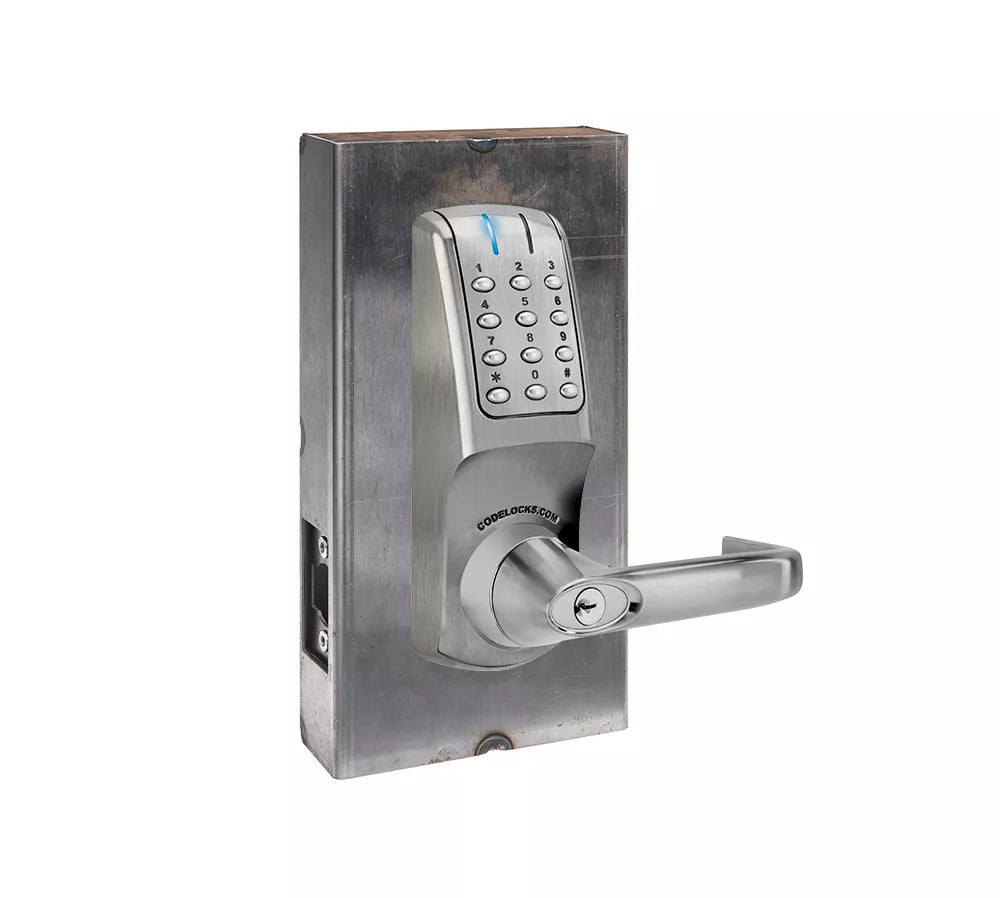

Gate Solutions by Codelocks Electronic Gate Lock – Brushed Steel
The Gate Solutions by Codelocks electronic gate lock provides convenient keypad access for interior and exterior gate applications. Its non-handed design allows installation on both left- and right-hand gates, while the heavy-duty 14-gauge steel gate box provides a durable mounting solution.
The lock features individual stainless steel buttons and supports 4-, 5-, or 6-digit user codes. Codes can be changed directly at the keypad while the lock remains installed on the gate. Powered by four AA batteries, the lock delivers up to 200,000 operations per battery set. A flashing red LED provides a warning when the batteries are running low.
Key Features
-
Suitable for interior and exterior applications
-
Fire-rated lock
-
Non-handed design fits left- and right-hand gates
-
3 × 4 keypad with individual stainless steel buttons
-
Supports 4-, 5-, and 6-digit user codes
-
Codes are changed directly at the keypad
-
Up to 200,000 operations per set of batteries
-
Red LED low-battery warning
-
Durable 14-gauge steel gate box
-
Two-part, spring-loaded spindle
-
Keyed-alike options available
-
Attractive brushed-steel finish
Specifications
-
Brand: Gate Solutions by Codelocks
-
Finish: Brushed Steel
-
Orientation: Vertical
-
Keypad Configuration: 3 × 4
-
Keypad Buttons: Individual stainless steel buttons
-
User-Code Length: 4, 5, or 6 digits
-
Code-Change Method: At the keypad while installed on the gate
-
Power Supply: 4 AA batteries
-
Battery Life: Up to 200,000 operations per battery set
-
Low-Battery Warning: Red LED flashes when the lock is opened
-
Lock Material: Zinc alloy
-
Gate Box Material: 14-gauge steel
-
Gate Box Dimensions: 10.25" H × 5.5" W × 1.75" D
-
Spindle: Two-part, 5/16" (8 mm) spring-loaded spindle
-
Handing: Non-handed; suitable for left- or right-hand gates
-
Keyed Alike: Available
-
Fire Rated: Yes
-
Suitable For: Interior and exterior applications
