Includes Codelock, panic bar exit device and components.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters/outdoor spaces. Gate Box Panic Hardware Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Key Features
- Easy, effective gate and fence installation
- Complete kits with all required components
- Powder coated and pre-drilled
- Alarm Kits available
- Stainless steel exterior rated Codelocks exit device
- Keyed alike available
- Key cylinder box for keyed gates available
- Brushed steel finish
- Gate Box Kits available separately
- Available with Clean by Codelocks

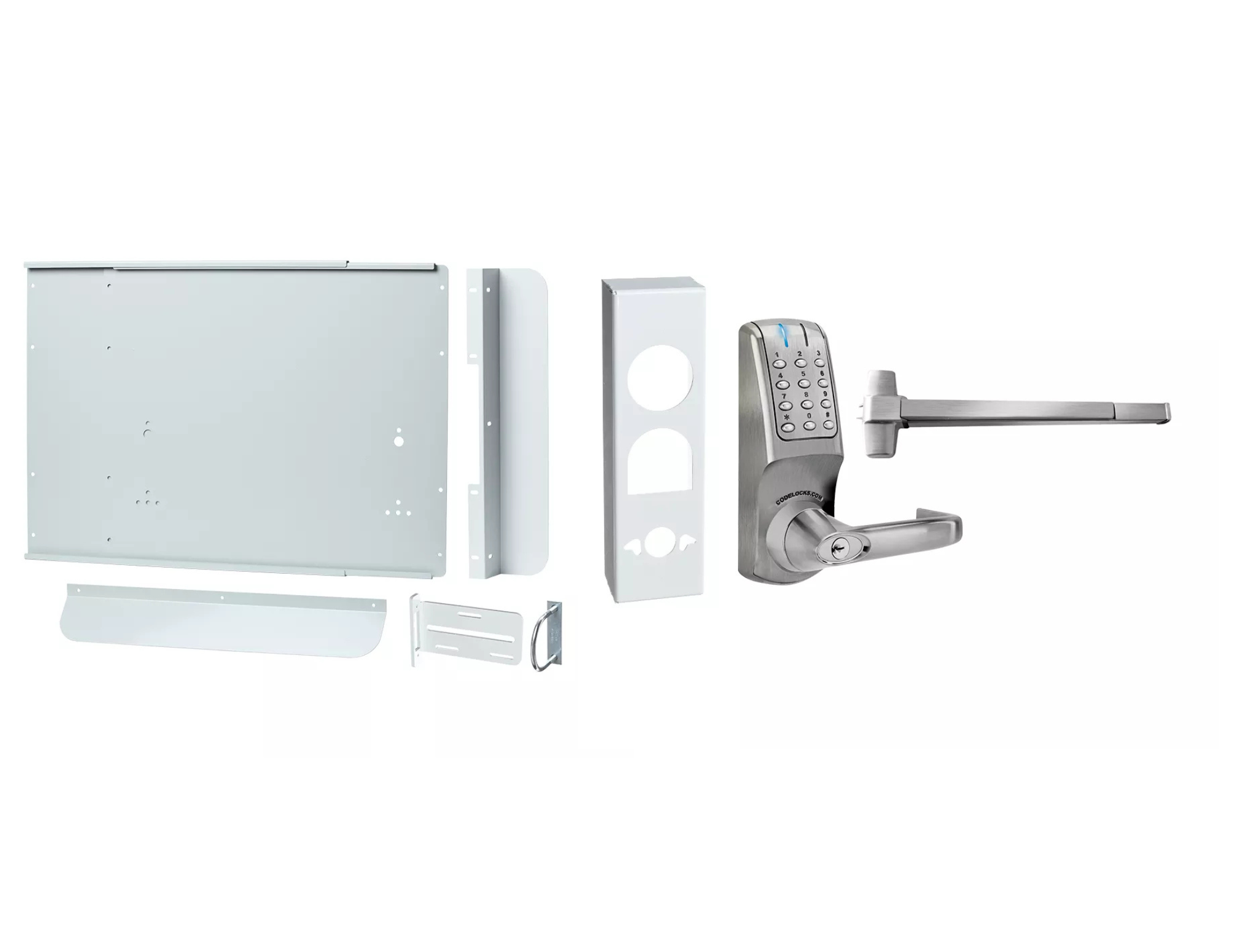

Gate Panic Hardware Kit Components
- CL5000 Panic Access Kit
- Codelocks installation, operating/programming instructions and fastening bolts
- ANSI Grade 1 CL.ED Series Exit Device, available in two sizes, 36” and 48”
- Adjustable Strike bracket with u-bolt fastener
- Anti-Theft manipulation device
- 24” tall latch protector
- Specificed, pre-drilled trim box
- 24”, 2-piece panic shield adjustable to suit 30” - 54” wide gates
95377 - CL5000PK Gate Panic Hardware Kit, Brushed Stee

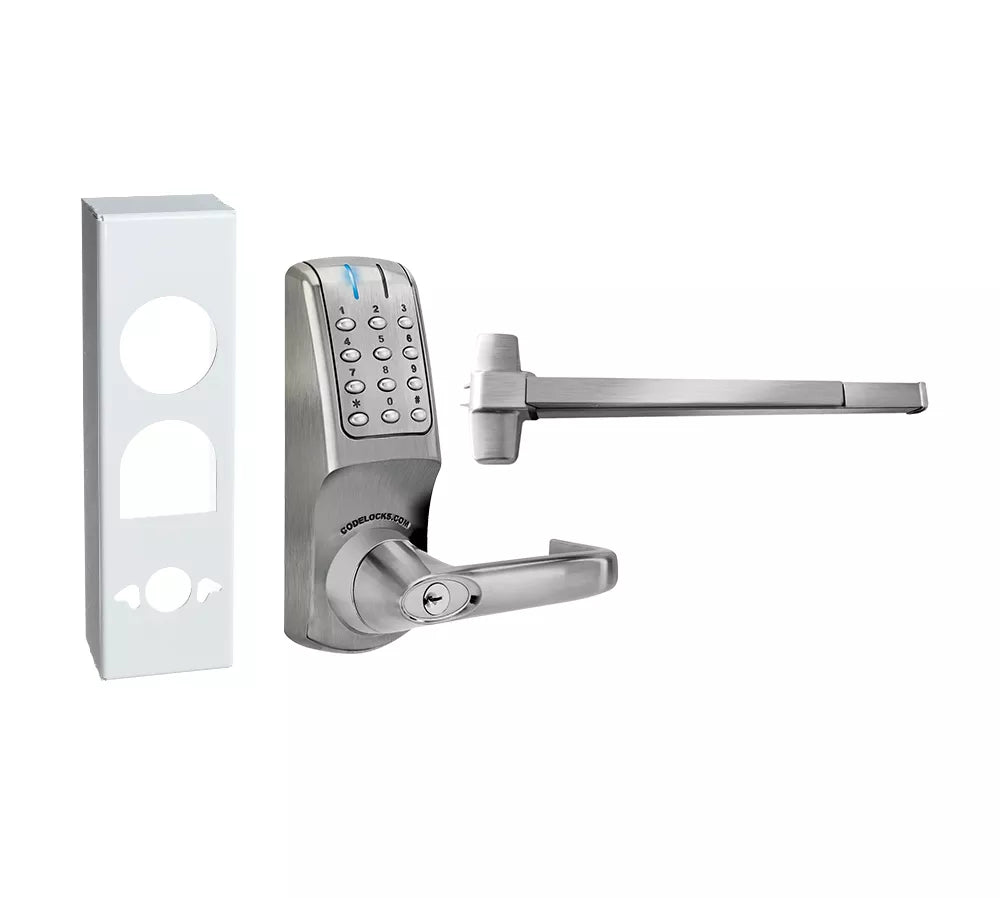

About the CL5000 Panic Access Kit Electronic Codelock
Heavy duty electronic lock with tubular latch, full size lever handles and key override as standard. Up to 80 User Codes. Remote release connections. SFIC prep available.
- Electronic panic access kit
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Gate Panic Hardware Kit components are supplied RAL #7035 powder coated and pre-drilled.
Brand
Codelocks
Buttons
3 x 4
Code Change Method
Keypad (On Door)
Codes
User Codes 4, 5 or 6 digits long
Finish
Brushed Steel
Gate Box Dimensions
24" x 2" x 30" (60.96cm x 5.08cm x 76.2cm)
Gate Box Material
14-gauge steel
Gate Kits By Codelocks
Gate Solutions by Codelocks
Handed
Non Handed - Locks will fit doors hung on the left or right
Keyed Alike
Available
Keypad
Individual stainless steel buttons
Lock Material
Zinc Alloy
Low Battery Warning
Red LED will flash on opening to indicate low battery
Memory
Stores up to 80 User Codes
Operations
Up to 200,000 per set of 4 x AA batteries
Orientation
Vertical
Panic Hardware By Codelocks
Panic Hardware
Power
4x AA
Spindle
Two part 5⁄16" (8mm) spring loaded spindle
Suitable For
Internal, External
User Types
Code
