Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Key Features
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable stop bracket
- Brushed steel finish
- Gate Panic Hardware Kits available separately
- Available with Clean by Codelocks
Gate Box Kit Components
- CL4210 Electronic Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- Adjustable stop bracket
About the CL4210 Electronic Tubular Latchbolt Electronic Codelock
Medium duty electronic lock with tubular latch, full size lever handles and key override as standard. Up to 80 User Codes. Remote release connections. SFIC prep available.
- Mortise Latch
- Over 200,000 operations from 4 x AA cells (supplied)
- Tamper time out and low battery warning
- Connections for remote release
- Alarm release included
- Suited for residential, commercial and non-commercial

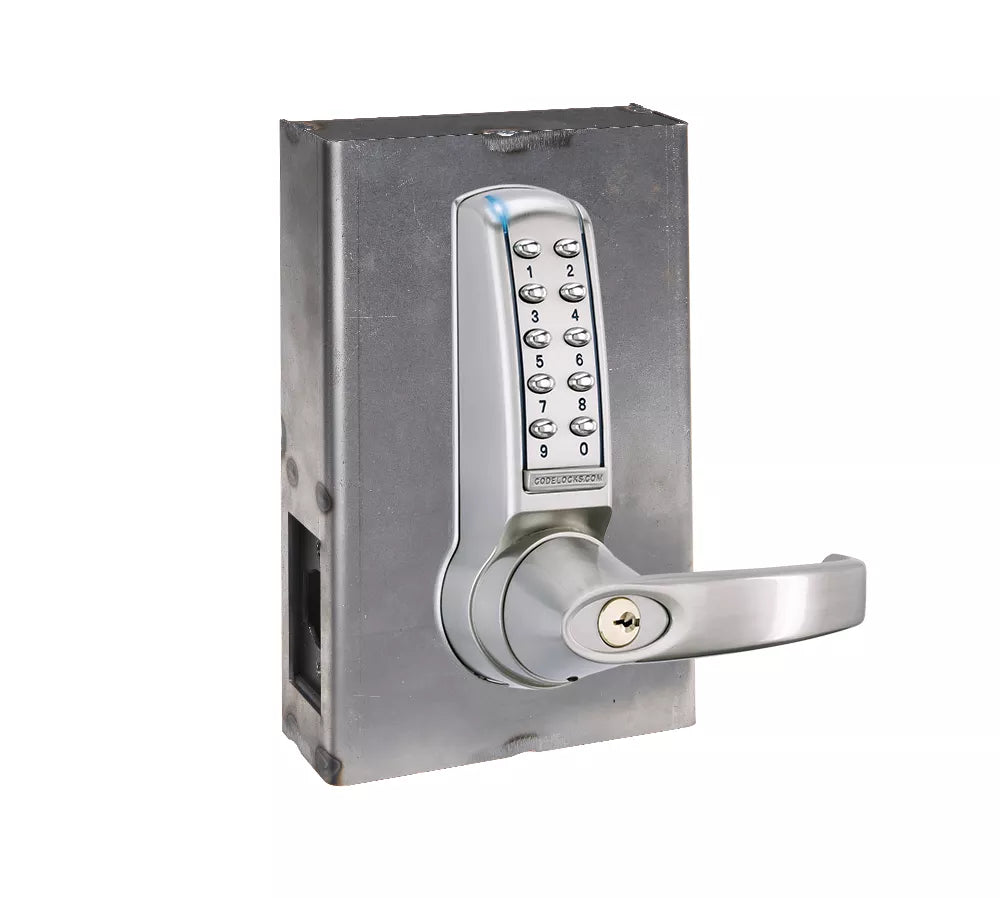

Gate Solutions by Codelocks Electronic Gate Lock – Stainless Steel
The Gate Solutions by Codelocks electronic gate lock provides reliable keypad access for interior and exterior gate applications. It stores up to 80 individual user codes, making it suitable for residential, commercial, multifamily, and shared-access properties.
The keypad features individual stainless steel buttons in a 2 × 5 configuration, plus a dedicated programming button. Users can be assigned 4-, 5-, or 6-digit access codes, which can be programmed directly at the keypad while the lock remains installed on the gate.
A non-handed design allows the lock to fit both left- and right-hand gates. The durable 14-gauge steel gate box and zinc-alloy lock body provide a strong installation for demanding gate applications.
Key Features
-
Stores up to 80 individual user codes
-
Supports 4-, 5-, and 6-digit codes
-
2 × 5 keypad with a dedicated programming button
-
Individual stainless steel keypad buttons
-
Codes are programmed directly at the keypad
-
Suitable for interior and exterior applications
-
Non-handed for left- or right-hand gates
-
Up to 200,000 operations per set of batteries
-
Red LED low-battery warning
-
Durable 14-gauge steel gate box
-
Two-part, spring-loaded spindle
-
Keyed-alike options available
-
Stainless steel finish
Specifications
-
Brand: Gate Solutions by Codelocks
-
Finish: Stainless Steel
-
Orientation: Vertical
-
Keypad Configuration: 2 × 5 buttons plus programming button
-
Keypad: Individual stainless steel buttons
-
User Type: Code
-
User Capacity: Up to 80 user codes
-
User-Code Length: 4, 5, or 6 digits
-
Code-Change Method: At the keypad while installed on the gate
-
Power Supply: 4 AA batteries
-
Battery Life: Up to 200,000 operations per battery set
-
Low-Battery Warning: Red LED flashes when the lock is opened
-
Lock Material: Zinc alloy
-
Gate Box Material: 14-gauge steel
-
Gate Box Dimensions: 8.5" H × 5.5" W × 1.75" D
-
Spindle: Two-part, 5/16" (8 mm) spring-loaded spindle
-
Handing: Non-handed; suitable for left- or right-hand gates
-
Keyed Alike: Available
-
Suitable For: Interior and exterior applications
