Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Key Features
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable stop bracket
- Stainless steel or marine grade finish
- Gate Panic Hardware Kits available separately
- Back to back installation option
- Available with Clean by Codelocks

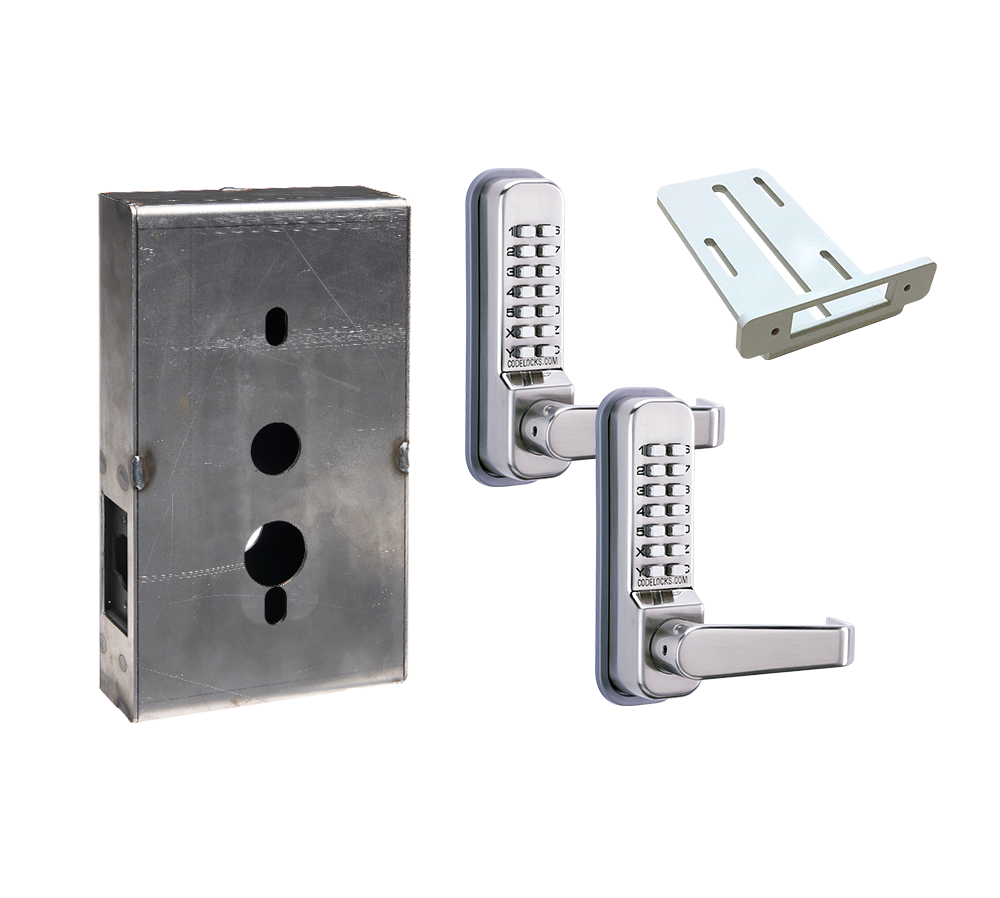

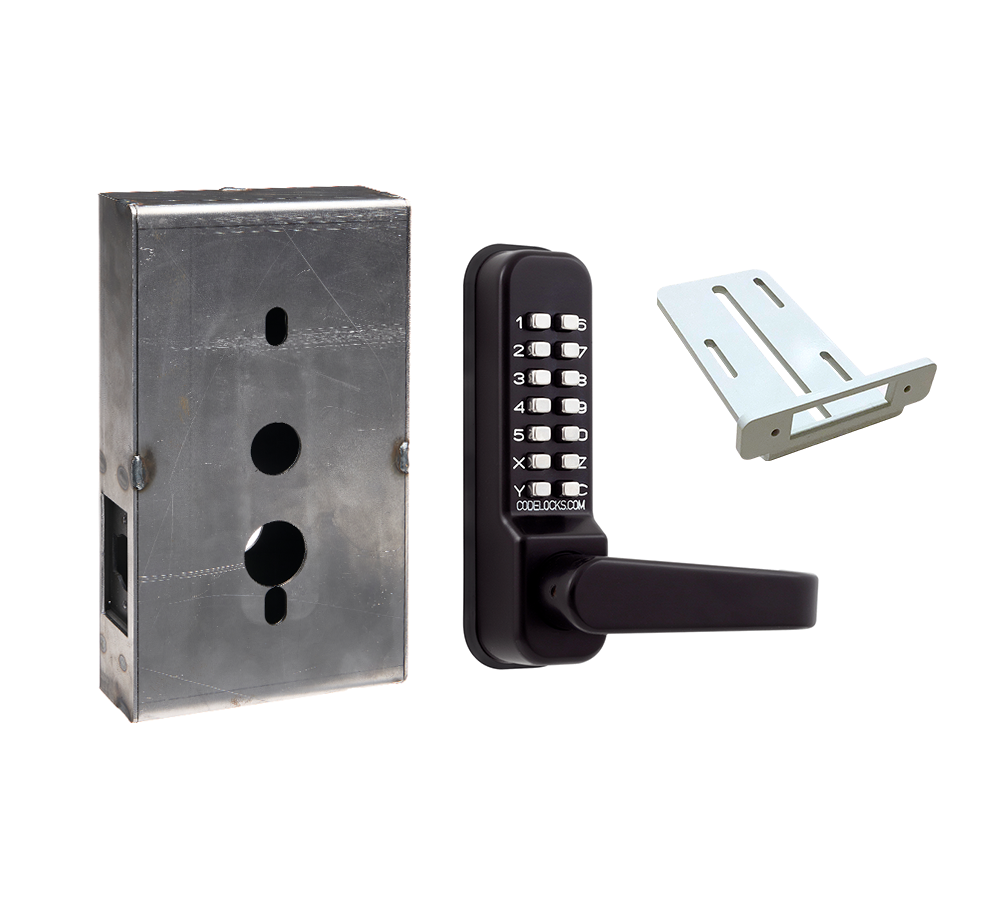

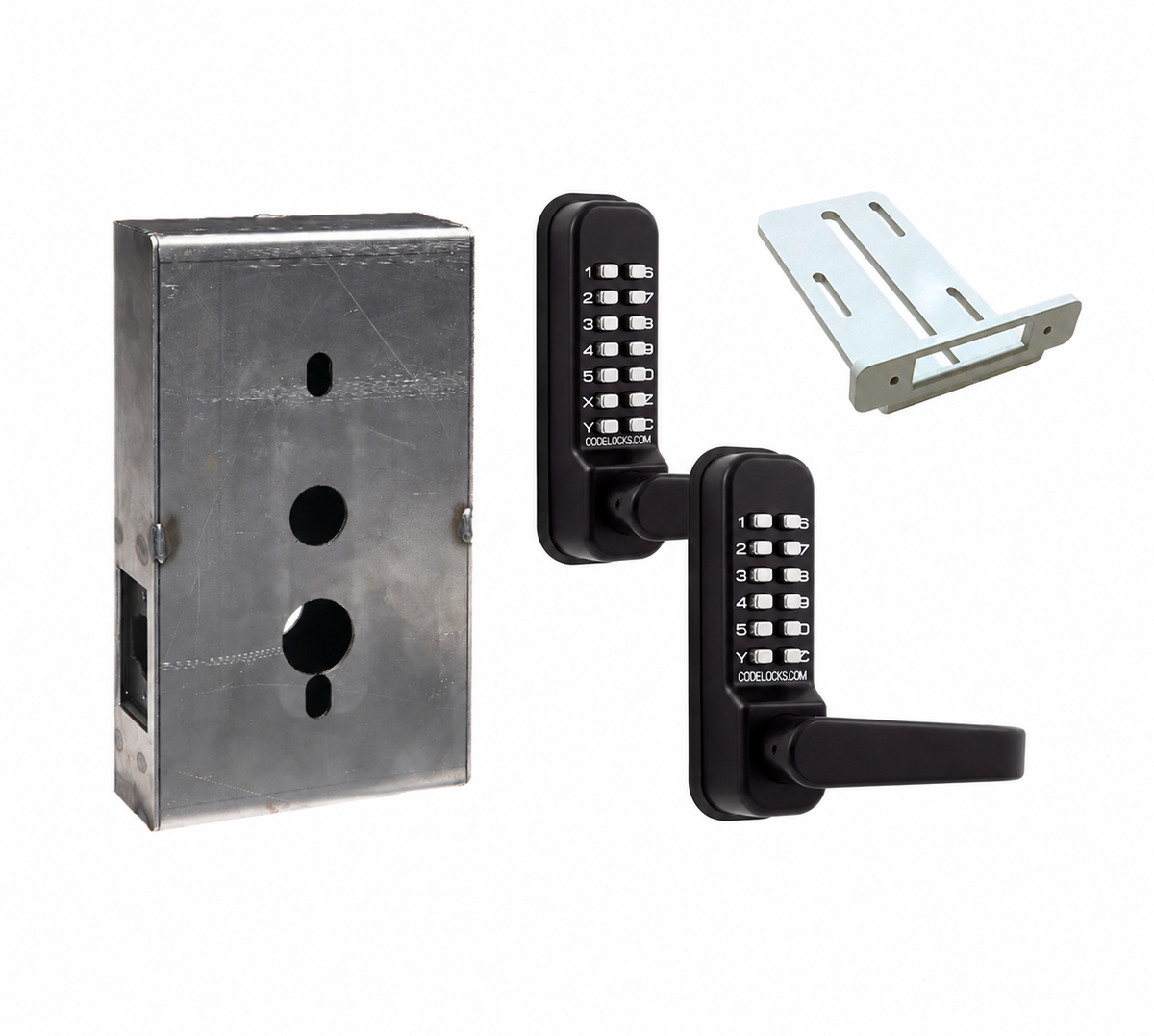

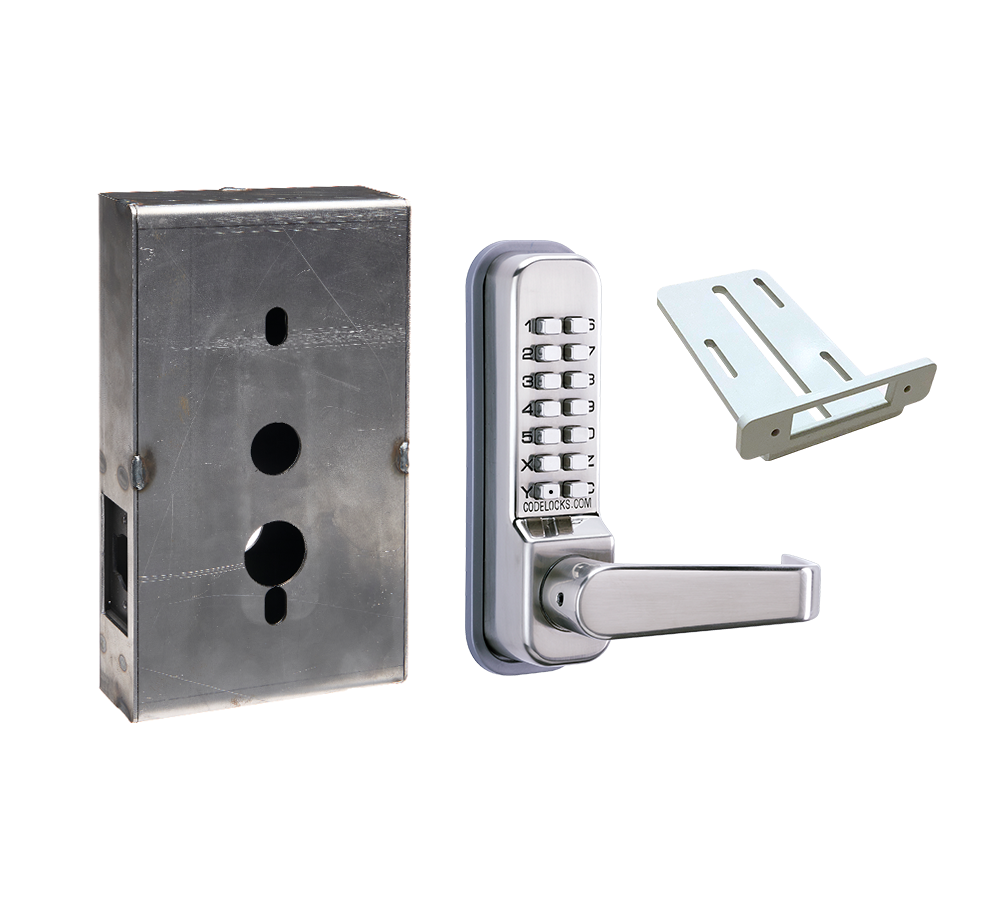

Gate Box Kit Components
- CL410/CL415 Tubular Latchbolt Mechanical Codelock
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- Adjustable stop bracket
About the CL410 & CL415 Tubular Latchbolt Mechanical Codelocks
Medium duty mechanical locks with full size lever handles. Ideal for use in environments where a lever operated lock would be preferred.
- Pushbutton mechanical lock with tubular latch
- Single code storage
- 8,191 non-sequential code combinations available
- Tumbler alignment for easy code change
- Code free passage function (CL415 only)
Gate Solutions by Codelocks Mechanical Gate Lock
The Gate Solutions by Codelocks mechanical gate lock provides reliable keyless access without batteries, wiring, or an external power supply. Designed for interior and exterior gate applications, it is a durable solution for residential, commercial, multifamily, and shared-access properties.
The lock features a 2 × 7 push-button keypad and stores one access code. It offers up to 8,191 non-sequential code combinations for enhanced code selection. To change the code, the lock is removed from the gate and the internal tumblers are adjusted.
Its non-handed design fits both left- and right-hand gates. A zinc-alloy lock body, heavy-duty 14-gauge steel gate box, and spring-loaded spindle provide a dependable gate installation.
Key Features
-
Fully mechanical operation—no batteries or wiring required
-
Stores one access code
-
Up to 8,191 non-sequential code combinations
-
2 × 7 push-button keypad
-
Code is changed using internal tumblers
-
Suitable for interior and exterior gates
-
Non-handed for left- or right-hand installation
-
Heavy-duty 14-gauge steel gate box
-
Durable zinc-alloy lock construction
-
Two-part, spring-loaded spindle
-
Available in stainless steel or black
Specifications
-
Brand: Gate Solutions by Codelocks
-
Product Type: Mechanical keypad gate lock
-
Available Finishes: Stainless Steel or Black
-
Orientation: Vertical
-
Keypad Configuration: 2 × 7 buttons
-
User Type: Code
-
Code Capacity: One access code
-
Code Combinations: Up to 8,191 non-sequential combinations
-
Code-Change Method: Internal tumblers; lock must be removed from the gate
-
Power Required: None
-
Lock Material: Zinc alloy
-
Gate Box Material: 14-gauge steel
-
Gate Box Dimensions: 9.5" H × 5.5" W × 1.75" D
-
Spindle: Two-part, 5/16" (8 mm) spring-loaded spindle
-
Handing: Non-handed; suitable for left- or right-hand gates
-
Suitable For: Interior and exterior applications
