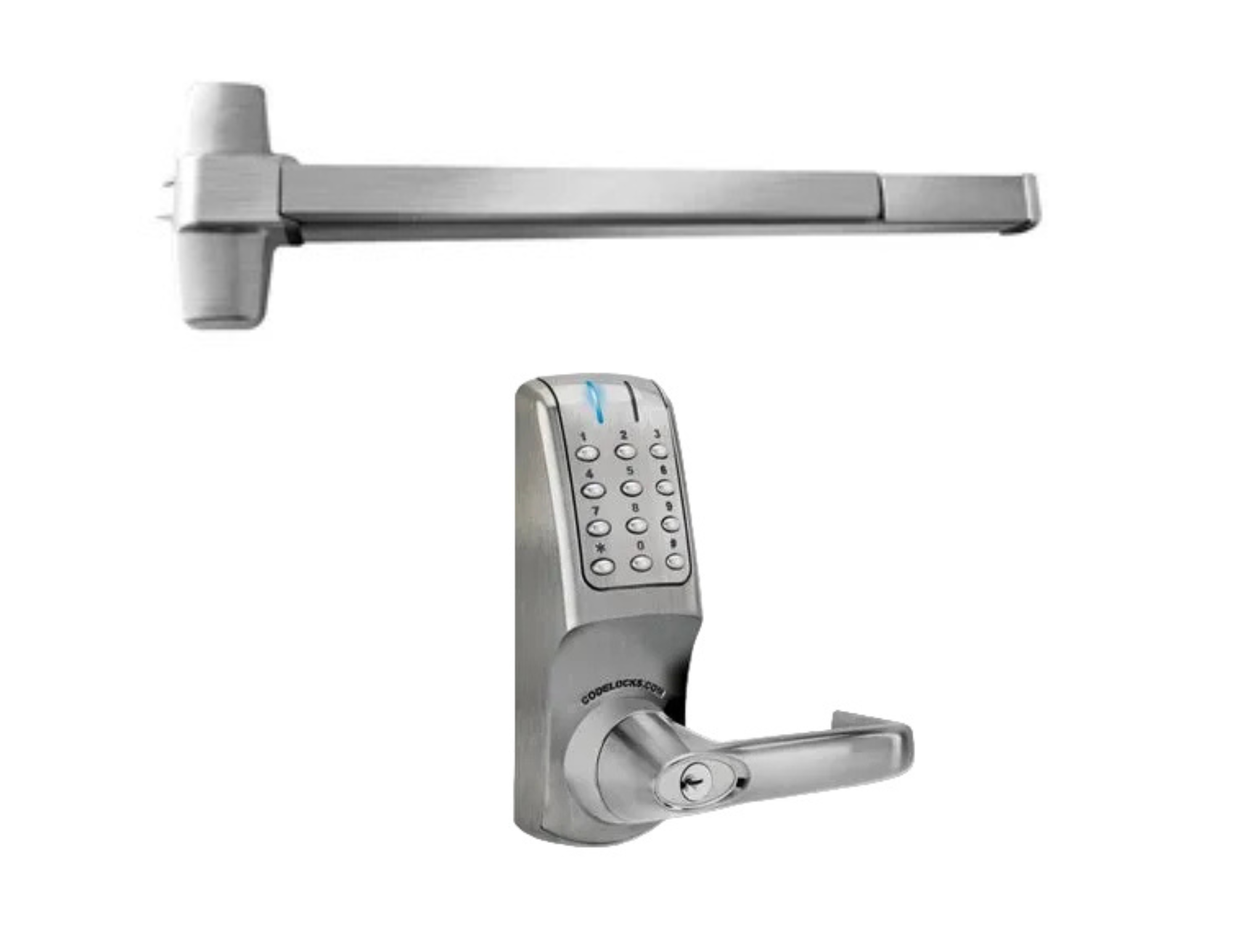

Codelocks CL.ED Series Exit Device available in 2 sizes, to accommodate up to 36" doors and up to 48" doors.
NSI Grade 1 Stainless Steel Rim Exit Device designed to work with Codelocks CL600PK, CL5000PK and CL5500PK Panic Device Kits ANSI Grade 1.
Benefits
- Multiple mounting holes for easy retrofit of major brands panic devices
- Multiple opportunities for new hole locations for strong anchoring to door
- Control and device from single source
- Competitively priced
Key Features
- Great for New Installation or Retrofit
- Use with Codelocks Mechanical CL600 Panic Kit
- Use with Codelocks Electronic CL5000 Panic Kit, CL5500 Panic Kit
- ED-series Rim Style Exit Device
- ANSI Grade 1
- Non-fire rated
- Brushed Steel
- CL.ED-R-36-32D for door width up to 36"
- CL.ED-R-48-32D for door width up to 48"
The ultimate standalone electronic door lock. Heavy duty locks for use in high traffic applications. Front plate only.
The ultimate standalone electronic door lock. Heavy duty locks for use in high traffic applications. Particularly suitable for use in health, educational, commercial and residential environments. Front plate only. Install with new or existing panic access equipment. The follower on the panic equipment must return to square to align with follower on the lock. Code Free option can also be programmed via the keypad. Now available in Solid Black finish.
Key Features
- Compatible with all Von Duprin Rim Exit Devices (not with the vertical rod devices)
- Key override and front cylinder change
- Suitable for wooden doors between 35mm - 60mm thick
- User Codes 4, 5 or 6 digits long
- Now available in Solid Black finish
- Allows up to 10 one time User Codes
- Up to 200,000 operations from 4 x AA batteries (supplied)
- Remote release connections
- Suitable for internal and external use
- Tamper time out and low battery warning
- Locked and unlocked LED indicator option
- Tested to Grade 2 ANSI A156.2 / A156.25
- UL/ULC Fire Rating 3 hours
- Brand: Codelocks
- Buttons: 3 x 4
- Code Change Method: Keypad (On Door)
- Codes: User Codes 4, 5 or 6 digits long
- Door Thickness: 35mm - 60mm (1 3⁄8" - 2 3⁄8")
- Finish: Brushed Steel, Black
- Handed: Non Handed - Locks will fit doors hung on the left or right
- Keyed Alike: Available
- Keypad: Individual stainless steel buttons
- Lock Material: Zinc Alloy
- Low Battery Warning: Red LED will flash on opening to indicate low battery
- Memory: Stores up to 80 User Codes
- Operations: Up to 200,000 per set of 4 x AA batteries
- Orientation: Vertical
- Panic Hardware By Codelocks: Panic Hardware
- Power: 4x AA
- Spindle: Two part 5⁄16" (8mm) spring loaded spindle
- Suitable For: Internal, External
- User Types: Code
