Fit as a new install or as a quick retrofit when upgrading from basic single code mechanical locks.

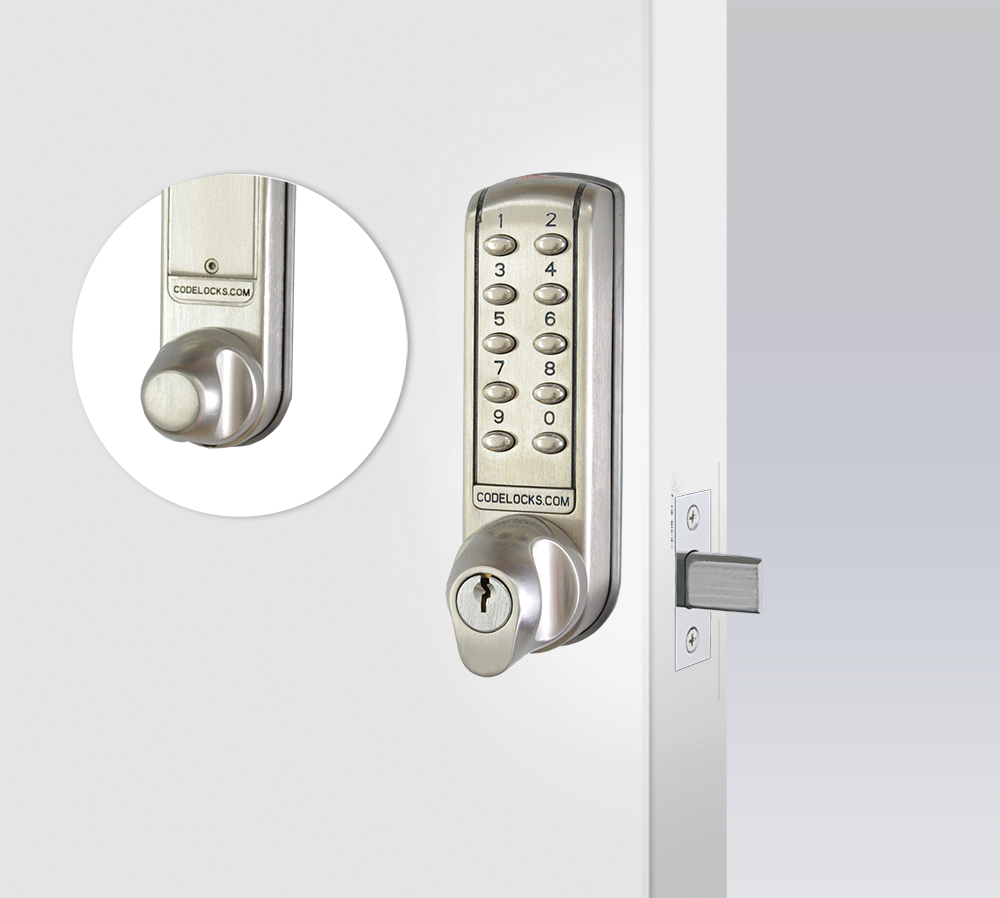

Fit as a new install or as a quick retrofit when upgrading from basic single code mechanical locks. The CL2210 Mortice Deadbolt electronic lock is ideal for a wide range of light duty access control applications. The CL2210 is fully programmable on the door via the keypad with a multiple range of functions. Bolt extends 25mm (1”) beyond door edge when locked. When a valid code is entered the outside knob will retract the bolt.
All models feature a Code Free option that can be programmed at the keypad using the Master Code. Two REM ports are provided for connection to external switches or alarm systems. Key override is a standard feature on all models within the CL2000 range. Locks can be keyed alike on request.
Key Features
- Key override as standard
- Suitable for wooden doors between 35mm - 60mm thick
- User Codes 4, 5 or 6 digits long
- Allows up to 10 one time User Codes
- Up to 80,000 operations from 2 x 1.5v AA batteries (supplied)
- Remote release connections
- Suitable for internal and external use
- Tamper time out and low battery warning
- Available in brushed steel
- Battery Override: Via a PP3 battery placed against external contacts
- Brand: Codelocks
- Buttons: 2 x 5 + Programming
- Code Change Method: Keypad (On Door)
- Codes: Stores up to 80 User Codes
- Door Thickness: 35mm - 60mm (1 3⁄8" - 2 3⁄8")
- Finish: Brushed Steel
- Fire Rated: Fire Rated
- Handed: Non handed - Locks will fit doors hung on the left or right
- Keyed Alike: Available
- Keypad: Individual stainless steel buttons
- Latch Type: Mortice Deadbolt
- Lock Material: Zinc Alloy
- Low Battery Warning: Red LED will flash on opening to indicate low battery
- Operations: Up to 80,000 operations per 2 x 1.5v AA batteries
- Orientation: Vertical
- Power: 2x AA
- Spindle: Flat bar spindle, 5⁄16" (8mm) adaptor supplied
- Suitable For: Internal, External
- User Types: Code
