Codelocks CL2255 Electronic Tubular Latch Lock

SKU: CL2255 BS
$ 225.00

Fit as a new install or as a quick retrofit when upgrading from basic single code mechanical locks.

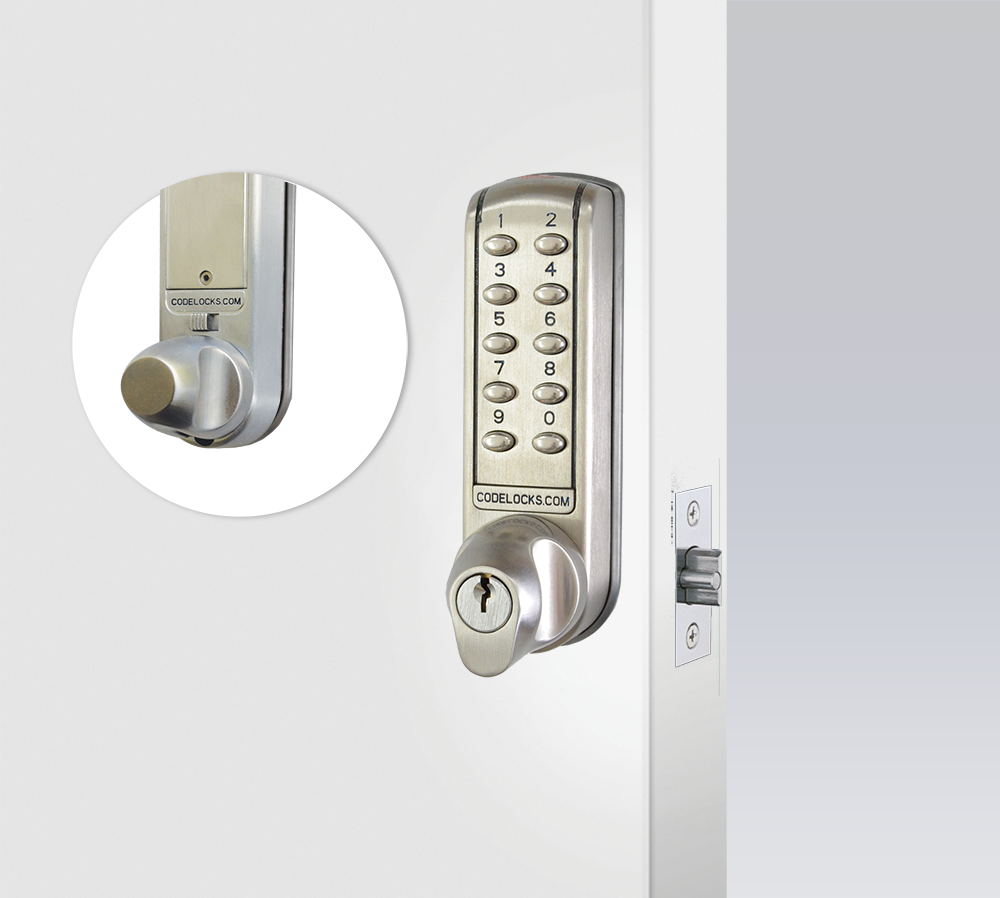

Fit as a new install or as a quick retrofit when upgrading from basic single code mechanical locks. The CL2255 electronic lock is ideal for a wide range of light duty access control applications. The CL2255 is fully programmable on the door via the keypad with a multiple range of functions. Light duty tubular latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door.

All models feature a Code Free option that can be programmed at the keypad using the Master Code. Two REM ports are provided for connection to external switches or alarm systems. Key override is a standard feature on all models within the CL2000 range. Locks can be keyed alike on request.

Key Features

  • Key override as standard
  • Suitable for wooden doors between 13⁄8" and 23⁄8" thick.
  • User Codes 4, 5 or 6 digits long
  • Allows up to 10 one time User Codes
  • Up to 80,000 operations from 2 x 1.5v AA batteries (supplied)
  • Remote release connections
  • Suitable for internal and external use
  • Tamper time out and low battery warning
  • Available in brushed steel
  • Battery Override: Via a PP3 battery placed against external contacts
  • Brand: Codelocks
  • Buttons: 2 x 5 + Programming
  • Code Change Method: Keypad (On Door)
  • Codes: User Codes 4, 5 or 6 digits long

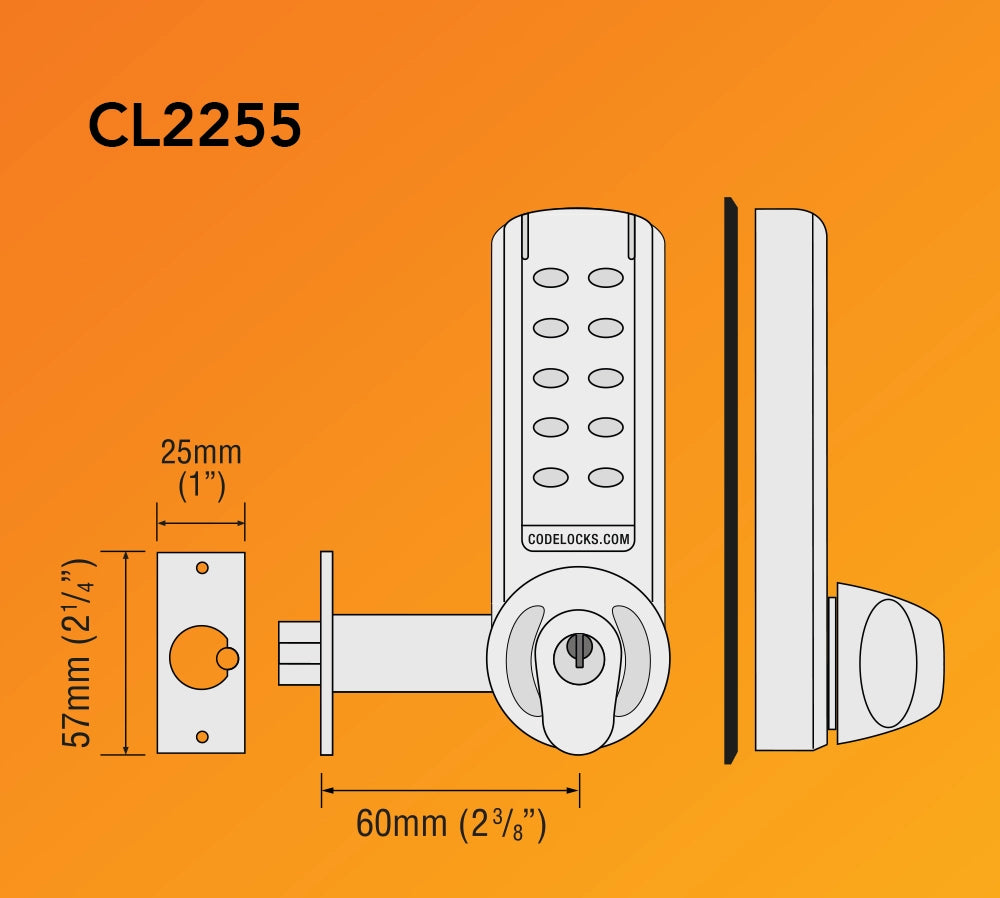

  • Door Thickness: 35mm - 60mm (1 3⁄8" - 2 3⁄8")
  • Finish: Brushed Steel, Polished Brass
  • Handed: Non Handed - Locks will fit doors hung on the left or right
  • Keyed Alike: Available
  • Keypad: Individual stainless steel buttons
  • Latch Type: 50mm Mortice Latch, 60mm Mortice Latch, 70mm Mortice Latch
  • Lock Material: Zinc Alloy
  • Low Battery Warning: Red LED will flash on opening to indicate low battery
  • Memory: Stores up to 80 User Codes
  • Operations: Up to 80,000 operations per 2 x 1.5v AA batteries
  • Orientation: Vertical
  • Power: 2x AA
  • Spindle: Flat bar spindle, 5⁄16" (8mm) adaptor supplied
  • Suitable For: Internal, External
  • User Types: Code
