Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Key Features
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener
- Stainless steel or marine grade finish
- Gate Panic Hardware Kits available separately
- Available with Clean by Codelocks

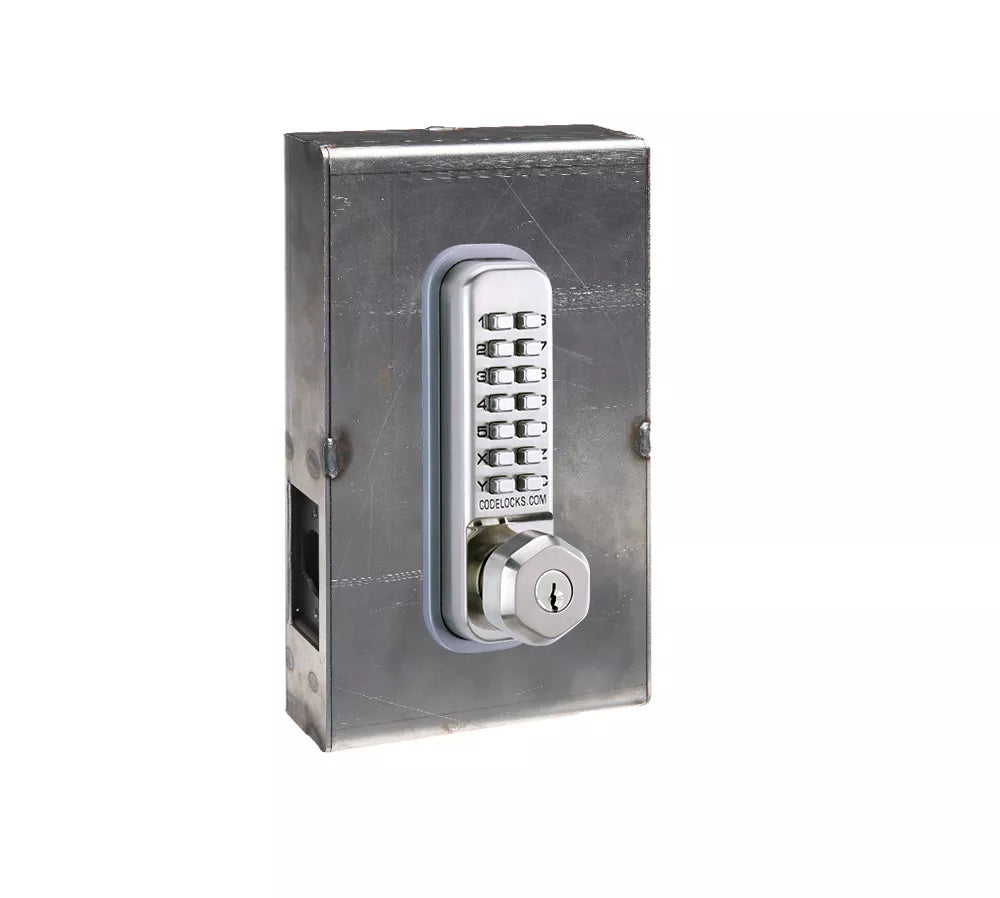

Gate Solutions by Codelocks Mechanical Gate Lock
The Gate Solutions by Codelocks mechanical gate lock provides reliable keyless access without batteries, wiring, or an external power supply. Designed for interior and exterior gate applications, it combines a durable mechanical lock with bolt and heavy-duty steel gate box.
The 2 × 7 keypad features 14 individual stainless steel buttons and stores one access code. With up to 8,191 non-sequential code combinations available, the lock provides flexible code selection. Changing the code requires removing the lock from the gate and adjusting its internal tumblers.
Its non-handed design allows installation on gates hung on either the left or right. The zinc-alloy lock body and 14-gauge steel gate box provide durable performance for residential, commercial, multifamily, and shared-access gate applications.
Key Features
-
Fully mechanical operation—no batteries or wiring required
-
Single-code access
-
Up to 8,191 non-sequential code combinations
-
2 × 7 keypad with 14 stainless steel buttons
-
Bolt
-
Internal tumbler code-change system
-
Non-handed for left- or right-hand gates
-
Suitable for interior and exterior applications
-
Heavy-duty 14-gauge steel gate box
-
Durable zinc-alloy lock body
-
Flat, spring-loaded spindle
-
Available in black or brushed steel
Specifications
-
Brand: Gate Solutions by Codelocks
-
Product Type: Mechanical keypad gate lock
-
Available Finishes: Black or Brushed Steel
-
Orientation: Vertical
-
Keypad Configuration: 2 × 7
-
Keypad: 14 stainless steel buttons
-
User Type: Code
-
Code Capacity: One access code
-
Code Combinations: Up to 8,191 non-sequential combinations
-
Code-Change Method: Internal tumblers; lock must be removed from the gate
-
Latch Type: Bolt
-
Power Required: None
-
Lock Material: Zinc alloy
-
Gate Box Material: 14-gauge steel
-
Gate Box Dimensions: 9.5" H × 5.5" W × 1.75" D
-
Spindle: Flat, spring-loaded spindle
-
Handing: Non-handed; suitable for left- or right-hand gates
-
Suitable For: Interior and exterior applications

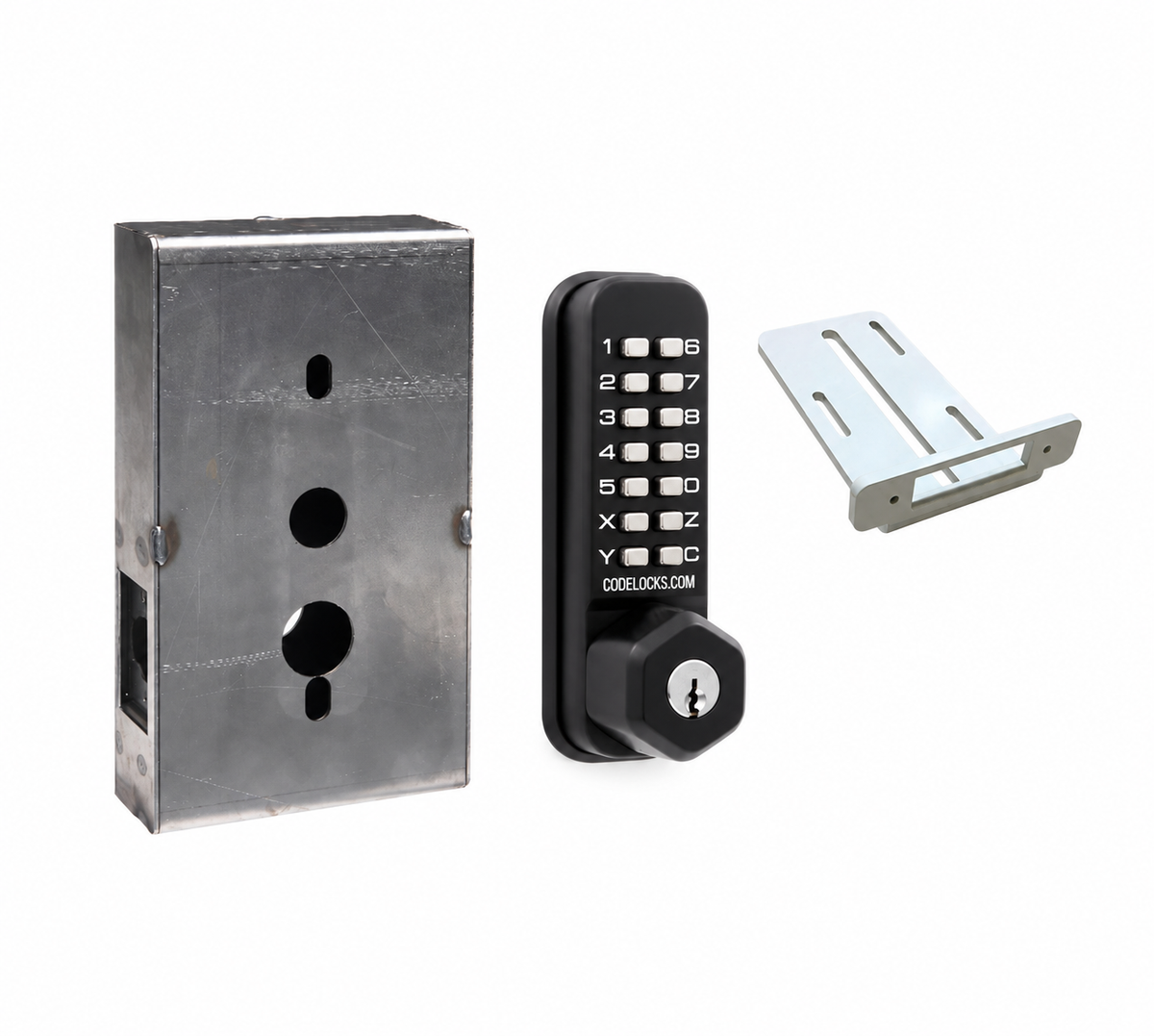

Gate Box Kit Components
- CL210 Marine Tubular Deadbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
About the CL210 Marine Tubular Deadbolt Mechanical Codelock
Light duty mechanical locks with hexagonal knob handles, offering key override, deadbolt and tubular latch options.
- Salt spray tested 1000 hours*
- Durable marine grade black finish
- Specially enhanced finish for harsh environments
- Light duty mortise deadbolt
- Hexagonal beveled handle and lock case
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
