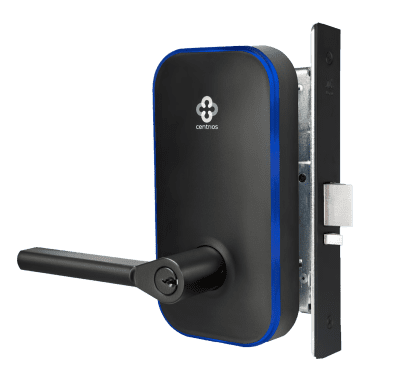

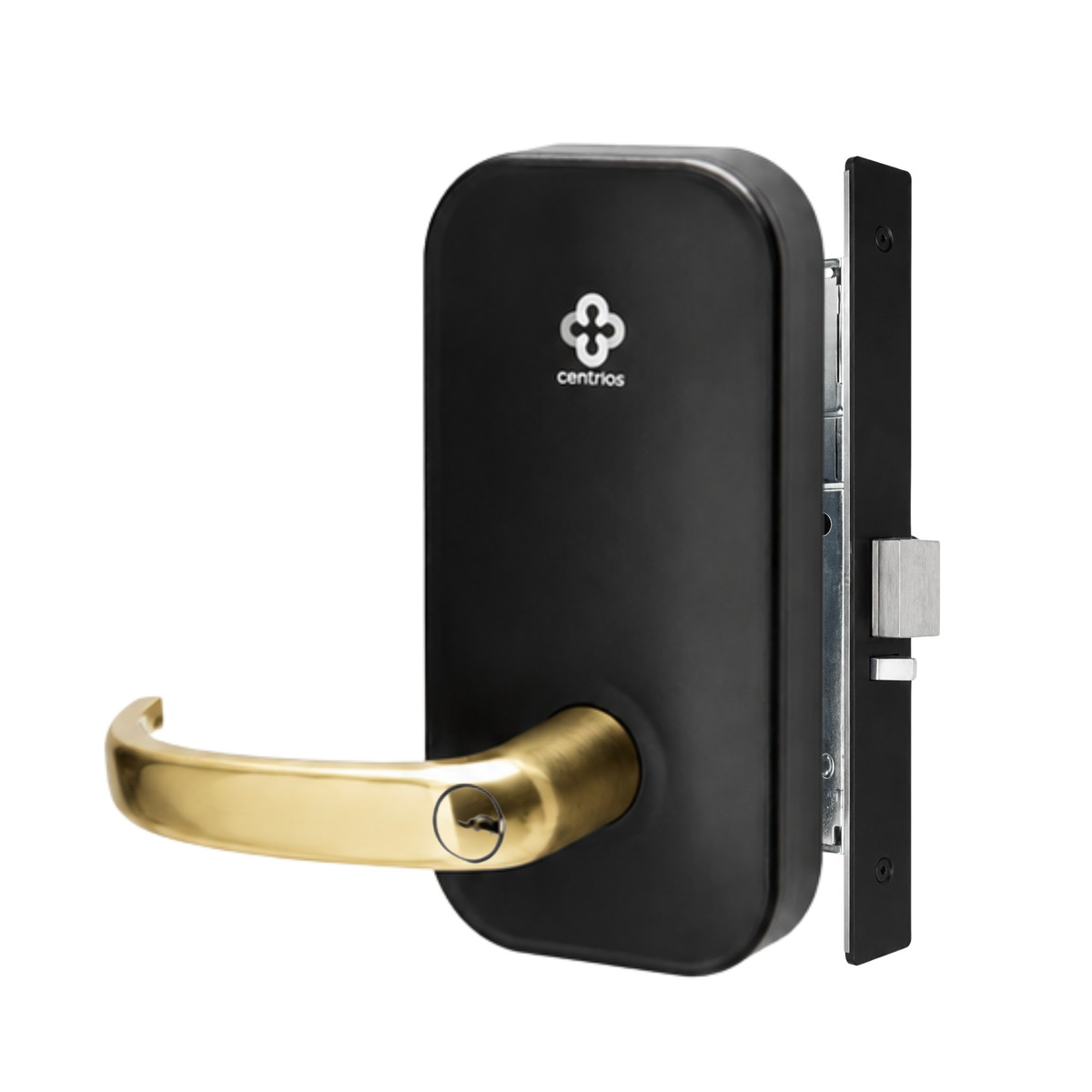

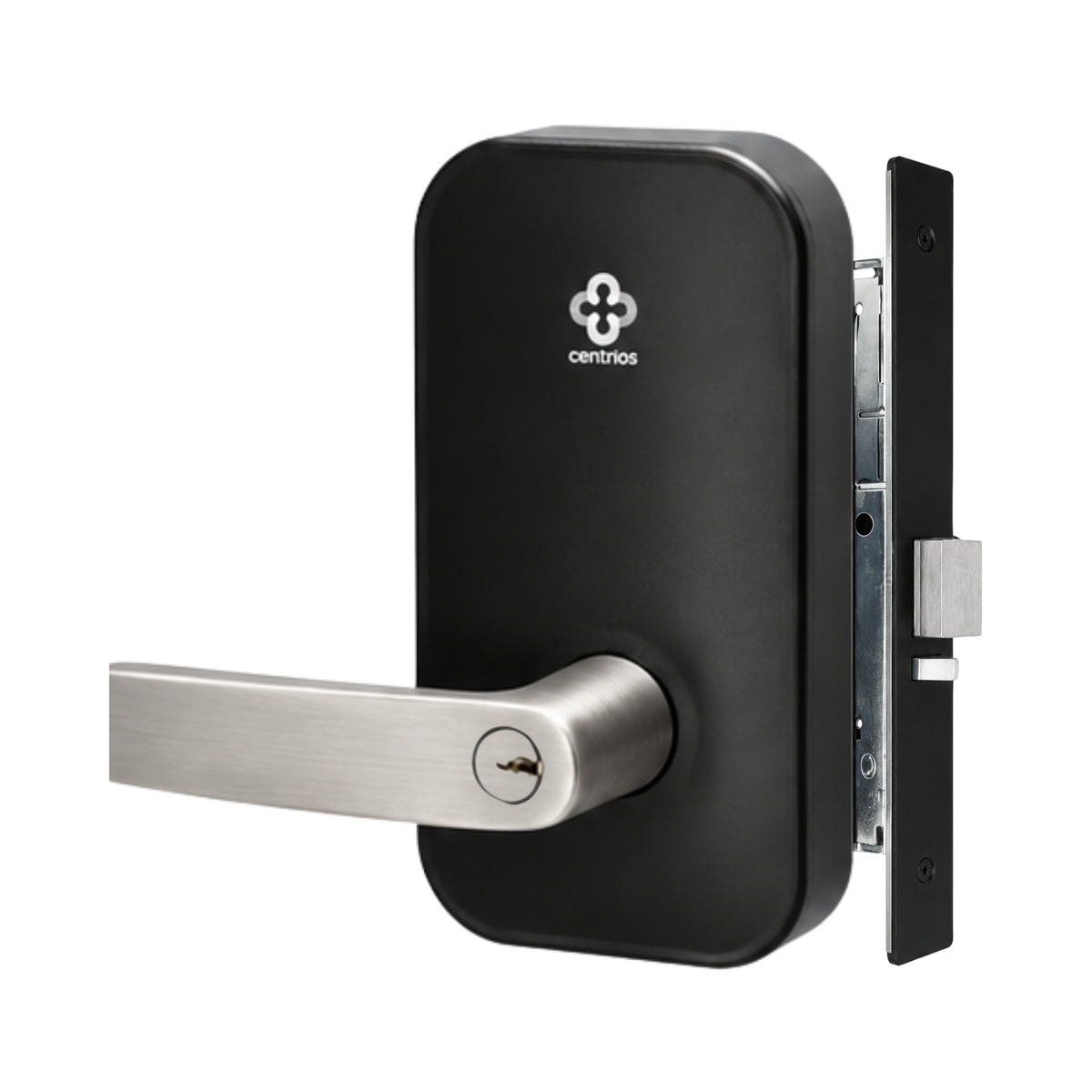

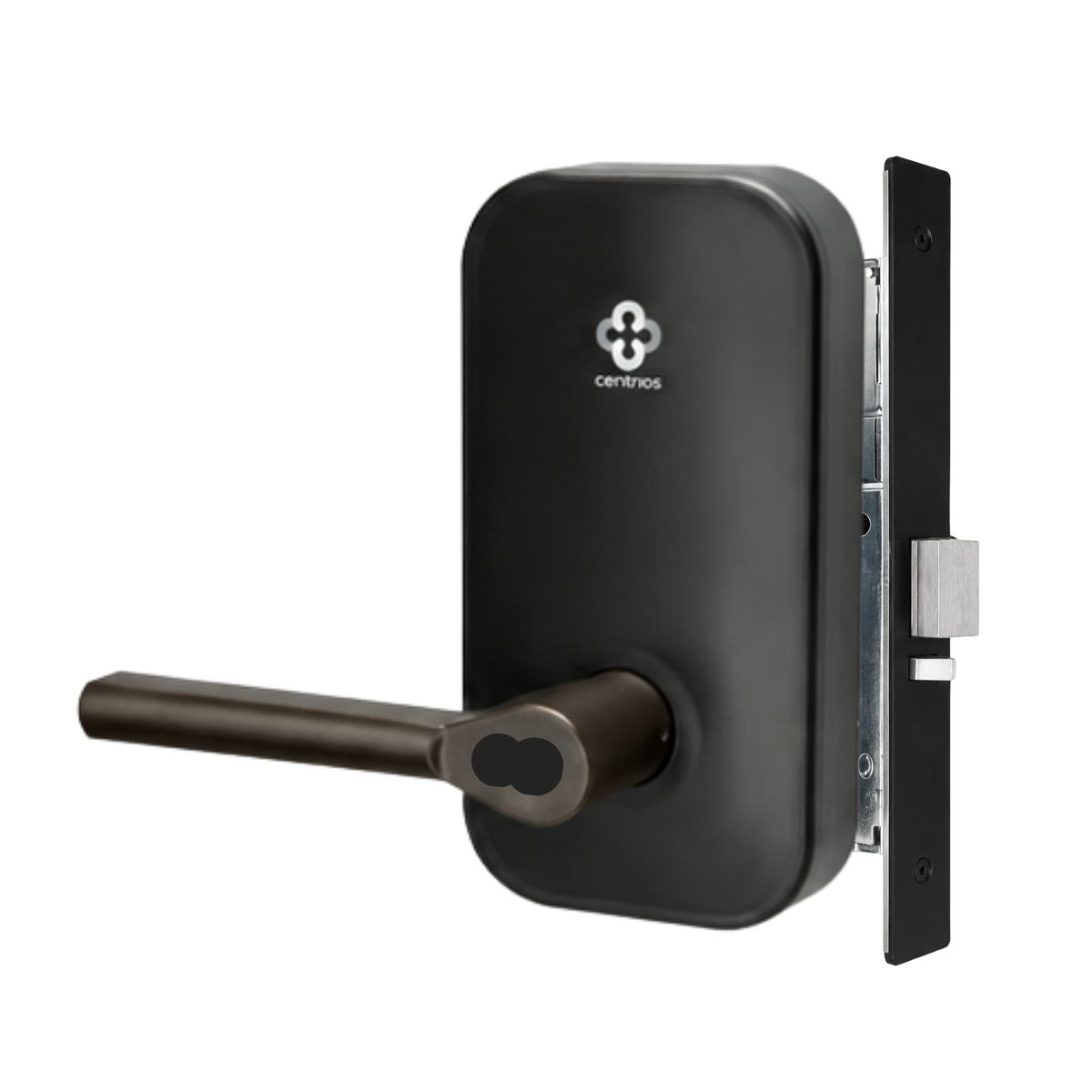

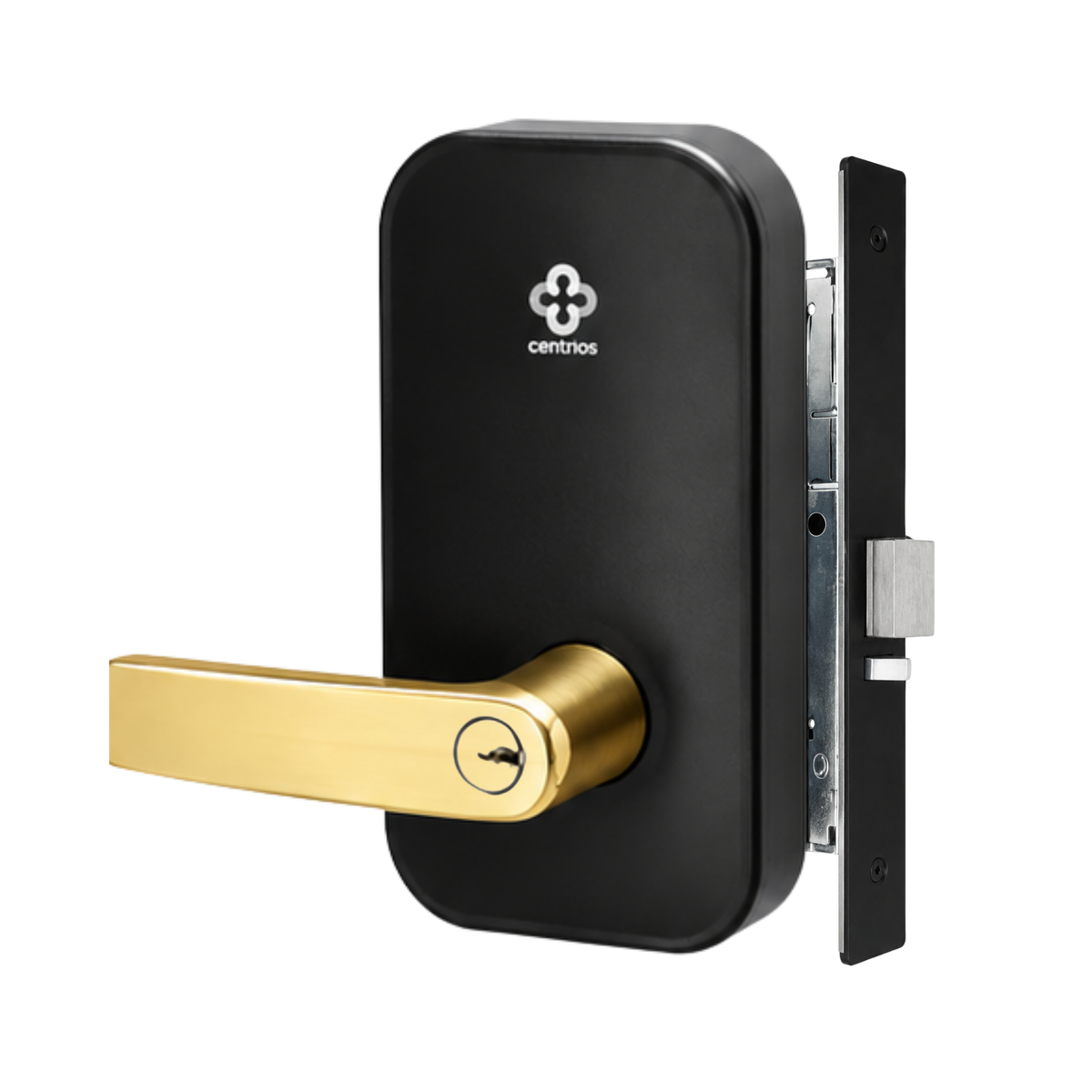

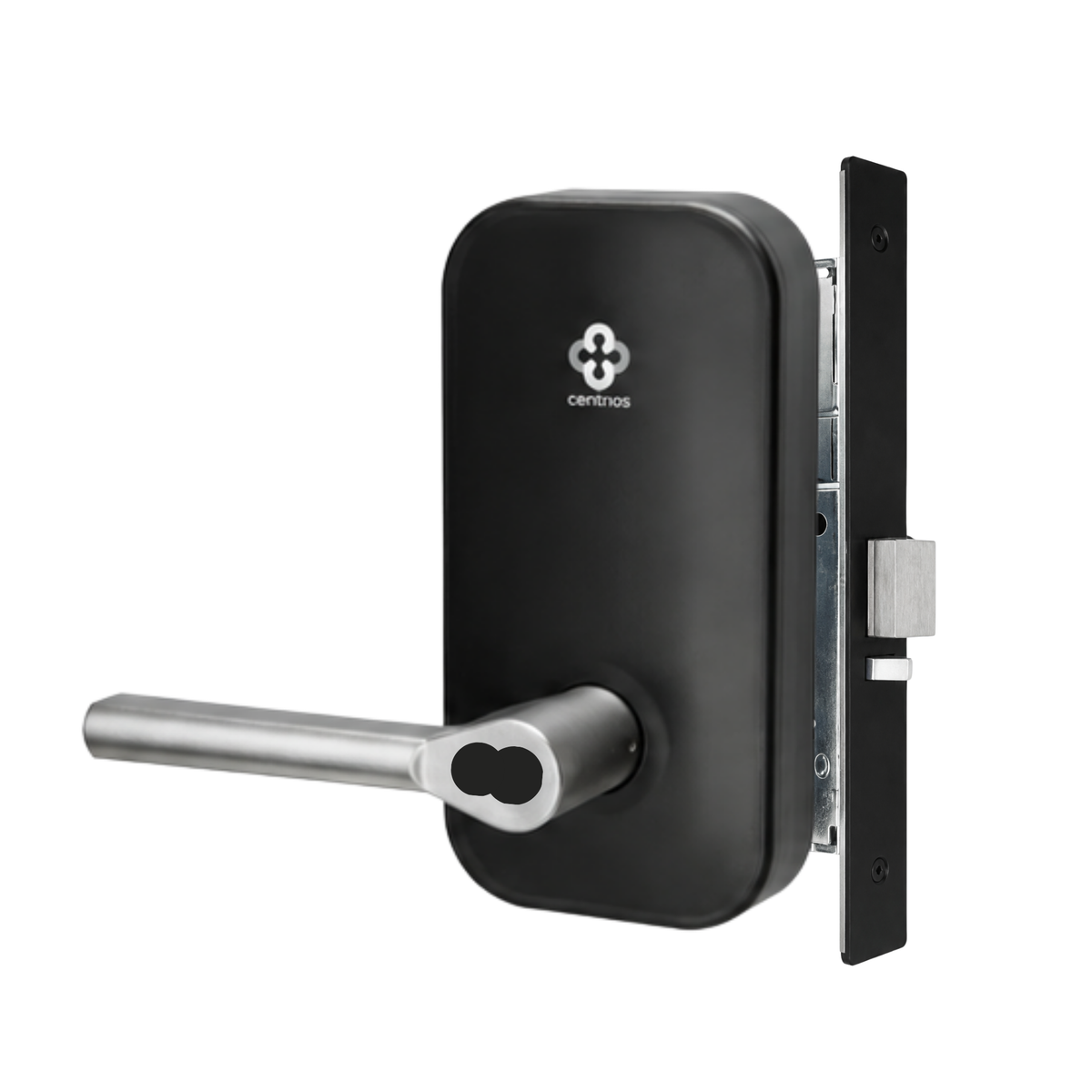

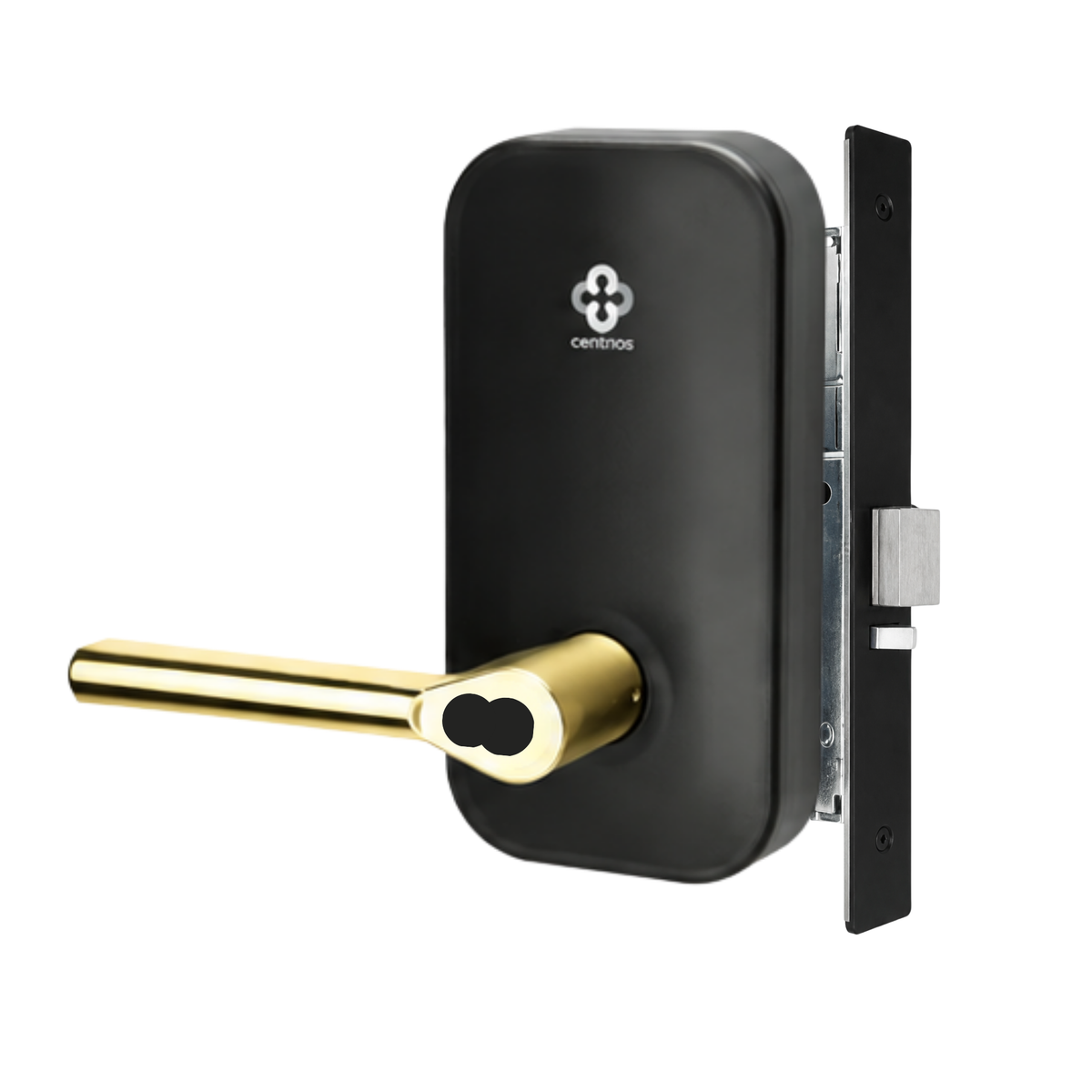

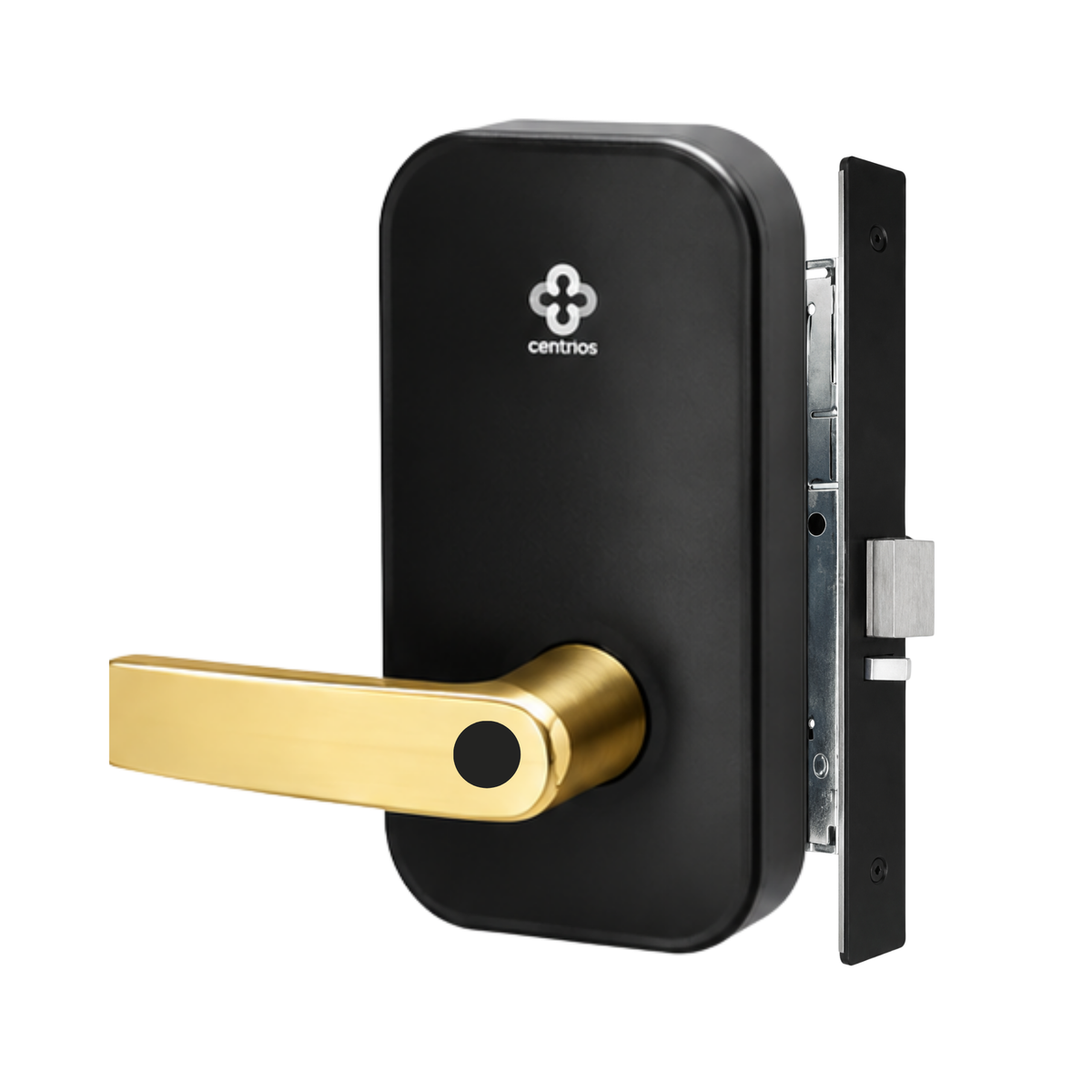

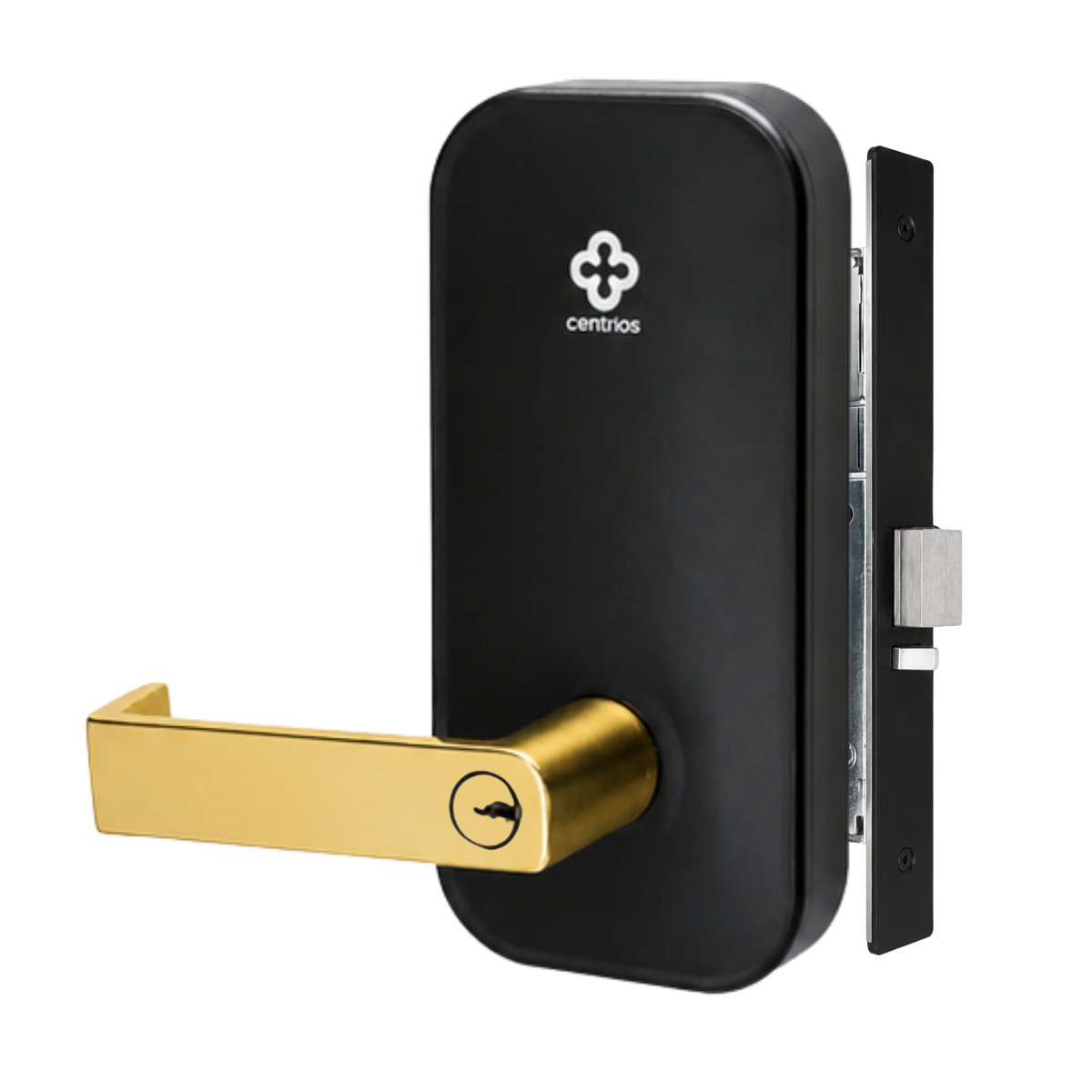

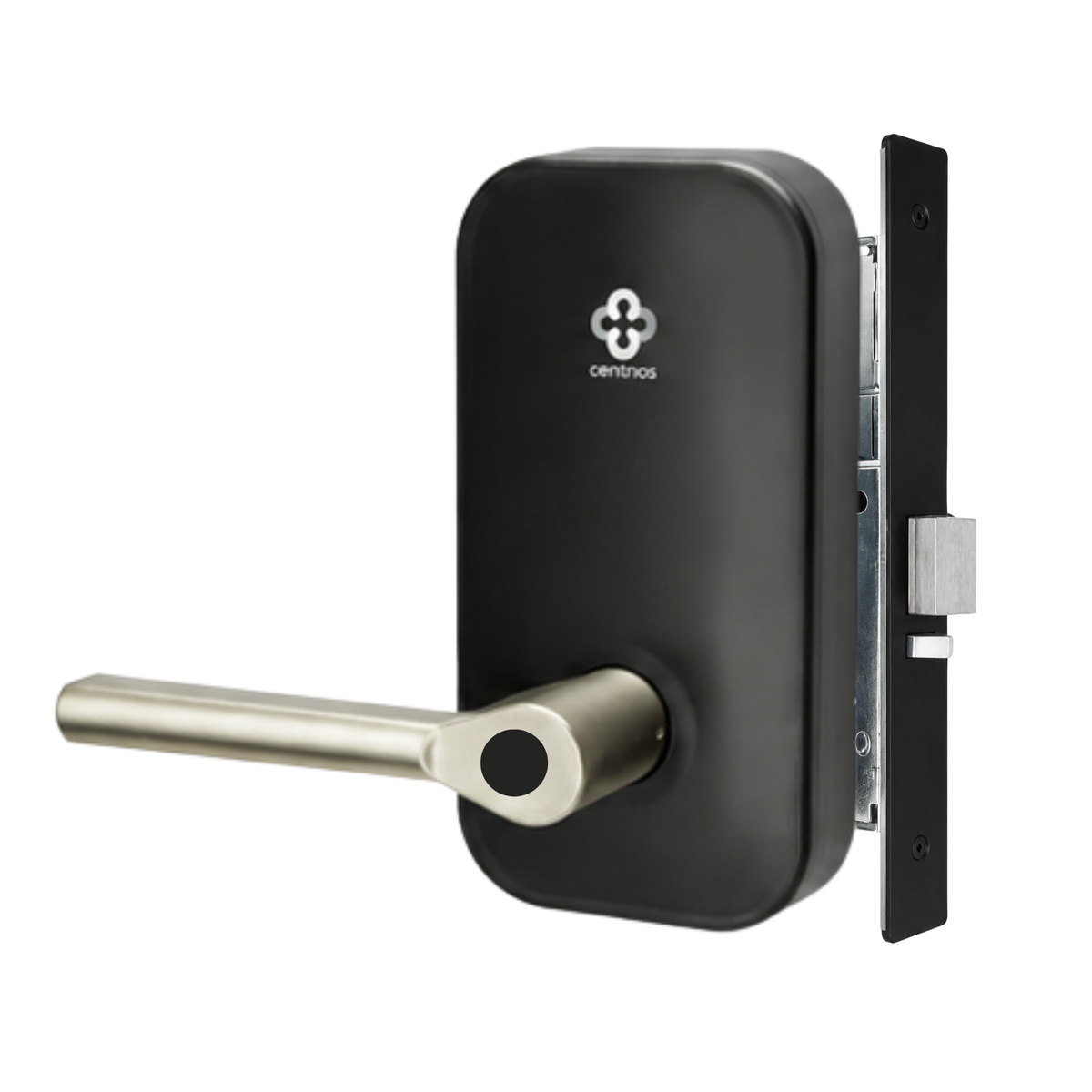

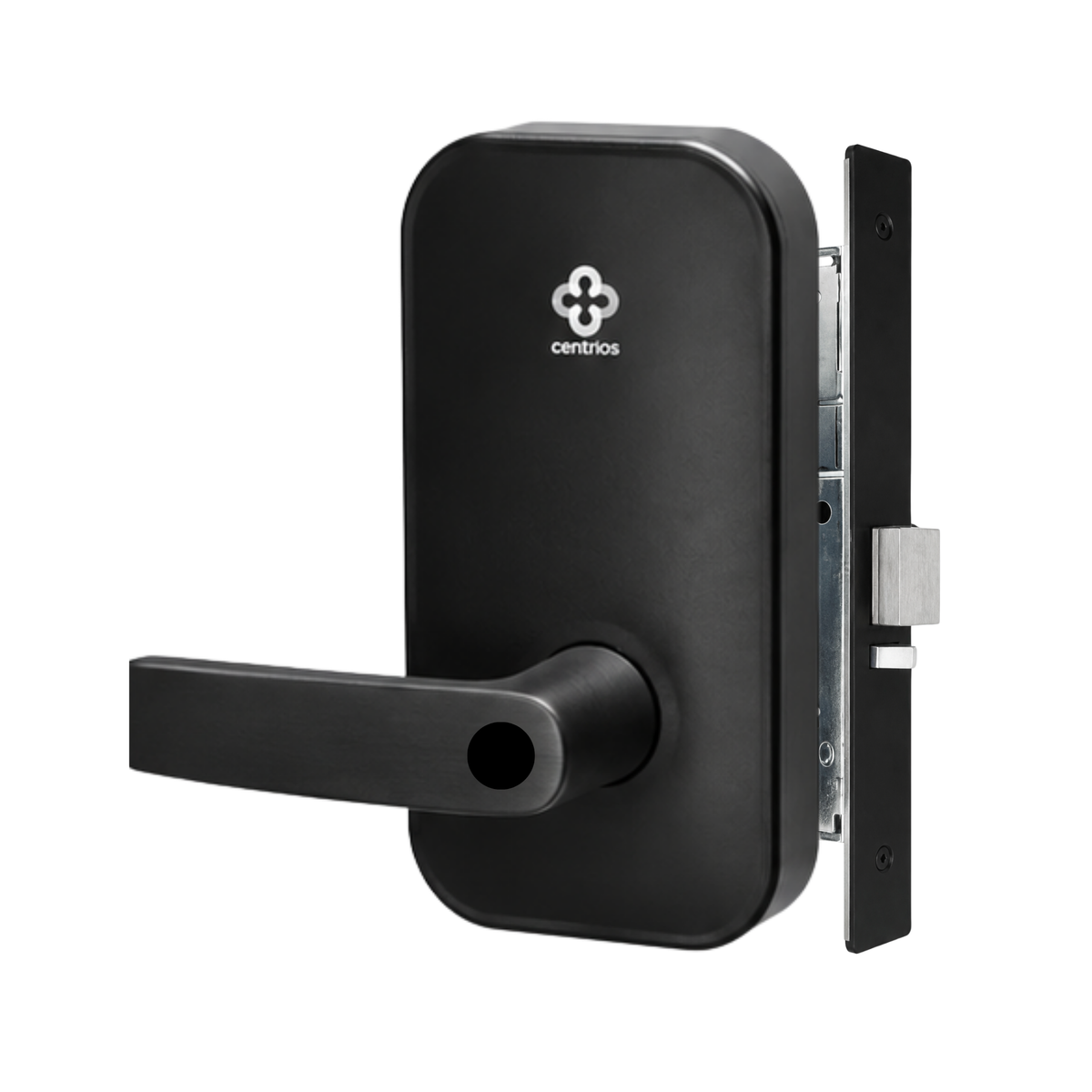

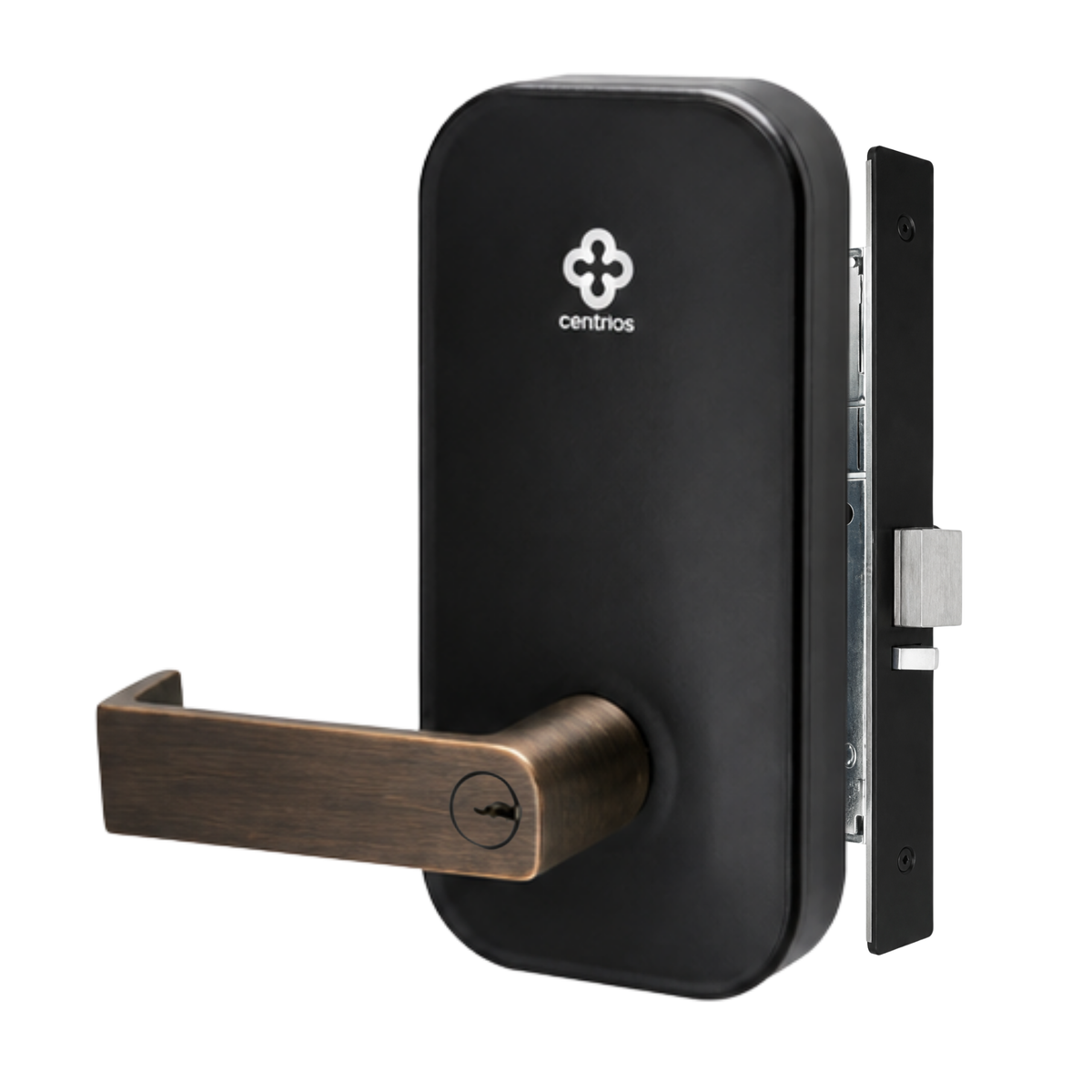

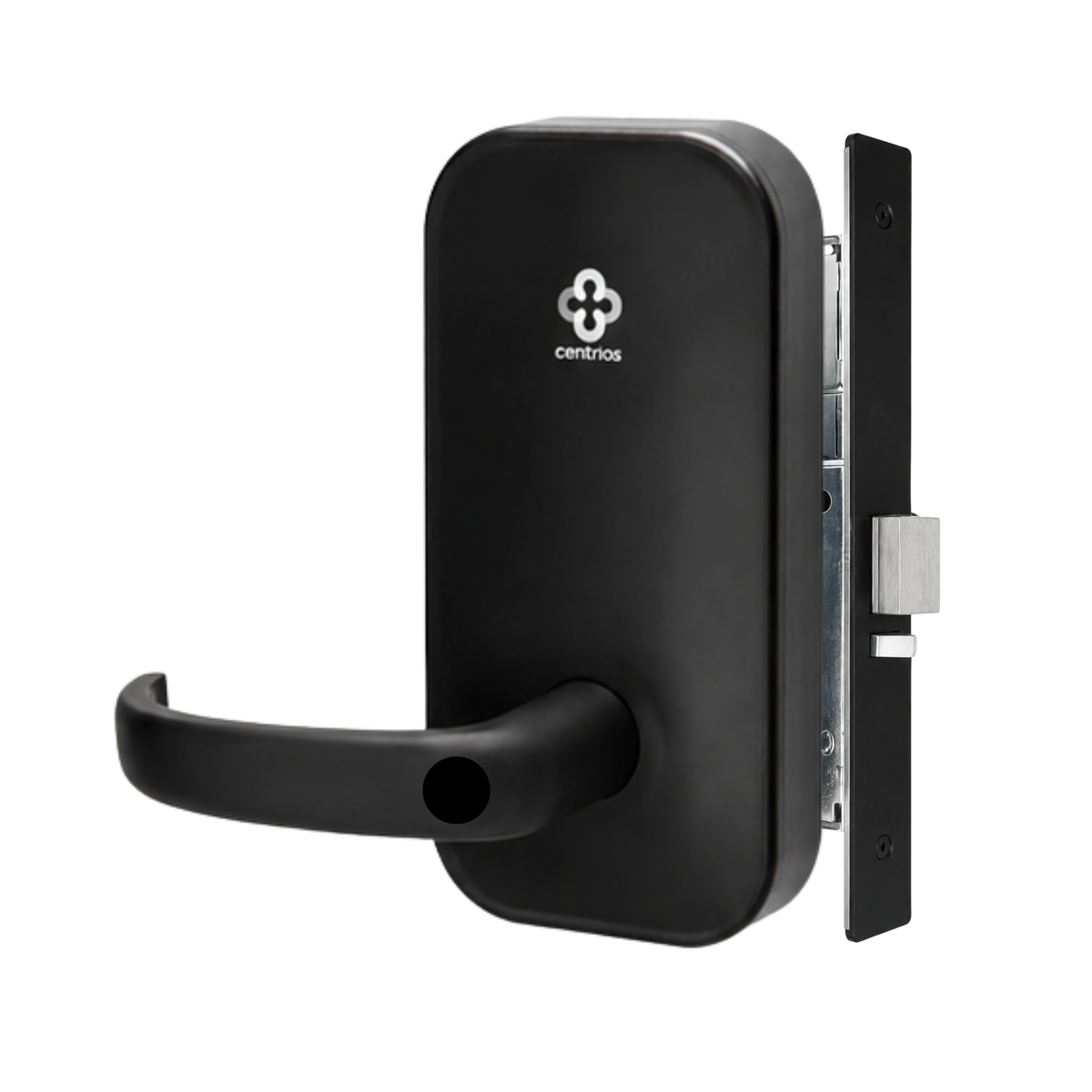

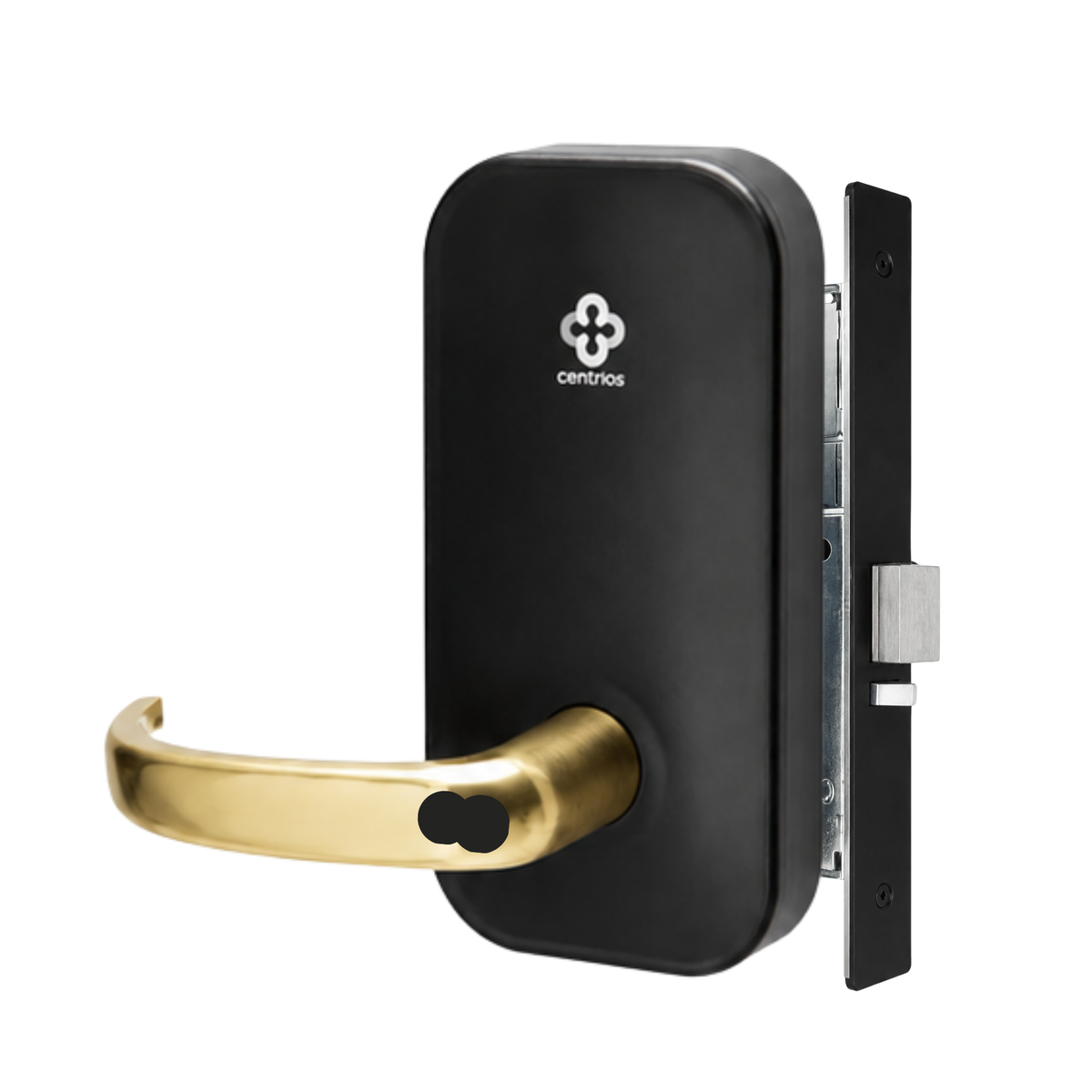

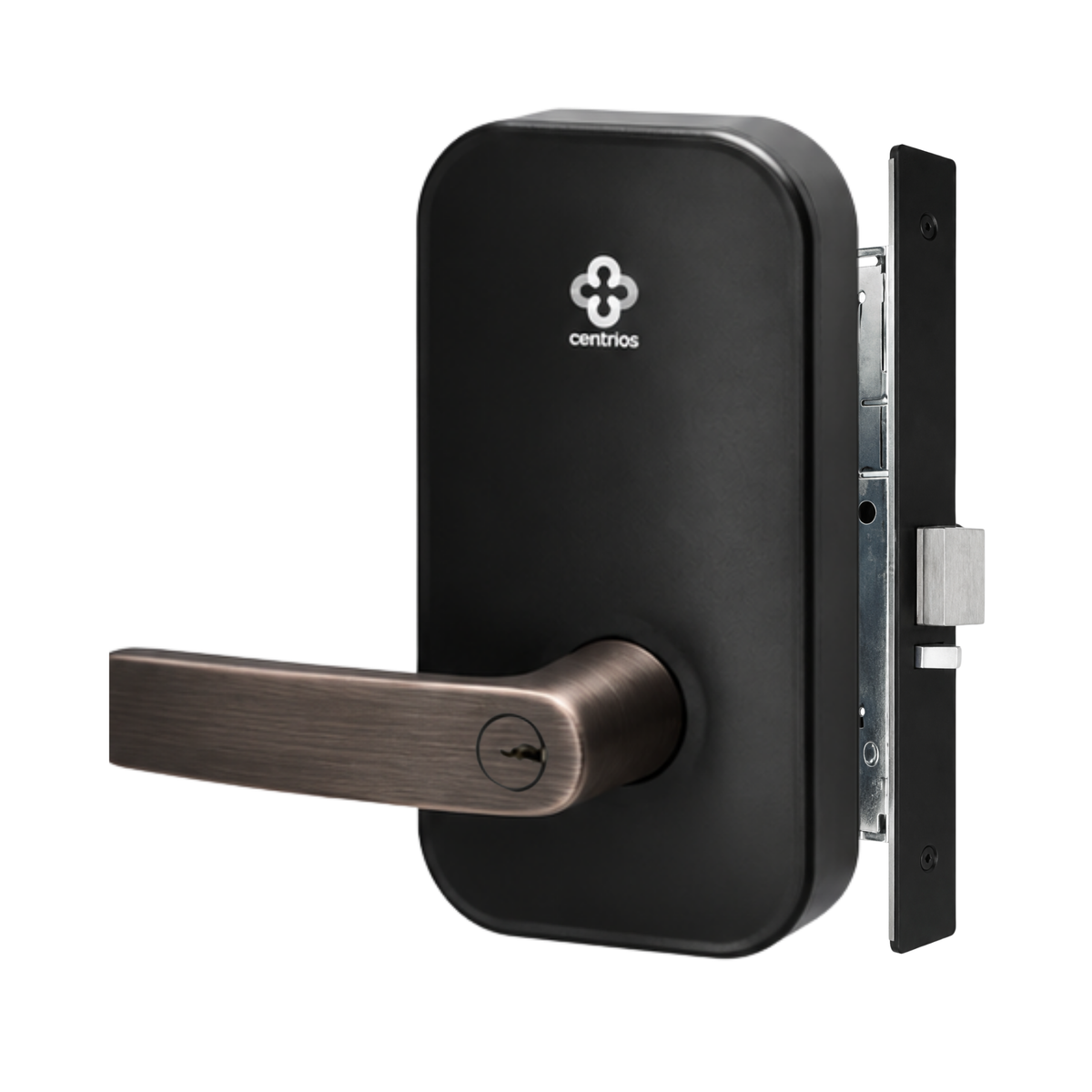

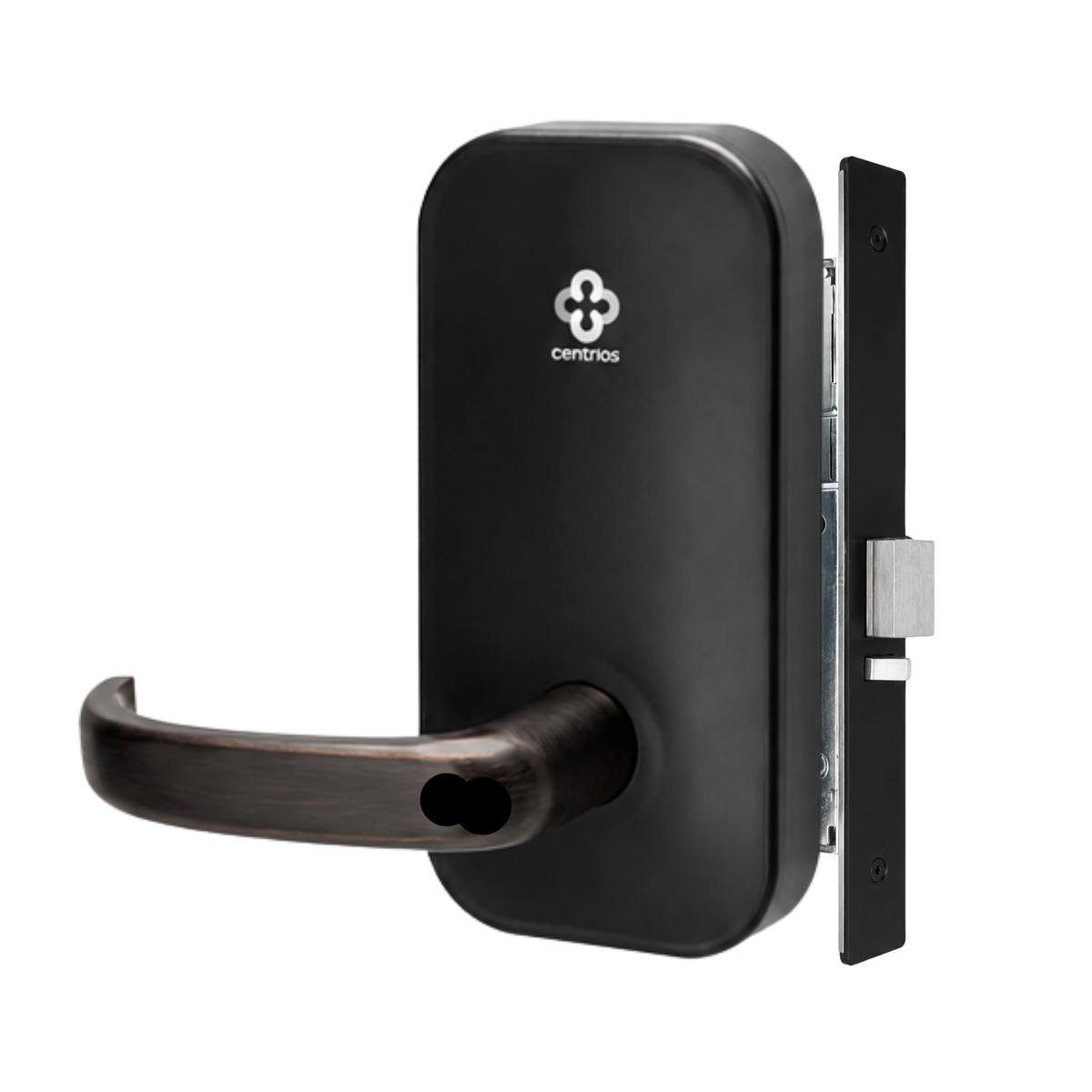

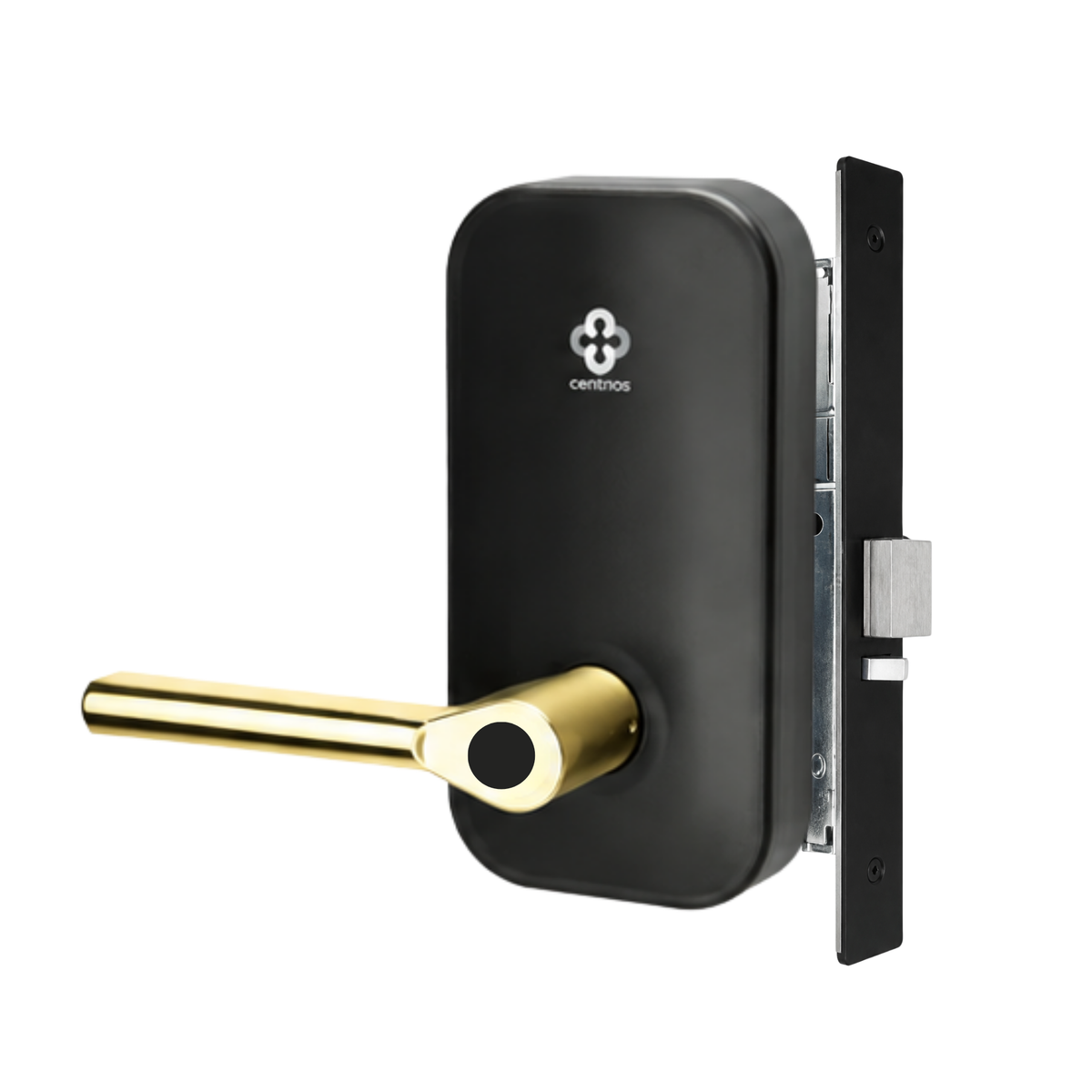

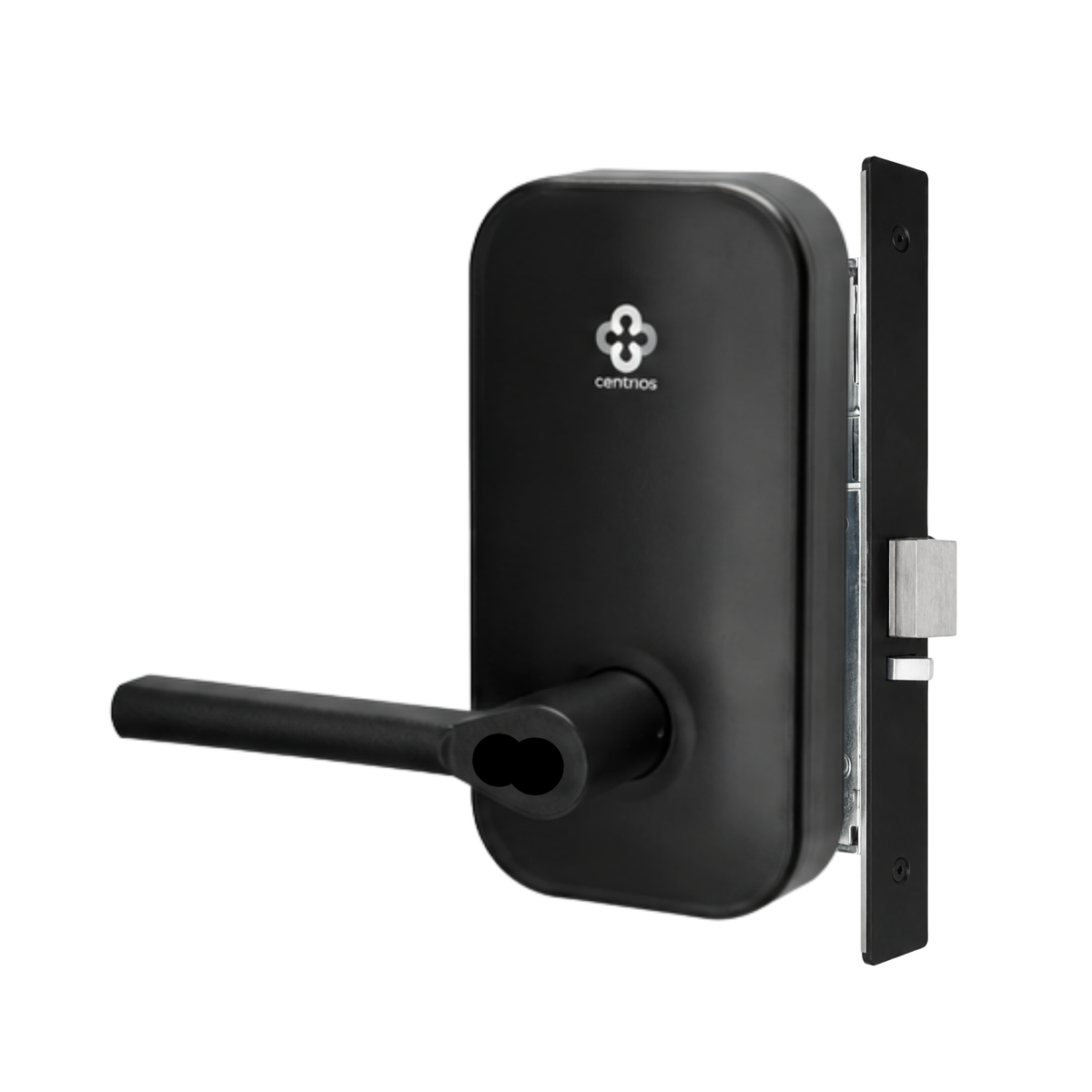

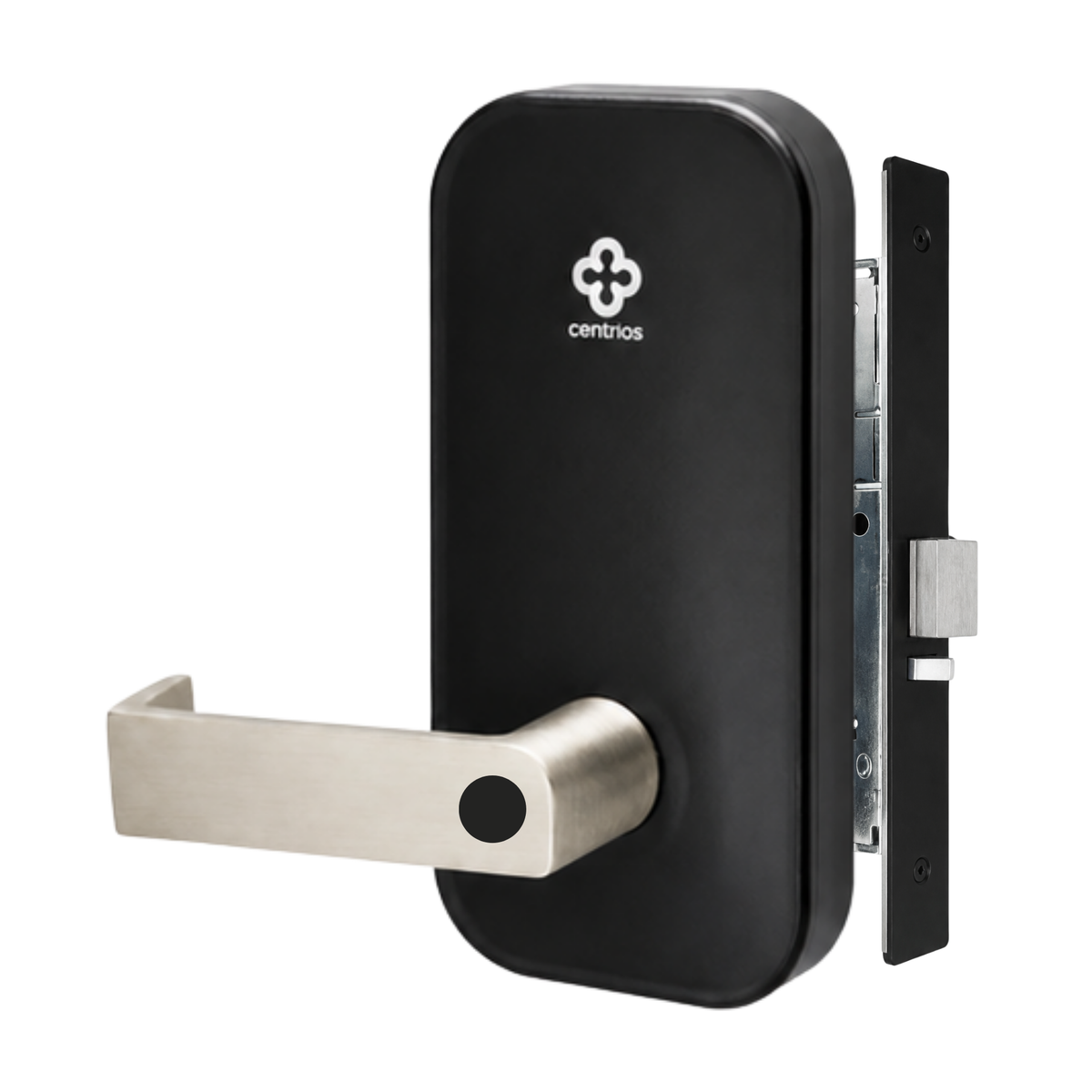

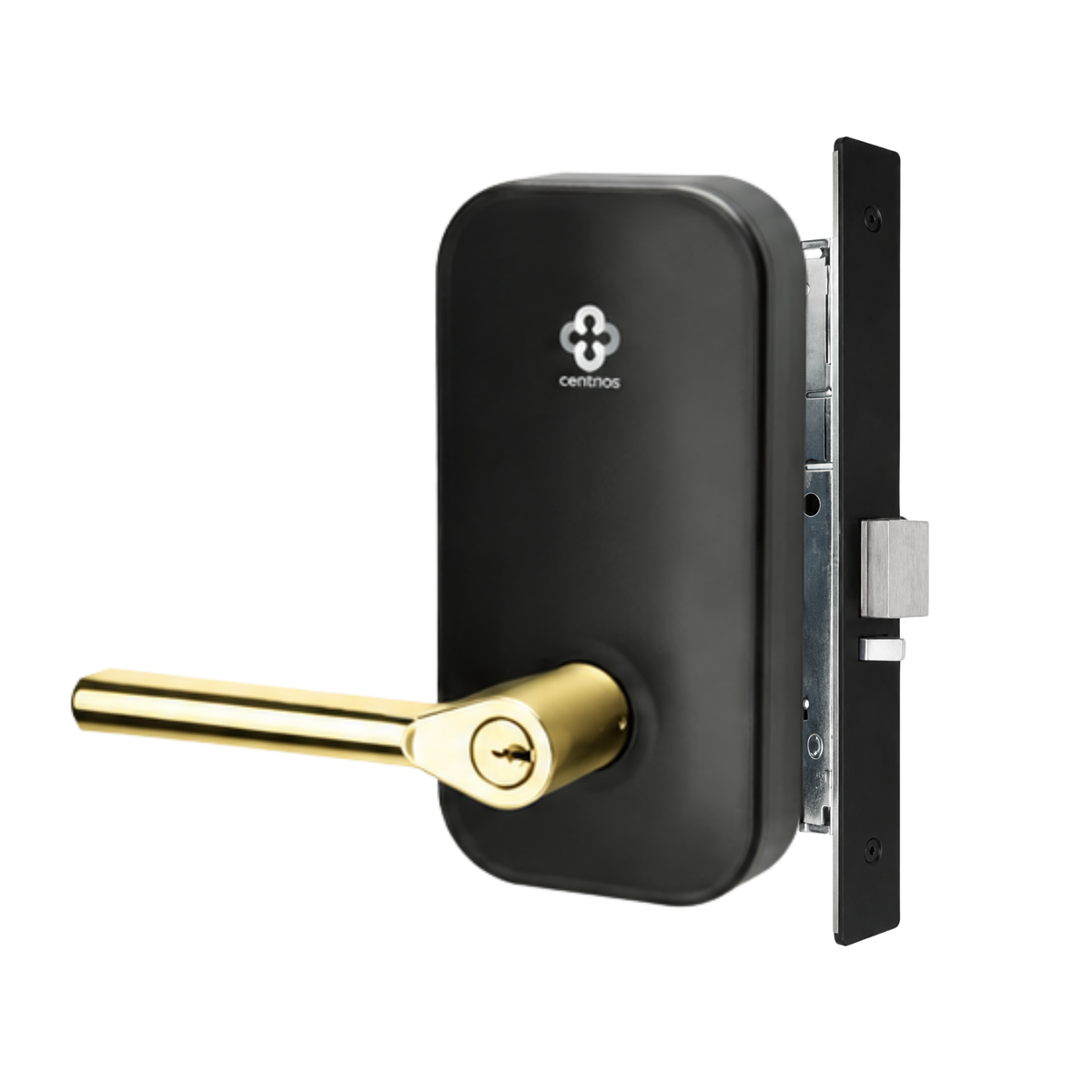

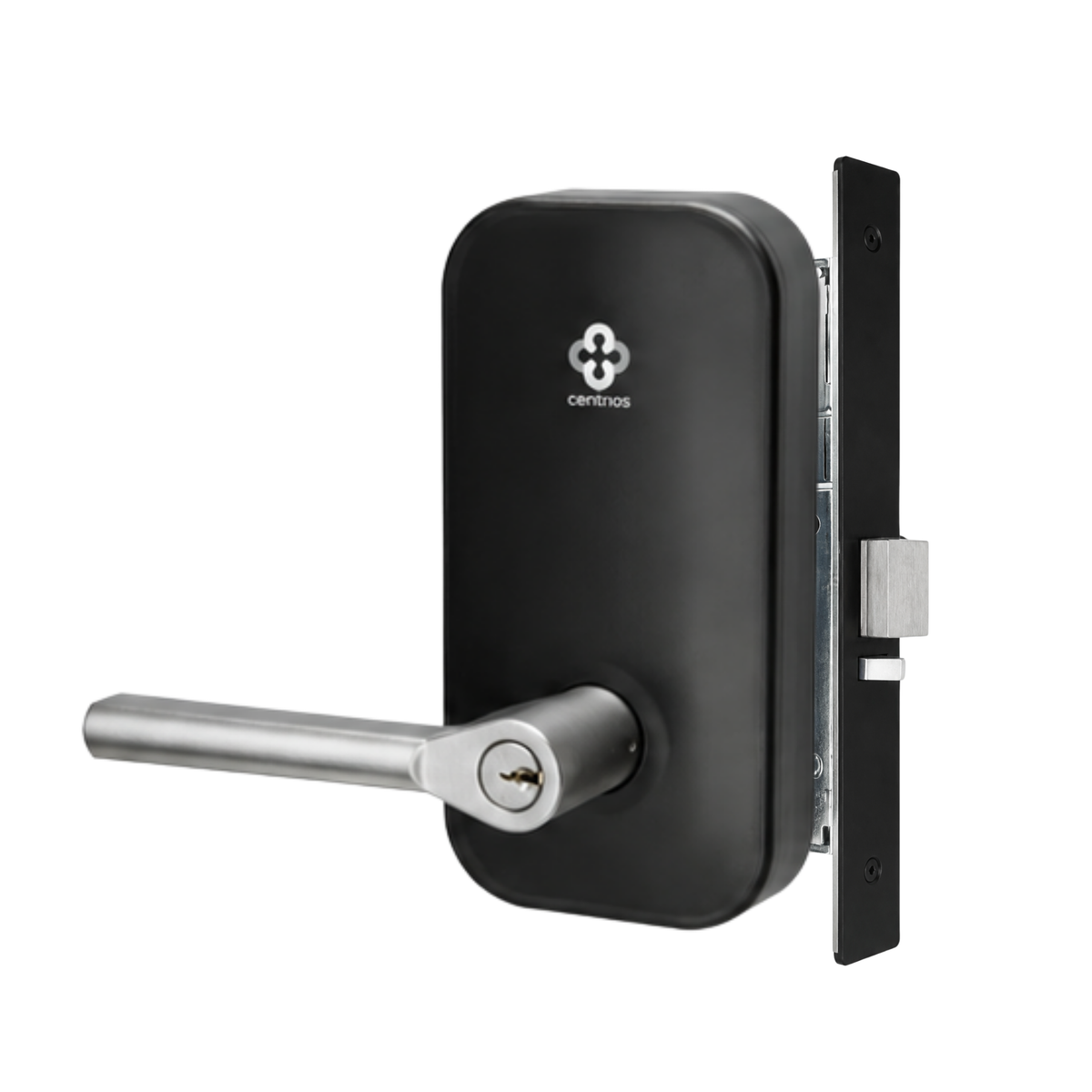

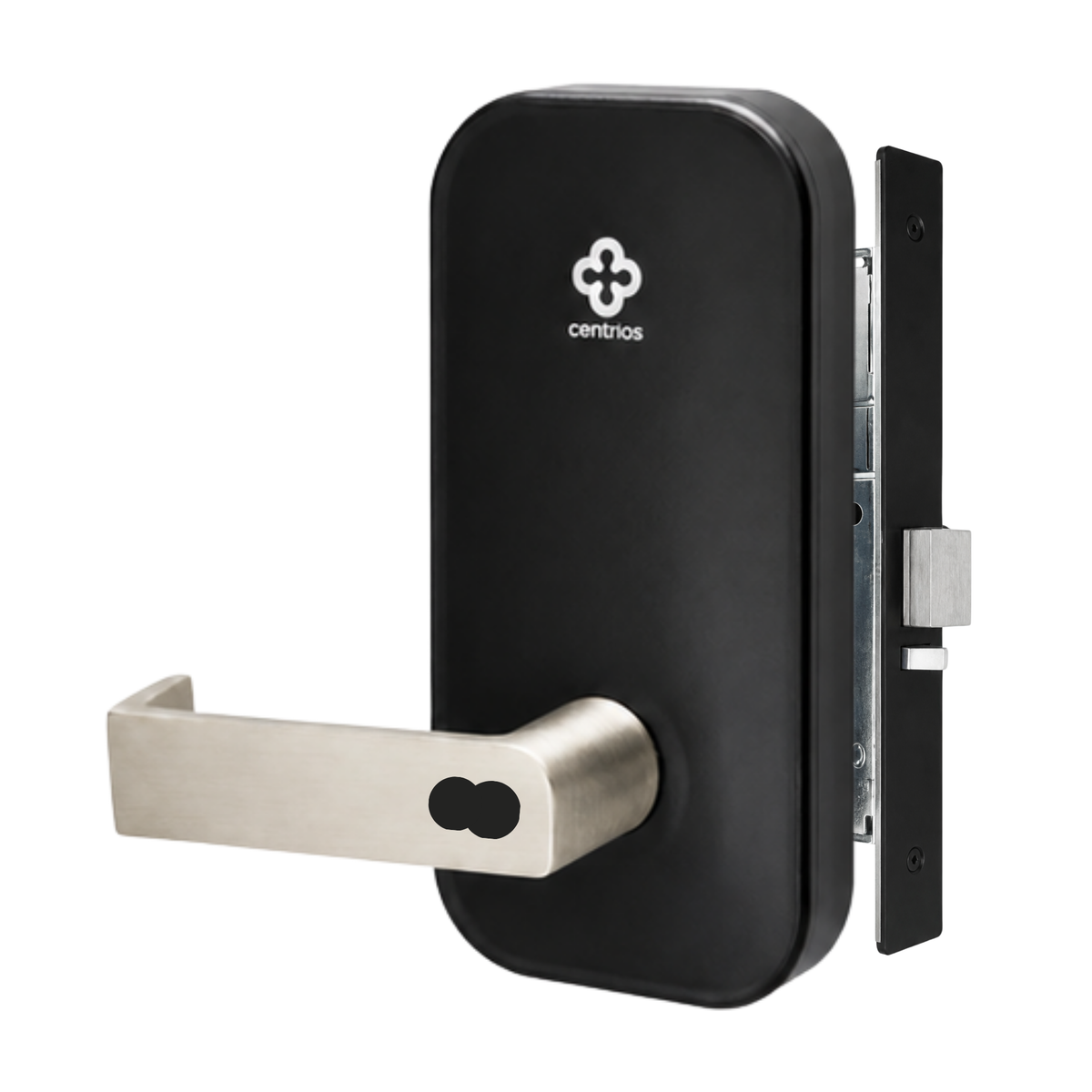

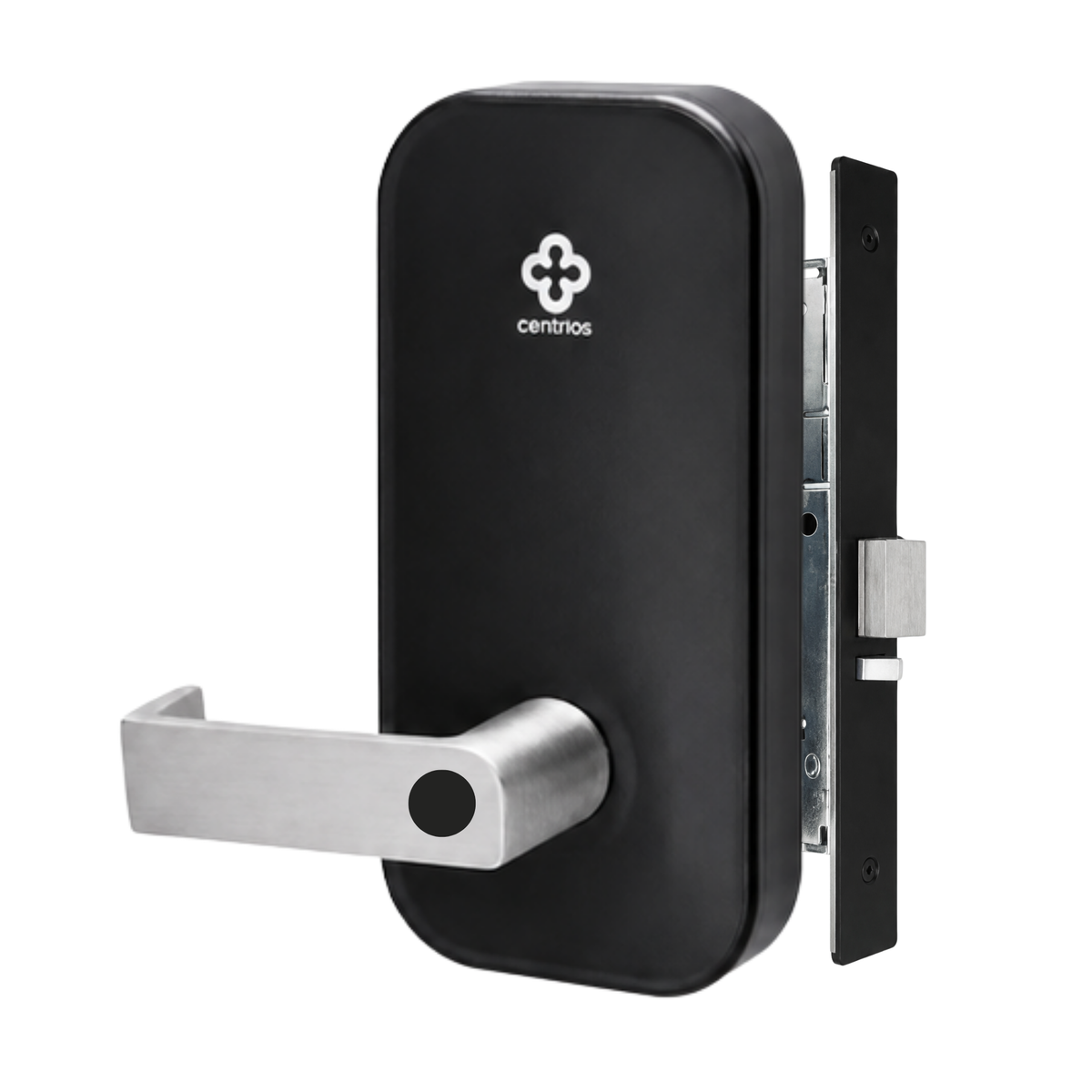

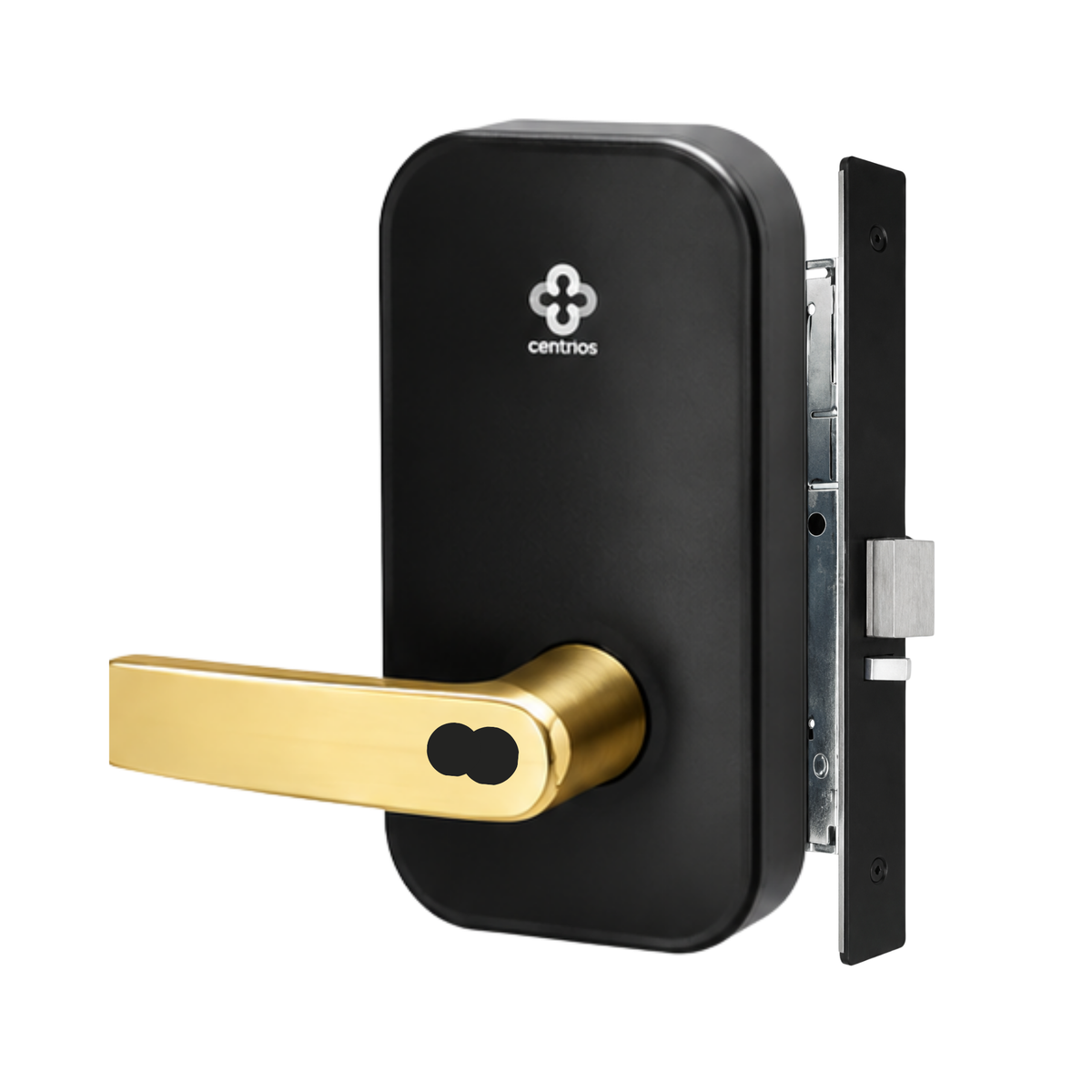

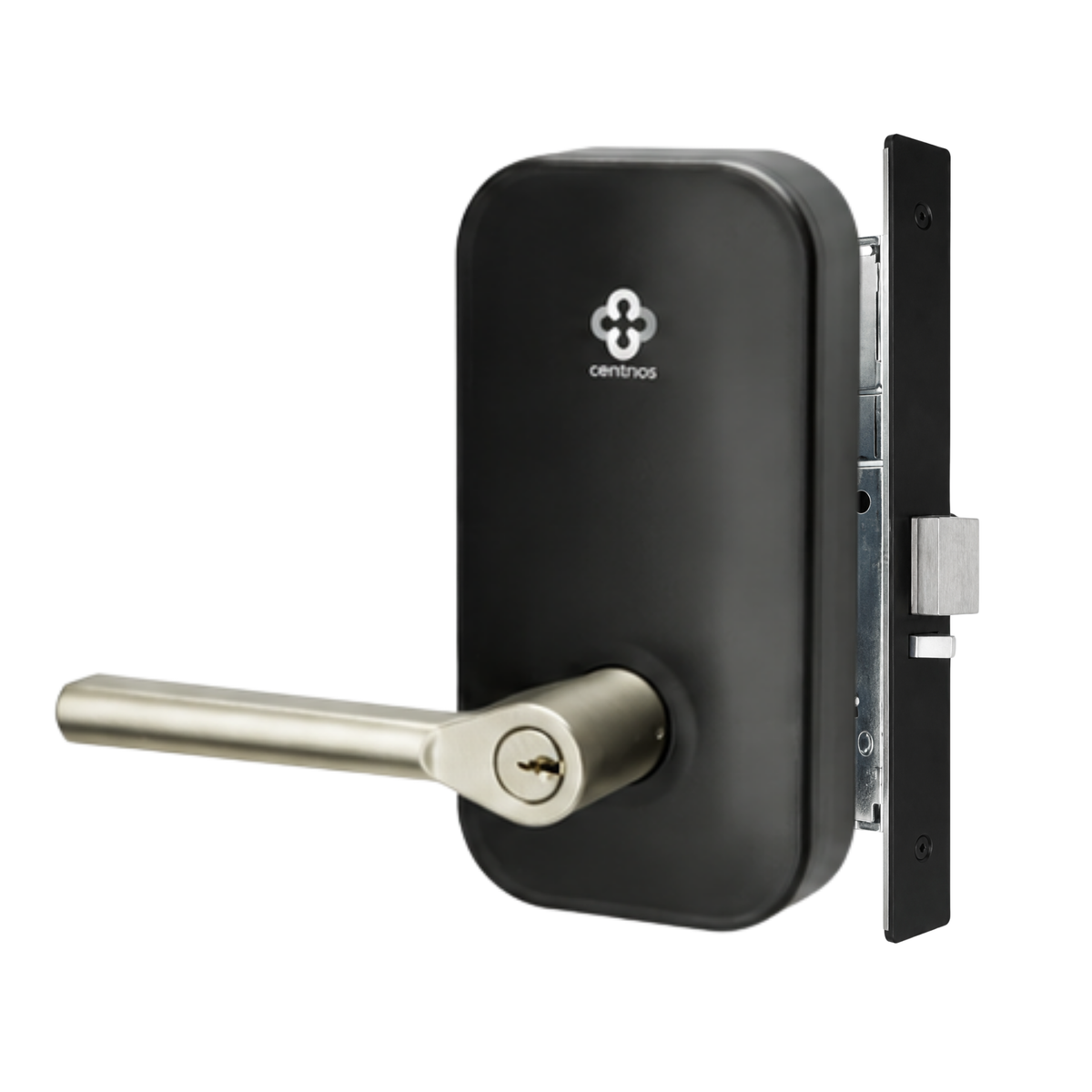

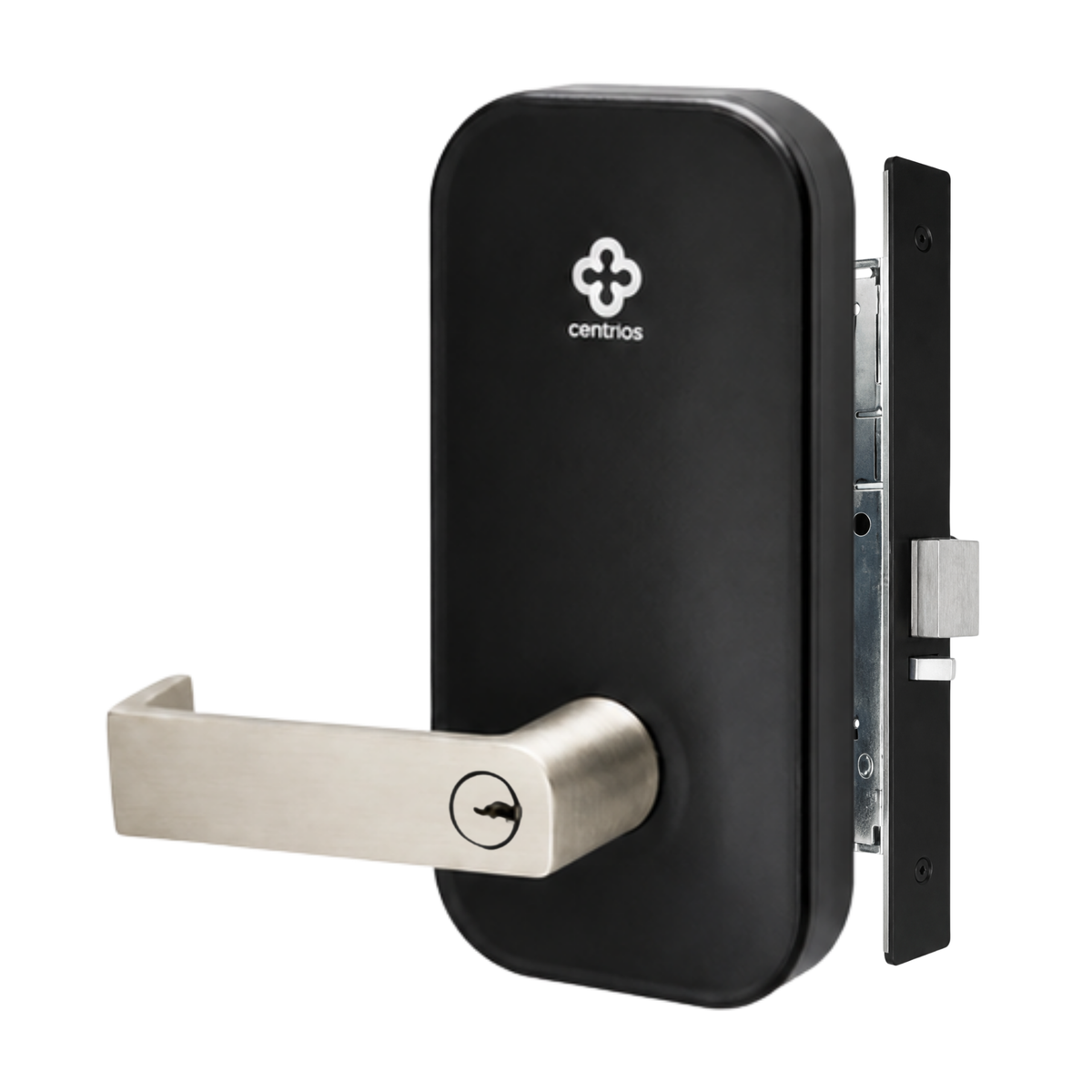

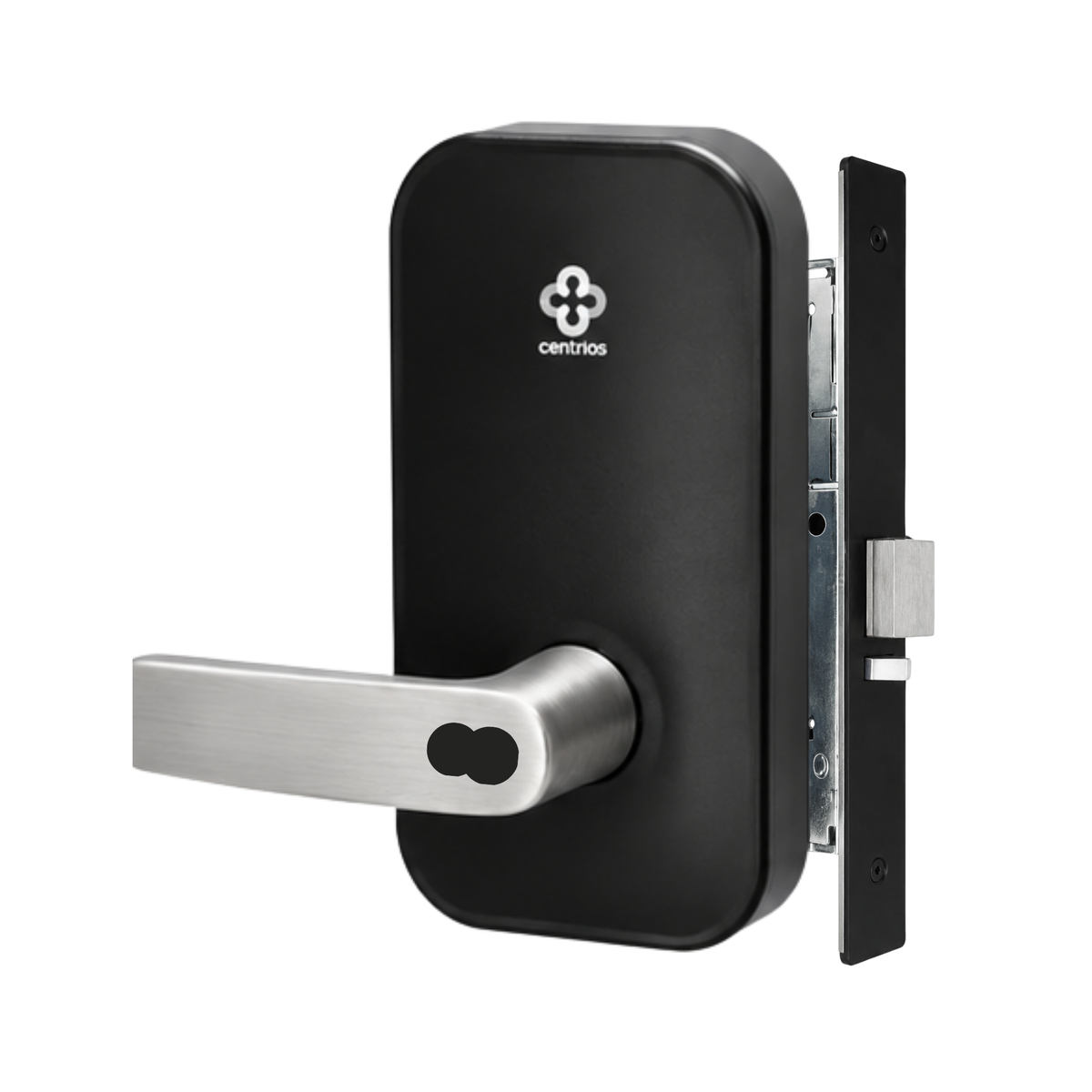

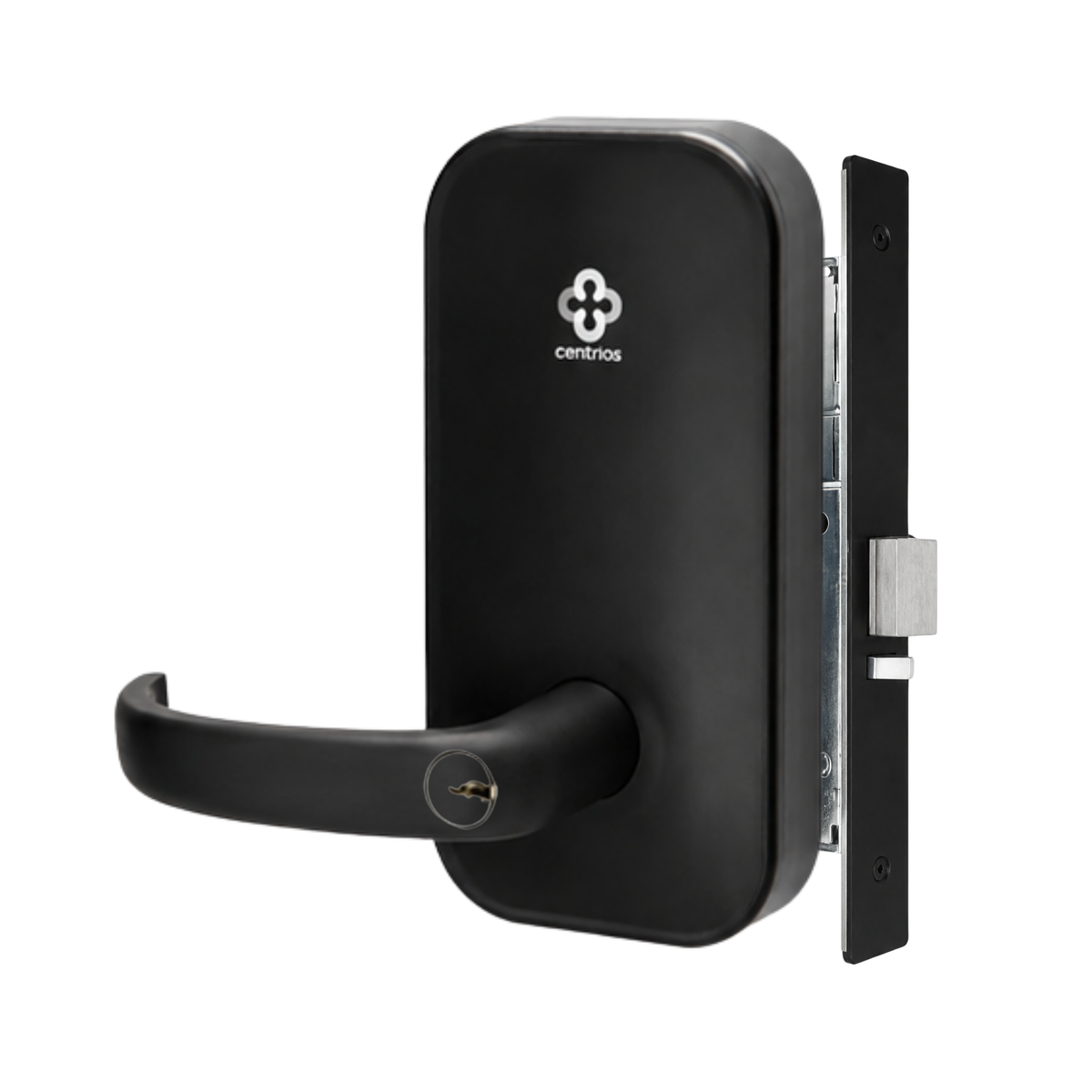

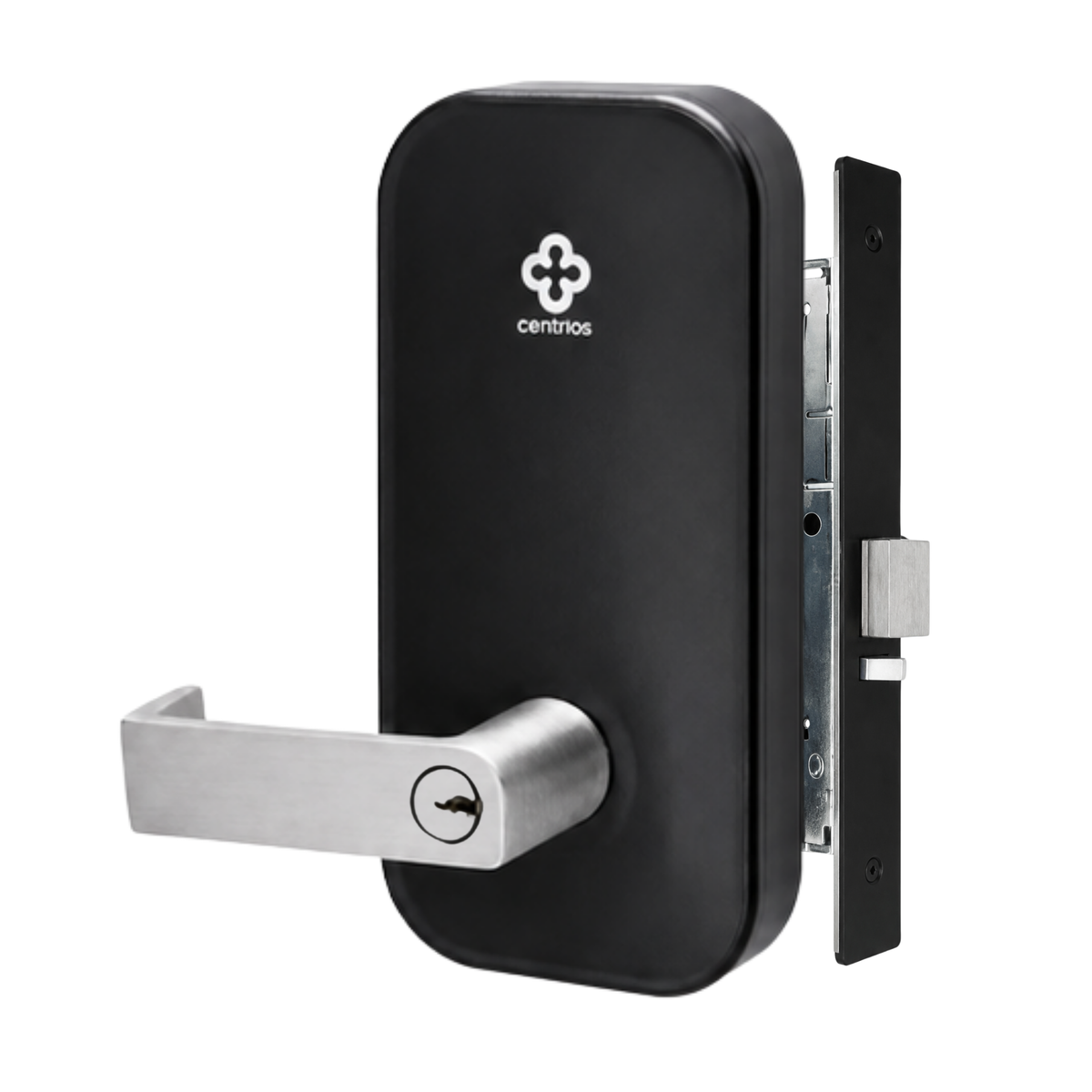

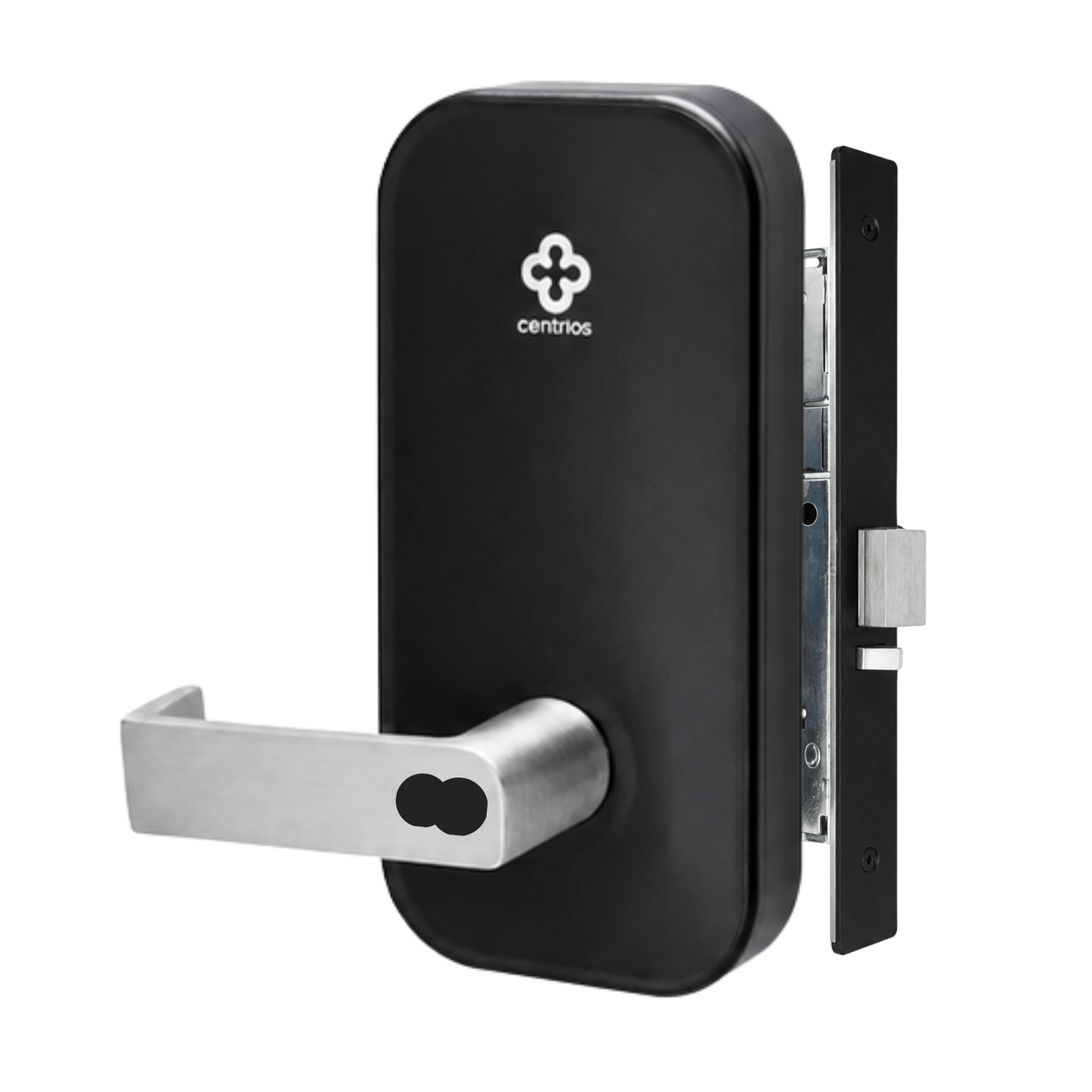

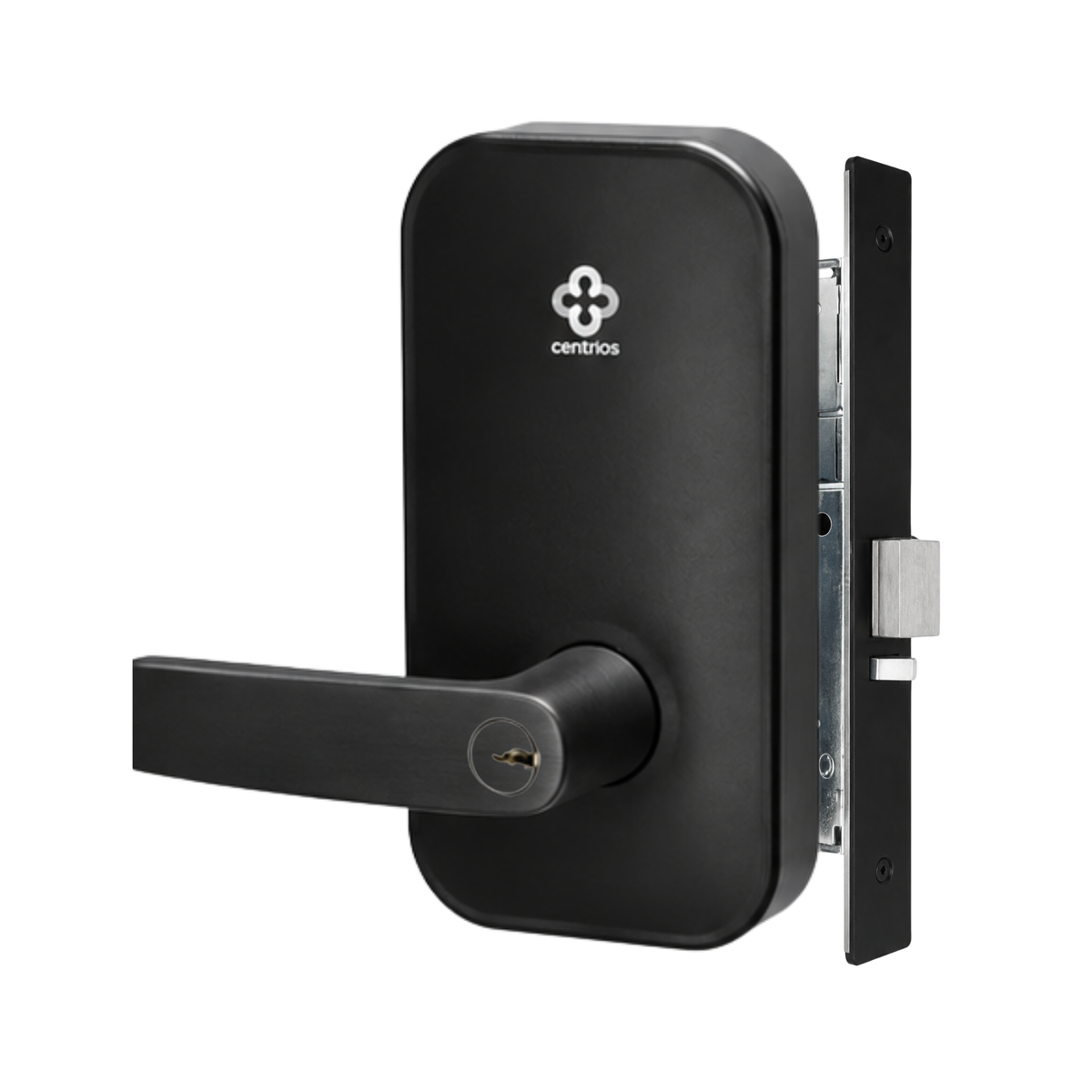

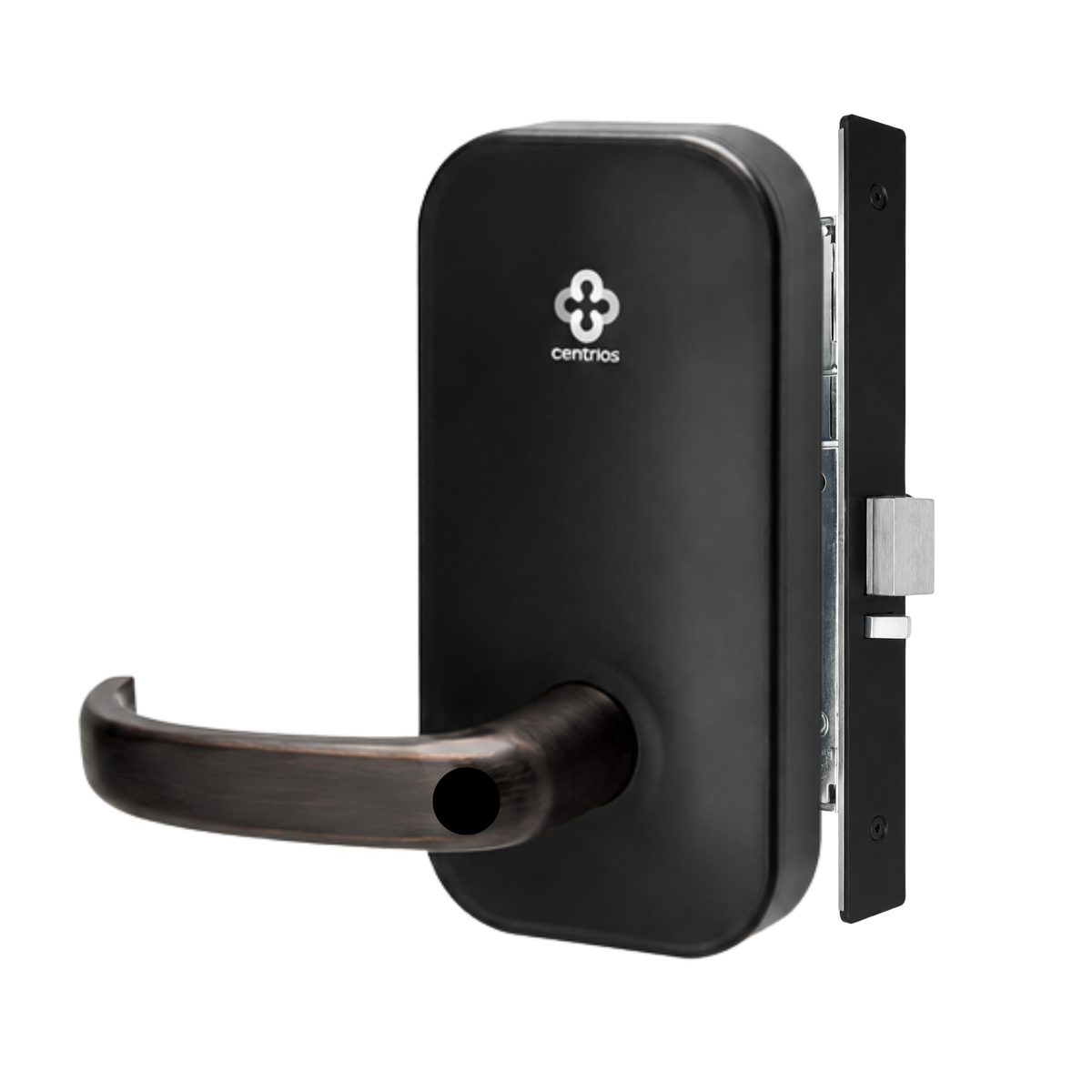

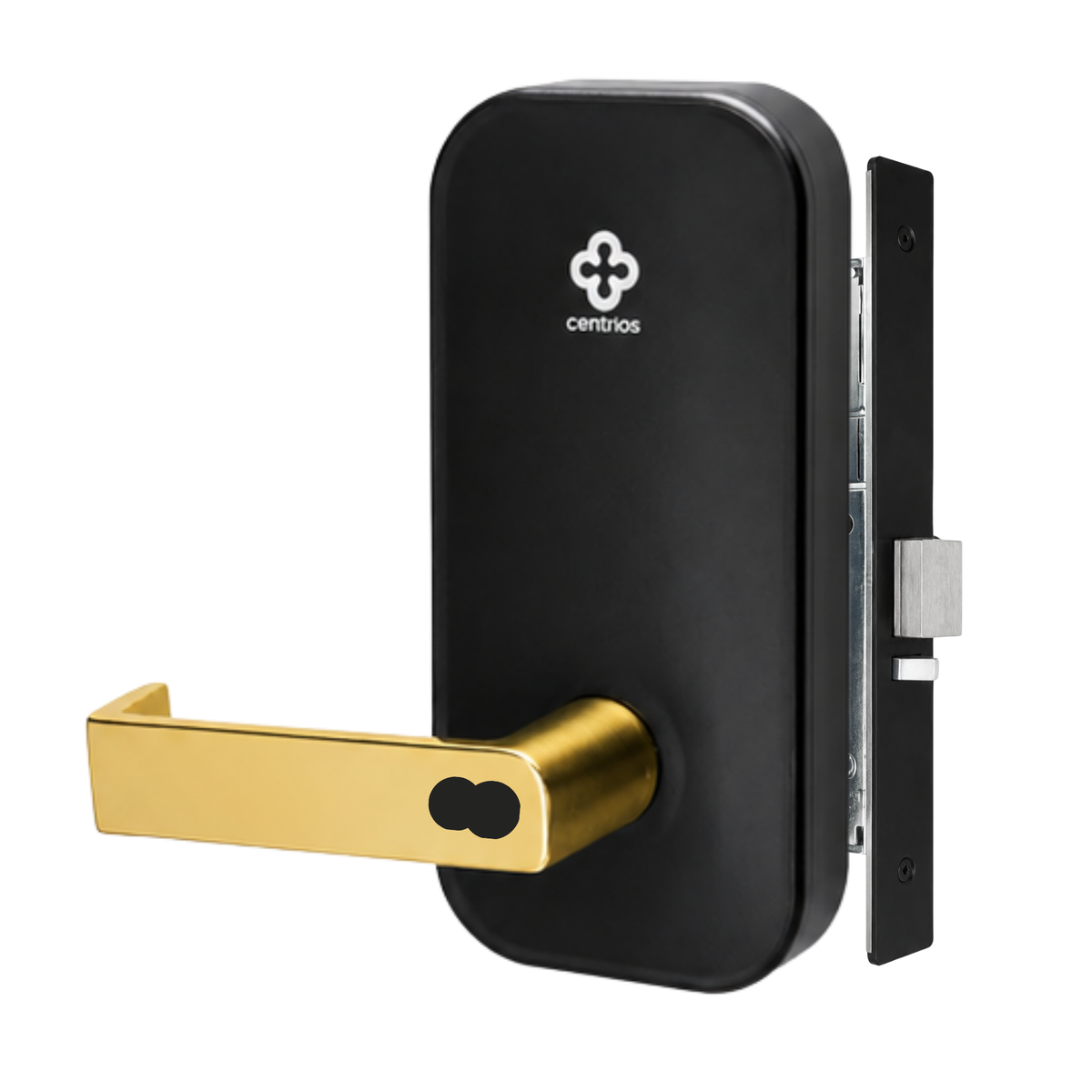

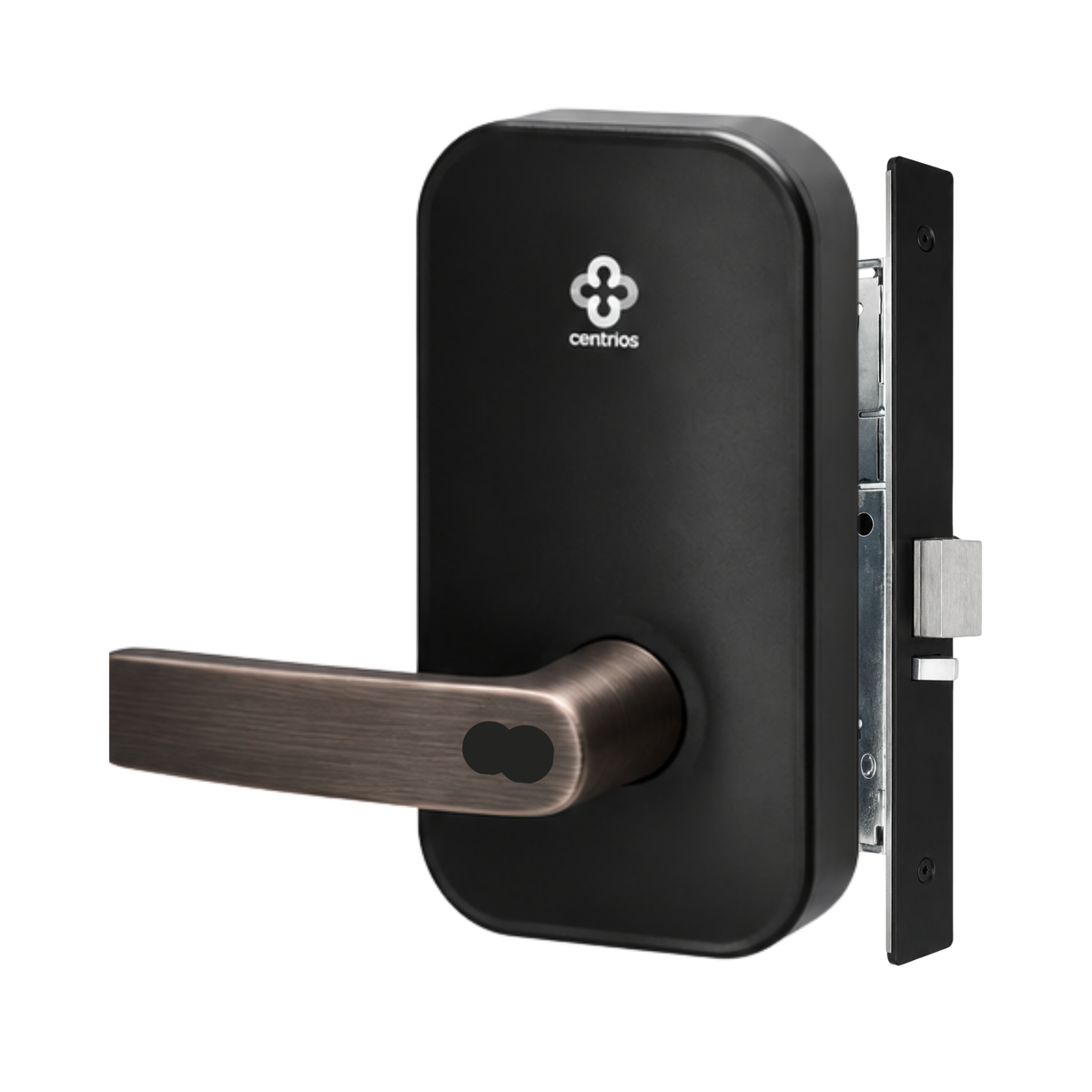

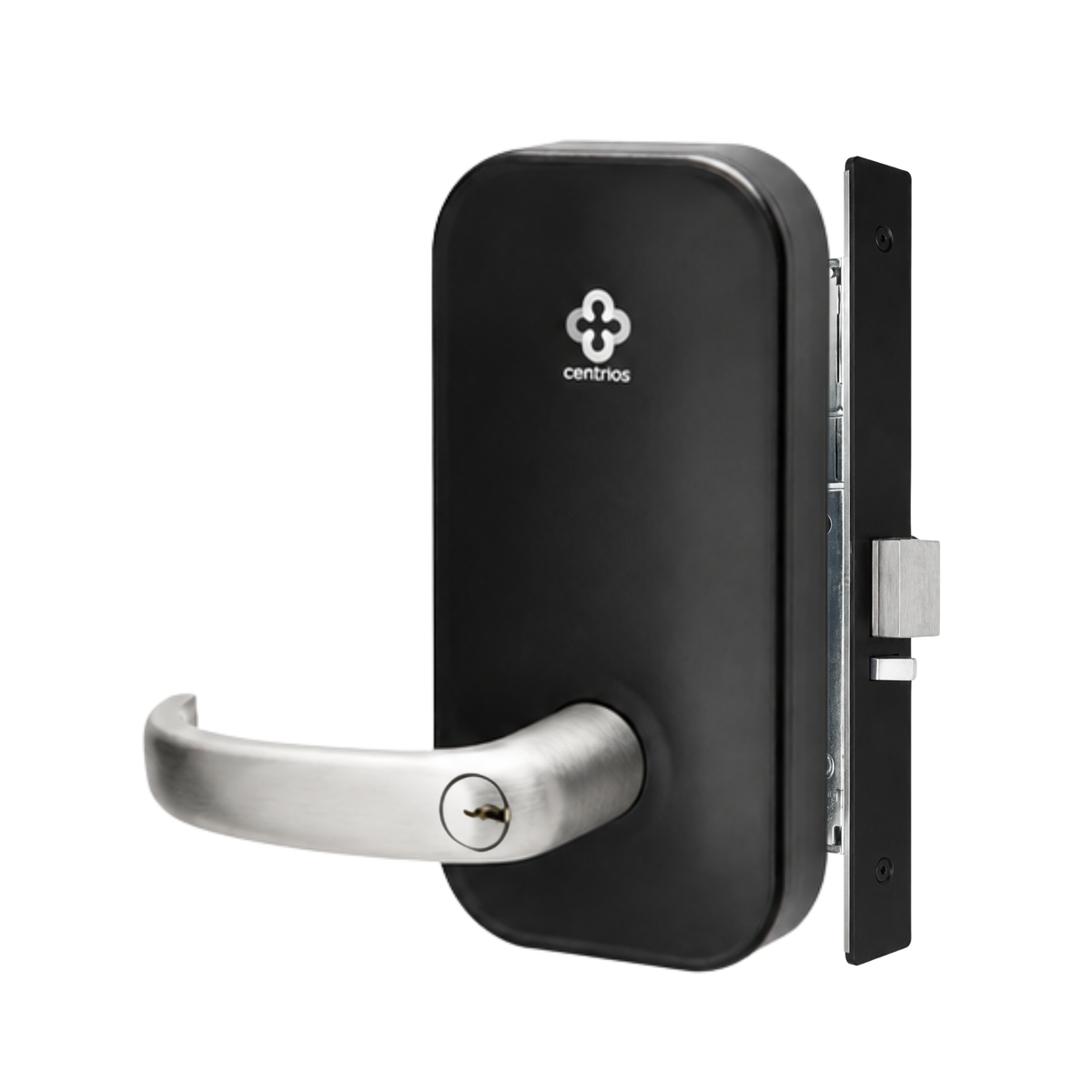

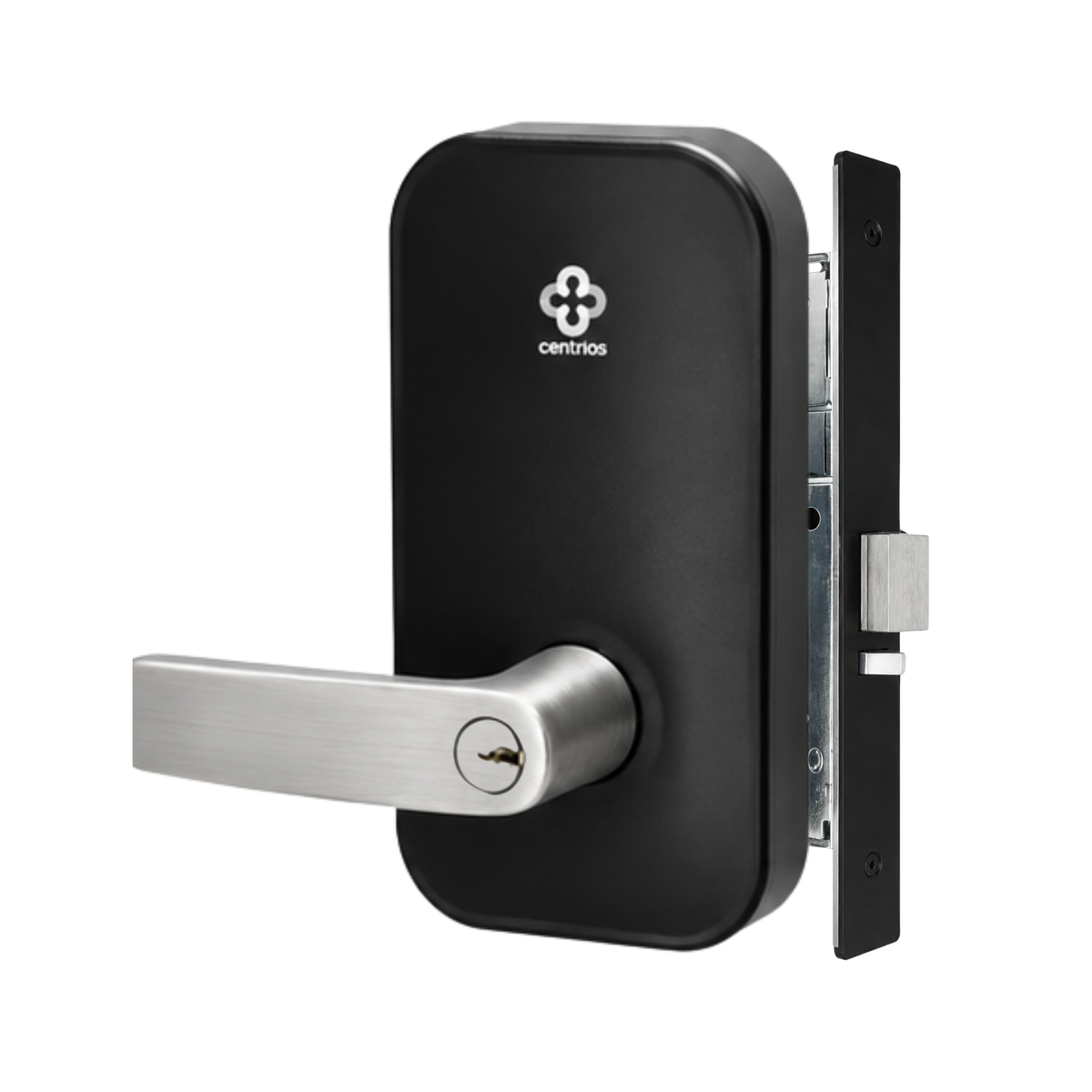

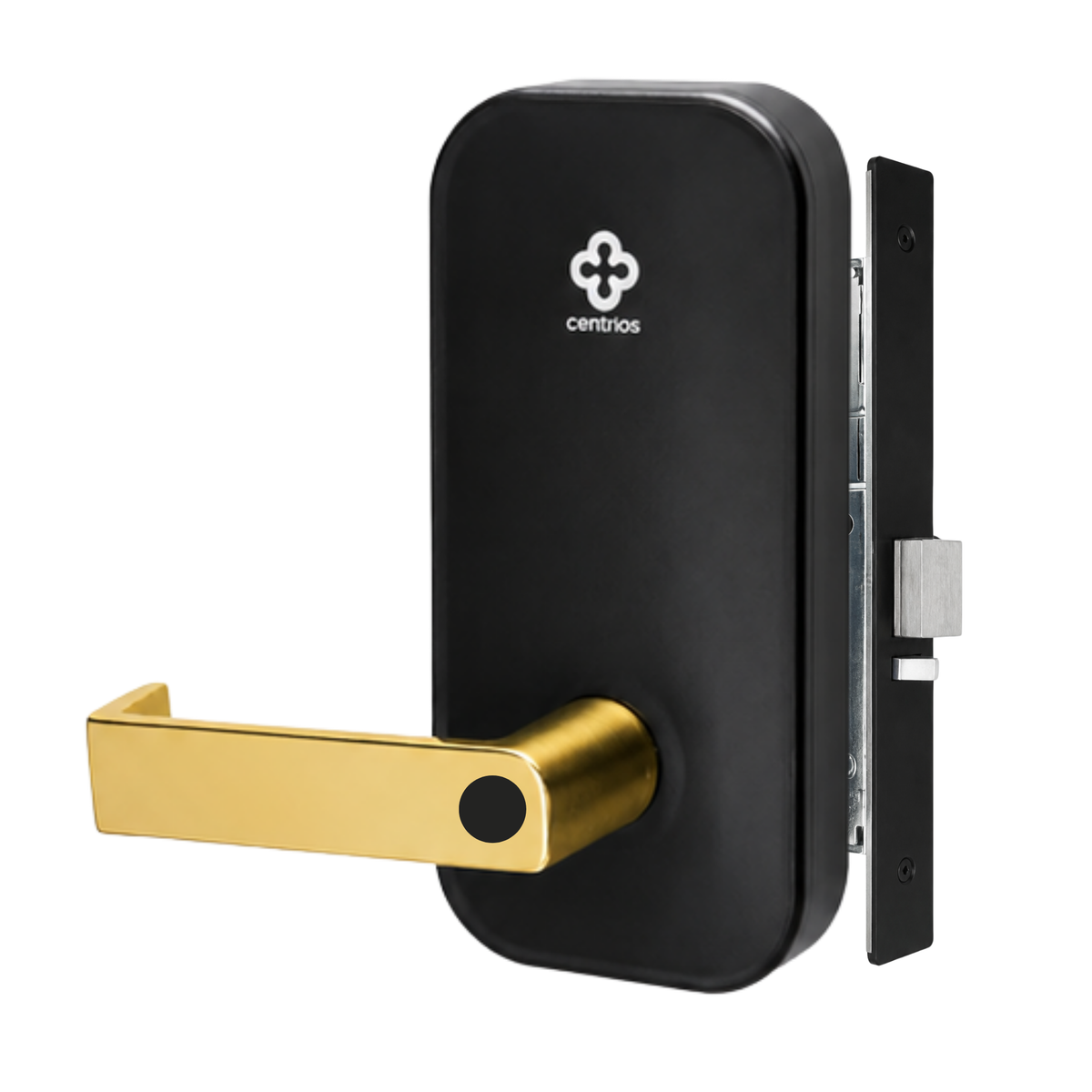

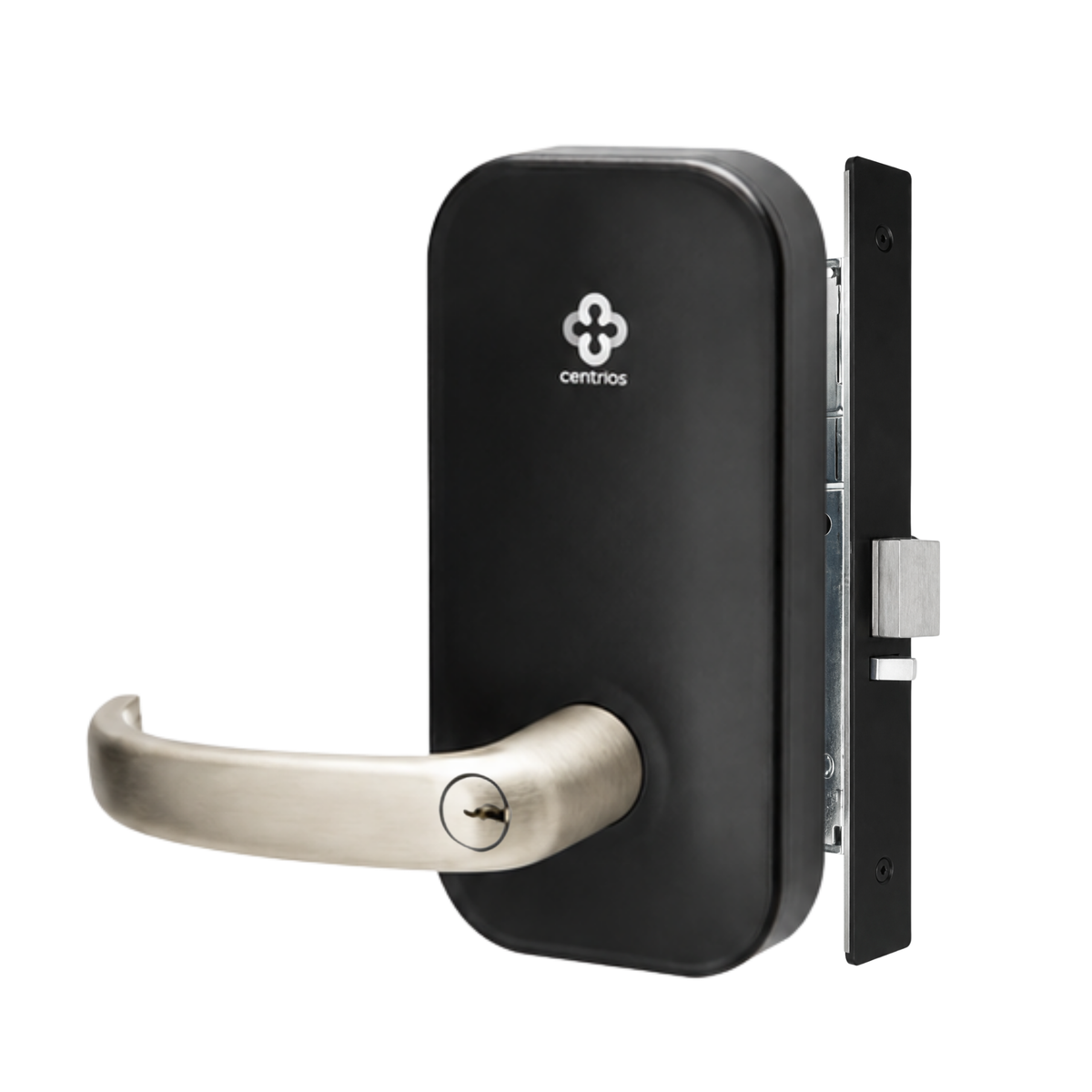

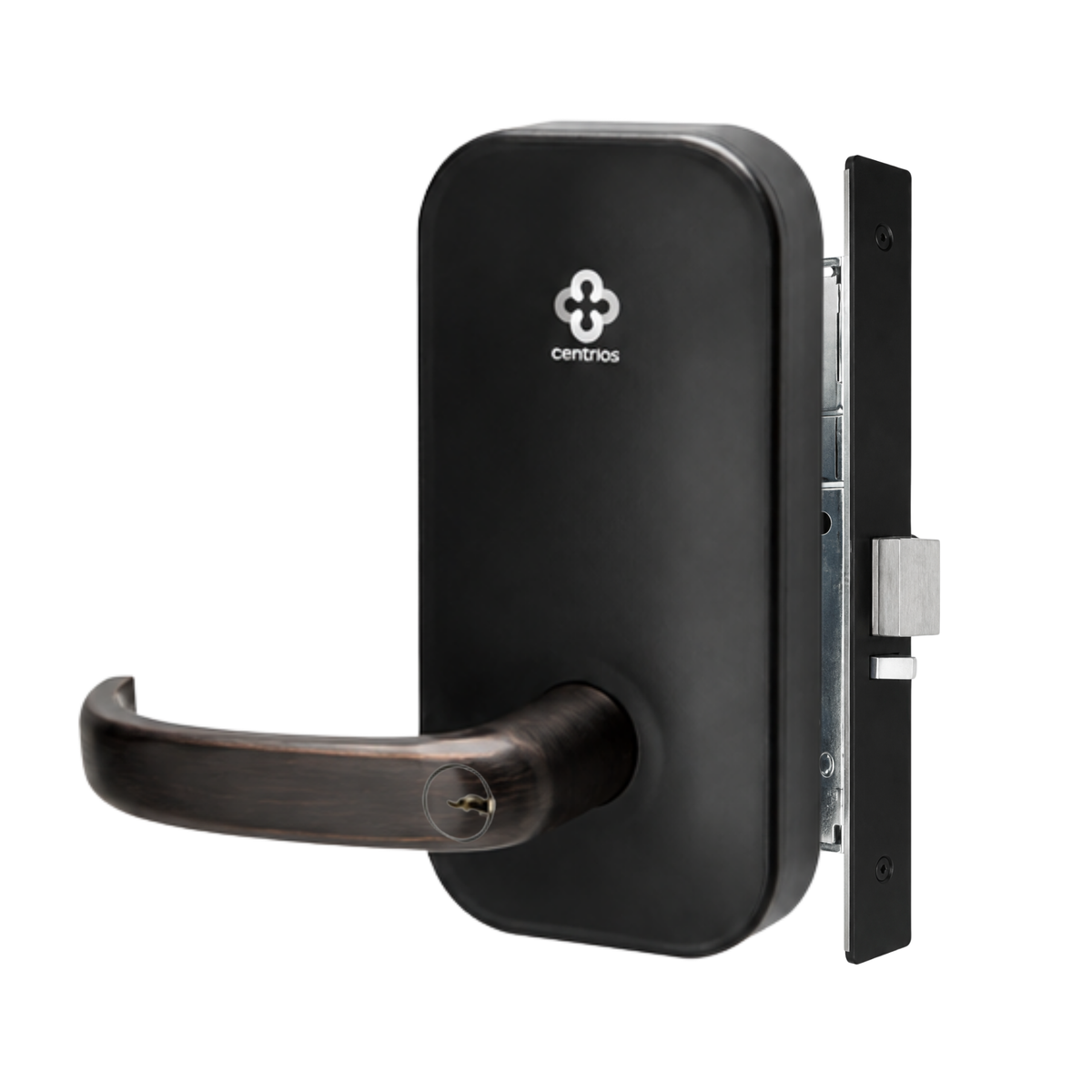

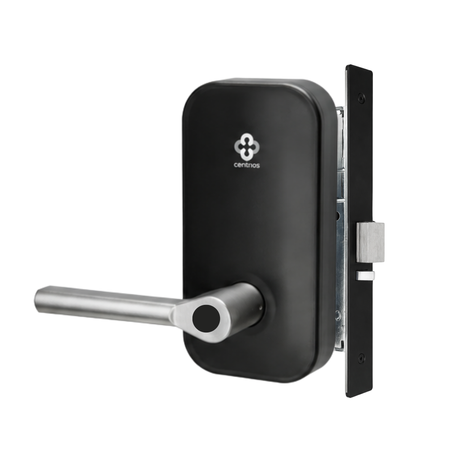

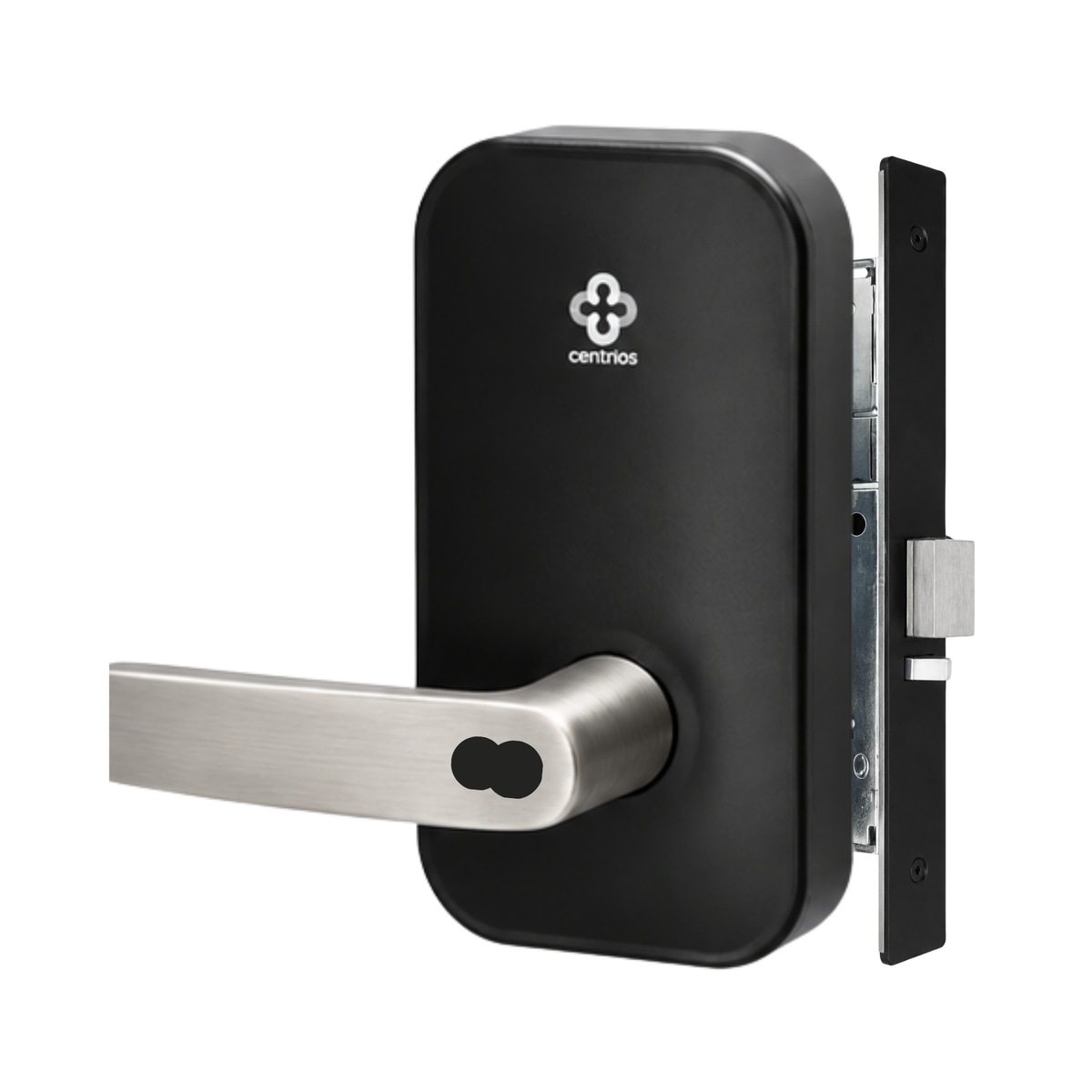

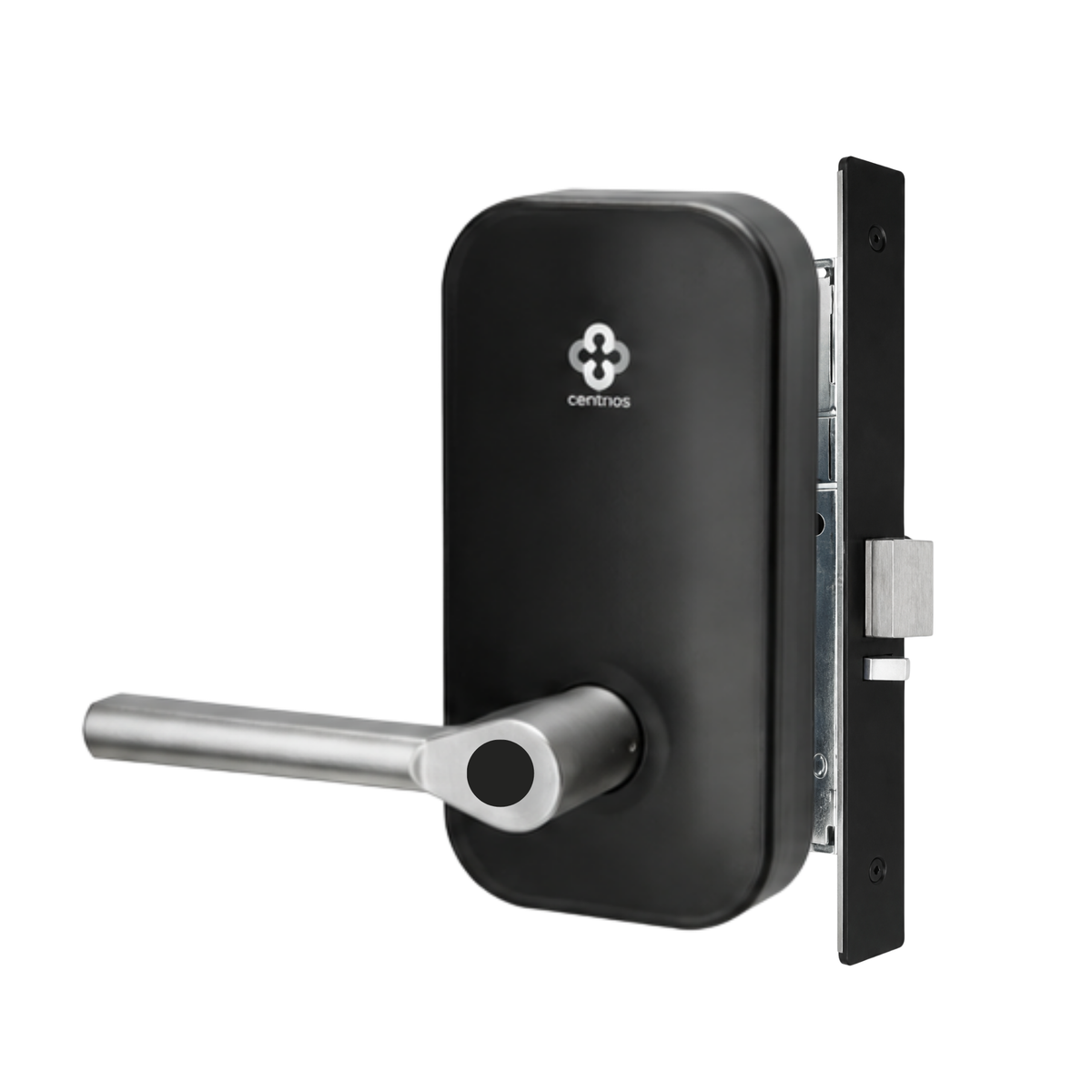

The Mortise Lock.
Gives you more ways to manage access.
Start your Centrios system with the Mortise Lock. Designed to fit most standard Mortise Lock doors, it gives you quick, key-free access and a simple path to managing your doors!
Where can the Mortise Lock go?
Main entrances, side entries, storage areas, workspaces, and beyond!
The Mortise Lock is designed specifically with business owners in mind. Engineered for speed of
installation, ease of use, and mixed functionality, the Mortise Lock is perfect for front doors, back
doors, storeroom doors, offices, and more.
What’s Included
1x Mortise Lock
1x Mortise Lock Body
4x AA Alkaline batteries
(included)
1x Door position sensor (DPS)
2x Mechanical keys
2 Year warranty
Design
Our Mortise Lock is low profile and sleek unit that looks great on any door. Designed with advanced polycarbonate our locks are scratch resistant and easy to clean.
Door compatibility
Easy to install with standard Mortise compatibility! No additional drilling required if you have a standard Mortise door prep with thru bolt holes.
Grade 1 strength
CEM100 key override model uses an ANSI/BHMA Grade 1 ASSA ABLOY ACCENTRA® 8800 mortise lock for long life and durability. The CEM102 Key Free option is ANSI/BHMA A156.13 Certified Grade 1 mortise solution.
Durability
Rated to prevent the spread of fire for 3 or more hours. In short, they work day-in, day-out no matter what.
Access methods
Mechanical key, Bluetooth® mobile access, Centrios Cards and Fobs.
Power supply
Operates up to one year on four AA Alkaline batteries. Has 9V DC power backup.

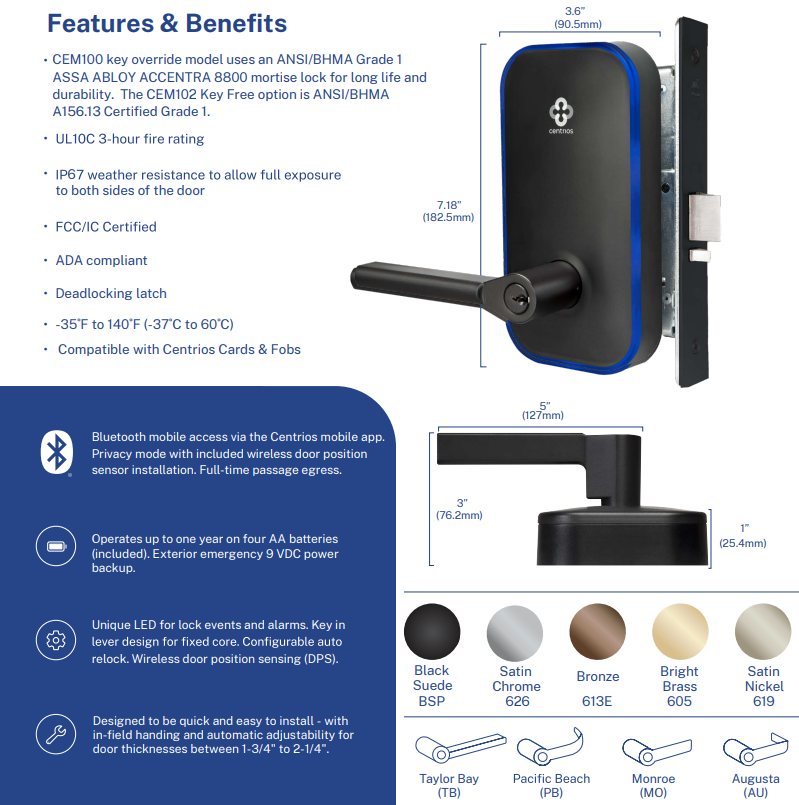

Features & Benefits
UL 10C 3-hour fire rating
IP67 weather resistant to allow full exposure to both sides of the door
FCC/IC Certified
ADA Compliant
Deadlocking latch
-35 F to 140 F
-37 C to 63 C
Warranty
2 year electronic, mechanical, and finish warranty.
Can I Still Use a Physical Key to Operate My Door?
The Centrios Mortise Lock is available keyed and key free. Keyed versions include two matching keys. Smart reader products offer a capacitive touch keypad. No key/ cylinder solutions are available for the Smart Reader.
What are the supported door applications for the Centrios Mortise Lock?
The Centrios Mortise Lock is intended for interior or exterior openings with a standard Mortise prep.
What is the Ingress Protection (IP) rating for the Centrios Mortise Lock?
The Centrios Mortise Lock has an IP67 rating.
