Design

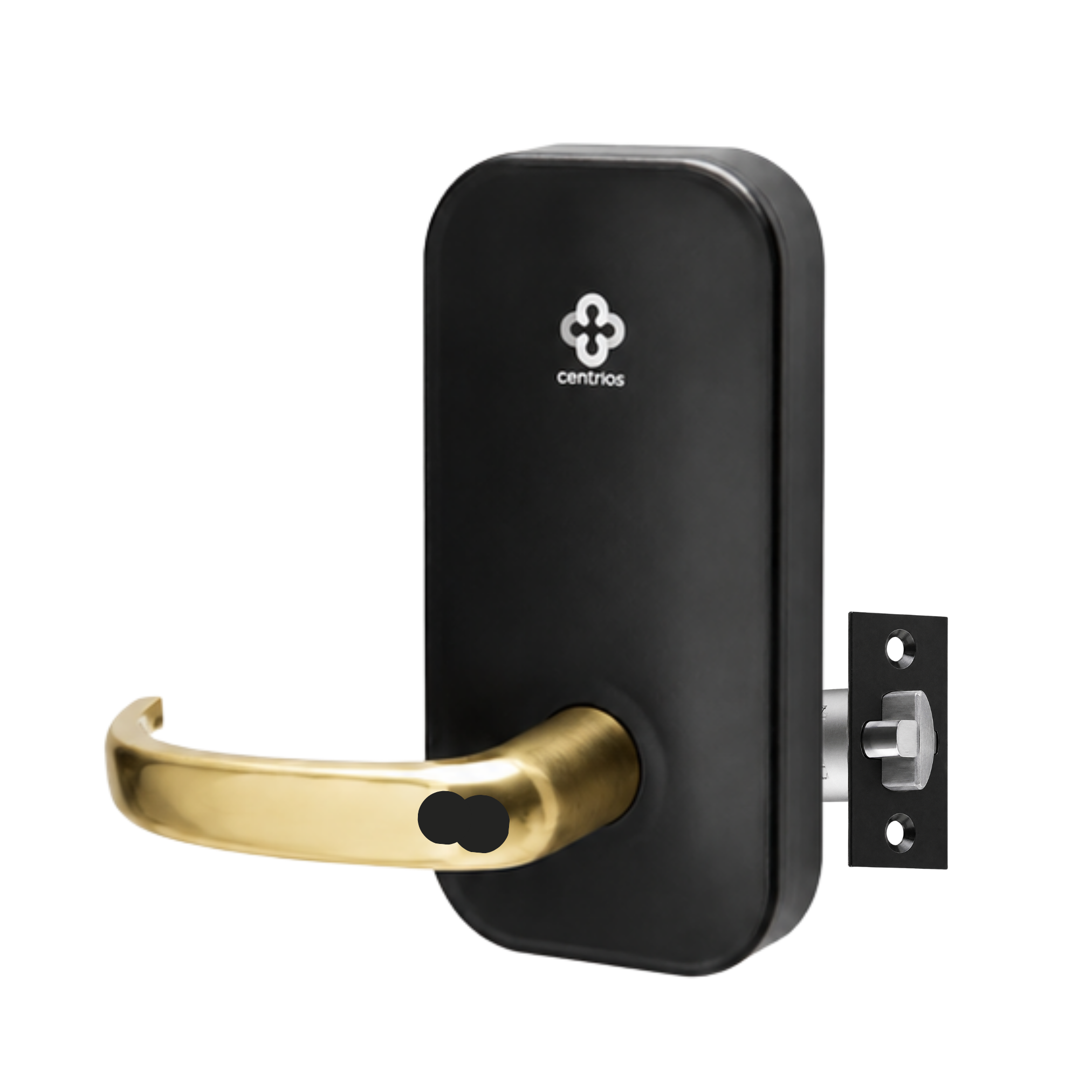

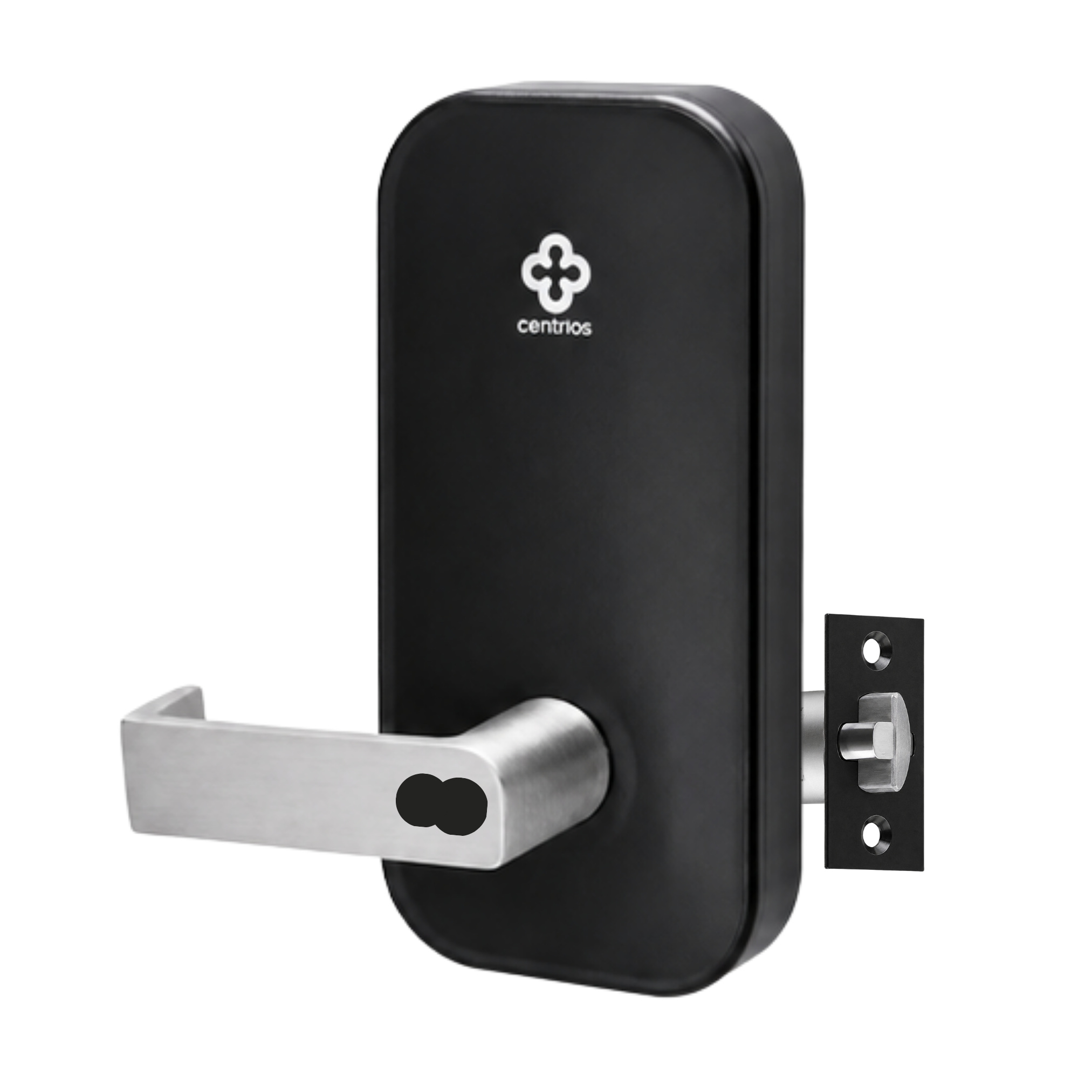

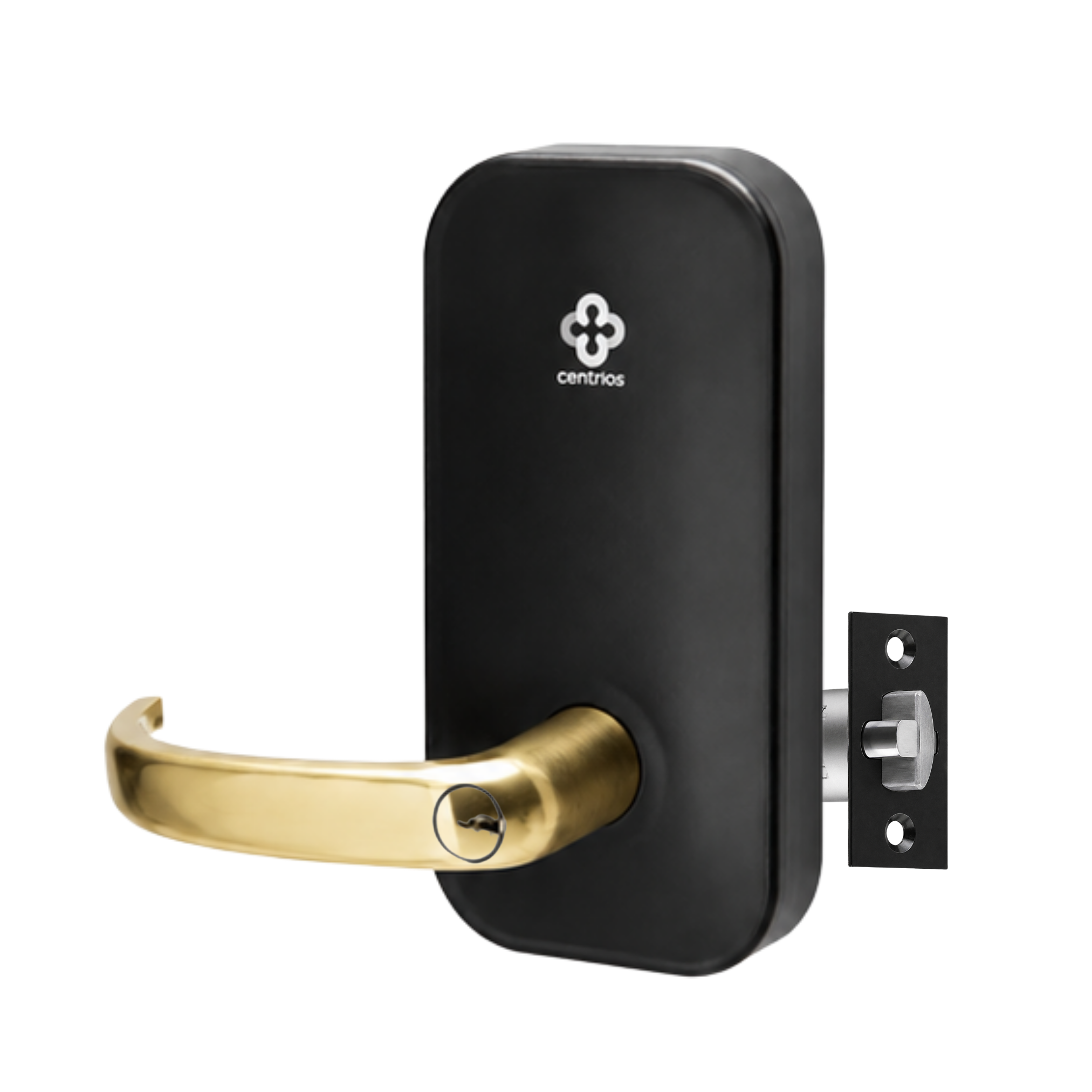

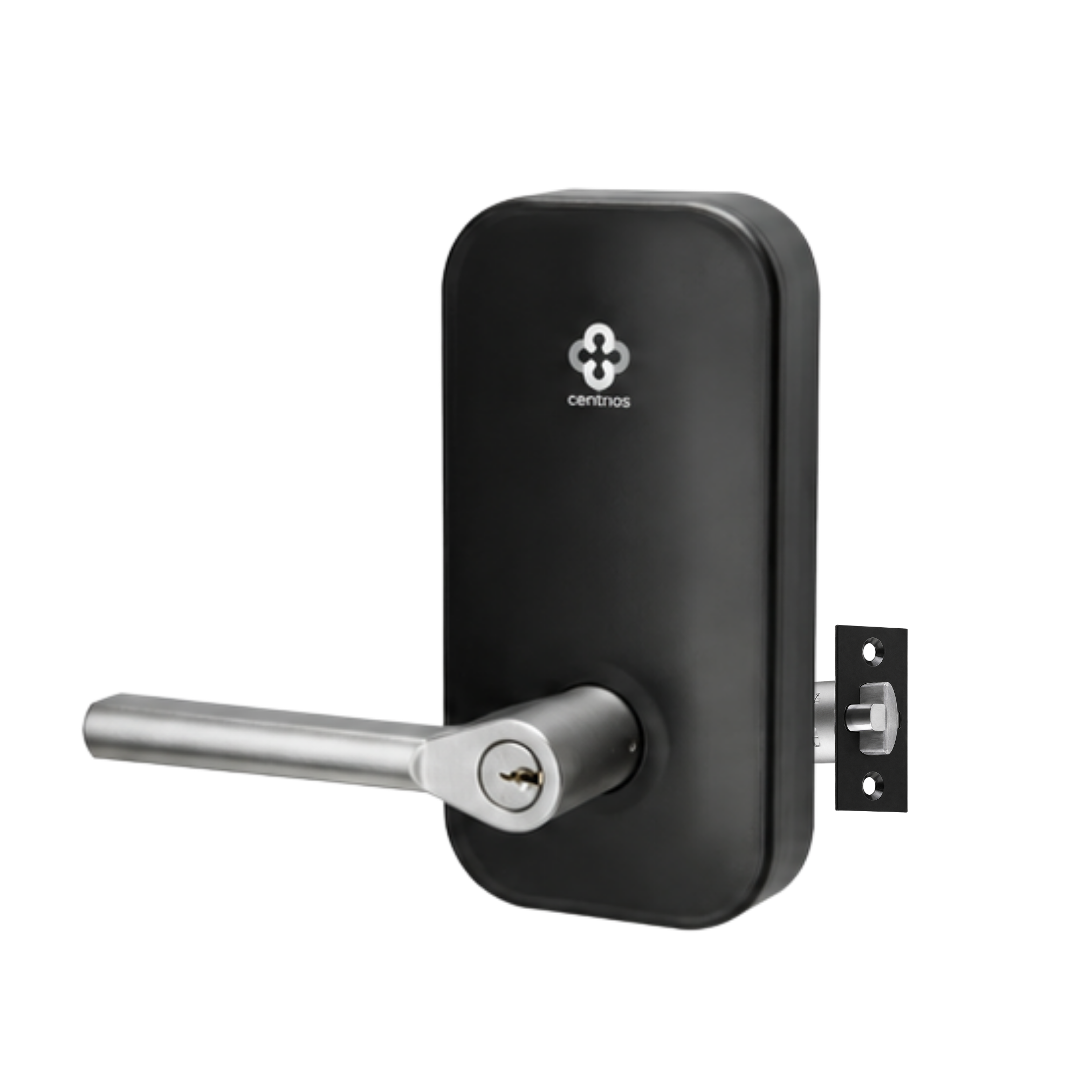

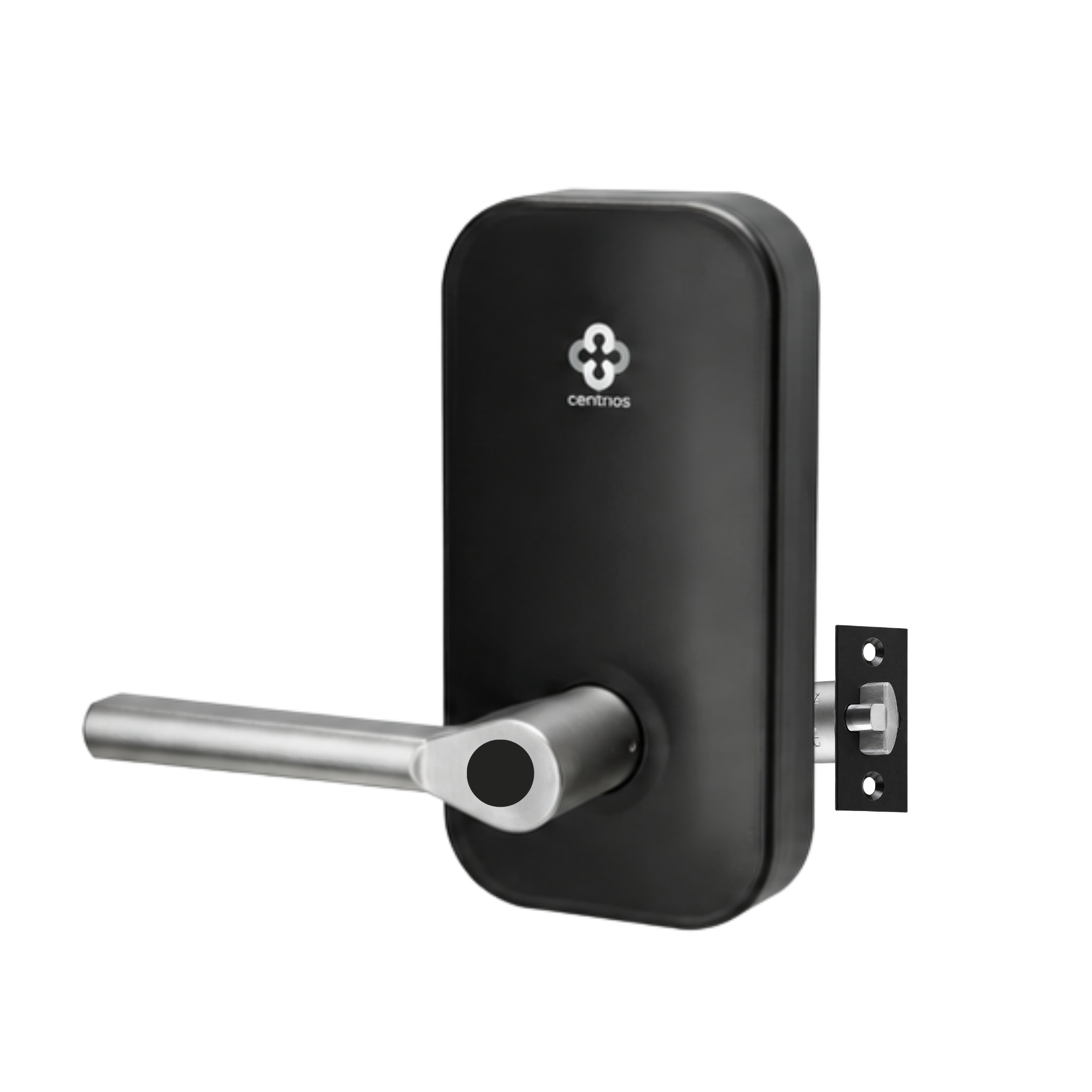

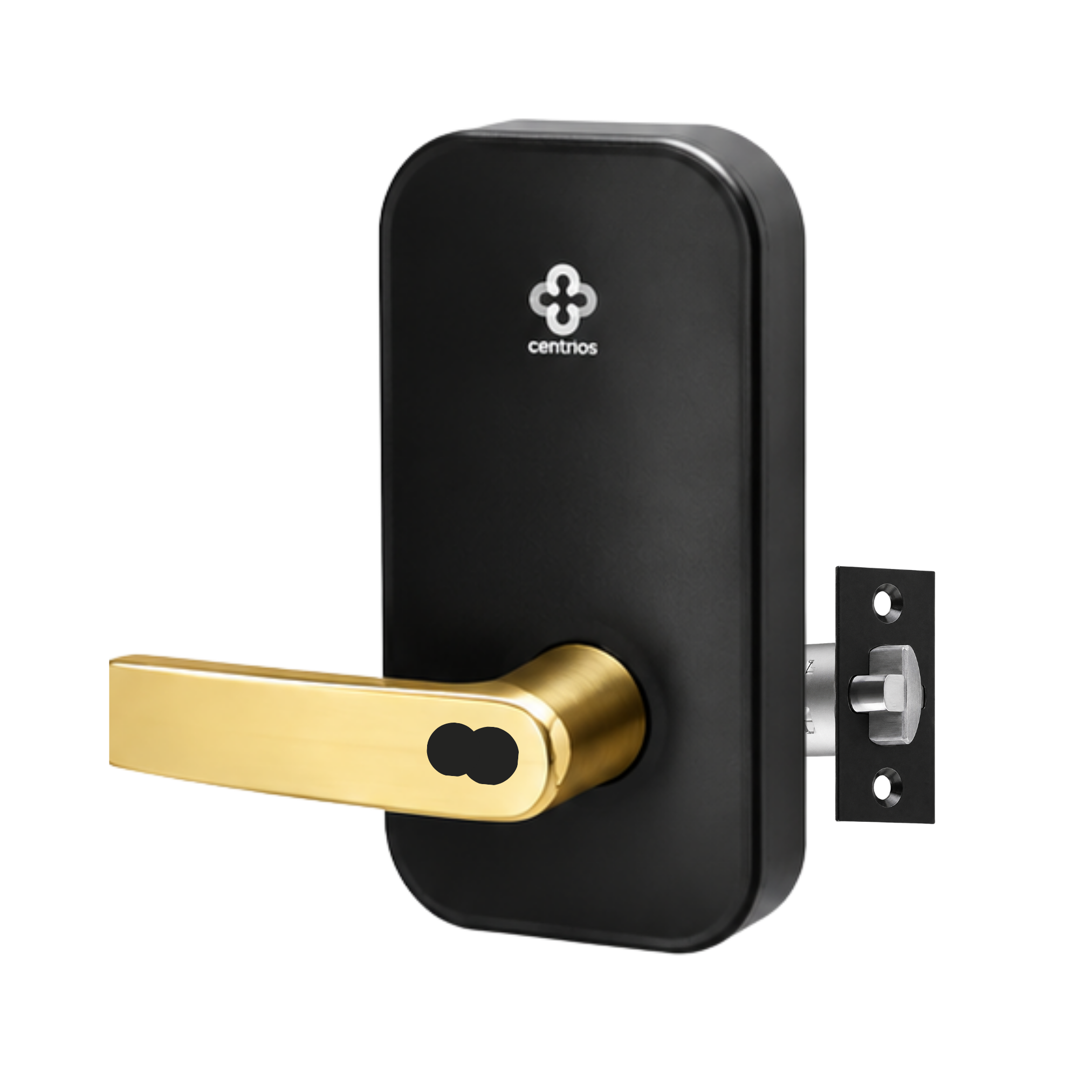

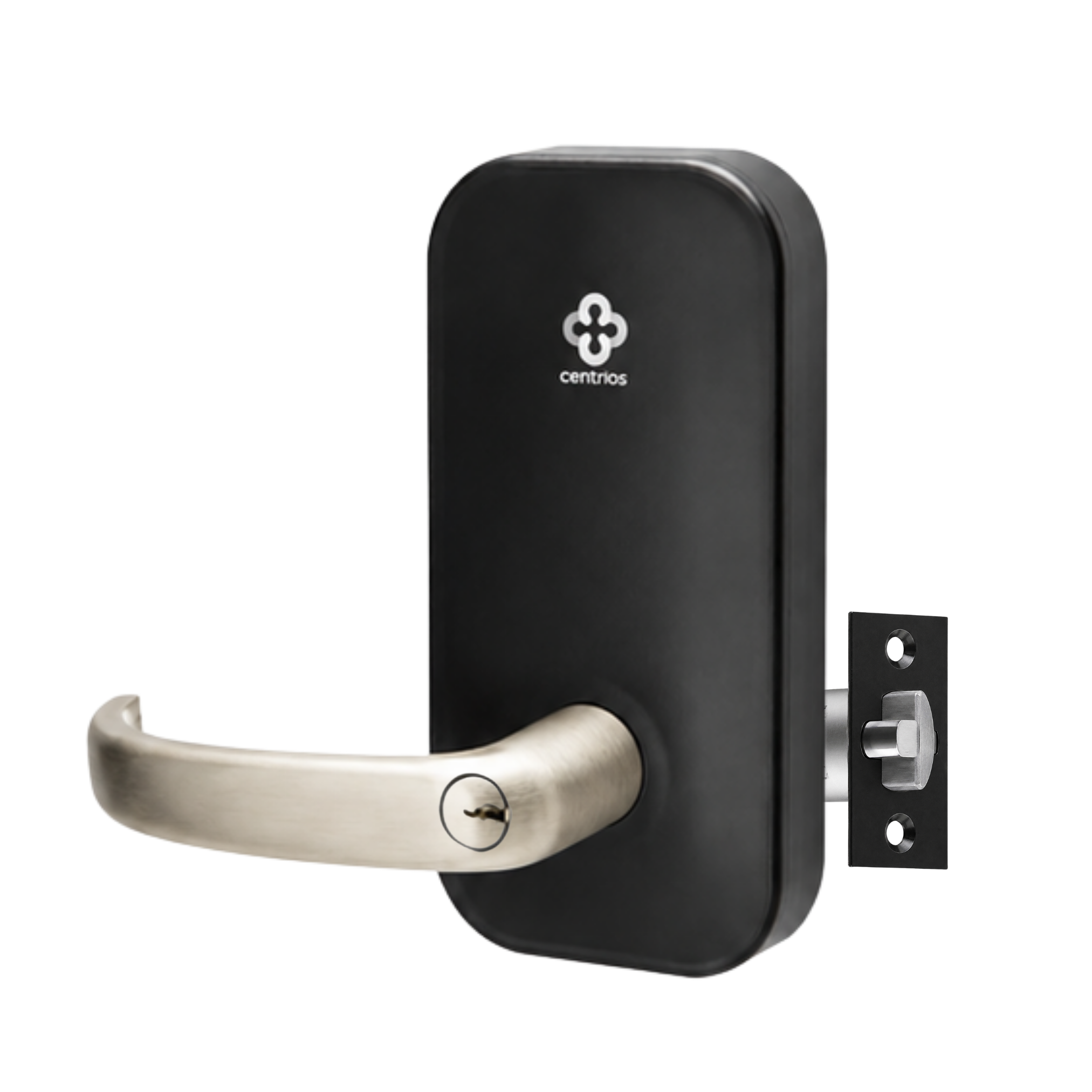

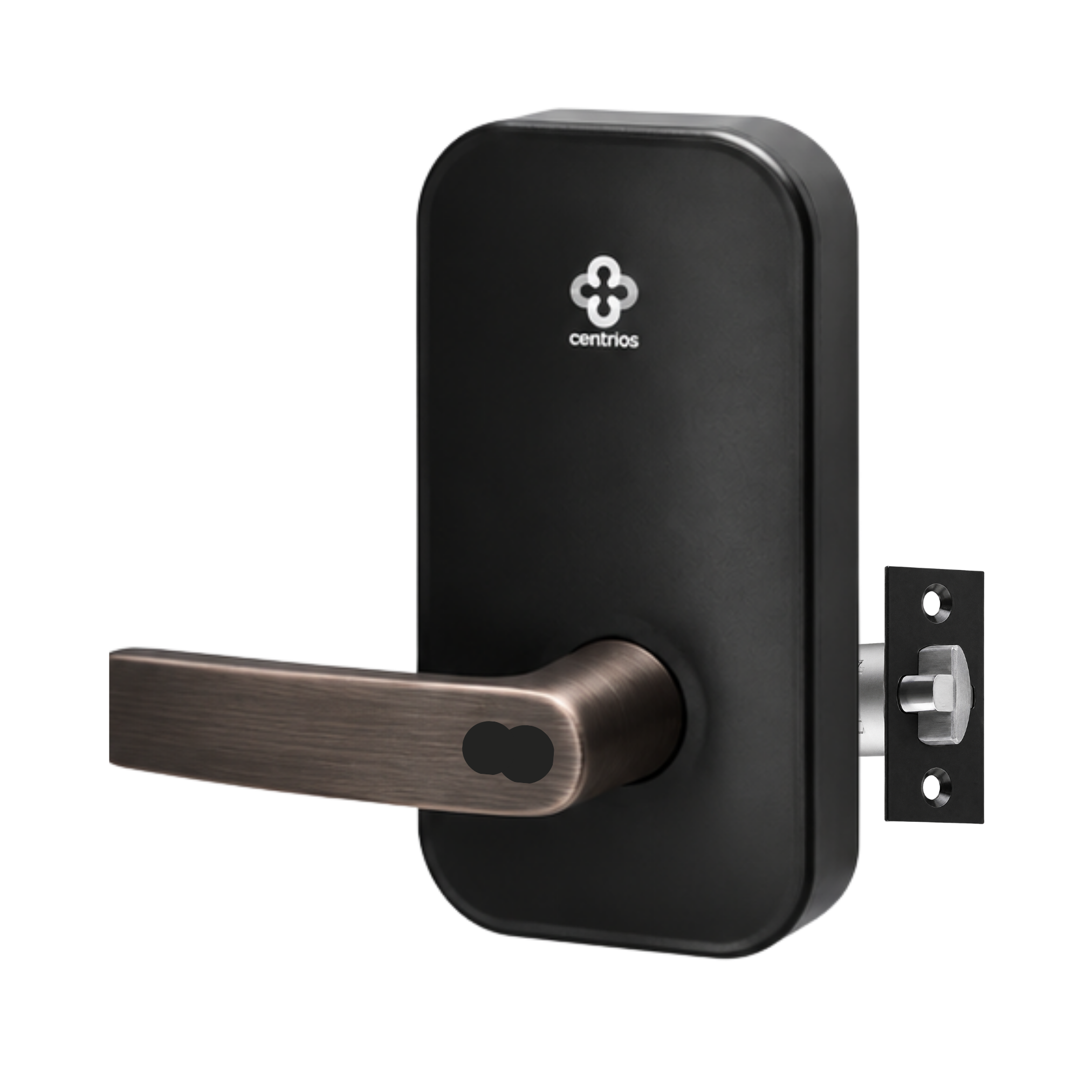

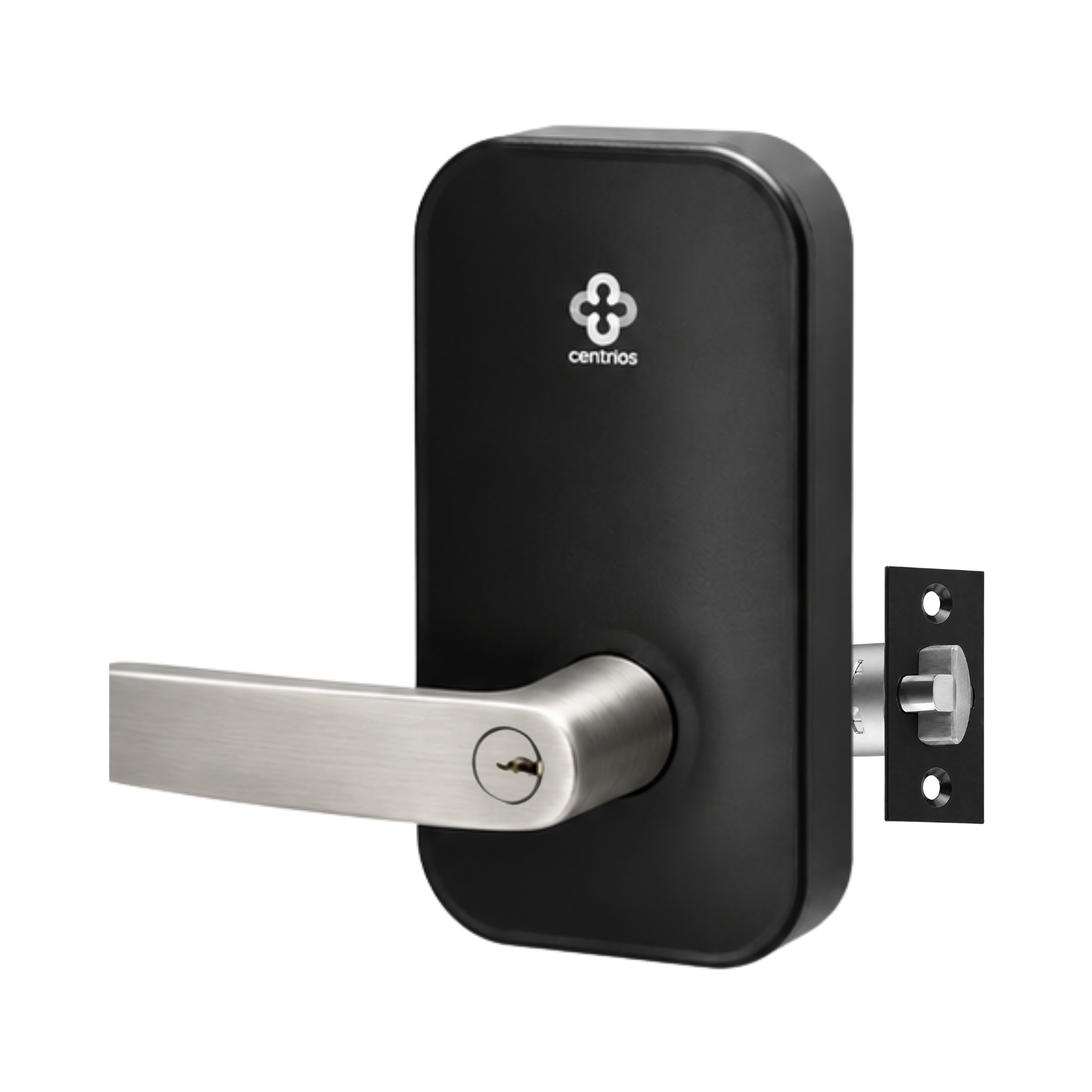

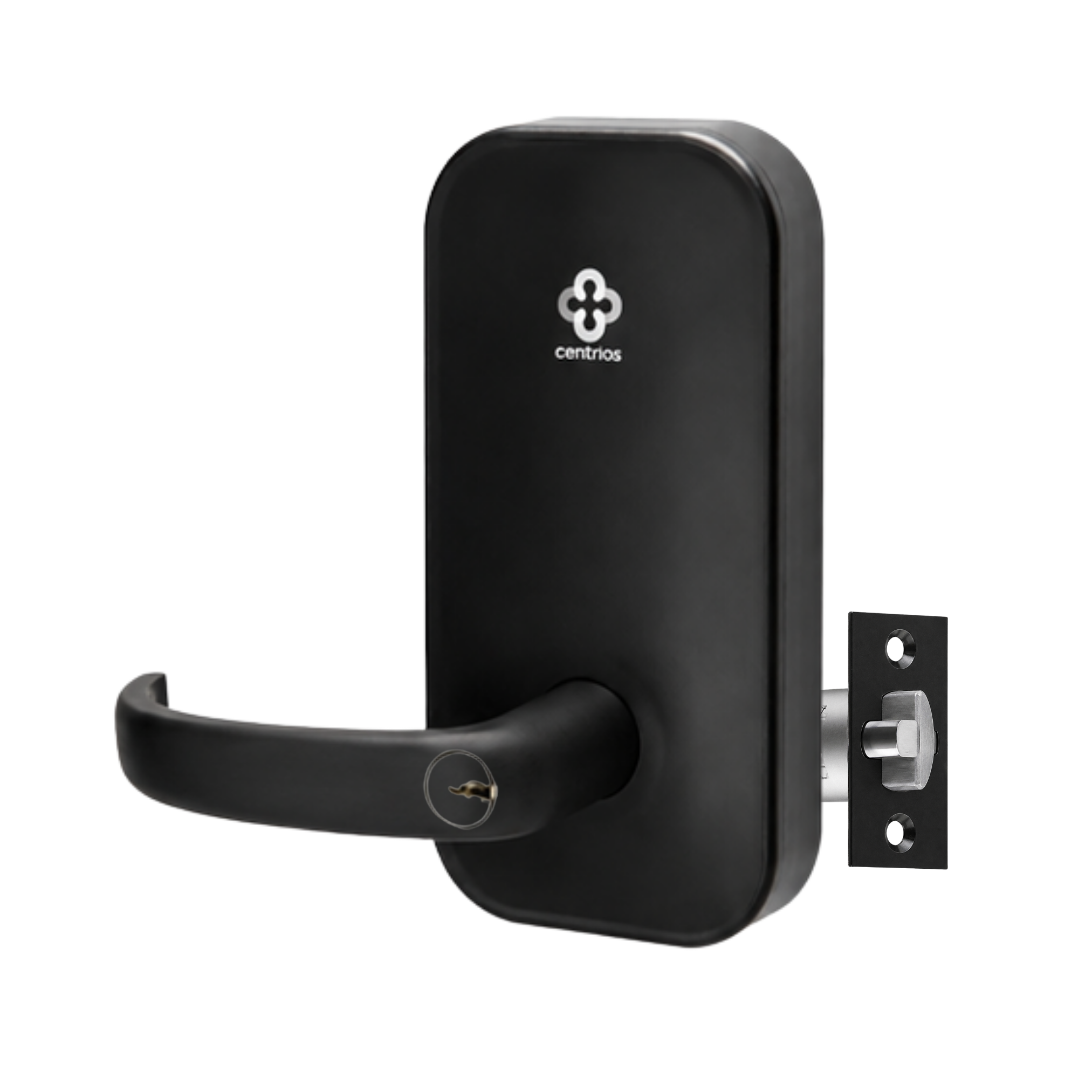

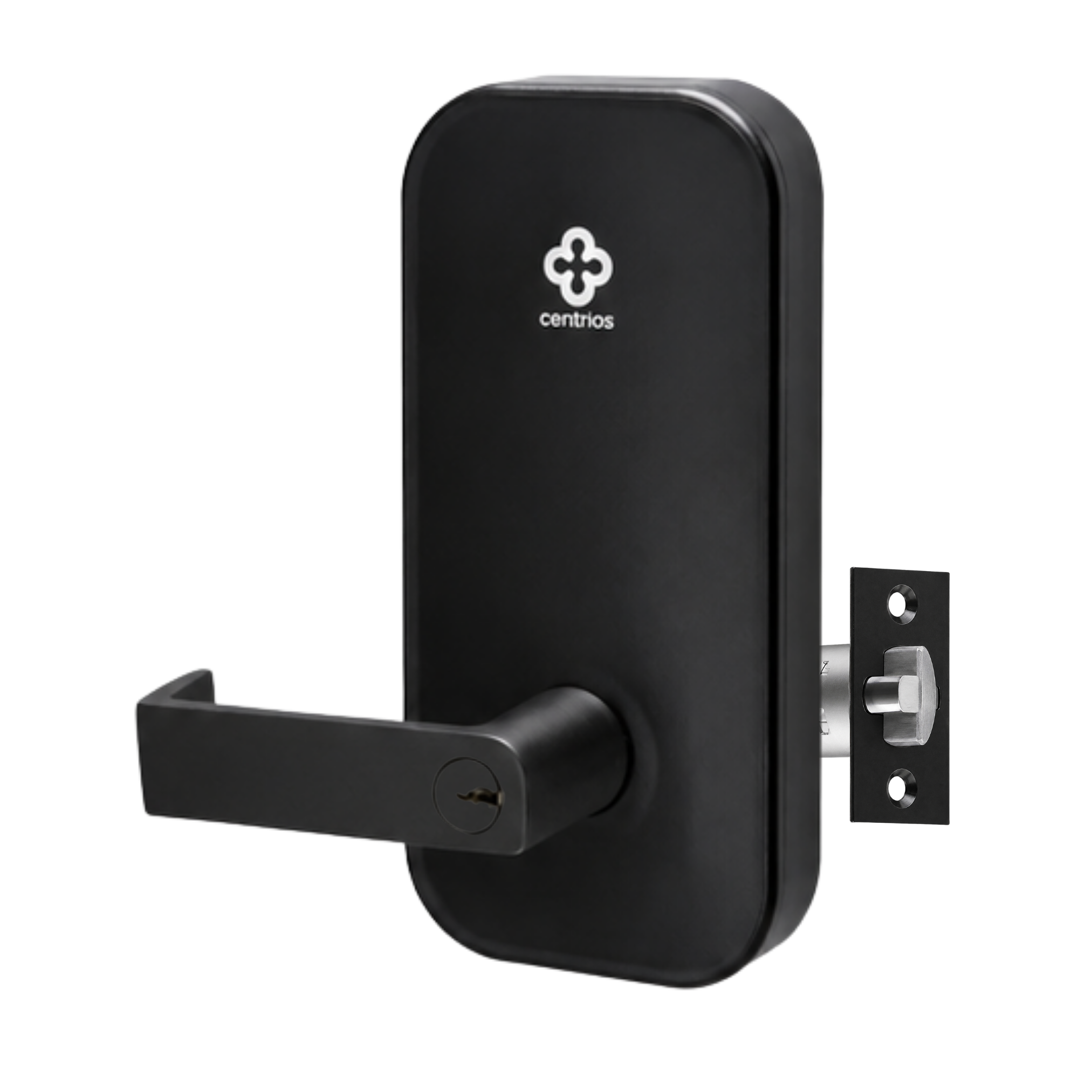

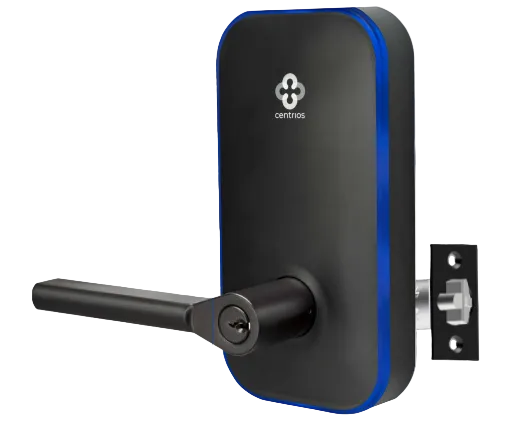

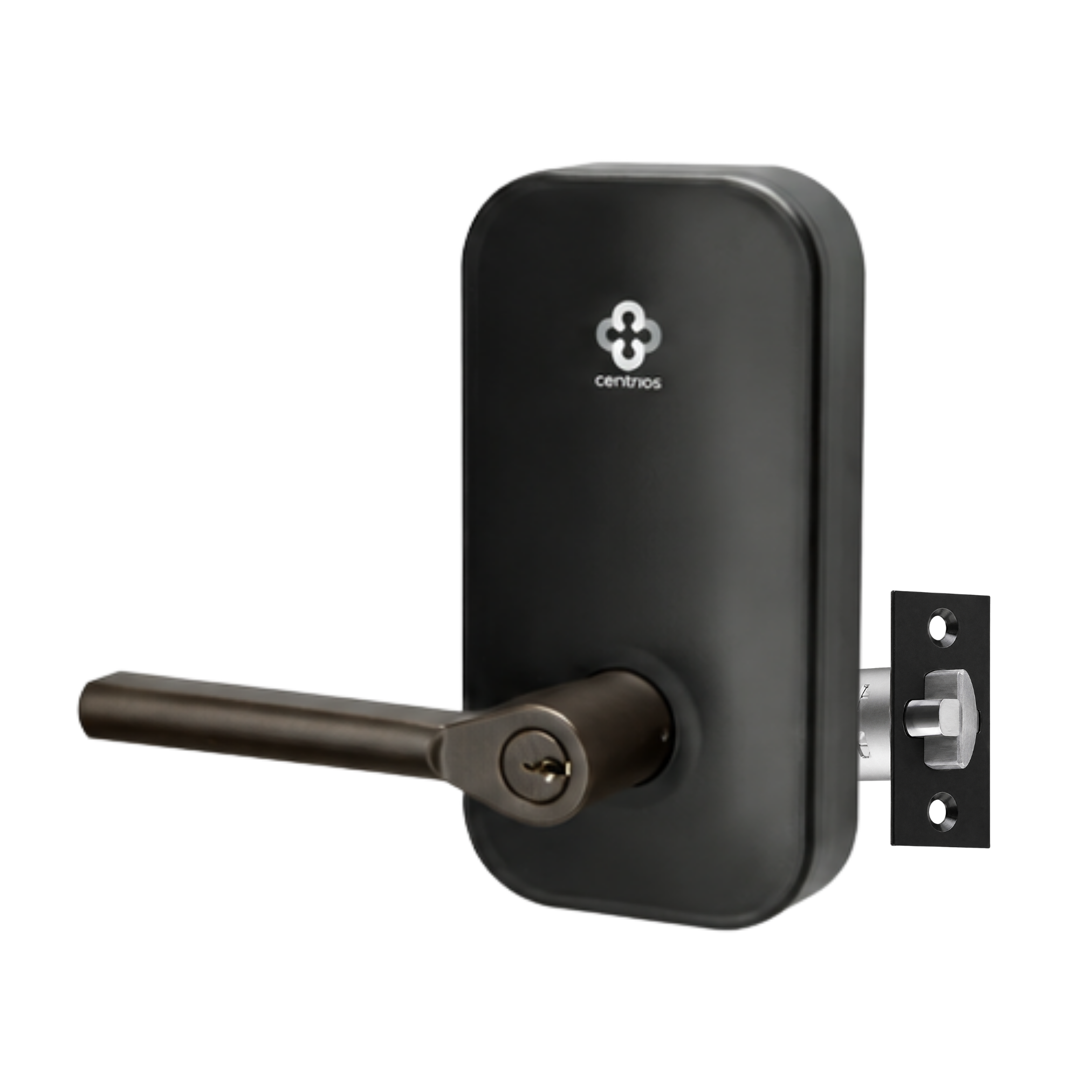

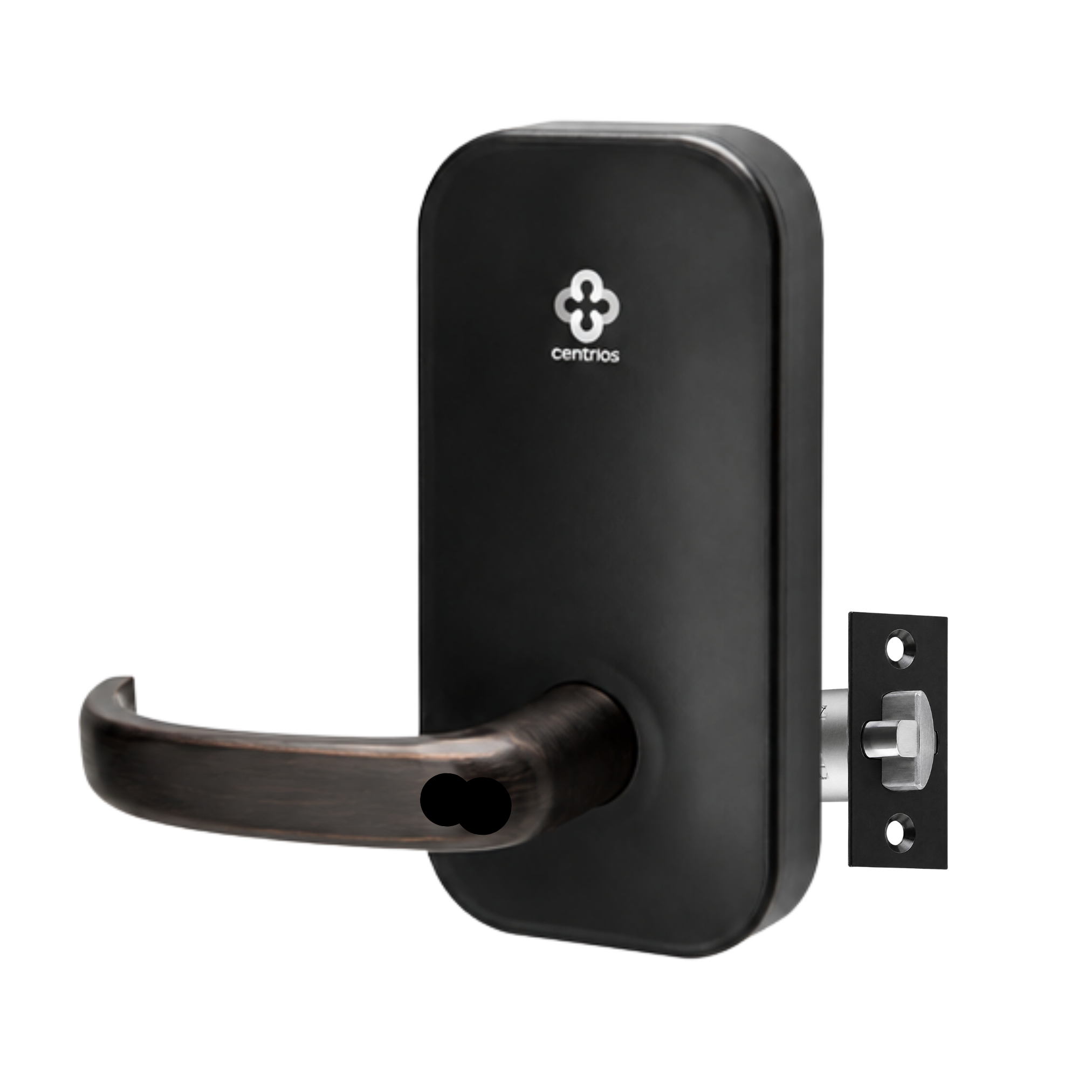

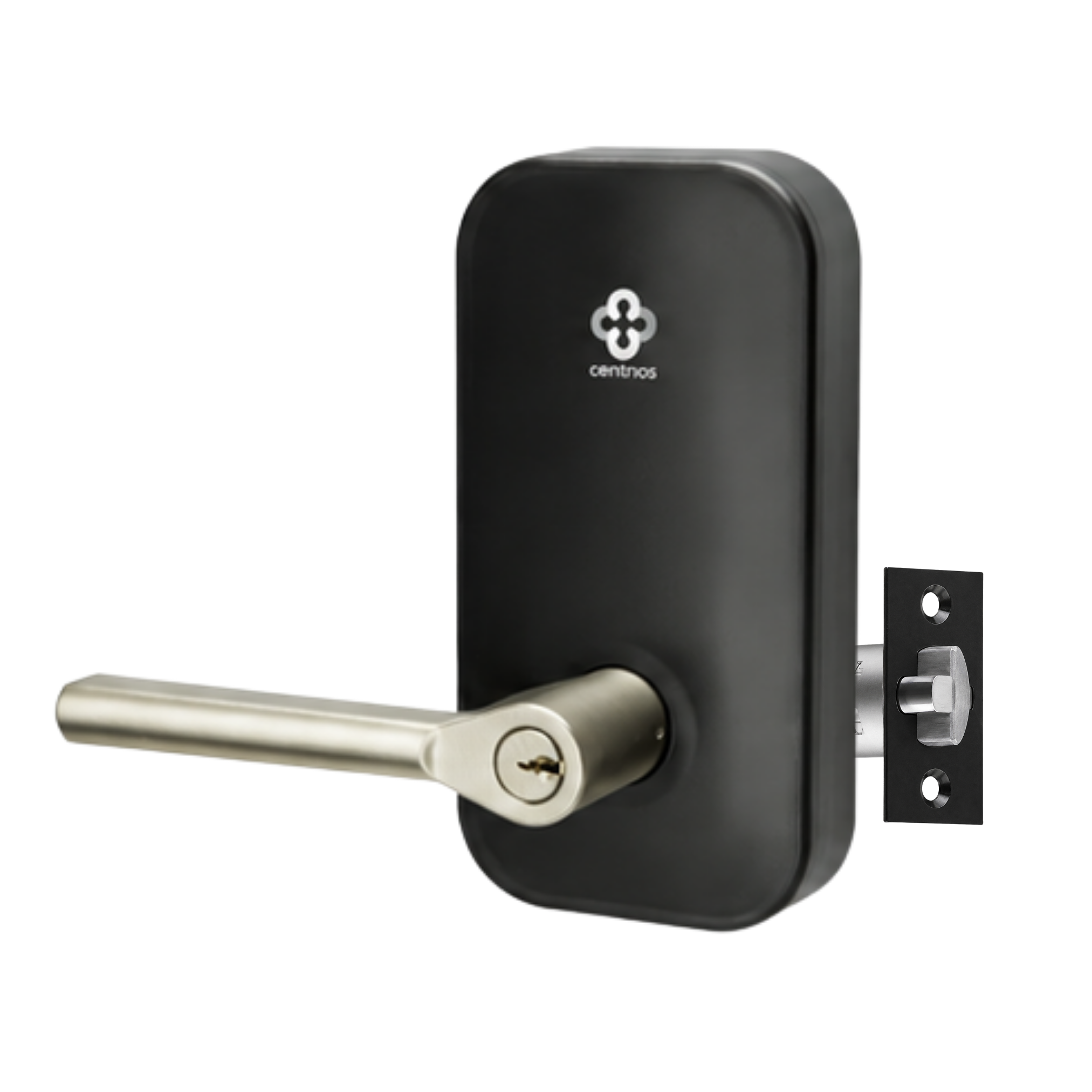

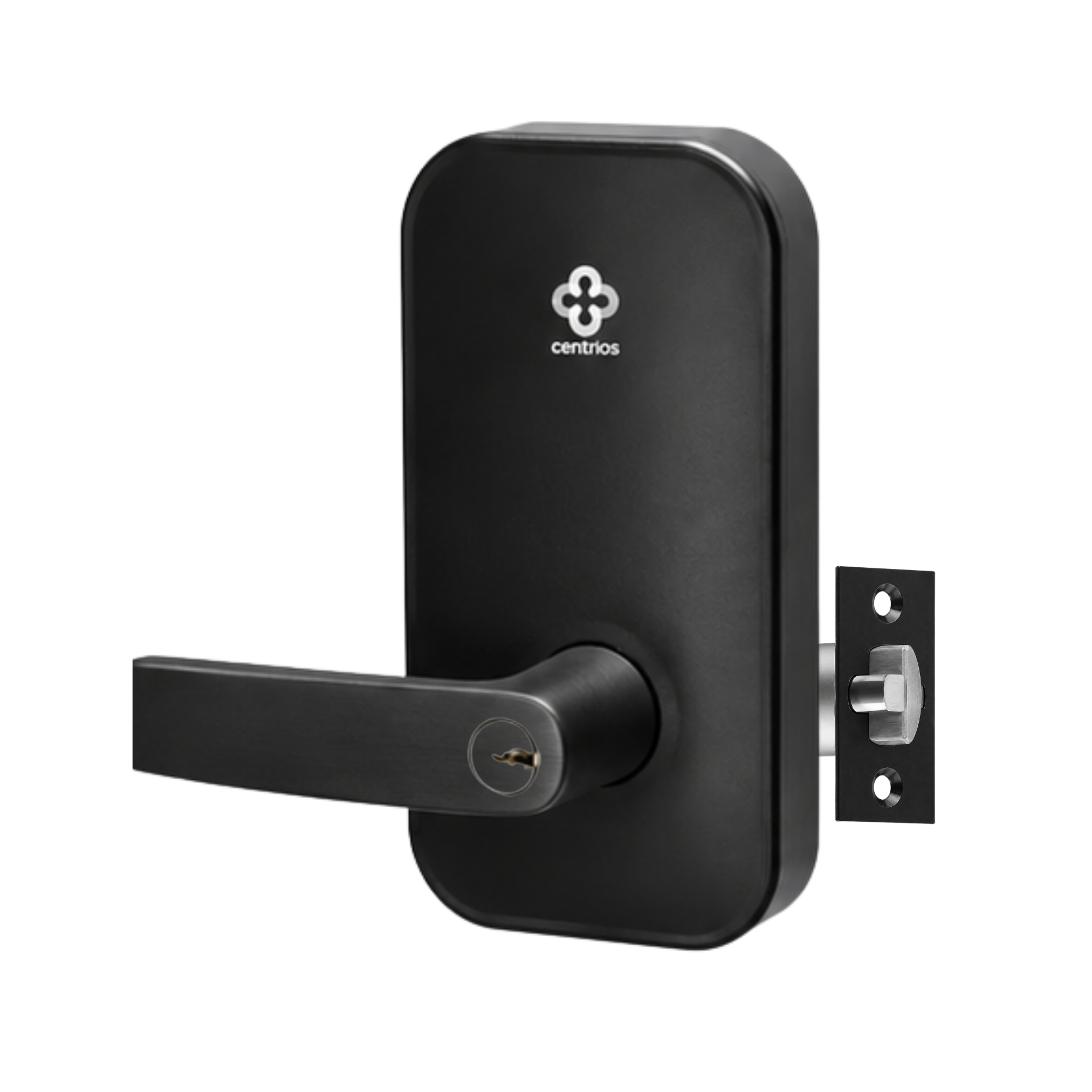

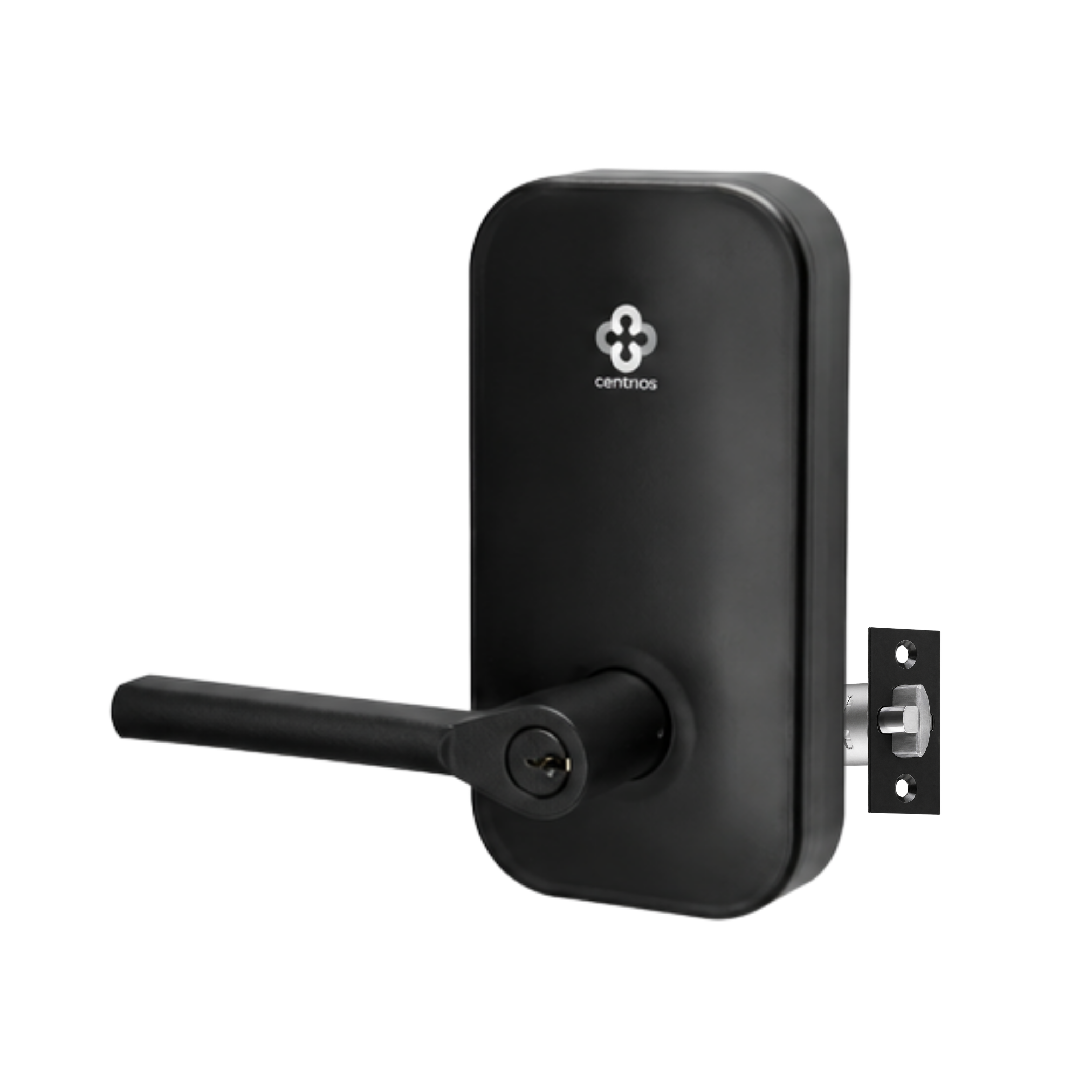

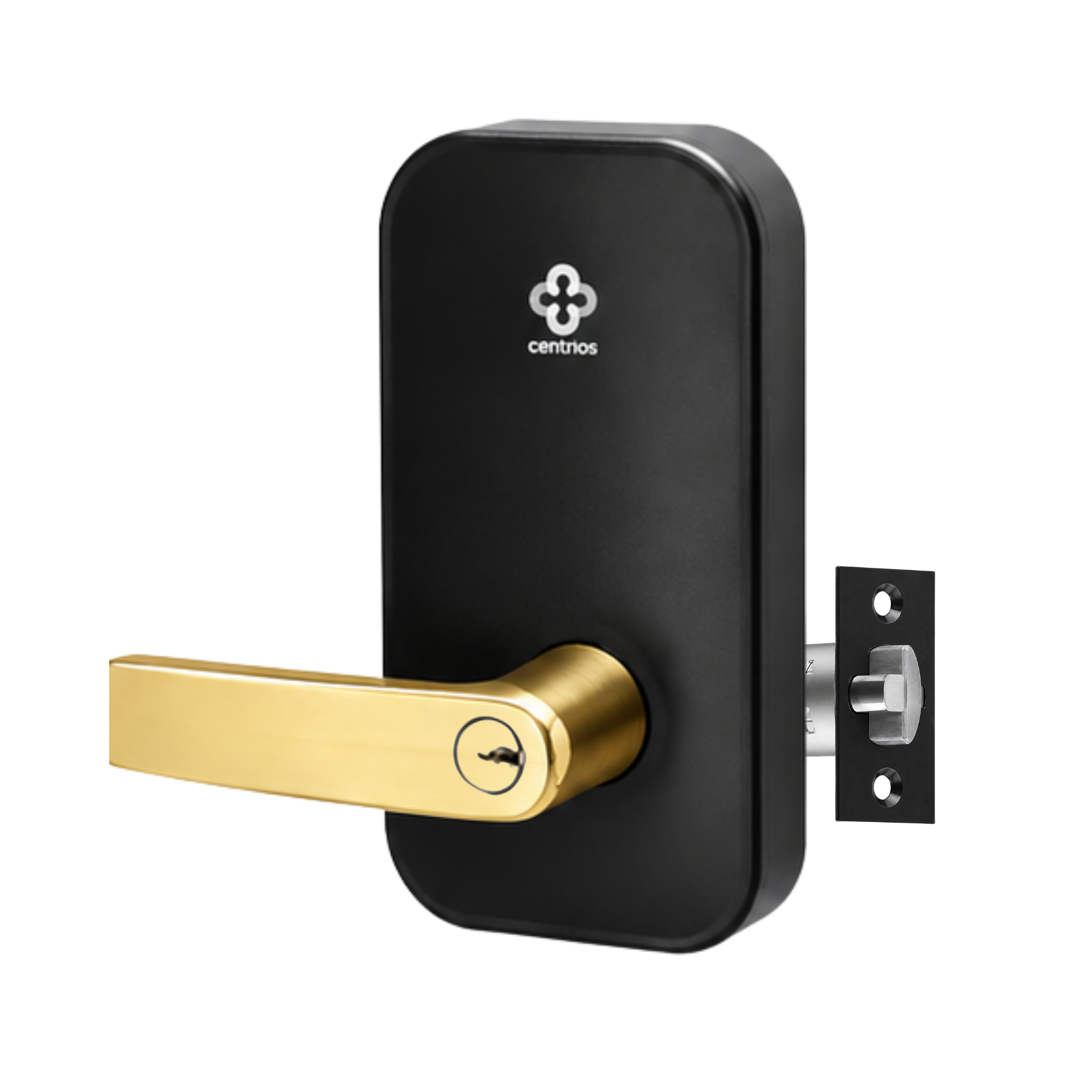

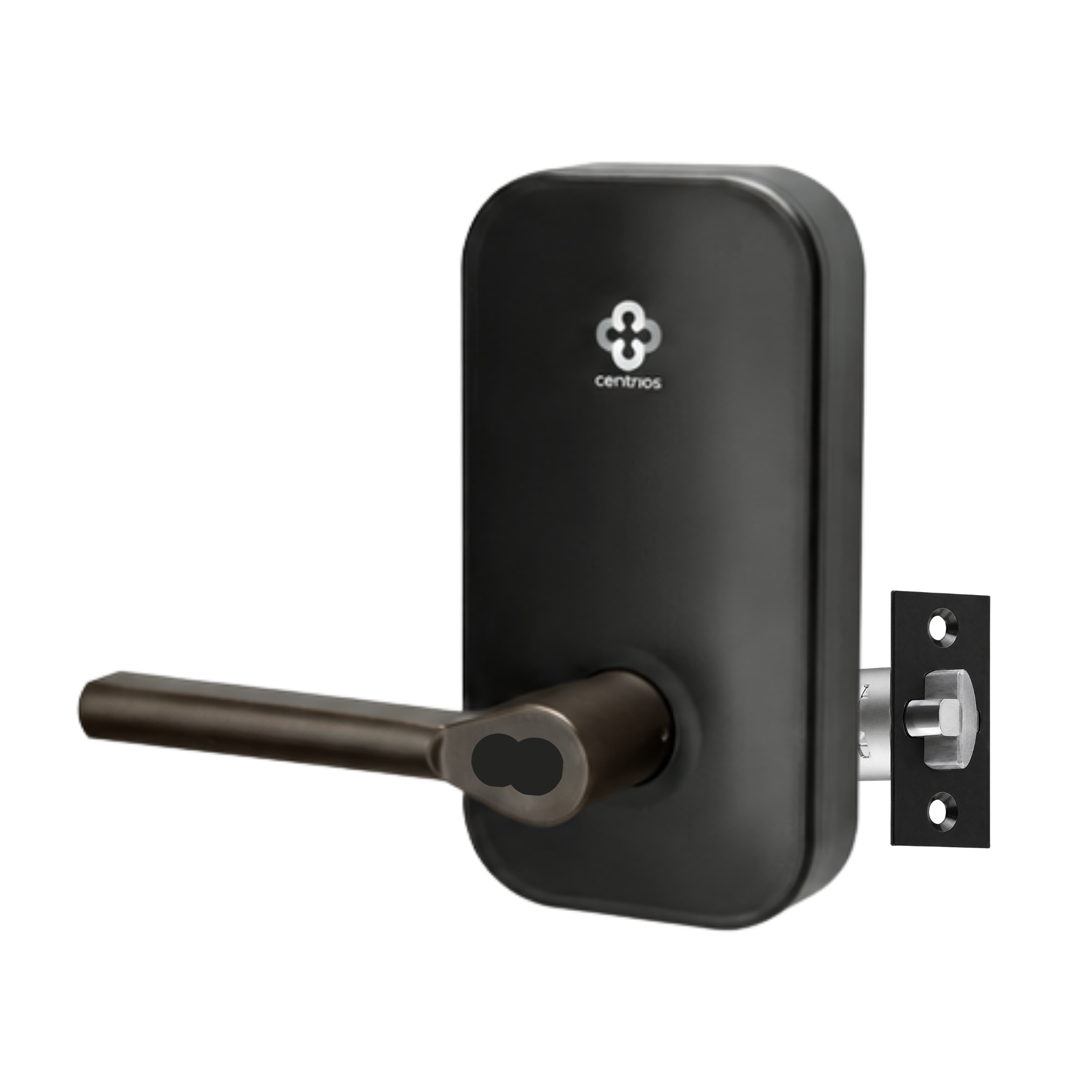

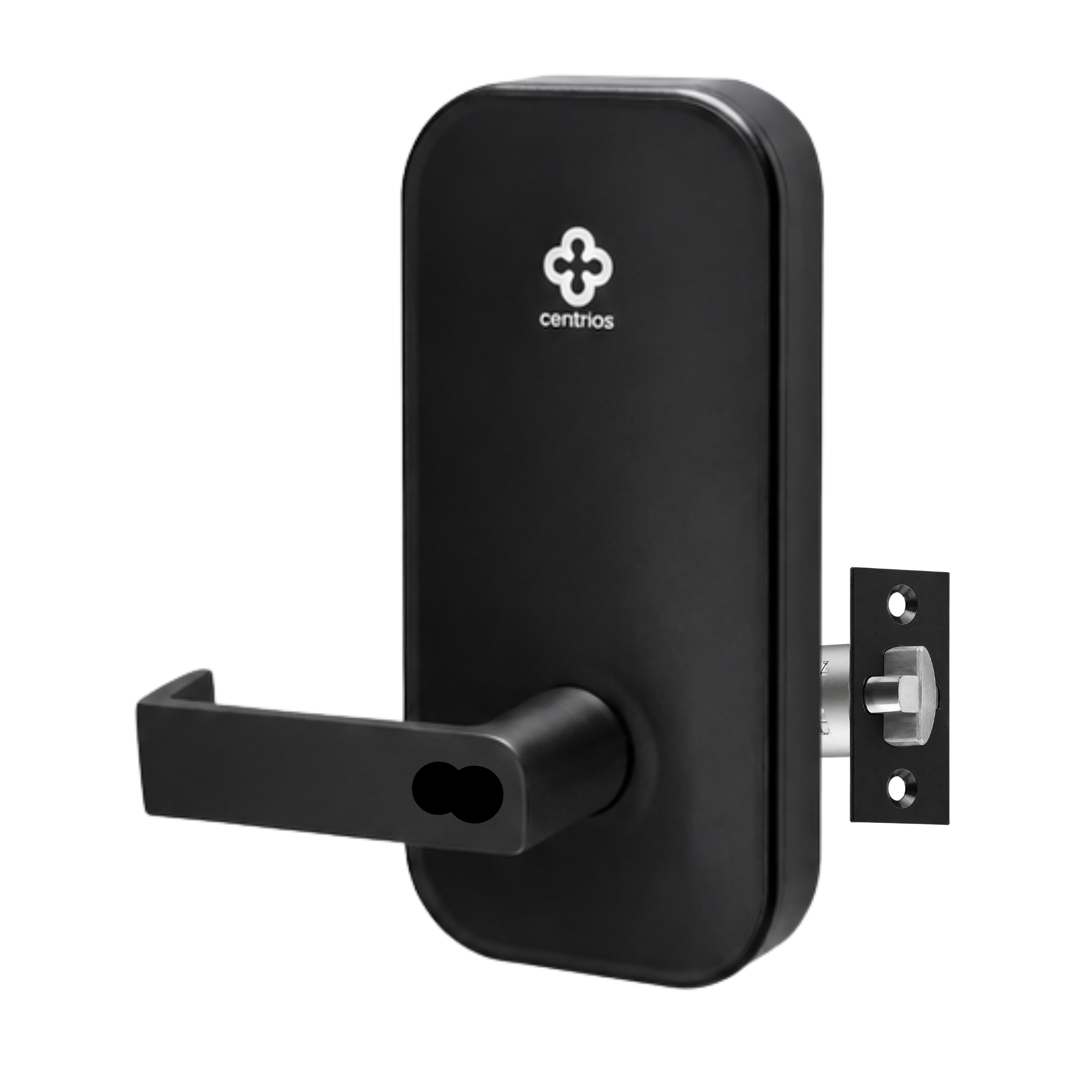

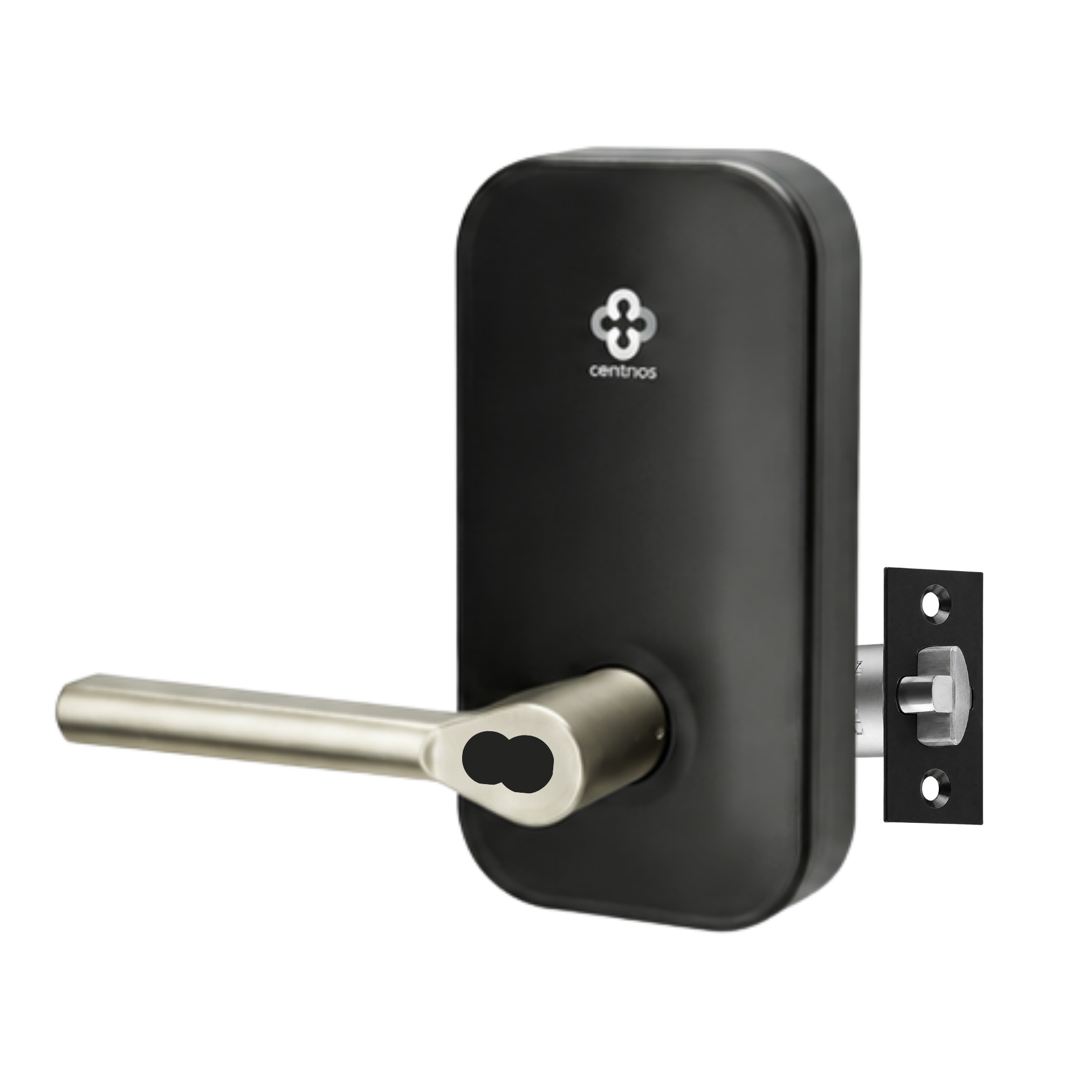

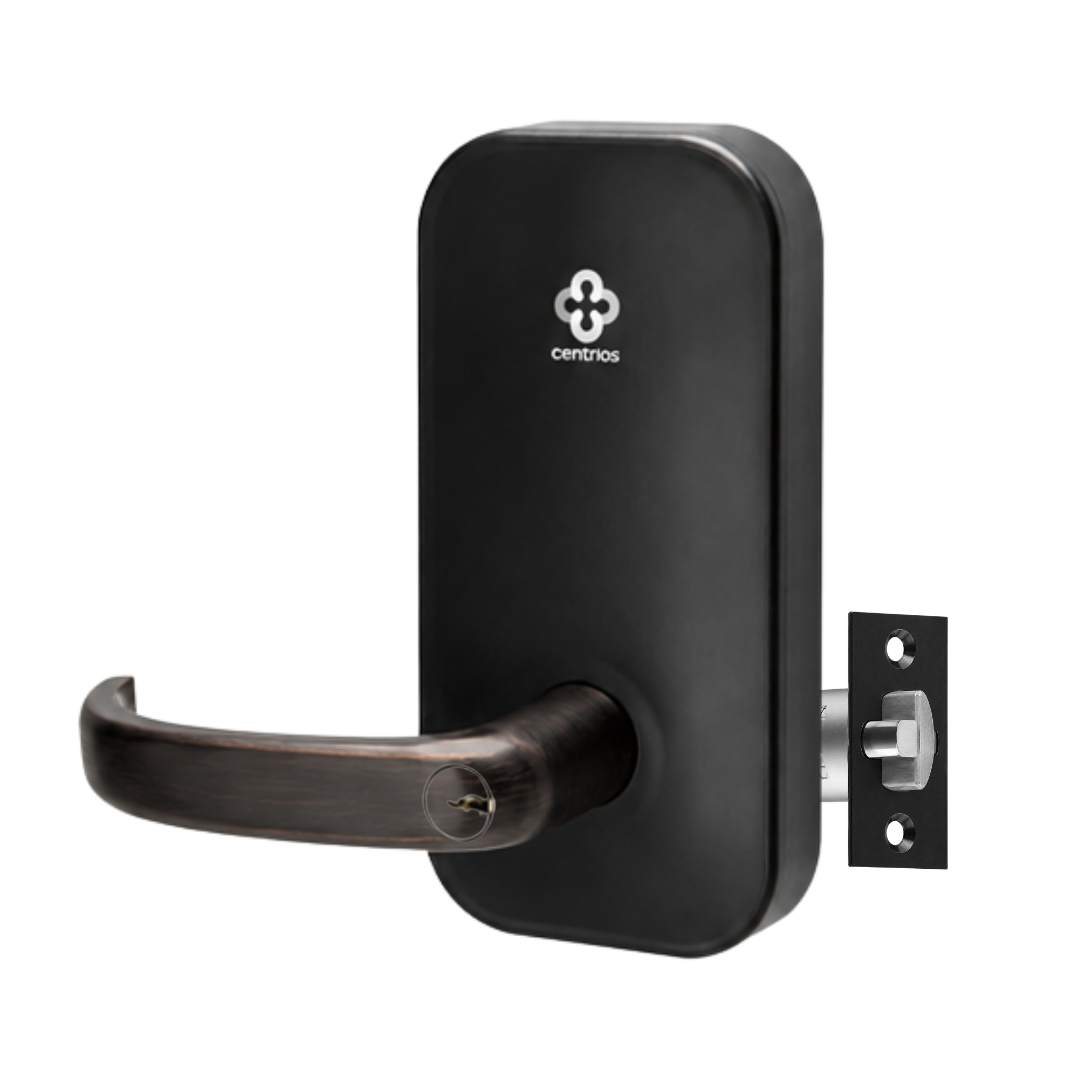

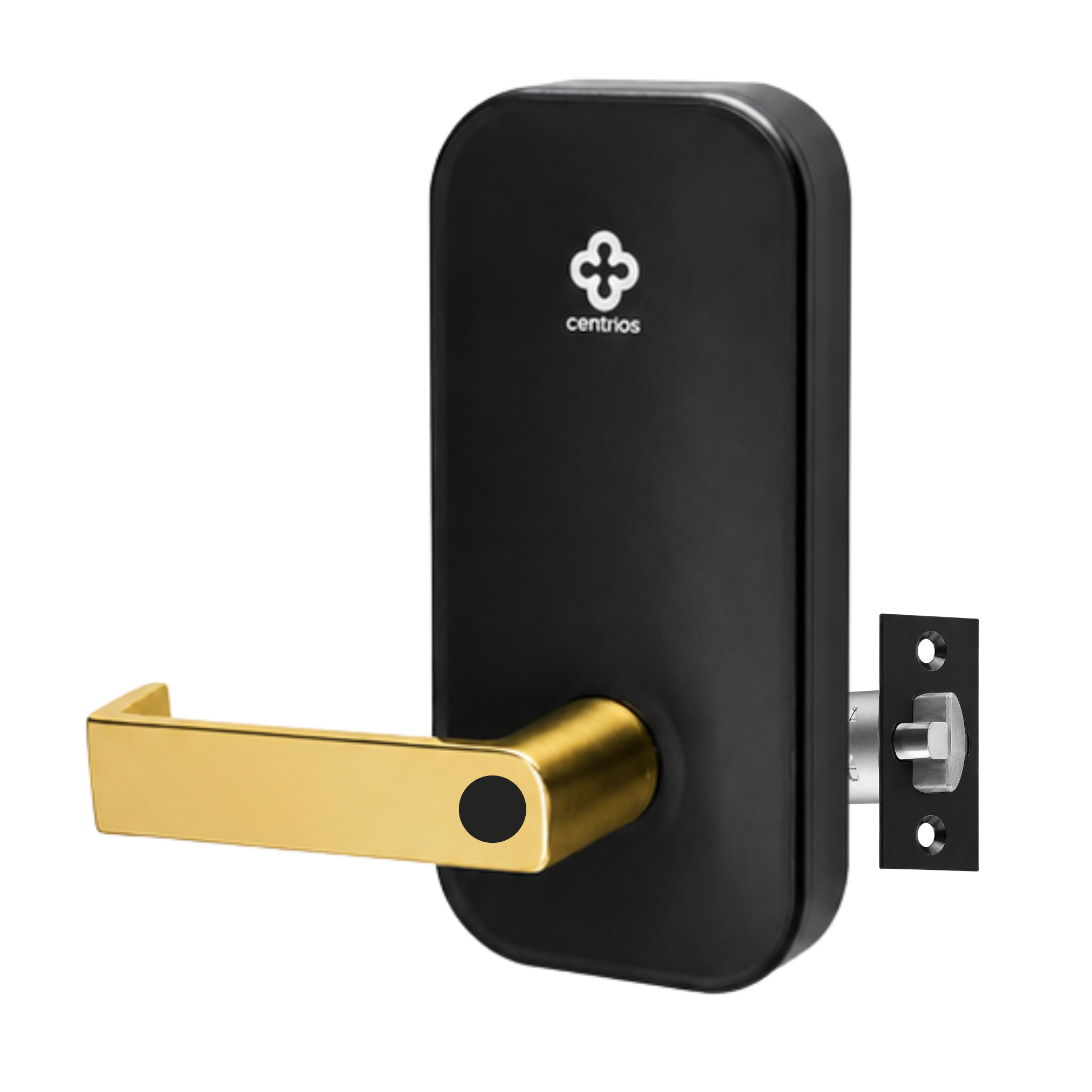

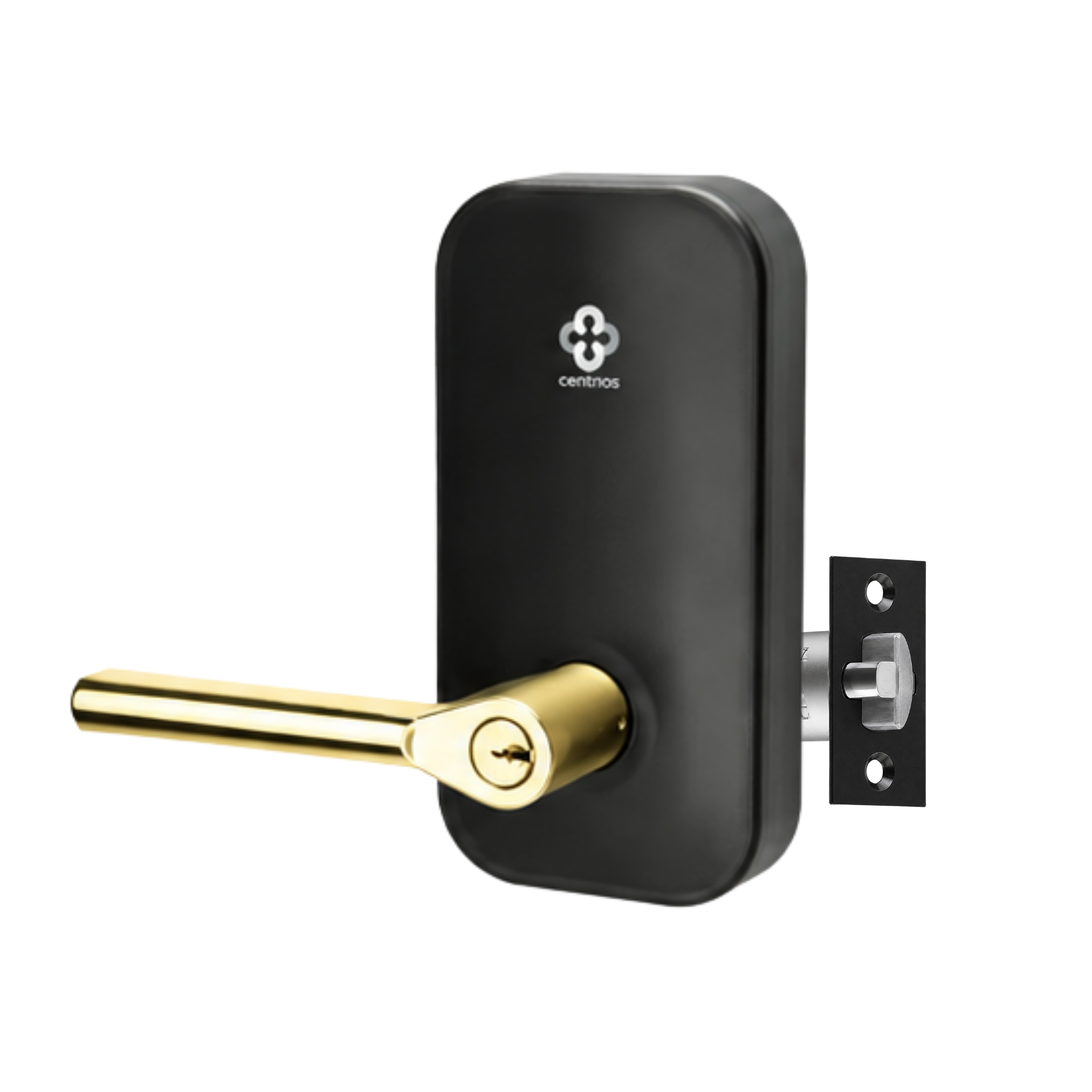

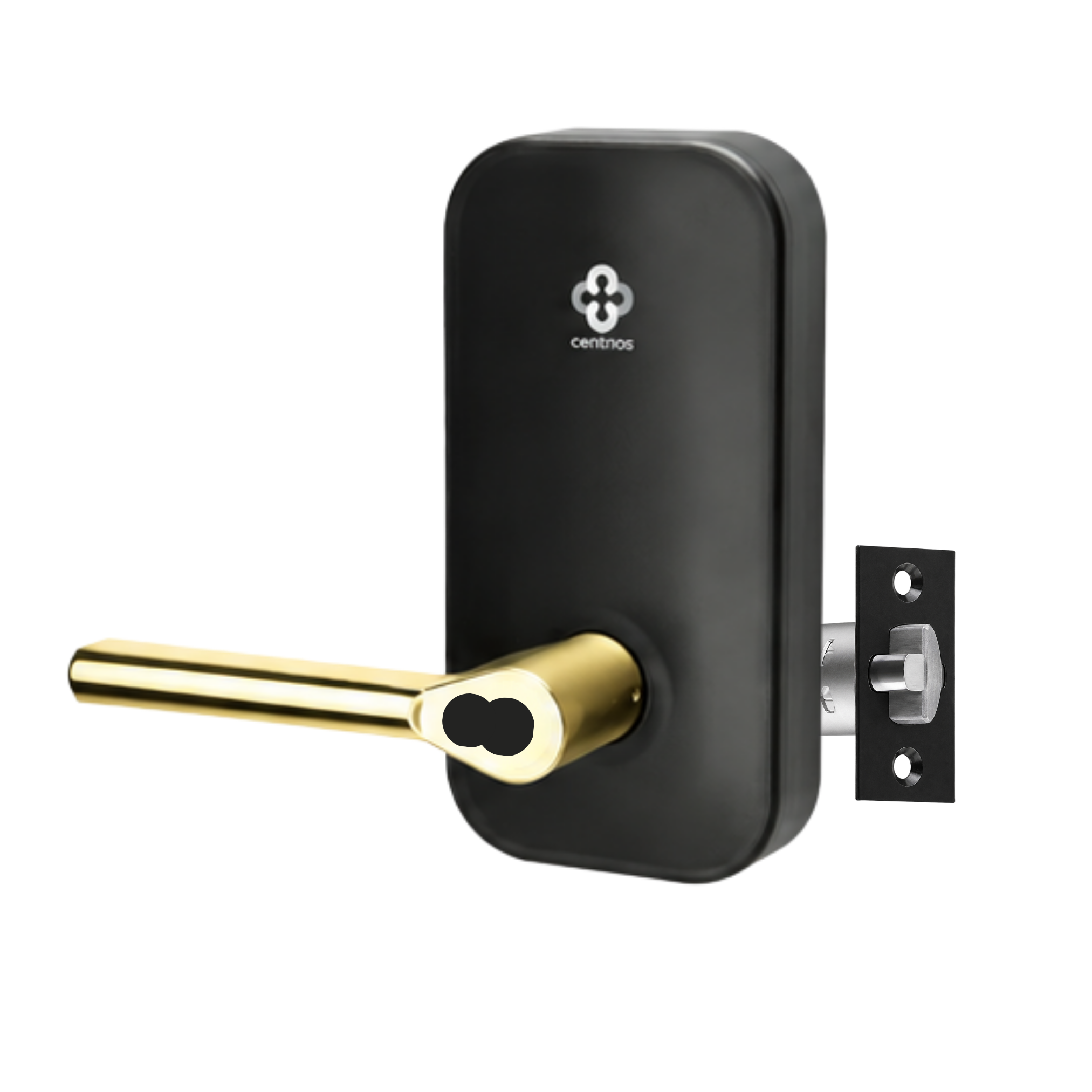

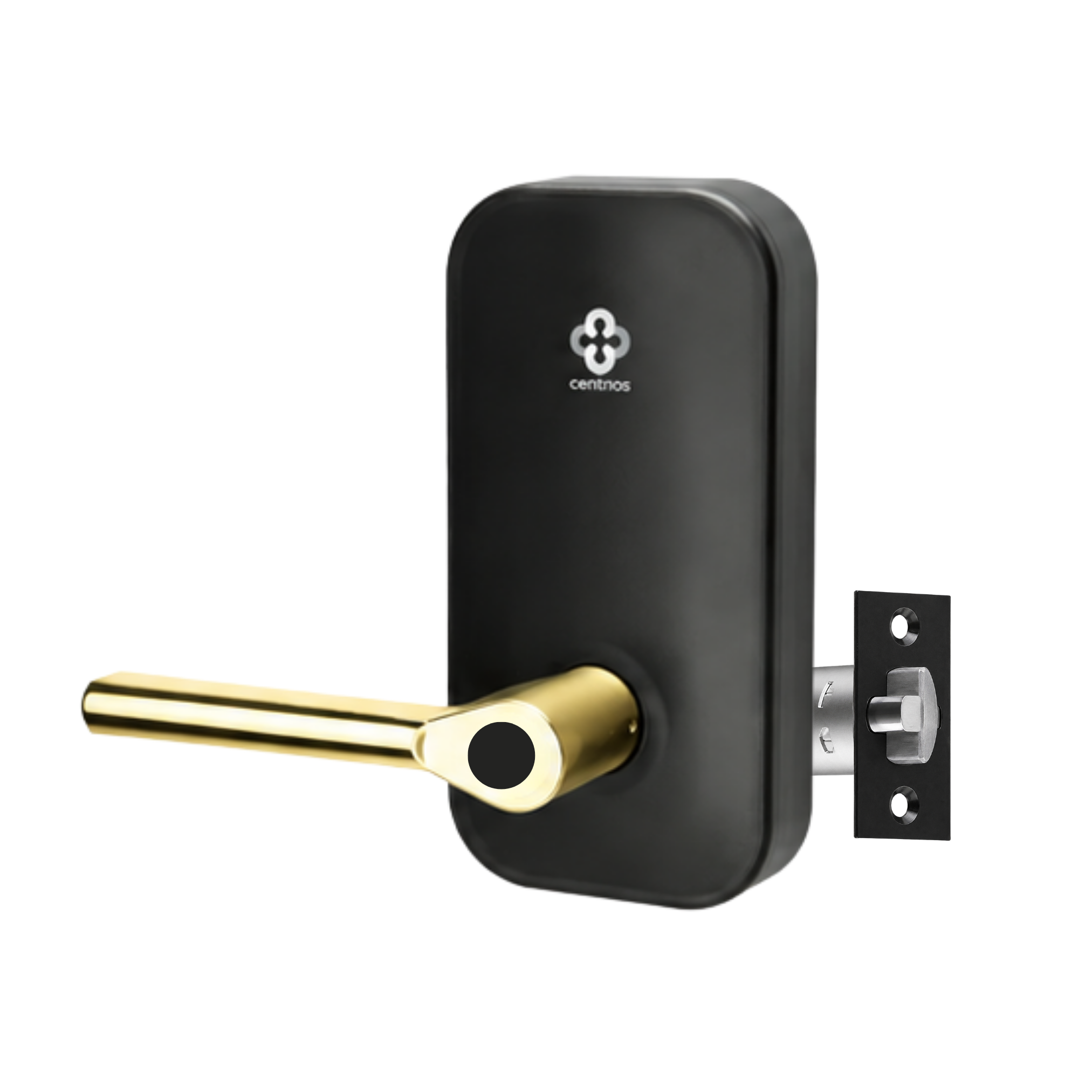

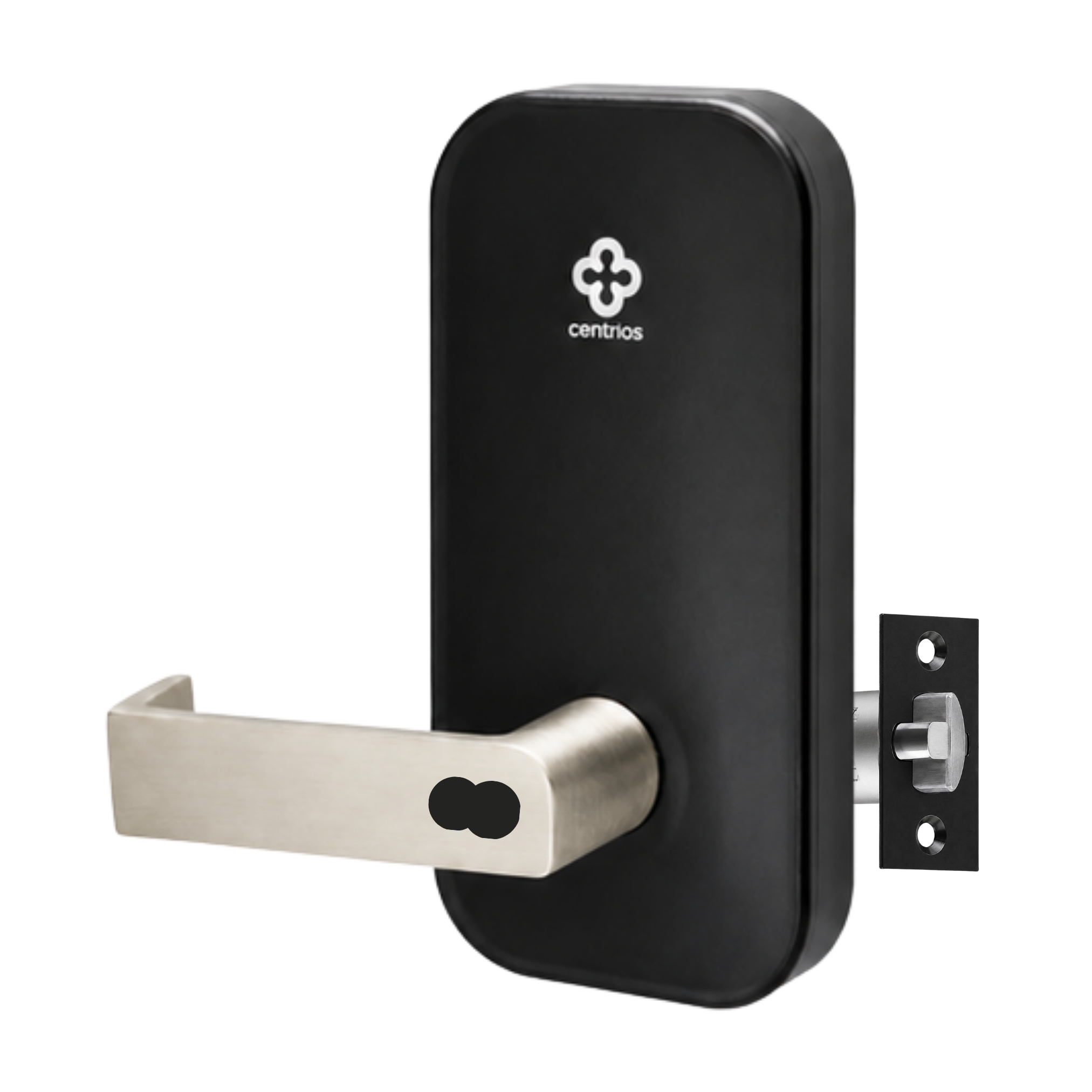

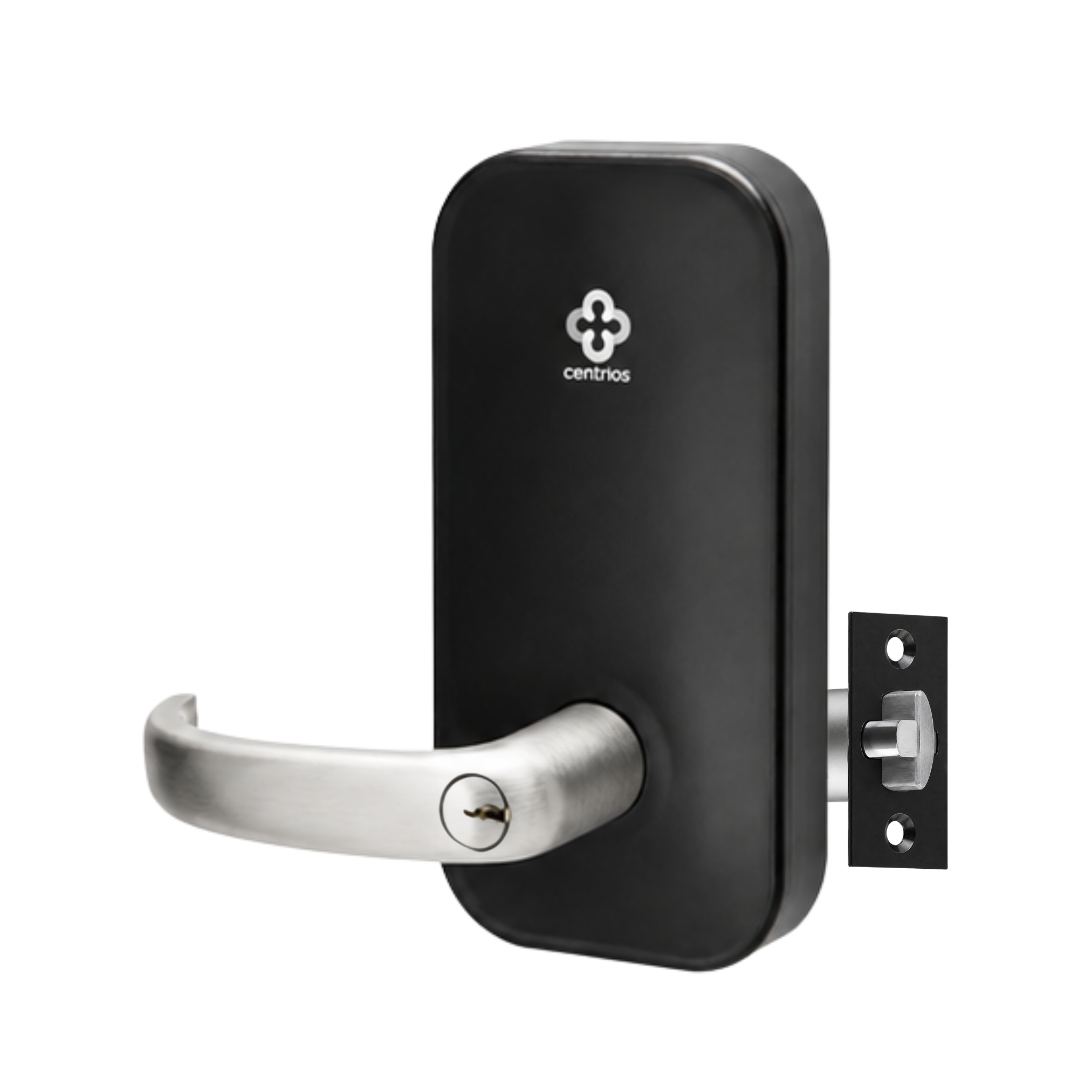

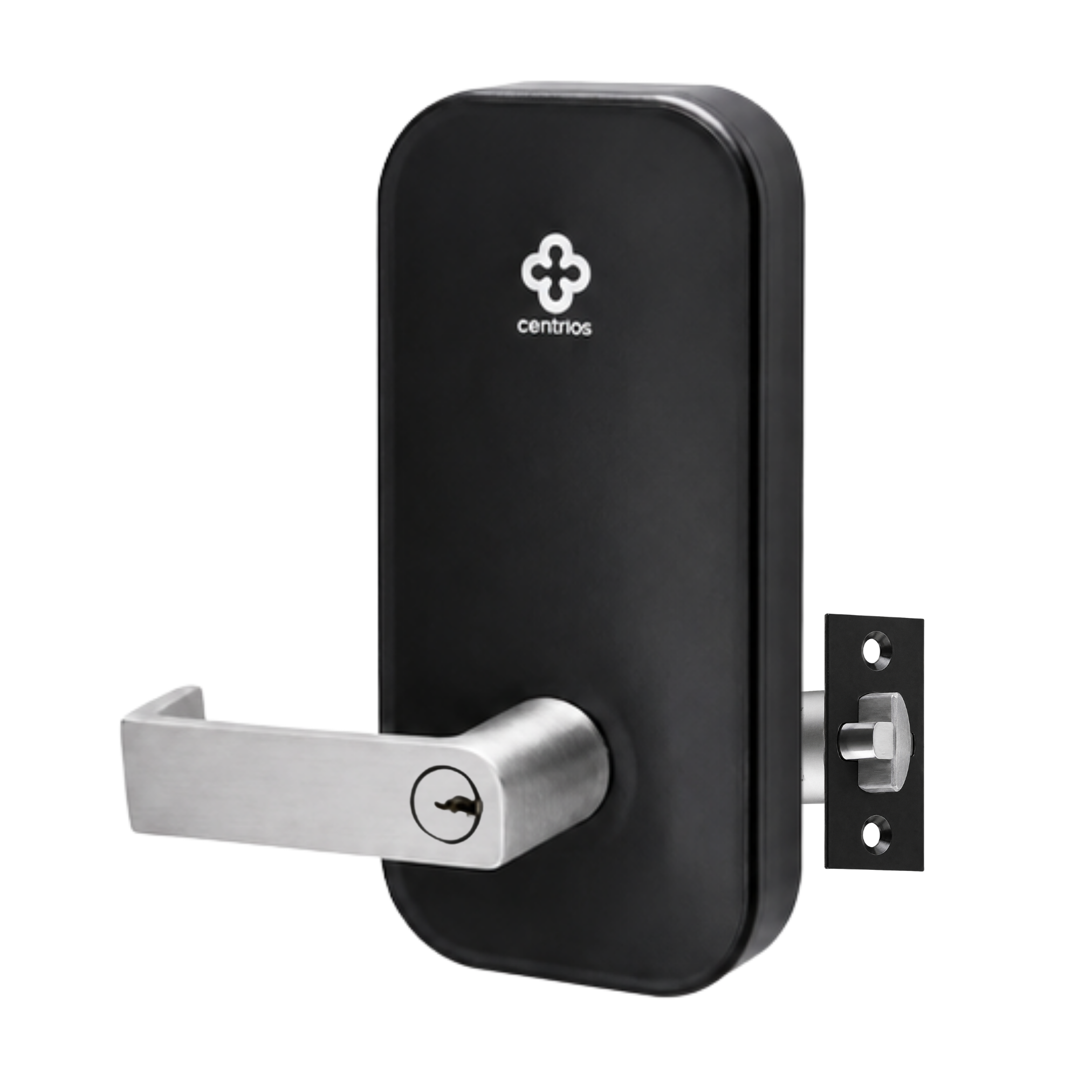

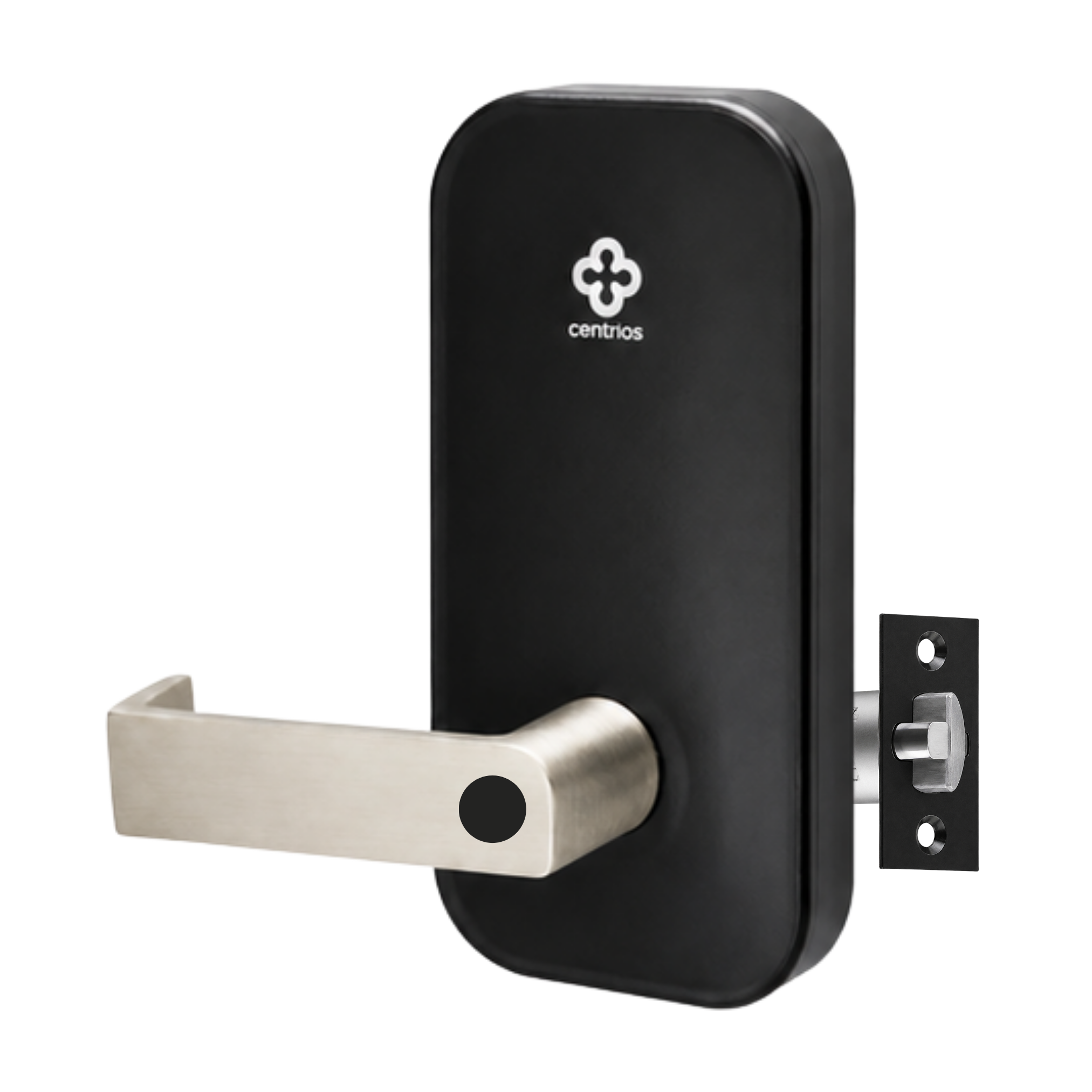

Our cylindrical locks are low profile, sleek units that look great on any door. Designed with advanced polycarbonate our locks are scratch resistant and easy to clean.
Door compatibility
Our patented installation system means your Centrios lock automatically adjusts to doors from 1 3/8” up to 2 1/4” thickness without additional screws or kits. No additional drilling required if you have a standard 161 door prep with thru bolt holes.
Grade 1 strength
Our locks are rated ANSI/BHMA Grade 1 for strength and security. Tested to withstand hundreds of thousands of locking and unlocking cycles and forced entry attempts, Grade 1 locks provide better protection against lock bumping, lock picking, and other forms of malicious intrusion.
Durability
Our locks are independently tested and operated over 1 million times. Rated to prevent the spread of fire for 3 or more hours. In short, they work day-in, day-out no matter what.
Access methods
Mechanical key or bluetooth mobile access.
Power supply
Operates up to one year on four AA Alkaline batteries. Has 9V DC power backup.
Features & Benefits
ANSI/BHMA A156.2 Grade 1
UL 10C 3-hour fire rating
IP57 weather resistant to allow full exposure to both sides of the door
FCC/IC Certified
ADA Compliant
Deadlocking latch
-35 F to 140 F
Warranty
ANSI/BHMA A156.2 Grade 1
UL10C 3-hour fire rating
IP57 weather resistance to allow full exposure
to both sides of the door
FCC/IC Certified
ADA compliant
Deadlocking latch
-40º F to 140º F
Can I Still Use a Physical Key to Operate My Door?

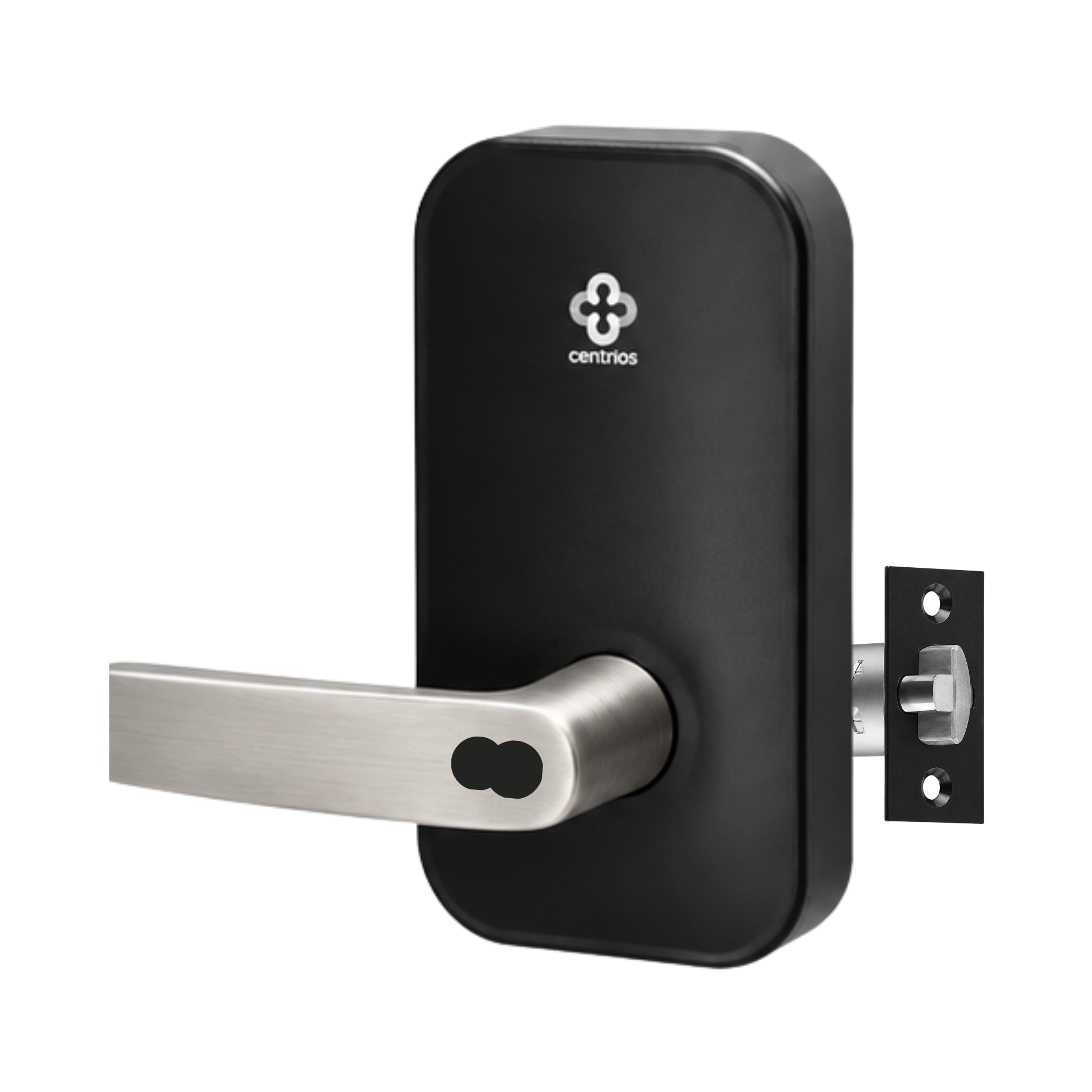

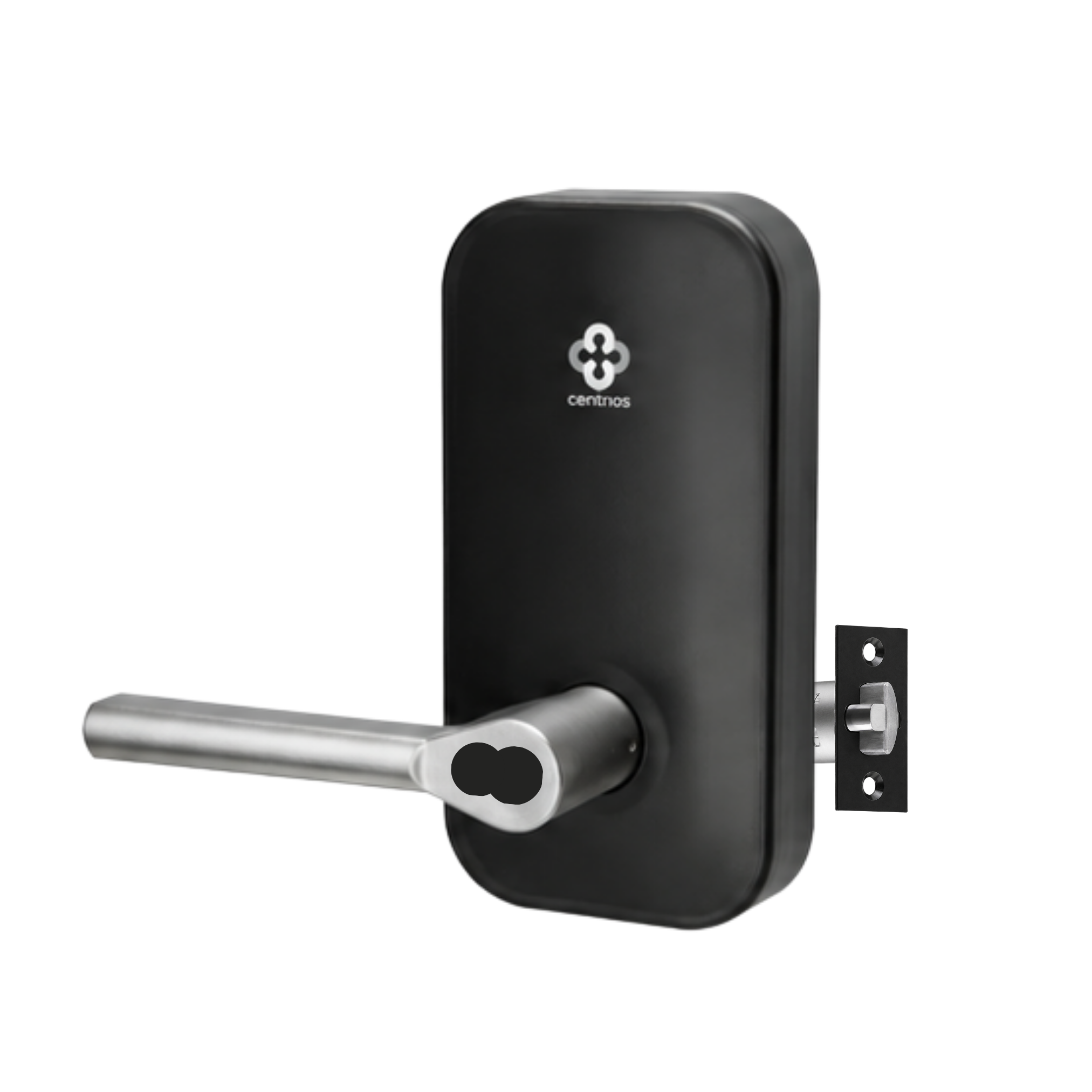

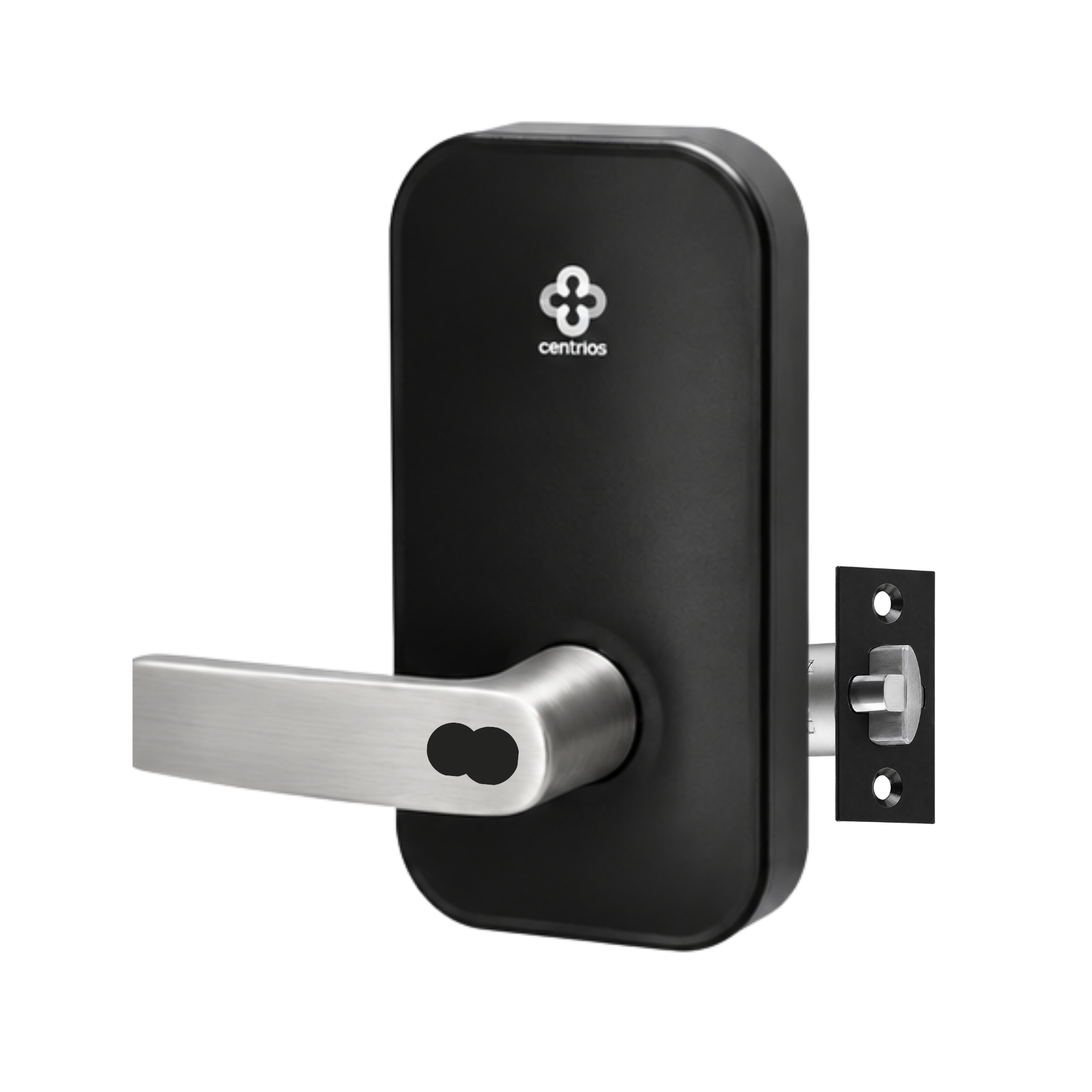

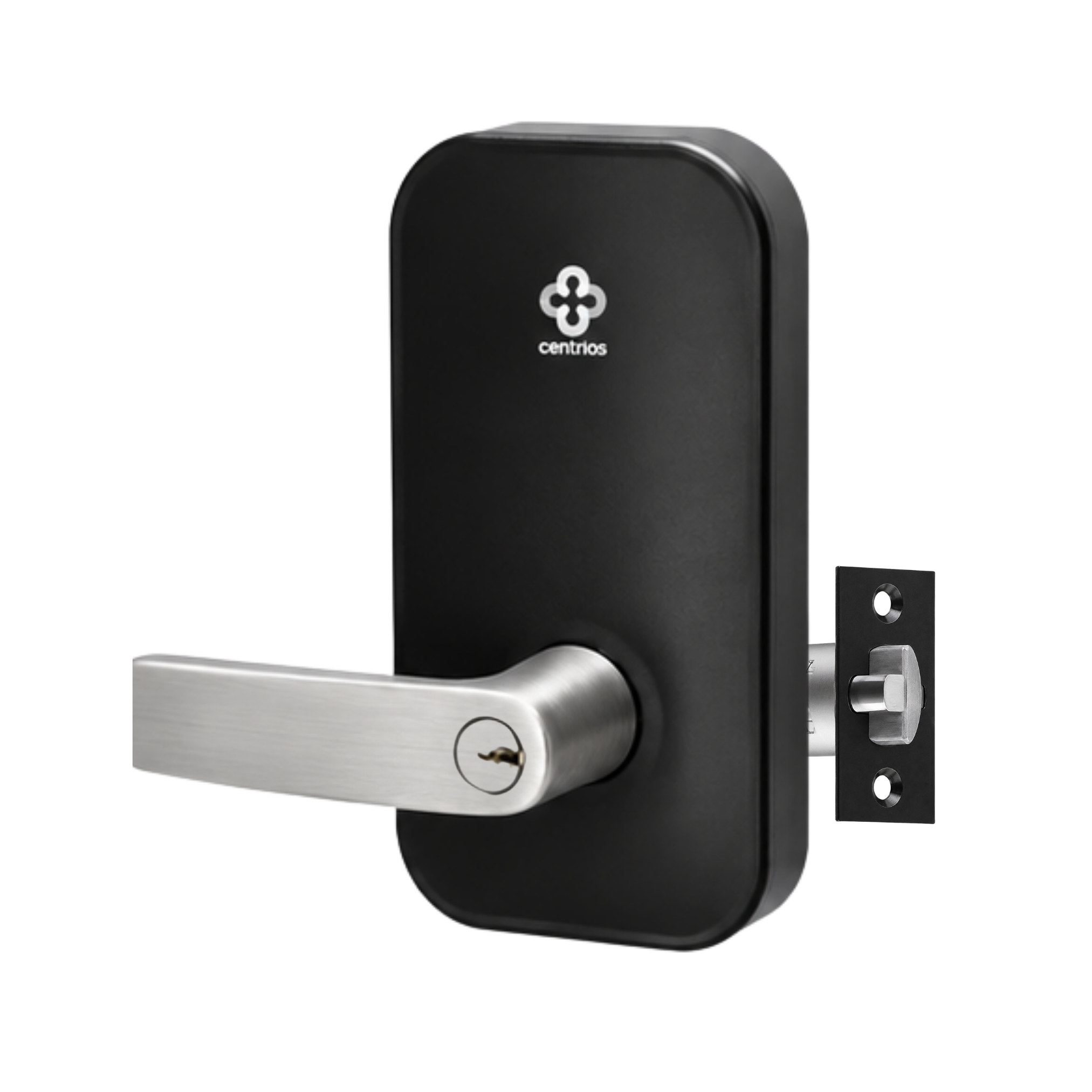

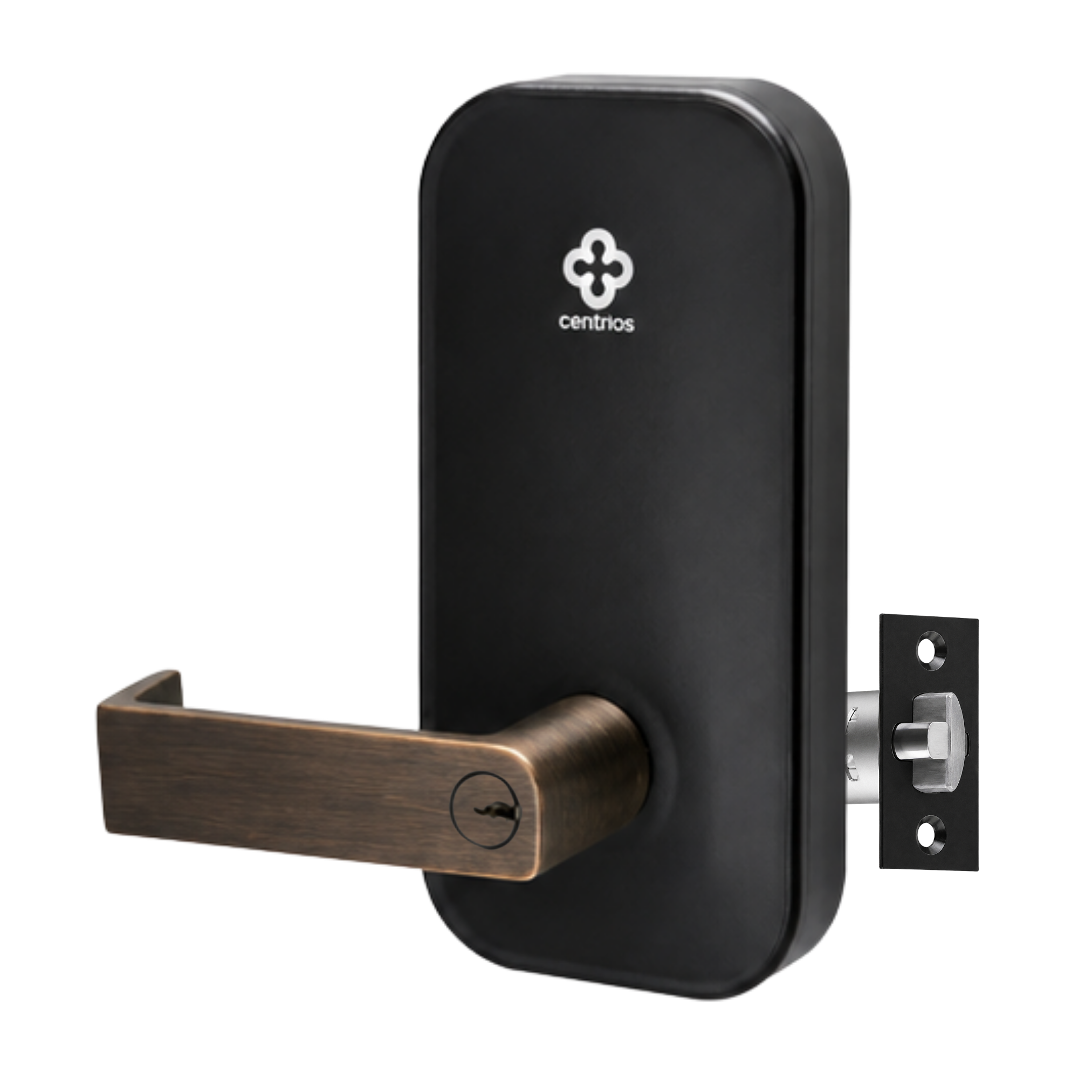

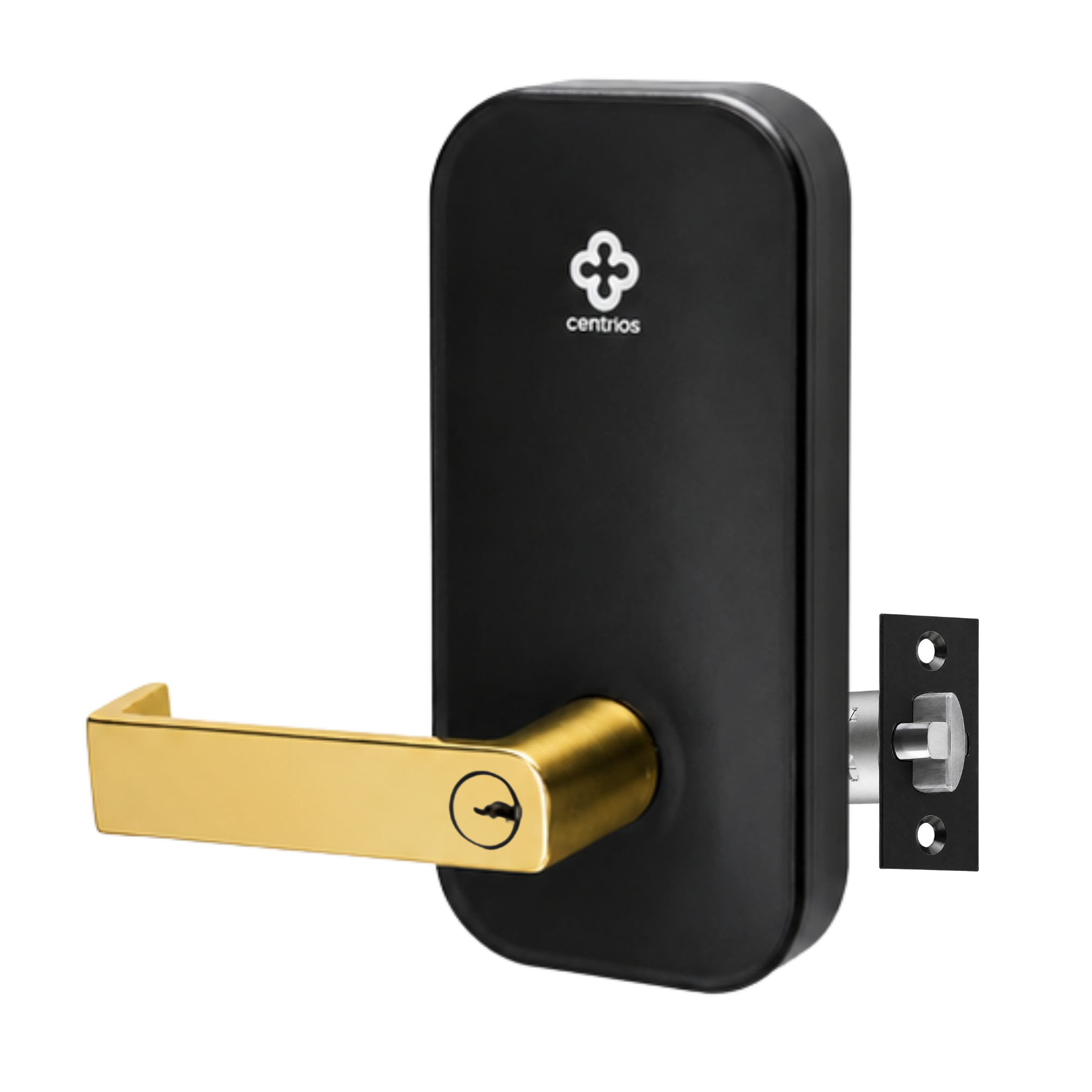

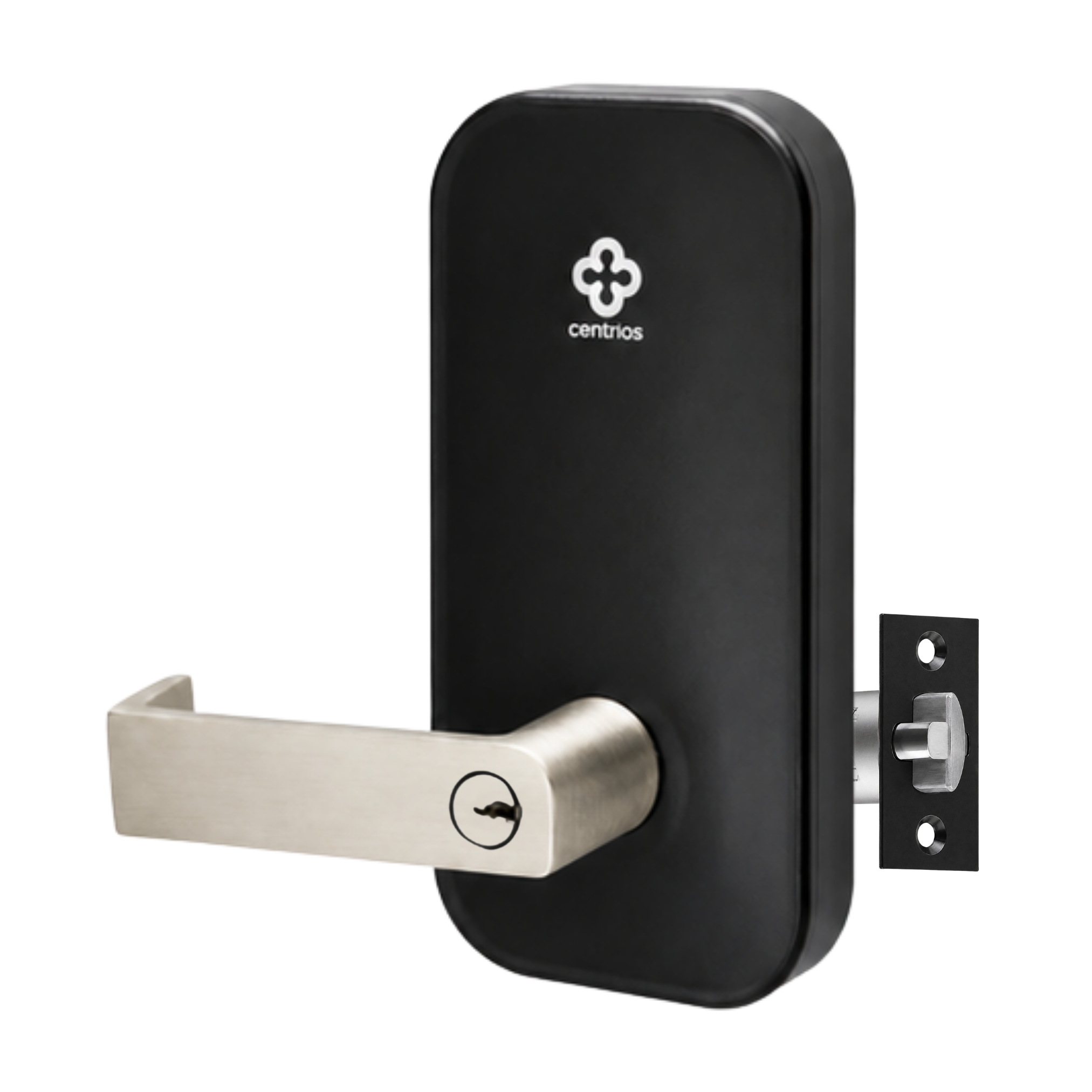

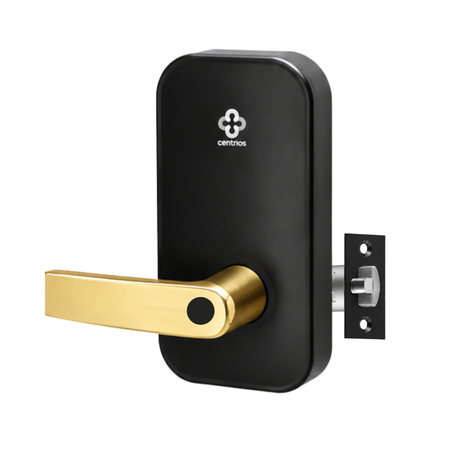

The Centrios Cylindrical lock is available keyed and key free. Keyed versions include two matching keys. Smart reader products offer a capacitive touch keypad. No key/ cylinder solutions are available for the Smart Reader.
What are the supported door applications for the Centrios Cylindrical Lock?
The Centrios Cylindrical Lock is intended for interior or exterior openings with 161 prep with through holes at the 12 and 6 o’ clock position. Door thickness of 1-3/8” to 2-1/4” is supported without any additional hardware or screw packs. A minimum door stile of 4-1/2” is supported.
What is “161 Prep with through holes”?
“161 Prep with through holes” is a cylindrical lock preparation. The center of the bore (backset) will be 2-3/4″ from the edge of the door and the bore itself will be 2-1/8″ in diameter. The edge of the door will have a 1-1/8″ x 2-1/4″ edge prep to account for the latch of the lockset. There is a 5/16” hole at the 12 and 6 o’ clock position of the bore.

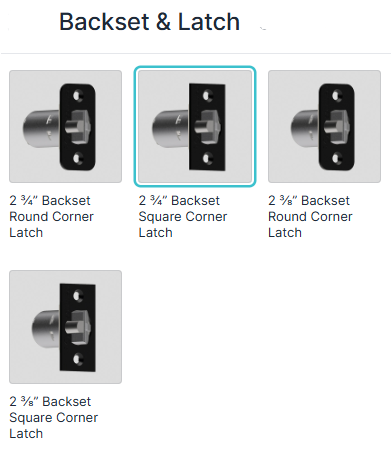

What backset/ latch options are available for the Centrios Cylindrical Lock

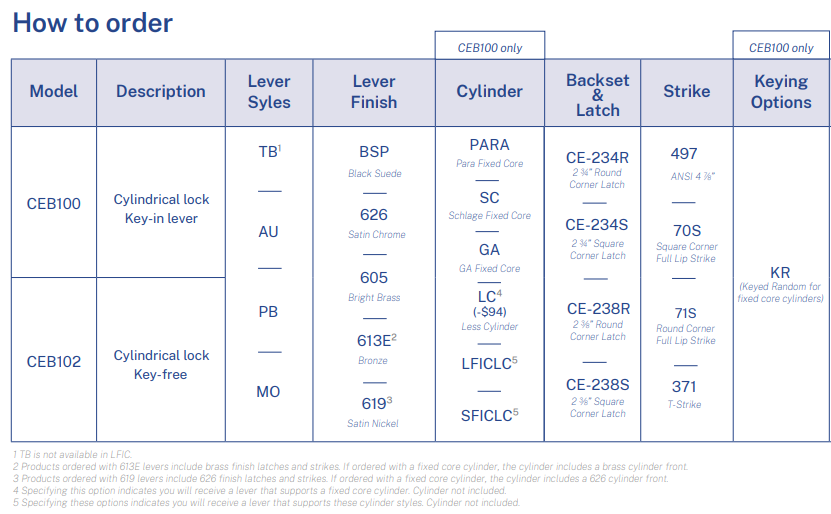

The Centrios Cylindrical Lock ships standard with 2-3/4” backset compatible Latch. A 2-3/8” option is available.
What is the Ingress Protection (IP) rating for the Centrios Cylindrical Lock?
The Centrios Cylindrical Lock has an IP67 rating.
What makes the Centrios Cylindrical Lock durable and ideal for commercial doors?
The Centrios Cylindrical Lock is constructed from premium glass-filled polycarbonate, offering exceptional durability, scratch resistance, and ease of maintenance—ideal for high-traffic commercial environments. Tested rigorously, it meets ANSI/BHMA Grade 1 standards, providing robust protection against lock bumping, picking, and forced entry attempts. Tested to withstand over 1 million operation cycles, the lock also carries a UL 10C 3-hour fire rating and IP67 weather resistance, ensuring reliability indoors and outdoors in extreme temperatures ranging from -35°F to 140°F. Powered conveniently by four AA alkaline batteries with a up to one-year lifespan and a 9V DC power backup, it ensures continuous, reliable operation.
Why choose the Centrios Cylindrical Lock over traditional keypad or mechanical locks for my small business?
The Centrios Cylindrical Lock offers significant advantages over traditional keypad and mechanical locks, particularly for small businesses seeking secure, scalable, and simplified access control. Unlike keypad locks that rely on PIN entry or mechanical locks prone to lost keys, Centrios leverages advanced app-enabled lock technology. It works seamlessly with the Centrios cloud-based access management platform, allowing business owners to unlock doors by touching their phone to the lock, remotely grant access to doors, manage users, set customized access schedules, and view real-time activity logs directly from their smartphone. Ideal for commercial office spaces, retail stores, coworking spaces, restaurants, and more. Centrios enhances convenience, control, and security, perfectly aligning with the needs of growing small businesses.
Can I remotely manage and monitor access using the Centrios mobile app?
Absolutely. The Centrios Cylindrical Lock is fully compatible with the Centrios cloud-based access management mobile app, giving small business owners complete control from anywhere, anytime. Through the app, you can effortlessly grant or revoke access permissions, schedule unlocking hours, view detailed door access history, and receive instant alerts whenever your door is accessed. This wireless, app-controlled locking solution streamlines operational efficiency and provides unmatched visibility and security—perfect for entrepreneurs and managers who require convenient, centralized access control across single or multiple locations.
What makes the Centrios Cylindrical Lock an ideal app-enabled smart lock solution specifically for growing businesses?
The Centrios Cylindrical Lock is specifically designed as an app-enabled smart lock solution for small and growing businesses requiring scalable security and streamlined access management. Unlike residential-grade smart locks or traditional commercial keypad locks, Centrios provides robust commercial-grade hardware and advanced wireless connection directly into the Centrios app and cloud platform when a phone is touched to the lock. This cylindrical lock solution ensures real-time access monitoring, flexible scheduling, and simplified multi-user management. It supports expanding businesses by easily accommodating more doors, users, and locations without complicated setups or infrastructure. The Centrios Cylindrical Lock is not just a lock—it’s a future-ready, scalable access management system tailored for the evolving needs of small businesses.
How does the Centrios Cylindrical Lock simplify installation and access control for businesses?
Centrios Cylindrical Locks simplify installation significantly with a patented system that automatically adjusts to door thicknesses ranging from 1 3/8" to 2 1/4", eliminating the need for additional screws or drilling on doors prepped with standard 161 door prep and thru bolt holes. Designed to streamline access control, the lock offers convenient access via mechanical key or Bluetooth mobile connectivity, enabling effortless and secure entry management for small business owners and their staff. FCC/IC certified and ADA compliant, Centrios provides businesses peace of mind with a 2-year comprehensive warranty covering electronics, mechanical components, and finishes.
