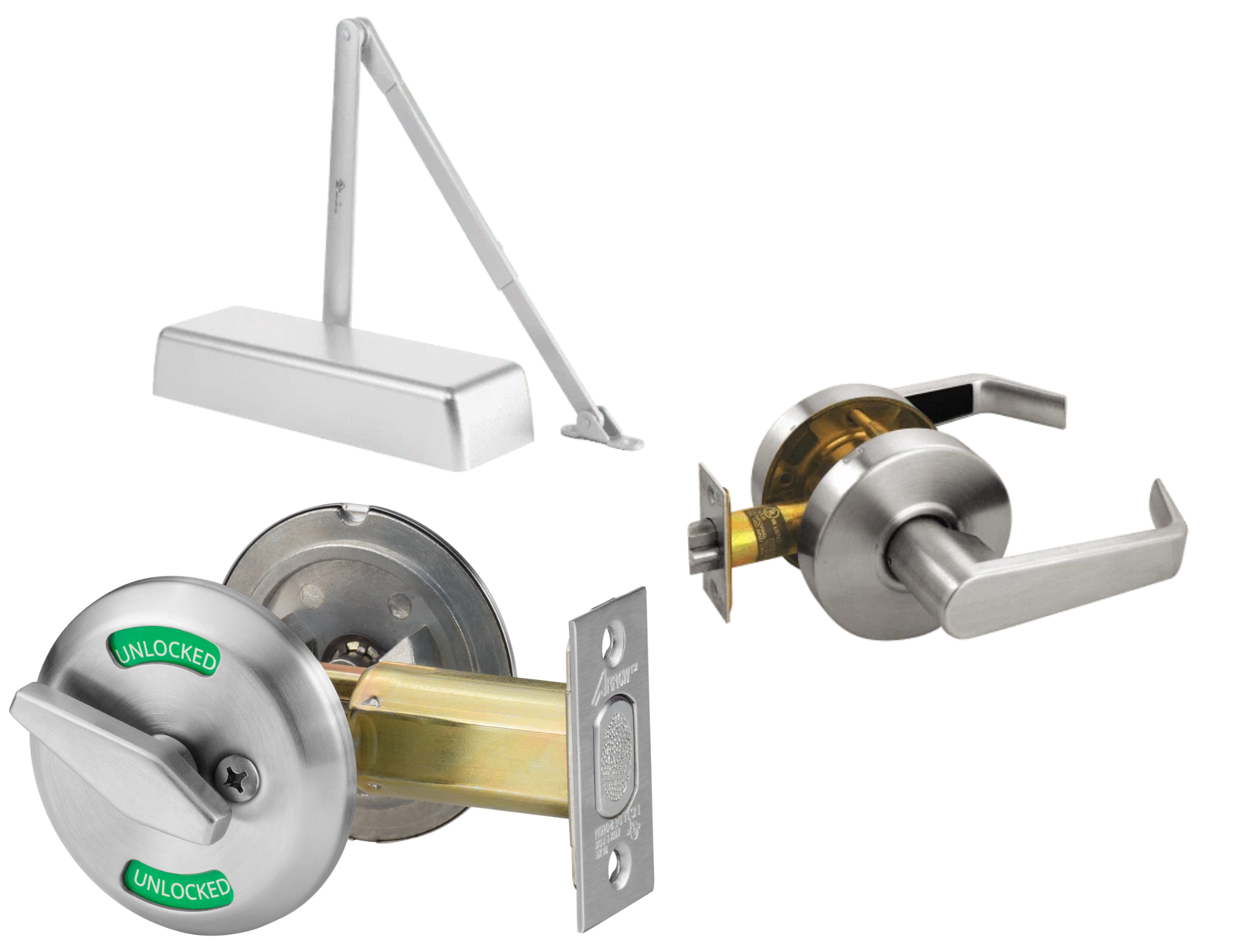

The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications. This product is now available in either standard or IC core versions and both are supplied with removable thru-bolts.*
Features
Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm)
doors standard.
Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
Latch Front: 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
(60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
Exposed Trim: RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
Cylinder: Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional. Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core. Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.*
Keys: 2 brass keys
Handing: Non-handed
Finishes: US3, US4, US26 and US26D. Consult factory for the availability of other non-listed finishes.
Thru-bolts: Removable thru-bolts standard on RL Series
Packaging: 10 per case
Warranty: 5 year mechanical
The Arrow DCN500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications.
Sizes (Adjustable):
DCN516 closers are adjustable for spring sizes 1 through 6 .
Certification:
UL/cUL listed.
UL10C listed for positive pressure to comply with UBC-72 (1997).
Meets the requirements of ANSI A156.4 and ANSI ICC A117.1.
Features
Heavy duty cast iron body.
Hardened steel rack and pinion.
High tensile steel springs.
Staked valves
Two non-critical adjusting valves sweep and latch) control
closing speed.
Backcheck intensity valve.
All temperature fluid.
Full plastic cover standard.
Non-handed for regular, top jamb and parallel arm mount applications.
Supplied with fully threaded self reaming/tapping screws, machine
nuts and thru-bolts for 1-3/4" thick doors.
DCN5xx-1 Series door closers are supplied with a hold open arm.
DCN5xx-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°.
DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn
hold open feature for door openings between 90° and 110°.
Packaging: one per box and four boxes per carton.
10 year limited warranty.
Finishes:
Aluminum (689), Specify AL
Dark Bronze (690), Specify DBZ
The Arrow E Series status indicator deadbolt provides the ultimate in privacy assurance with bold visual indicators on both the inside and outside of the door. The Arrow E Series status indicator uses an emergency key override to unlock the door from the outside in case of emergency.
