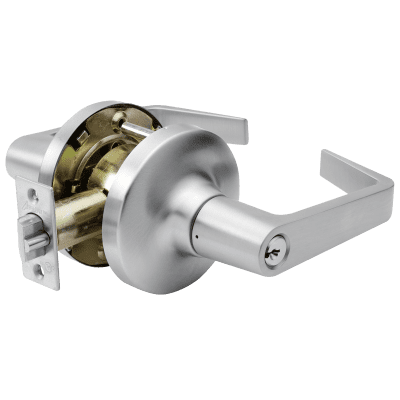

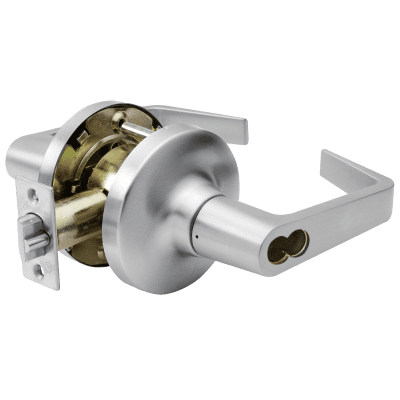

Arrow GL97 Intruder Classroom Function Set 26D Satin Chrome
ANSI/BHMA A156.2, Series 4000, Grade 1
Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
Federal Specification FF-H-106C
ANSI A117.1 Accessibility Code
California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
ADA/Americans with Disabilities Act:
Acceptable Door Hardware: Section 4.13.9
Handles, pulls, latches and other operating devices on accessible doors shall have a shape that is easy to grasp with one hand and does not require grasping, tight pinching or twisting of the wrist to operate. Lever operated mechanisms, push-type mechanisms and “U” shaped handles are acceptable designs.
Housings : Interlocking lever tubes are made from dichromate plated steel. The tubes are attached to the rose insert. This offers fantastic support for a ridged feel without excess movement. Standard bearing sleeves used on most other Arrow lever series are not used on the GL. Requires standard 2-1/8" (53.97mm) bore through door.
OverDrive™: Freewheeling lever action occurs when latch retraction mechanism disengages from lever handle when handle is locked. Built-in stops in the rose insert prevent lever from traveling beyond approximately 70 degrees.
Backset: 2-3/4" (69.85mm) standard.
Door Thickness: 1-3/8" (34.92mm) to 2" (50.8mm).
Latch: Stainless Steel with 1/2" (12.7mm) throw standard. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door is required. Additional latch information below:
Arrow # Backset Type Size
GL71 2-3/4" Guarded 1-1/8"
GL73 2-3/4" Unguarded 1-1/8"
GL70* 2-3/8" Guarded 1"
GL72* 2-3/8" Unguarded 1"
GL81* 3-3/4" Guarded 1-1/8"
GL83* 3-3/4" Unguarded 1-1/8"
GL91* 5" Guarded 1-1/8"
GL93* 5" Unguarded 1-1/8"
