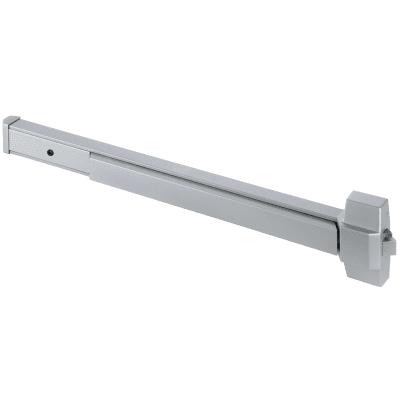

Arrow ED910 Rim Exit Device 36" And 48"

Arrow ED910 Exit Device 36" And 48" In Stock Ready To Ship Free On Orders Over $189. Quantity Discounts At Checkout.

Arrow ED910 Product Catalog

Finishes: Arrow BHMA Equiv. Finish 689 AL Aluminum (sprayed finish) 630 32D Satin Stainless Steel 690 BRZ Dark Bronze (sprayed finish)

Features: Chassis – Stamped steel materials Chassis Cover – Cast zinc Door Type – Fits 1-3/4" (44.5 mm) doors standard. Door Width – For 48" doors, can be cut for a minimum 43" door width. For 36" doors, can be cut for a minimum 31" door width. Stile – 4-1/2" (144.30 mm) minimum Mounting – Wood and machine screws furnished standard Handing – Reversible Dogging – Hex-type hold down Latchbolt – Stainless steel Rail Assembly – Powder coated steel, stainless steel optional Warranty – Ten year warranty Packaging – 4 units per master carton Strike – Surfaced applied, nylon coated ES90 Strike:

For 36" Door Widths: Part No. Aluminum Finish (sprayed) ED910-36.AL Satin Stainless Steel Finish ED910-36.32D Dark Bronze Finish (sprayed) ED910-36.BRZ

For 48" Door Widths: Part No. Aluminum Finish (sprayed) ED910-48.AL Satin Stainless Steel Finish ED910-48.32D Dark Bronze Finish (sprayed) ED910-48.BRZ Parts: Part No. Strike ES90 Screw Pack ES9-201 End Cap (aluminum) ES9CAP.AL End Cap (dark bronze) ES9CAP.BRZ
