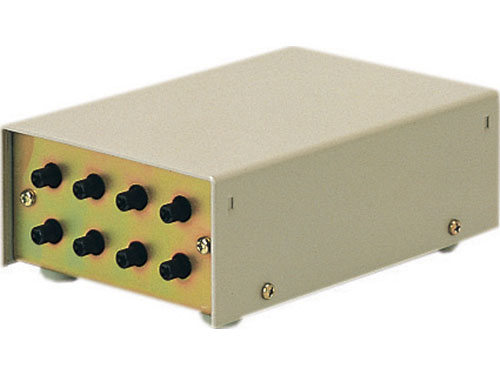

Paging/Talkback Adaptor
Used with TB-H/B and provides paging/talkback from handsets to an overhead PA system
Features
- Provides paging/talkback from TD-H handsets to an overhead PA system
- Single or multi-zones
- Music source connection, automatically mutes when paging
Specs
| 5KΩ, 1.5V max. |
| AUX or PHONO 100K~500KΩ, 0.12V~0.5V |
| 17KΩ, 0.3V, 1KHz for full output |
| Audio output range: 100mV~1.2V, 10KΩ or less |
| 40dB, 1KHz at max. volume |
| Less than 80dB (phono) |
| Adaptor to Amplifier: 2-cond., overall shield - use Aiphone #822202 Adaptor to Master Station: 3-cond.,overall shield - use Aiphone #822203 |
