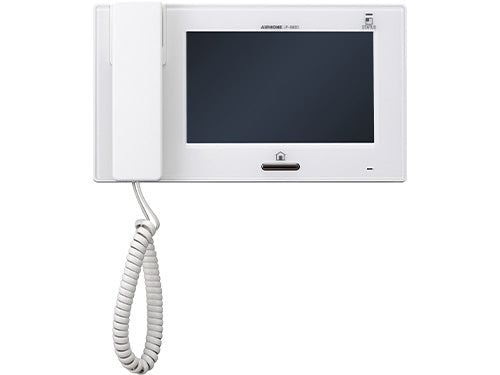

7" Video Answering Station with Touchscreen LCD
The JP-4MED is the primary answering station for the JP Series. It's equipped with a 7" touchscreen, handset and can have up to 4 video door stations and up to 8 sub-stations attached to it.
Features
- 7″ Touchscreen LCD
- Hands-free (VOX) or handset (duplex) communication
- Selective door release controls
- Room to room calling
- Door Station Monitoring
- Hearing aid T-Mode compatibility
- Digital pan, tilt, and zoom
- Brightness control
- Connects to JP-4MED or JP-8Z with a single Cat-5e cable
- Internal / Built-In picture memory: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting
- SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting
Specs
| 340mA (max.) |
| 7" TFT color LCD |
| Open voice hands-free auto-voice actuation, Handset Simultaneous Communication |
| Door Station to Master Station: 2-cond., mid cap, solid, non shielded - use Aiphone #871802 Power Supply to Master Station: 2-cond., mid cap, solid, non shielded - use Aiphone #871802 Master Station to JP-8Z/Sub Master: Cat-5e or Cat-6 |
| Door Station to Master Station: 165' (22AWG), 330' (18AWG) Master Station to Distribution Adaptor: 650' Power Supply to Master Station: 16'(22AWG) 33'(18AWG) |
| 24V AC/DC, 0.5A (N/O dry closure contact) |
| 32-104°F (0-40°C) |
| 5-11/16" H x 10-1/16" W x 1-7/8" D |
